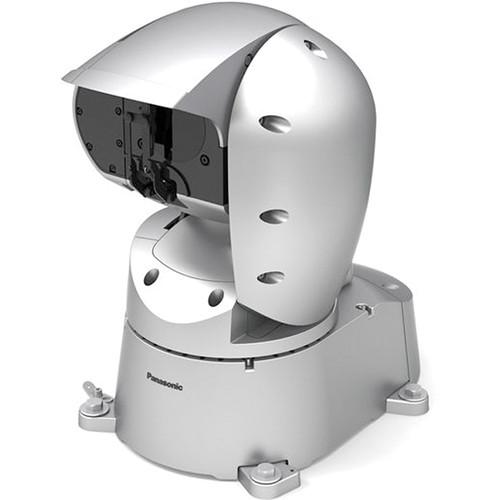

User Manual for Panasonic AW-HR140 Full HD Integrated Outdoor Remote PTZ Camera Click to enlarge the picture
Contents of the user manual for the Panasonic AW-HR140 Full HD Integrated Outdoor
- Product category: PTZ Cameras Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic PTZ Cameras
|
User manual for the Panasonic AW-HR140 Full HD Integrated Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description The AW-HR140 Full HD Integrated Outdoor Remote PTZ Camera from Panasonic features 1/2.86-type full HD 3MOS sensors and a DSP (Digital Signal Processor). Even with the vibrations that occur in nature or other installation environments, clear images are captured with the vibration compensation provided by the Image Stabilizer. Using an IP connection, up to 100 units of the camera can be controlled by the AW-RP120G/RP50 remote camera controllers via a hub (switching hub). One camera can also be operated by up to five of the remote camera controllers via IP connection.
This outdoor-capable SDI-output remote camera can be easily used not only as an information capturing camera, but also for various applications, such as video capture in stadiums or high-quality monitoring in airports. The camera comes with a IP65 water and dust-resistant case with salt-damage resistance and a wiper as a standard feature. - Anti-salt air corrosion protection
- DC power operation (XLR) or PoE++ (Power over Ethernet ++)
UPC: 885170311657 In the Box Panasonic AW-HR140 Full HD Integrated Outdoor Remote PTZ Camera Cable Cover Mounting Hardware Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic AW-HR140 Full HD Integrated Outdoor Remote PTZ Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic AW-HR140 Specs | Sensor | 1/2.86-type 3MOS sensor, Full HD | | Lens | 20x optical zoom/10x digital zoom, f1.6 to F3.4 (4.5 to 90mm; 35 mm equivalent: 32.13 to 642.5mm) | | Focus | Switching between auto and manual | | Focus Distance | Entire Zooming Range: 2.62' (800 mm)
Wide End: 1.31' (400 mm) | | Color Separation Optical System | 3MOS | | Minimum Illumination | 2 lux (50 IRE, f1.6, 36 dB, without accumulation) | | Horizontal Resolution | 1000 TVL typical (center area) | | Gain Selection | Auto, 0 to 42 dB (1 dB steps)
37 to 42 dB is Super Gain mode | | Frame Mix | 0 dB, 6 dB, 12 dB, 18 dB, 24 dB
This cannot be configured when the format is 1080p: 29.97/25/23.98, 1080PsF: 29.97/25/23.98
When iris mode or focus mode is set to auto, this cannot be set to 18 dB or 24 dB | | Electronic Shutter Speed | 59.94p/59.94i: 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000
29.97p: 1/30, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000
23.98p: 1/24, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000
50p/50i: 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000
25p: 1/25, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 | | Synchro Scan | 59.94 Hz: 60.15 to 642.21 Hz (255 steps)
50 Hz: 50.15 to 535.71 Hz (255 steps) | | Gamma | HD, FILMLIKE1, FILMLIKE2, FILMLIKE3
0.30 to 0.75 (manual setting) | | White Balance | AWB A, AWB B, ATW, 3200K, 5600K, VAR (2000 to 15000K) | | Chroma | Amount Variability: Off, -99 to 40% | | Scene File | Scene1, Scene2, Scene3, Scene4 | | Output Format | 1080p: 59.94/50/29.97/25/23.98
1080PsF: 29.97/25/23.98
1080i: 59.94/50
720p: 59.94/50 | | Synchronization System | Internal/External synchronization (BBS/Tri-level sync) | | Line Input | Input
2 x channels, XLR balanced input
Input Signal Level: +4/0/-20 dBu (selectable in menu)
Volume Variable Range: -40 to +12 dB (can be changed in 1 dB steps in the menu)
Output
4 x channels, superimposed over SDI output
Embedded audio output level: FS-12 dB: -12 dBFS, FS-18 dB: -18 dBFS, FS-20 dB: -20 dBFS (selectable in menu)
Sampling Frequency: 48 kHz (synchronized to video)
Quantization Bit Rate: 24-bit (LPCM)
Audio Compression Format (IP): G.726, AAC-LC (High quality) | | Input | 12 V Input: XLR connector
G/L Input: BNC connector, BBS (Black Burst Sync), tri-level sync supported, locking to a subcarrier is not possible with BBS
Audio Input: Mini XLR connector (line input), #1: Input1 Common, #2: Input1 HOT, #3: Input1 COLD, #4: Input2 Common, #5: Input2 HOT, #6: Input2 COLD | | Output | HD-SDI Output
SMPTE424/SMPTE292 standards
75 Ohms (2 x BNC)
OSD output is possible from the SDI OUT 1/PM connector but not from the SDI OUT 2 connector | | Input/Output | LAN: LAN connector for IP control/video output/audio output/PoE++ power supply PoE++ (IEEE802.3bt Draft ver.2.0 standard)
RS-422: Control input RS-422A
External: #1: DC GND, #2: HOT, #3: COLD, #4: 12 V output | | Pan/Tilt Speed | Maximum speed 60°/s or higher | | Panning Range |
