User Manual for Panasonic AW-PS551PJ AC Power Adapter Click to enlarge the picture
Contents of the user manual for the Panasonic AW-PS551PJ AC Power Adapter
- Product category: Camera Accessories Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Camera Accessories
 |
User manual for the Panasonic AW-PS551PJ AC Power Adapter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|

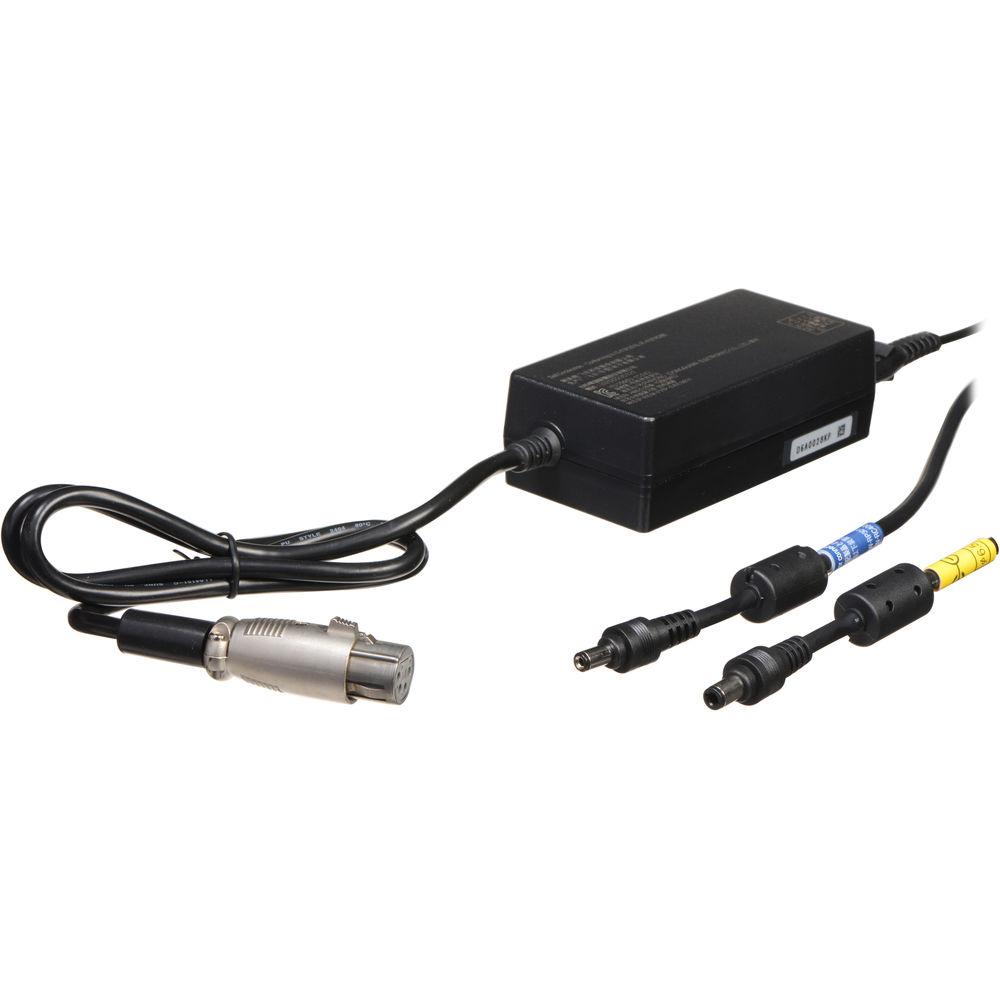

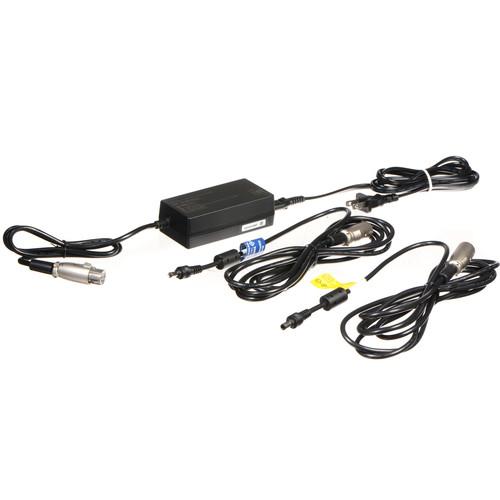

Product description The AW-PS551PJ AC Power Adapter from Panasonic allows you to power select convertible cameras and their peripherals, multipurpose cameras and their peripherals, and live switchers. It connects to a power outlet using the included cord, and supports 100–240 VAC input for use around the world. Also included are two DC cables, one with a 5.5mm plug and one with a 6.5mm plug, which enable you to use the power adapter with a variety of equipment. Note: The included power cable supports up to 125 VAC input. UPC: 885170283381 In the Box Panasonic AW-PS551PJ AC Power Adapter Power Cord VEEB0115A DC Cable with 5.5mm Plug (9.9') VEEB0116A DC Cable with 6.5mm Plug (9.9') Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic AW-PS551PJ AC Power Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic AW-PS551P Specs | Compatibility | Select convertible or multipurpose cameras and their peripherals, and live switchers, including:
AK-HC1500 Convertible HD Camera
AW-SW350 Compact Switcher for Convertible Camera System
AW-RP555 Compact Multi-Hybrid Control Panel
AW-PH400 High-Speed Indoor Pan/Tilt Head
AW-IF400 Protocol Converter for AW-PH400 Pan/Tilt System
AW-DU600 Public Phone Line Adapter and RS-232C D.A.
AW-RP655 Multifunction Controller
AW-RP400 Controller
AK-HRP150 Camera Controller | | Material | Molded resin | | Cable Length | 30.7" / 78 cm | | Power Input | 100-240 VAC, 50/60 Hz, 1.2 A | | Power Output | 12 VDC, 3 A | | Connector | 4-pin round DC output connector | | DC Cables | 1 x Cable with 5.5 mm plug, UL-style 2464 2 x 18 AWG, 9.9' / 3 m
1 x Cable with 6.5 mm plug, UL-style 2464 2 x 18 AWG, 9.9' / 3 m | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Humidity | 20-90% (no condensation) | | Dimensions | 2.25 x 1.45 x 4.50" / 5.7 x 3.7 x 11.5 cm, excluding protrusions | | Weight | Approx. 0.57 lb / 260 g | | | | Package Weight | 2.5 lb | | Box Dimensions (LxWxH) | 12.6 x 9.1 x 3.2" |
