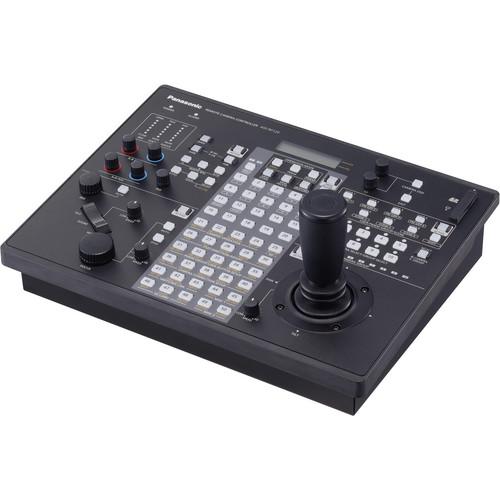

Product description The Panasonic AW-RP120 Remote Camera Controller supports a variety of Panasonic remote camera systems. IP connection allows a large-scale, flexible, and simple system configuration for controlling up to 100 remote cameras and the simultaneous use of multiple controllers. The panel features color adjustment dials and a joystick for high response pan and tilt operation. A preset memory with batch recall and tracing memory save labor by allowing single-person operation. Equipped with Paint and other camera adjustment functions, the AW-RP120 meets a wide range of high-end needs. - IP Connection
- Up to 100 remote cameras can be connected and controlled via a switching hub. Automatic IP allocation simplifies the configuration of large-scale systems.
- Multi-Control
- The IP connection allows five AW-RP120G controllers to simultaneously control one remote camera.
- Serial Control Compatibility
- An RS232C port enables external control, and up to five remote cameras can be connected and controlled. The AW-RP120 is also compatible with many existing systems.
- AW-HS50N/E Linking
- The IP connection allows linking with an AW-HS50N/E Compact Live Switcher.
- Control Panel
- The control panel features a pan/tilt joystick, a seesaw zoom lever, a focus dial and an iris dial. In addition, a speed adjustment dial modifies each of the pan/tilt, zoom and focus functions.
- Tracing Memory
- The remote camera operations (pan, tilt, zoom, focus, iris, and white balance modes) can be memorized and recalled. Up to ten memory items can be stored for each camera.
- Preset Memory
- Up to 100 camera angle settings (pan, tilt, zoom operation) can be registered and retrieved for each camera to simplify a variety of camera controls.
- Preset Batch Retrieval
- By creating groups of preset memories (up to four groups) multiple camera angle settings (up to ten cameras) can be retrieved in a single batch, enabling one-touch control of routine operations.
- Camera Image Adjustments
- Gain, Shutter, Detail, AWB, ABB, Master Pedestal, R/B Pedestal, and R/B Gain can be adjusted.
- Direct Selection Buttons
- The AW-RP120 features ten camera selection buttons. Numerical buttons (1-50) on the panel allow retrieval of 50 preset memories and ten tracing memories.
- Other Features
-
- One-touch switching of remote camera Scene Files
- Settings can be backed up on a SD memory card
- Zoom, focus, and iris indicator display
- LCD panel for menu operation
- Eight user definable buttons
UPC: 885170103924 In the Box Panasonic AW-RP120 Remote Camera Controller 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic AW-RP120 Remote Camera Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic AW-RP120 Specs | Compatibility | AW-HE50HN/HE/SN/SE, AW-HE60HN/HE/SN/SE, AW-HE120WP/WE/KP/KE, AW-HE100N/E, AW-HE2P/E, AK-HC1500G, AK-HC1800G, AW-HE870N/E, AW-E860N/L, AW-E750P/E, AW-E650P/E, AW-E350P/E, AW-PH360N/L, AW-PH405N/E, AW-PH650N/L, AW-PH400P/E (requires AW-IF400G) Controllable features vary depending model | | Power Supply | DC 12 V | | Power Consumption | 8 W | | Connectors | DC 12 V IN (XLR 4-pin)
LAN (RJ-45) 10BASE-T/100BASE-TX, to control remote cameras
SERIAL (RJ-45) RS-422, to control up to 5 remote cameras
TALLY/GPI (D-sub 25-pin)
REMOTE (D-sub 9-pin) RS-232C, for external control | | Dimensions | 13.5 x 3.06 x 10.44" (342 x 77 x 265 mm) excluding protrusions | | Weight | 6.9 lb (3.1 kg) | | | | Package Weight | 10.2 lb | | Box Dimensions (LxWxH) | 16.5 x 14.0 x 9.6" |
