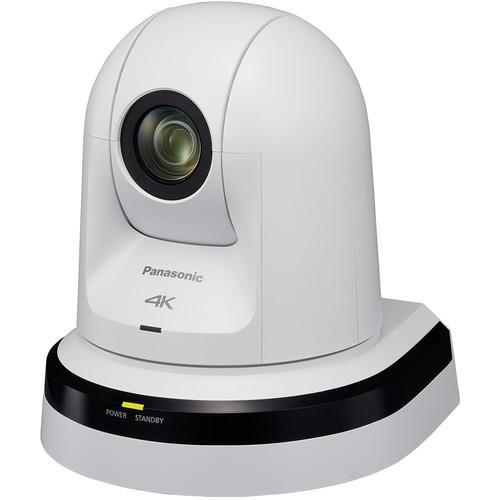

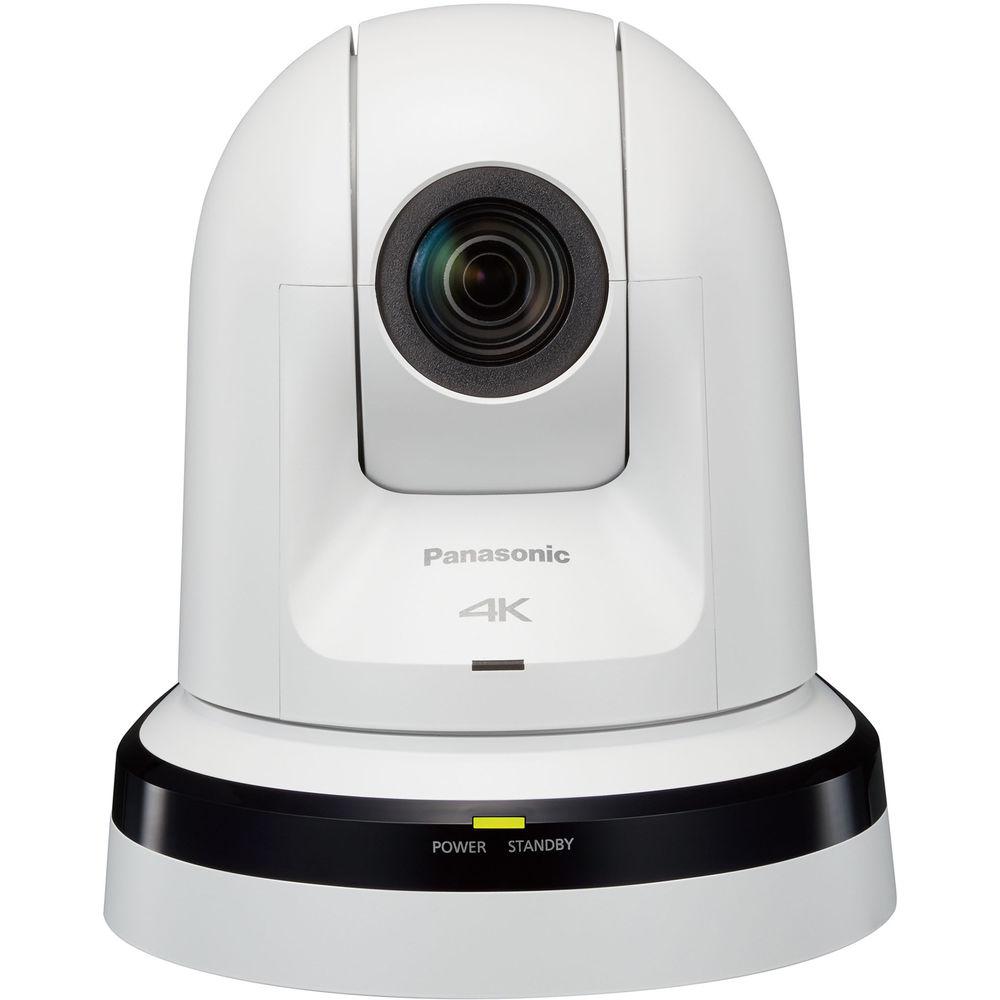

Product description The white AW-UE70 4K Integrated Day/Night PTZ Indoor Camera from Panasonic is capable of producing quality 4K and full HD video output and is designed for versatile applications. The AW-UE70 Camera delivers 4K (UHD: 3840 x 2160) resolution images at 29.97p/25p via HDMI, and is also capable of 4K IP streaming, and in-camera 4K recording. Equipped with variety of output including 3G-SDI, HDMI, USB or IP, this camera is suitable for versatile application such as remote video production, live events, or video conferencing.The AW-UE70 Camera also supports PoE+, so the camera only needs one LAN cable for its power supply, control, and video output with embedded audio. Offering a new standard in versatile and high-quality remote video production with IP streaming besides many other powerful features, the AW-UE70 Camera expands the capabilities of integrated camera for professional video system users. - 4K image quality via HDMI, USB, and IP
-
- 1/2.3-type MOS sensor
- 4K (UHD: 3840 x 2160) video via HDMI, USB, and IP
- 4K / HD IP streaming
- Optical zoom 20x, iA zoom 22x (4K mode) / 30x (HD); digital extender (1.4x, 2.0x, 4.0x, 6.0x, 8.0x)
- Supports HDMI (up to 4K/29.97, 25p) and 3G-SDI (up to 1080/59.94, 60p)
- Single Cable Solution for Remote Video and Audio Capture
-
- Supports PoE+ for lower installation costs
- 4K/HD IP streaming
- Audio embedded
- IP control with image monitoring using PC, Mac and mobile terminals
- Up to 100 cameras can be controlled via IP connection when using network hub
- Powerful features
-
- Wide Angle of View: Horizontal 65.1°
- Optical Image Stabilization (OIS) with gyro sensor
- Freeze during preset function
- ND filter (Auto, thru, 1/4, 1/16, 1/64) and night mode
- USB video class support
- Versatile terminals

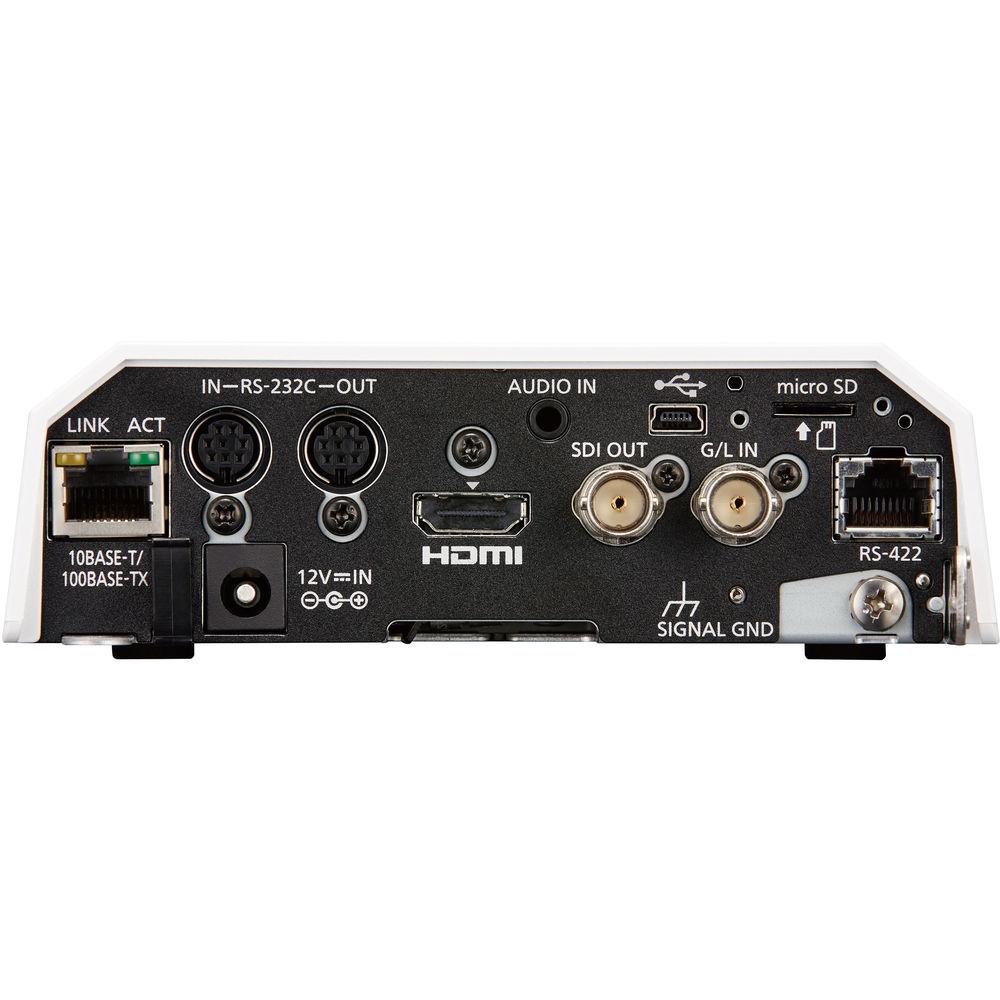

- Outputs include 3G-SDI, HDMI, IP, USB (mini B)
- Inputs include genlock, audio (mic/line)
- RS422, RS232C, IP remote control types
- microSD card recording function
UPC: 885170259430 In the Box Panasonic AW-UE70 4K Integrated Day/Night PTZ Indoor Camera (White) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic AW-UE70 4K Integrated Day Night PTZ Indoor Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic AW-UE70 Specs | | | Imaging Sensor | 1/2.3 MOS | | Lens | Optical 20x, f 4.08 to 81.6 mm/F1.8 to 3.6 | | Horizontal Resolution | 1300 TVL (type) (Wide, Center) (4K mode)
1000 TVL (type) (Wide, Center) (HD) | | | | Power | 12 VDC IN, PoE+ (IEEE802.3at standard) | | Audio Input | MIC/LINE (Embedded in SDI/HDMI/IP/USB) | | Video Output | HDMI/SDI/USB | | Interface | LAN/RS-232C/RS-422 remote control | | Output Formats | SDI/HDMI:
2160/29.97, 25p (HDMI only), 1080/59.94p, 50p, 59.94i, 50i, 1080/29.97p, 25p, 1080/29.97psF, 25psF, 720/59.94p, 50p
USB:
3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360 (M-JPEG) (59.94 Hz) 30p/15p/5p (50 Hz) 25p/12.5p/5p, 3840 x 2160 is 5p | | | | Panning Range | ±175° | | Tilting Range | -30° to 90° | | Image Resolution | 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360, 320 x 180 (59.94 Hz) 60p/30p/15p/5p (50 Hz) 50p/25p/12.5p/5p
M-JPEG: 1920 x 1080, 1280 x 720, 640 x 360, 320 x 180 (59.94Hz) 30p/15p/5p (50Hz) 25p/12.5p/5p | | Supported Protocols | IPv4: TCP/IP, UDP/IP, HTTP, DHCP, DNS | | Supported Protocols | AW-RP50, AW-RP120G, AK-HRP200G, AW-RM50G | | | | Power Requirements | 12 VDC (supplied AC adapter)
42 to 57 VDC (PoE+ power supply) | | Current Consumption | 1.3 A (supplied AC adapter)
0.5 A (PoE+ power supply) | | Dimensions | 7.31 x 7.32 x 7.04" (16.0 x 18.6 x 17.9 cm) excluding protrusions, direct ceiling mount bracket | | Weight | Approximately 3.30 lb (1.5 kg) | | | | Package Weight | 6.89 lb | | Box Dimensions (LxWxH) | 13.3 x 12.1 x 10.3" |
