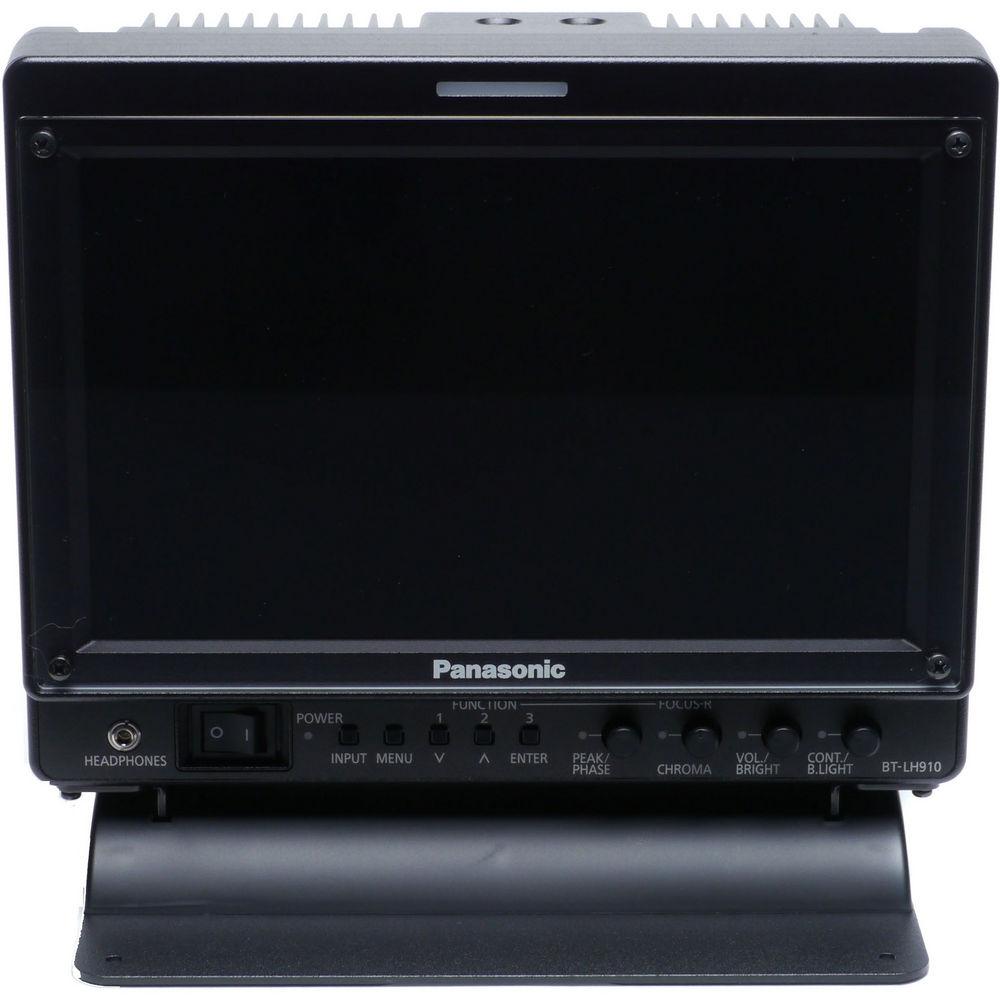

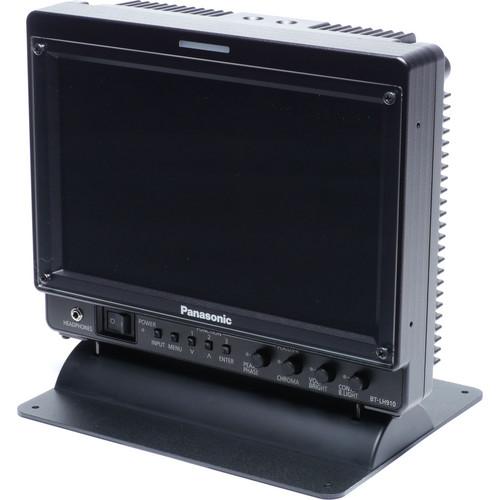

Product description The Panasonic BT-LH910GJ 9" LCD HDMI / SDI Field Monitor (Gold Mount) features a native resolution of 1280 x 768 and supports video signals up to 1920 x 1080p. The monitor is suitable for use as an on-camera monitor as well as a production monitor when using the included tilt stand. Incorporating a variety of useful features including a waveform monitor and vectorscope for exposure assist, peaking is supported for focus confirmation. 1:1 movable pixel-to-pixel mode allows you to view your video image in sections without scaling artifacts.
More than just a simple on-camera monitor, the BT-LH910GJ supports both closed captioning and timecode. It supports a variety of aspect ratios including 16:9, 4:3, 13:9, 14:9, CNSCO2.39, CNSCO2.35, 2:1, or Vista. The Cine-gamma conpensation mod allows you to use the monitor for Varicam footage, and the built-in black mode makes dark images easier to see. You can display audio embedded in both the SDI and HDMI stream, and a built-in headphone jack allows you to hear your audio. - Features IPS LCD panel and 16.7 million colors
- Displays video signals on its 1200 x 768 screen and supports other resolutions up to 1920 x 1080 by scaling.
- Aspect ratio display of 16:9 supports 4:3, 13:9, 14:9, CNSCO2.39, CNSCO2.35, 2:1, or VISTA, with background brightness control of Black (0%), Half (50%), or Normal (100%).
- Cross Hatch Overlay: Displays grids with 40 or 80 pixel intervals. This is useful for horizontal/vertical adjustment.
- HV Delay Display: Displays the video blanking period.
- Mono Mode: Displays images in black-and-white.
- Split Screens: A frame of video can easily be frozen and displayed as a still image on the left side of the screen. This function can be used to match a live camera with a frame of video shot at an earlier time or with a different camera.
- Uses 3-dimensional LUT (Look Up Table) that provides a normalized image.
- 10-bit image processing provides accurate color reproduction from low to high brightness levels for each RGB color levels
- Diagonal line compensation circuit reduces uneven noise on diagonal lines
- Built-in I/P conversion circuit offers minimal delay of one field between input and panel display to provide excellent motion response
- RGB bias and gain function allows for fine tuning of color balance levels and facilitates color matching with other types of monitors.
- Allows color compensation in 256 discrete RGB steps to conducted for the each monitor to reproduce rated gamma properties (g = 2.2)
- Pre-installed software enables calibration without using a PC by connecting compatible color analyzer and measurement probe to the monitor.
- Equipped with cine-gamma (F-REC) compensation function.
- Featured black mode displays dark images clearly in scenes with low-gradation and assists in producing movies, film-like HD programs, and commercial movies.
- Featured audio level meter displays the embedded audio level for inputs such as 3G-SDI (serial digital interface), SDI, and HDMI.
- Audio level features reference point setting, peak hold, and over-range display functions. HDMI embedded audio is limited to two channels.
- Using Y, R,G and B, the input signal for the waveform display can be selected
- focus peaking highlights sharply focused area of the image by displaying it in red color for easy viewing, and focus confirmation.
- Pixel-to-pixel mode displays images in their native resolution by avoiding the monitor's internal scaling function.
- Supports EIA-708, EIA608 closed captioning standards
- Can display up to 8 windows at the same time
- Supports LTC (linear time code), VITC (vertical interval time code), and UB (user bit) types of time codes
- Can control all on-screen markers; applicable for center markers, safe area markers, and 16:9 markers using marker settings.
- Incorporates Cross Hatch Overlay function that displays 40 or 80 pixel intervals grids, which is useful for horizontal/vertical adjustment.
- H/V Delay displays video blanking period that is time difference between the last line of one video frame and start of the first line of the next video frame
- Can overlay the left/right eye signals from a 3D camera to the 2 SDI input terminals
- Supports functions such as mirror, shift, comparison, convergence, color, zoom focus, vertical, and overlay
- Incorporates 3 function keys to assign various functions such as HV Delay, Blue Only, Gamma Select, SD Aspect, Scan, Sub Window, WFM, Vector, Marker, White Balance, Pixel-To-Pixel, Pixel Position, Focus-In-Red, Zebra, Rear Tally, Level Meter, Cross Hatch, Mono, Black Mode, Time Code, Closed Caption, and Undef
- Features input terminals for signals such as 3G-SDI, SDI (HD and SD), HDMI, composite (Video), and component (YPBPR).
- An optional viewfinder cable allows you to connect the monitor to compatible Panasonic cameras and use it as a viewfinder.
- Can be used as a viewfinder for compatible Panasonic camera recorders (requires optional cable)
- Features split screen and supports color temperature functions
UPC: 885170033573 In the Box Panasonic BT-LH910GJ 9" LCD HDMI / SDI Field Monitor (Gold Mount) Tilt Stand (Built-In) Tilt Stand Mounting Screws (Built-In) CD-ROM Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic BT-LH910GJ 9" LCD HDMI SDI Field Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

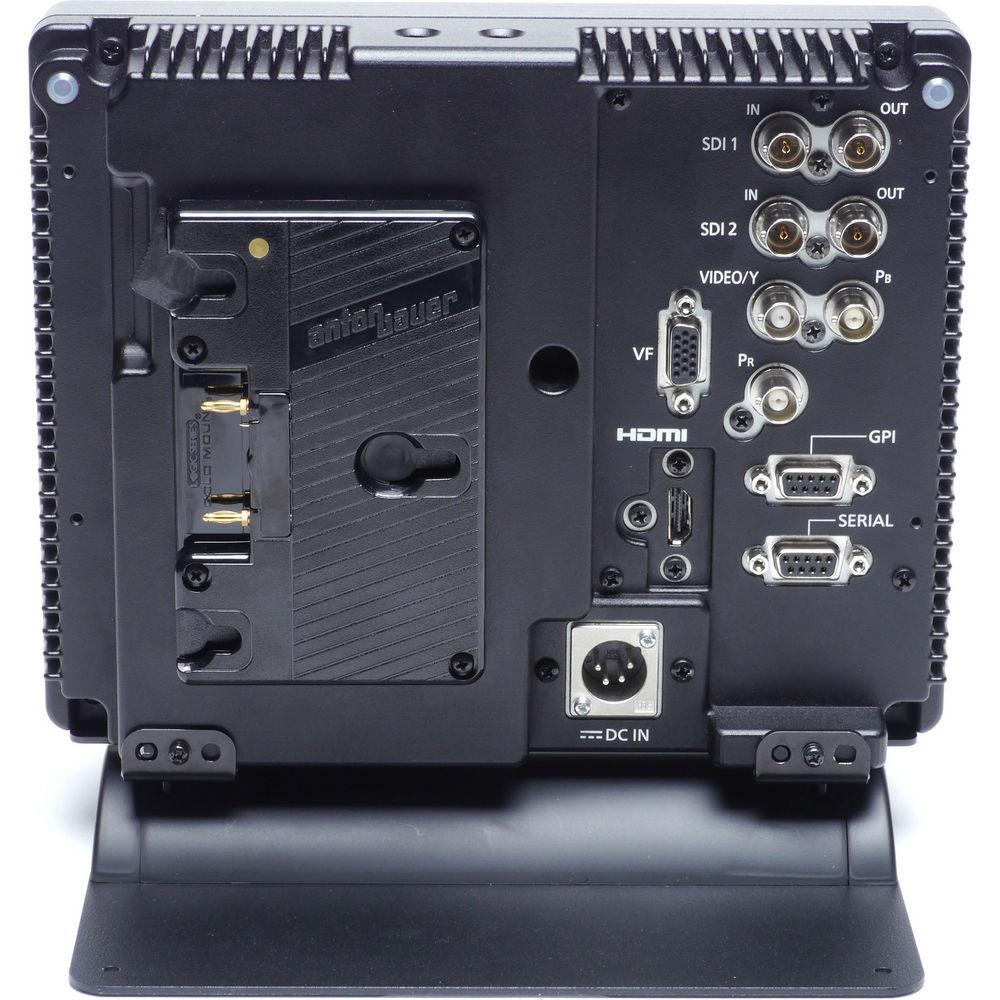

Technical parametersPanasonic BT-LH910G Specs | Screen Size | 9" (23cm) of effective display area | | Aspect Ratio | 15:9 | | Resolution | 1280 x 768 (WXGA) | | Display Colors | Approx. 16,770,000 colors | | Viewing Angle | 176° both of horizontal and vertical | | Video Input | Video: BNC x 1
Y/PB/PR: BNC x 3 (Y shares with Video)
HDMI: HDMI (type A) x 1 (HDCP supported, embedded audio supported, VIERA Link not supported)
SDI: BNC x 2 (active through connector x 2), SMPTE274M/296M/259M-C/ITU-R BT.656-4 compliant Embedded Audio
HD-SDI: SMPTE299M compliant
SD-SDI: SMPTE272M compliant
VF: D-SUB, 15 pins x 1 | | Headphone Output | M3 stereo mini jack x 1 | | Remote | GPI: D-SUB, 9 pin
SERIAL: D-SUB, 9 pin | | Power Input | XLR, 4 pin | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Power Requirements | 12 VDC (11.0 V - 17.0 V), 1.9 A | | Dimensions (WxHxD) | 9.06 x 7.20 x 3.06" (230 x 183 x 78 mm) - without stand | | Weight | 3.7lb (1.7kg) | | | | Package Weight | 8.65 lb | | Box Dimensions (LxWxH) | 14.1 x 13.7 x 11.5" |
