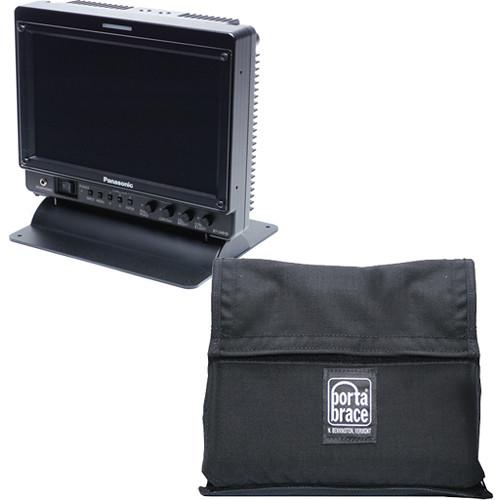

User Manual for Panasonic BT-LH910GJ 9" LCD HDMI SDI Field Monitor & Case Kit Click to enlarge the picture
Contents of the user manual for the Panasonic BT-LH910GJ 9" LCD HDMI SDI
- Product category: On Camera Monitors Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic On Camera Monitors
|
User manual for the Panasonic BT-LH910GJ 9" LCD HDMI SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description The Panasonic 9" LCD HDMI / SDI Field Monitor & Case Kit, from B&H, combines a highly multi-featured camera monitor with a compact, custom-fit carrying case that reconfigures to form a rain-protective hood for the monitor.
The monitor can be used table-top with an included tilt stand, or can be mounted on-camera. Its many qualities include most every type of input and most every type of software feature for tuning focus and exposure. Among the inputs are two SDIs that together can accept left-and-right eye 3D signals from 3D cameras, and among the software features you'll find the advanced and uncommon waveform and vectorscope.
Many cutting-edge technological features join to deliver exceptional image quality, including color accuracy. A built-in I/P conversion circuit provides minimal delay, excellent motion response, and clear images with less blurring effect. A diagonal line compensation circuit reduces uneven noise on diagonal lines. The 10-bit image processing, by way of 3D LUT functionality, produces accurate color reproduction. An RGB bias and gain function allows for fine-tuning of color balance levels. And pre-installed calibration software enables calibration without the use of a PC.
Please click on the links below to learn more about these and other additional features, including on-screen audio level meters, on-screen timecode display, and a wide 176° viewing angle that will let you see the image on screen clearly from many different angles. - Panasonic BT-LH910GJ 9" LCD HDMI / SDI Field Monitor (Gold Mount) The Panasonic BT-LH910GJ 9" LCD HDMI / SDI Field Monitor (Gold Mount) features a native resolution of 1280 x 768 and supports video signals up to 1920 x 1080p. The monitor is suitable for use as an on-camera monitor as well as a production monitor when using the included tilt stand. Incorporating a variety of useful features including a waveform monitor and vectorscope for exposure assist, peaking is supported for focus confirmation. 1:1 movable pixel-to-pixel mode allows you to view your video image in sections without scaling artifacts.
More than just a simple on-camera monitor, the BT-LH910GJ supports both closed captioning and timecode. It supports a variety of aspect ratios including 16:9, 4:3, 13:9, 14:9, CNSCO2.39, CNSCO2.35, 2:1, or Vista. The Cine-gamma conpensation mod allows you to use the monitor for Varicam footage, and the built-in black mode makes dark images easier to see. You can display audio embedded in both the SDI and HDMI stream, and a built-in headphone jack allows you to hear your audio. - Features IPS LCD panel and 16.7 million colors
- Displays video signals on its 1200 x 768 screen and supports other resolutions up to 1920 x 1080 by scaling.
- Aspect ratio display of 16:9 supports 4:3, 13:9, 14:9, CNSCO2.39, CNSCO2.35, 2:1, or VISTA, with background brightness control of Black (0%), Half (50%), or Normal (100%).
- Cross Hatch Overlay: Displays grids with 40 or 80 pixel intervals. This is useful for horizontal/vertical adjustment.
- HV Delay Display: Displays the video blanking period.
- Mono Mode: Displays images in black-and-white.
- Split Screens: A frame of video can easily be frozen and displayed as a still image on the left side of the screen. This function can be used to match a live camera with a frame of video shot at an earlier time or with a different camera.
- Uses 3-dimensional LUT (Look Up Table) that provides a normalized image.
- 10-bit image processing provides accurate color reproduction from low to high brightness levels for each RGB color levels
- Diagonal line compensation circuit reduces uneven noise on diagonal lines
- Built-in I/P conversion circuit offers minimal delay of one field between input and panel display to provide excellent motion response
- RGB bias and gain function allows for fine tuning of color balance levels and facilitates color matching with other types of monitors.
- Allows color compensation in 256 discrete RGB steps to conducted for the each monitor to reproduce rated gamma properties (g = 2.2)
- Pre-installed software enables calibration without using a PC by connecting compatible color analyzer and measurement probe to the monitor.
- Equipped with cine-gamma (F-REC) compensation function.
- Featured black mode displays dark images clearly in scenes with low-gradation and assists in producing movies, film-like HD programs, and commercial movies.
- Featured audio level meter displays the embedded audio level for inputs such as 3G-SDI (serial digital interface), SDI, and HDMI.
- Audio level features reference point setting, peak hold, and over-range display functions. HDMI embedded audio is limited to two channels.
- Using Y, R,G and B, the input signal for the waveform display can be selected
- focus peaking highlights sharply focused area of the image by displaying it in red color for easy viewing, and focus confirmation.
- Pixel-to-pixel mode displays images in their native resolution by avoiding the monitor's internal scaling function.
- Supports EIA-708, EIA608 closed captioning standards
- Can display up to 8 windows at the same time
- Supports LTC (linear time code), VITC (vertical interval time code), and UB (user bit) types of time codes
- Can control all on-screen markers; applicable for center markers, safe area markers, and 16:9 markers using marker settings.
- Incorporates Cross Hatch Overlay function that displays 40 or 80 pixel intervals grids, which is useful for horizontal/vertical adjustment.
- H/V Delay displays video blanking period that is time difference between the last line of one video frame and start of the first line of the next video frame
- Can overlay the left/right eye signals from a 3D camera to the 2 SDI input terminals
- Supports functions such as mirror, shift, comparison, convergence, color, zoom focus, vertical, and overlay
- Incorporates 3 function keys to assign various functions such as HV Delay, Blue Only, Gamma Select, SD Aspect, Scan, Sub Window, WFM, Vector, Marker, White Balance, Pixel-To-Pixel, Pixel Position, Focus-In-Red, Zebra, Rear Tally, Level Meter, Cross Hatch, Mono, Black Mode, Time Code, Closed Caption, and Undef
- Features input terminals for signals such as 3G-SDI, SDI (HD and SD), HDMI, composite (Video), and component (YPBPR).
- An optional viewfinder cable allows you to connect the monitor to compatible Panasonic cameras and use it as a viewfinder.
- Can be used as a viewfinder for compatible Panasonic camera recorders (requires optional cable)
- Features split screen and supports color temperature functions
UPC: 885170033573 - Porta Brace Flat Screen Monitor Case (Black) The black MO-LH910 Flat Screen Monitor Case from Porta Brace protects the Panasonic BT-LH910 from glare, dust, rain, and multiple other hazards. Whether there's a threat to the screen or to your ability to view the monitor, the MO-LH910 ensures that both your equipment and your ability to see what you're recording are not compromised. A built-in rain/dust top deploys fast to cover cables and batteries, while the sun visor shields the screen from glare. The case also features a comfortable shoulder strap which can be adjusted for wearing around your neck or over your shoulder.
- Covers the Panasonic BL-LH910 flat screen monitor
- Includes comfortable suede shoulder strap which can attach 2 sets of rings for wearing around your neck or over your shoulder
- Reduces glare and maximizes screen visibility
- Built-in rain/dust top deploys quickly to cover the cables and battery
UPC: 877547017255 In the Box - BT-LH910GJ 9" LCD HDMI / SDI Field Monitor (Gold Mount) ztfaywbucxfqbzdqurfr
- Tilt Stand (Built-In)
- Tilt Stand Mounting Screws (Built-In)
- CD-ROM
- Limited 1-Year Warranty
- Porta Brace - Flat Screen Monitor Case (Black) ztfaywbucxfqbzdqurfr
Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic BT-LH910GJ 9" LCD HDMI SDI Field Monitor & Case Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Panasonic BT-LH910GJ 9" LCD HDMI / SDI Field Monitor (Gold Mount)
| Screen Size | 9" (23cm) of effective display area | | Aspect Ratio | 15:9 | | Resolution | 1280 x 768 (WXGA) | | Display Colors | Approx. 16,770,000 colors | | Viewing Angle | 176° both of horizontal and vertical | | Video Input | Video: BNC x 1
Y/PB/PR: BNC x 3 (Y shares with Video)
HDMI: HDMI (type A) x 1 (HDCP supported, embedded audio supported, VIERA Link not supported)
SDI: BNC x 2 (active through connector x 2), SMPTE274M/296M/259M-C/ITU-R BT.656-4 compliant Embedded Audio
HD-SDI: SMPTE299M compliant
SD-SDI: SMPTE272M compliant
VF: D-SUB, 15 pins x 1 | | Headphone Output | M3 stereo mini jack x 1 | | Remote | GPI: D-SUB, 9 pin
SERIAL: D-SUB, 9 pin | | Power Input | XLR, 4 pin | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Power Requirements | 12 VDC (11.0 V - 17.0 V), 1.9 A | | Dimensions (WxHxD) | 9.06 x 7.20 x 3.06" (230 x 183 x 78 mm) - without stand | | Weight | 3.7lb (1.7kg) | | | | Box Dimensions (LxWxH) | 14.1 x 13.7 x 11.5" | - Porta Brace Flat Screen Monitor Case (Black)
| Material | Nylon | | Type of Closure | Hook and loop | | Weight | 1.4 lb / 0.64kg | | | | Box Dimensions (LxWxH) | 12.7 x 8.9 x 3.8" |
