User Manual for Panasonic Camera Control Unit for AK-HC5000 AK-UC3000 Studio Camera Click to enlarge the picture
Contents of the user manual for the Panasonic Camera Control Unit for AK-HC5000
- Product category: CCUs & Base Stations Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic CCUs & Base Stations
|
User manual for the Panasonic Camera Control Unit for AK-HC5000 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|

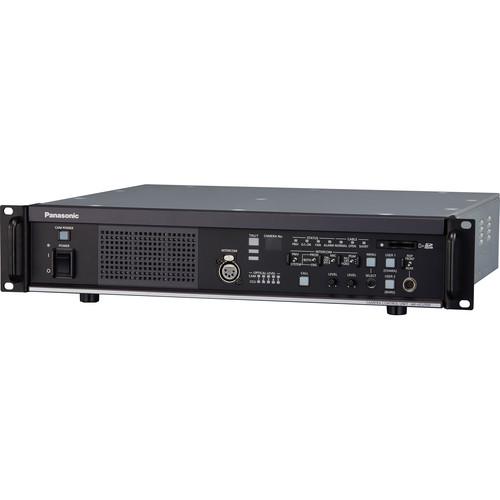

Product description This Camera Control Unit from Panasonic allows remote control of your AK-HC5000 or AK-UC3000 Studio Camera's functions and supports both UHD and HD formats. It enables optical fiber transmission of uncompressed video signals over approximately 1.2 miles between the camera and CCU. The compact, lightweight unit measures 2 RU in height and can be mounted in a standard rack. UPC: 885170260528 In the Box Panasonic Camera Control Unit for AK-HC5000 / AK-UC3000 Studio Camera (LEMO) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic Camera Control Unit for AK-HC5000 AK-UC3000 Studio Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic AK-UCU500PSJ Specs | Compatibility | AK-HC5000GSJ and AK-UC3000GSJ Studio Cameras | | Supported Formats | 4K (3G-SDI x 4):
3840 x 2160p 59.94, 50, 29.97, 25, 23.98
3840 x 2160PsF 29.97, 25, 23.98
HD (3G-SDI):
1080p 59.94, 50, 23.98
1080i 59.94, 50, 23.98p
1080PsF 29.97, 25, 23.98
720p 59.94, 50
HD High Speed (3G-SDI x 4):
1080p 239.76, 200
1080i 239.76, 200
SD: 480i 59.94, 576i 50 | | IP Streaming | 100 Base-T | | Memory | SD card can be used for saving files and updating firmware | | Inputs/Outputs | 7 x SDI out
1 x SDI out (PM)
2 x VBS
4K Mode:
4 x SDI out (4K)
3 x SDI out
1 x SDI out (PM)
1 x VBS
1 x VBS (PM)
HS Mode:
4 x SDI out (HS)
3 x SDI out
1 x SDI out (PM)
1 x VBS
1 x VBS (PM)
RET Input:
4-channel SDI
1-channel VBS
LAN-TRUNK Output: 100/1000BaseT
PROMPT Input:
1-channel SDI
2-channel analog | | Transmission Range | 1.2 miles / 2 km approx. | | Power Supply | 100-120 VAC, 50/60 Hz | | Power Consumption | 500 W
Without Connected Camera: 70 W | | Camera Power Pass Through Capacity | 240 VAC (5% tolerance), 1.46 A, 50/60 Hz | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Humidity | 10 to 90% (non-condensing) | | Rack Height | 2 RU | | Dimensions | 16.6 x 3.4 x 15.8" / 424 x 88 x 401 mm, excluding protrusions | | Weight | 19.4 lb / 8.8 kg approx. | | | | Package Weight | 26.6 lb | | Box Dimensions (LxWxH) | 24.0 x 22.5 x 10.0" |
