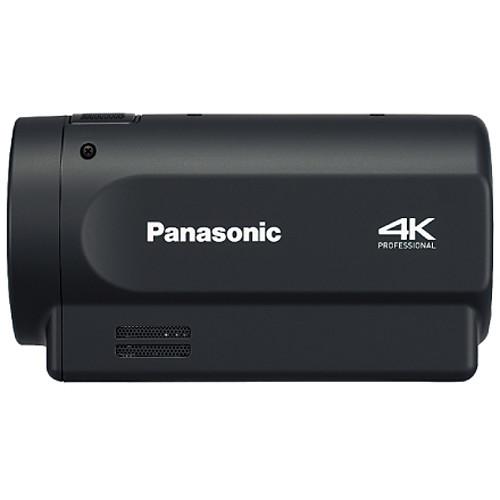

Product description NAB 2017: Panasonic Announces a New 4K POV Video Camera Head and Portable Recorder Read More The Panasonic Compact Camera Head was designed as a special option for the Panasonic Memory Card Portable Recorder. The recorder offers a dedicated interface for this camera, and the two connect over an optional cable that's available in different lengths. Compact and lightweight, the advanced Camera Head can be installed in hard-to-access places to provide a professional capture solution for the portable recorder.

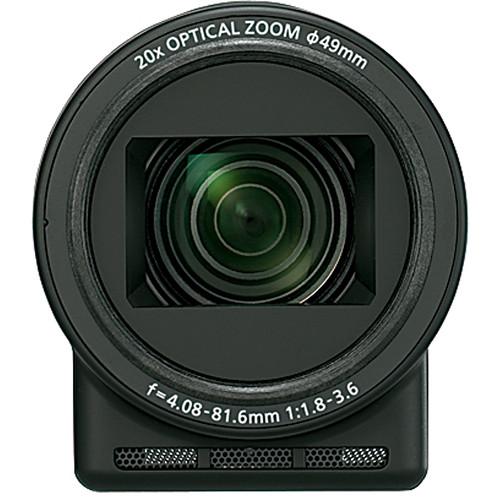

The Camera Head records up to Ultra HD 4K resolution at 29.97/23.98/25 fps, and has a 20x optical zoom lens that covers a range from 29.5mm wide angle to 612mm close-up shots, for various applications. Furthermore, it's packed with features such as stabilization, color correction, an optical ND filter, focus assist, stereo mic, and more. - Zoom
-
- 20x optical zoom: 29.5mm wide angle to 612mm close-up angle
- Intelligent zoom (i.Zoom): Up to 30x in HD format / 22x in 4K (zooms in seamlessly from the optical tele-end)
- Digital zoom: 1.4x/2x/4x/6x/8x zoom without any change in brightness (optical 20x zoom + i.Zoom + digital zoom 8x in HD format enables zooming up to a maximum of 240x)
- Stabilization
-
- Optical image stabilizer (HD/4K): images are highly corrected even when the camera is unstable, such as when mounted on an arm
- Five-axis hybrid image stabilizer (HD): In HD mode, electronic image stabilization is added to the optical image stabilizer (OIS) system to detect and correct motions on five axes, including rolling motion; this is effective when shooting while walking
- Picture Adjustments
-
- 16-axis Independent color correction: provides a separate effect to each of the 16 phases and saturation levels of video images
- Optical ND filter can be manually switched (Clear, 1/4, 1/16, 1/64); resolution degradation from closing down the iris is prevented, even in bright lighting
- Dynamic Range Stretch (DRS) suppresses blocked shadows and blown highlights to produce improved gradation for each shade when dark, bright, and intermediate shades are all contained in the same scene
- Gain/iris: The gain can be increased either with AUTO or 0–30 dB (in 1 dB units), plus super gain (33/36 dB); iris adjustment can also be adjusted independently from the gain
- White balance: AWB A, B (two-value memory) / P3200K / P5600K / ATW / VAR (2000–15000K)
- Image adjustments: Detail, V-Detail, Detail Coring, Skin Tone Detail, Color Temperature, Chroma Level, Chroma Phase, Matrix (Norm/Cine-Like/Still-Like), Master Pedestal, Gamma (HD Norm/Cine-Like/Still-Like), Black Gamma, Knee, NR Control
- Various Functions
-
- Auto focus
- Focus assist aided by a peaking display
- Push auto: Temporarily activates auto focus
- Infrared (IR) shooting mode, for nighttime observation and surveillance
- Pre Rec: Constantly records video and sounds from approximately 3 seconds before ordinary recording starts, to prevent missing decisive moments
- Rec check: Plays approximately the last 3 seconds that were recorded for confirmation
- Zebra: Select any two levels from among 50–105% in 5% steps
- Built-in stereo microphone for recording sound with video
- 49mm diameter filters supported
UPC: 885170321076 In the Box Panasonic Compact Camera Head for Memory Card Portable Recorder Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic Compact Camera Head for Memory Card Portable Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic AG-UCK20GJ Specs | Sensor | 1/2.3" MOS solid-state image sensor | | Total Pixels | Approx. 12.76 MP | | Zoom | Optical 20x motorized zoom | | Aperture | f/1.8–3.6 | | Focal Length | f= 4.08–81.6mm
35mm Conversion: 29.5–612mm
(Hybrid OIS set to Off) | | Filter Diameter | 49 mm | | ND Filter | Clear, 1/4, 1/16, 1/64 (built-in) | | Minimum Focus Distance | 4.9 ft (1.5 m) at zoom range
1.2" (3 cm) at wide angle | | IR Cut Filter | Incorporates the On/Off control function | | Zoom | Zoom: 30x (HD), 22x (4K)
Digital Zoom: 1.4x, 2x, 4x, 6x, 8x | | Gain | Automatic, Manual: 0–30 dB (1 dB step)
Super Gain: 33 dB, 36 dB
In Auto mode, 3–30 dB (3 dB steps) can be selected with AGC limit setting | | White Balance | ATW, ATW LOCK, AWB A, AWB B, P3200K, P5600K, VAR (2000–15000K) | | Shutter Speed | 59.94i/p Mode:
1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec.
29.97p Mode:
1/30, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec.
23.98p Mode:
1/24, 1/48, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec.
50i/50p Mode:
1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec.
25p Mode:
1/25, 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec. | | Slow Shutter | 59.94i/p Mode:
1/2, 1/4, 1/8, 1/15, 1/30 sec.
29.97p Mode:
1/2, 1/4, 1/8, 1/15 sec.
23.98p Mode:
1/2, 1/3, 1/6, 1/12 sec.
50i/p Mode:
1/2, 1/3, 1/6, 1/12, 1/25 sec.
25p Mode:
1/2, 1/3, 1/6, 1/12 sec. | | Synchro Scan | 59.94i/p Mode:
1/60–1/285.6 sec.
29.97p Mode:
1/30–1/206.5 sec.
23.98p Mode:
1/24–1/280.1 sec.
50i/p Mode:
1/50–1/209.2 sec.
25p Mode:
1/25–1/224.3 sec. | | Minimum Illumination | 0.2 lux (slow shutter: 1/2 sec., gain: +36 dB) | | Horizontal Resolution | 1300 TV (HDMI output of 2160p29.97 when 25p playback)
1000 TV (HDMI output of 1080p59.94 when 50p playback) | | Audio In | Built-in microphone (2-Ch stereo) | | Connector | 20-pin dedicated interface for connecting to the AG-UMR20 Memory Card Portable Recorder | | Power | 9 VDC (supplied from the AG-UMR20 Memory Card Portable Recorder) | | Power Consumption | 0.6 A | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Operating Humidity | 10 to 80% (no condensation) | | Dimensions | 2.5 x 2.8 x 5.1" (6.4 x 7.2 x 13 cm) (excluding protrusion) | | Weight | Approx. 0.7 lb (325 g) | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 9.6 x 6.55 x 6.1" |
