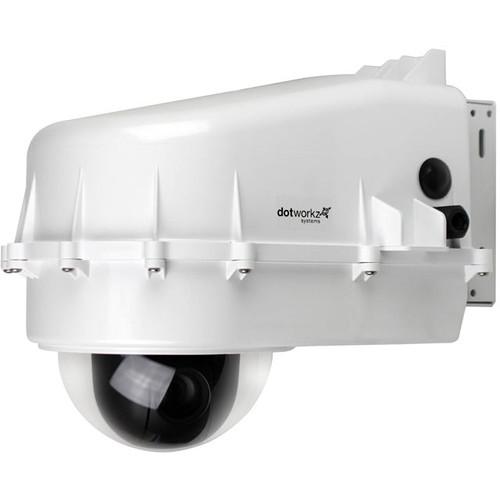

Product description The Cooled Outdoor Camera System with AW-UE70K PTZ Camera from Panasonic includes a AW-UE70 4K Integrated Day/Night PTZ Indoor Camera and a Dotworkz D2-CD COOLDOME 12VDC Active Cooling Enclosure. The black AW-UE70 4K Integrated Day/Night PTZ Indoor Camera delivers 4K resolution images at 29.97p/25p via HDMI. It is capable of 4K IP streaming and in-camera 4K recording. Equipped with variety of outputs, including 3G-SDI, HDMI, USB, or IP, this camera is suitable for variety of applications such as remote video production, live events, or video conferencing. The Dotworkz D2-CD 12VDC Active Cooling Enclosure offers outdoor protection for analog and network-based security camera systems. The thermo-electric cooling system is suitable for temperatures above 105°F and as high as 158°F. The enclosure lets the camera function flawlessly, even when subjected to soaring temperatures and direct sunlight. The solid-state cooling system and high-flow fans remove heat without air exchange into the sealed housing, thus controlling humidity that can cause lens fogging and component corrosion. - AW-UE70 4K Integrated Day/Night PTZ Indoor Camera (Black) The black AW-UE70 4K Integrated Day/Night PTZ Indoor Camera from Panasonic is capable of producing quality 4K and full HD video output and is designed for versatile applications. The AW-UE70 Camera delivers 4K (UHD: 3840 x 2160) resolution images at 29.97p/25p via HDMI, and is also capable of 4K IP streaming, and in-camera 4K recording. Equipped with variety of output including 3G-SDI, HDMI, USB or IP, this camera is suitable for versatile application such as remote video production, live events, or video conferencing.The AW-UE70 Camera also supports PoE+, so the camera only needs one LAN cable for its power supply, control, and video output with embedded audio. Offering a new standard in versatile and high-quality remote video production with IP streaming besides many other powerful features, the AW-UE70 Camera expands the capabilities of integrated camera for professional video system users.
- 4K image quality via HDMI, USB, and IP
-
- 1/2.3-type MOS sensor
- 4K (UHD: 3840 x 2160) video via HDMI, USB, and IP
- 4K / HD IP streaming
- Optical zoom 20x, iA zoom 22x (4K mode) / 30x (HD); digital extender (1.4x, 2.0x, 4.0x, 6.0x, 8.0x)
- Supports HDMI (up to 4K/29.97, 25p) and 3G-SDI (up to 1080/59.94, 60p)
- Single Cable Solution for Remote Video and Audio Capture
-
- Supports PoE+ for lower installation costs
- 4K/HD IP streaming
- Audio embedded
- IP control with image monitoring using PC, Mac and mobile terminals
- Up to 100 cameras can be controlled via IP connection when using network hub
- Powerful features
-
- Wide Angle of View: Horizontal 65.1°
- Optical Image Stabilization (OIS) with gyro sensor
- Freeze during preset function
- ND filter (Auto, thru, 1/4, 1/16, 1/64) and night mode
- USB video class support
- Versatile terminals
- Outputs include 3G-SDI, HDMI, IP, USB (mini B)
- Inputs include genlock, audio (mic/line)
- RS422, RS232C, IP remote control types
- microSD card recording function
UPC: 885170259416 - COOLDOME 12 VDC Active Cooling Camera Enclosure with Clear Lens The COOLDOME 12 VDC Active Cooling Camera Enclosure with Clear Lens from Dotworkz offers outdoor protection for analog and network-based security camera systems. It can fit a PTZ, dome, mini-dome, 360°, 180°, or multi-sensor security camera, as well as an NVR, router, or other hardware inside. The IP66-rated housing is durable, impact-resistant, and weatherproof, made from thermal plastic polycarbonate. With a thermo-electric cooling system, it provides heat protection in temperatures as high as 167°F with up to a 45° of temperature differential between the inside and outside of the housing.
- IP and analog camera compatible
- Vari-Fit internal bracket included for a good fit
- Impact-resistant polycarbonate thermal plastic
- Thermo-electric cooling system provides up to 45°F temperature differential
- IP66-rated against dust, water, and salt-water air
- IP68 waterproof connection ports
- Onboard component mounting space for: routers, cell networks, hard drives, UPS, WiMAX, and mesh hardware
- Onboard antenna mounting tab
UPC: 853523006161 In the Box Bundle Items AW-UE70 4K Integrated Day/Night PTZ Indoor Camera (Black) fcbaxtfcdtd COOLDOME 12 VDC Active Cooling Camera Enclosure with Clear Lens - Vari-Fit Internal Bracket
Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic Cooled Outdoor Camera System with AW-UE70K PTZ Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - AW-UE70 4K Integrated Day/Night PTZ Indoor Camera (Black)
| | | Imaging Sensor | 1/2.3 MOS | | Lens | Optical 20x, f 4.08 to 81.6 mm/F1.8 to 3.6 | | Horizontal Resolution | 1300 TVL (type) (Wide, Center) (4K mode)
1000 TVL (type) (Wide, Center) (HD) | | | | Power | 12 VDC IN, PoE+ (IEEE802.3at standard) | | Audio Input | MIC/LINE (Embedded in SDI/HDMI/IP/USB) | | Video Output | HDMI/SDI/USB | | Interface | LAN/RS-232C/RS-422 remote control | | Output Formats | SDI/HDMI:
2160/29.97, 25p (HDMI only), 1080/59.94p, 50p, 59.94i, 50i, 1080/29.97p, 25p, 1080/29.97psF, 25psF, 720/59.94p, 50p
USB:
3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360 (M-JPEG) (59.94 Hz) 30p/15p/5p (50 Hz) 25p/12.5p/5p, 3840 x 2160 is 5p | | | | Panning Range | ±175° | | Tilting Range | -30° to 90° | | Image Resolution | 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360, 320 x 180 (59.94 Hz) 60p/30p/15p/5p (50 Hz) 50p/25p/12.5p/5p
M-JPEG: 1920 x 1080, 1280 x 720, 640 x 360, 320 x 180 (59.94Hz) 30p/15p/5p (50Hz) 25p/12.5p/5p | | Supported Protocols | IPv4: TCP/IP, UDP/IP, HTTP, DHCP, DNS | | Supported Protocols | AW-RP50, AW-RP120G, AK-HRP200G, AW-RM50G | | | | Power Requirements | 12 VDC (supplied AC adapter)
42 to 57 VDC (PoE+ power supply) | | Current Consumption | 1.3 A (supplied AC adapter)
0.5 A (PoE+ power supply) | | Dimensions | 7.31 x 7.32 x 7.04" (16.0 x 18.6 x 17.9 cm) excluding protrusions, direct ceiling mount bracket | | Weight | Approximately 3.30 lb (1.5 kg) | | | | Box Dimensions (LxWxH) | 13.35 x 12.35 x 11.1" | - COOLDOME 12 VDC Active Cooling Camera Enclosure with Clear Lens
| Compatibility | PTZ, dome, mini dome, 360°, 180°, and multi-sensor security cameras | | Clear or Tinted | Clear | | Construction | Impact-resistant polycarbonate thermal plastic | | Enclosure Rating | IP66 with IP68 connection ports | | Operating Temperature | Up to 167°F / 75°C | | Power | 12 VDC | | | | Box Dimensions (LxWxH) | 17.3 x 16.0 x 13.1" |
