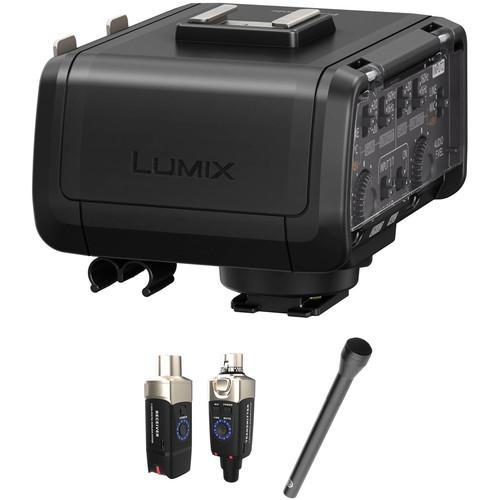

User Manual for Panasonic DMW-XLR1 Wireless Interview Kit for DC-GH5 Camera

• Product category: Other System Accessories Panasonic
• Brand: Panasonic
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Panasonic Other System Accessories

Product description

• Panasonic DMW-XLR1 XLR Microphone Adapter Expand the audio capabilities of your DC-GH5 mirrorless camera with this shoe-mounted DMW-XLR1 XLR Microphone Adapter from Panasonic. It connects to the camera directly through the hot shoe and provides two XLR inputs for using professional microphones. It also features a control panel with a clear cover that sports numerous physical dials and controls for changing the levels, gain, and low cut filter of each input individually. Also, it supports high-resolution recording formats up to 96 kHz and 24-bit. A cable clamp is present as well for cable management and a shoe mount on the top of the unit can support additional accessories. Additionally, it receives power directly from the camera. UPC: 885170304482
• Xvive Audio U3 2.4 GHz Digital Wireless Microphone System Turn your dynamic microphone into wireless with the U3 2.4 GHz Digital Wireless Microphone System from Xvive Audio. It features a 2.4 GHz wireless band, 20 Hz to 20 kHz frequency response, and less than 5 ms latency. The system works up to a 90' range, and includes two rechargeable batteries with a five-hour life for both receiver and transmitter units. The transmitter plugs into a dynamic microphone or into DI or XLR output gear, and the receiver plugs into a live sound mixer, portable PA system, or a recorder. This system broadcasts on six channels simultaneously, and is suitable for live vocals, presentations, video productions, and houses of worship.
• Senal ENG-18RL Broadcast Omnidirectional Dynamic Microphone (Long) The Senal ENG-18RL is a broadcast-quality omnidirectional dynamic microphone. The dynamic capsule picks up sound in a 360° pattern and does not require a battery or phantom power, making it a reliable choice for critical field applications. The microphone's exceptionally low handling noise and resistance to wind noise and vocal plosives make it perfect for professional ENG applications like live reporting, interviews, and press conferences.

  At multiple areas inside the microphone, natural rubber with special shock-absorbing properties is bonded to carbon steel rings to isolate the sealed inner shell from the outer shell. This system protects the microphone capsule from impacts and inclement weather, and dissipates kinetic energy, dramatically reducing handling noise and resonance due to rustling and knocking.

  The microphone also incorporates multistage wind protection to minimize wind noise and vocal plosives. A mesh grille, acoustic foam, acoustic fabric, and another layer of acoustic foam work to diffuse excess sound pressure from wind and breath. A fixed rigid carbon-steel ring with a unique bullet-shaped design disperses breath to minimize vocal plosives.

  The EQ curve is tailored for broadcast use, with a gradual low-frequency roll-off to keep out unwanted rumble, a pronounced midrange to ensure speech intelligibility, and a high-frequency roll-off to eliminate hiss and sibilance distortion. Whether broadcasting on television, AM/FM radio, or over the internet, the ENG-18RL is designed to ensure that dialogue cuts through the mix, and can be broadcast live without EQ adjustment.

  The ENG-18RL features a durable aluminum-alloy shaft designed for EMI rejection and reduced internal resonance, with a matte black finish for a professional appearance and minimum light reflection. The mic is also long enough to accommodate a mic flag.
  Ideal Choice for Critical Field Applications
  • The broadcast-quality omnidirectional dynamic capsule picks up sound in a 360° pattern and does not require a battery or phantom power, making it a reliable choice for critical field applications
  Isolated Inner Shell
  • The kinetic isolation system helps protect the microphone capsule and dissipate kinetic energy to dramatically reduce handling noise and resonance. Natural rubber shockmouts are bonded to carbon steel rings to isolate the sealed inner shell from the outer shell
  Diffuses Excess Sound Pressure From Wind and Vocal Plosives
  • Multistage wind protection comprises a mesh grille, acoustic foam, a bullet-shaped ring, acoustic fabric, and another layer of acoustic foam to diffuse excess sound pressure from wind and vocal plosives
  Broadcast Live Without EQ Adjustment
  • The EQ curve is tailored for broadcast use, with a gradual low-frequency roll-off to keep out unwanted rumble, a pronounced midrange to ensure speech intelligibility, and a high-frequency roll-off to eliminate hiss and sibilance distortion
  Can Accommodate Mic Flag
  • The ENG-18RL is long enough to fit a mic flag for show or station identification
  UPC: 847628572461

• DMW-XLR1 XLR Microphone Adapter
• Limited 1-Year Warranty

• Xvive Audio - U3 2.4 GHz Digital Wireless Microphone System

• Senal - ENG-18RL Broadcast Omnidirectional Dynamic Microphone (Long)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Panasonic DMW-XLR1 XLR Microphone Adapter

  Input Connections	2 x XLR
  Output Connections	Hot shoe
  Recording Bit Rate	16-bit 24-bit
  Sampling Frequency	48 kHz 96 kHz
  Number of Channels	2
  Gain	±20 dB
  Low Cut Filters	16 Hz 160 Hz

  Box Dimensions (LxWxH)	4.8 x 4.1 x 3.4"

• Xvive Audio U3 2.4 GHz Digital Wireless Microphone System

  Wireless	2.4 GHz
  Tuning Bandwidth	2400 to 2483.5 MHz
  Frequency Response	20 Hz to 20 kHz (-3 dB)
  Latency	<5 ms
  Channels	Up to 6 simultaneous channels
  Range	Up to 90' / 27 m
  Audio	High Resolution 24-bit / 48 kb/s
  Dynamic Range	110 dB
  SNR	110 dB
  RF Sensitivity	-88 dBm
  Total Harmonic Distortion	0.2%
  RF Output Power	10 mW E.I.R.P. max
  Ports	Transmitter: 1 x XLR male input 1 x USB Receiver: 1 x XLR female output 1 x USB
  Maximum Input Level	Mic Mode: 2.8 V p-p Line Mode: 7 V p-p
  Maximum Output Level	2.8 V p-p
  Gain Adjustment Range	Mic: 0 dB Line: -10 dB
  Antenna Type	1/4 Wave Sleeve Dipole, non-removable on transmitter and receiver
  Antenna Impedance	50 Ohms
  Impedance	Transmitter: 15 kOhms, 1 kHz Receiver: 470 Ohms, 1 kHz
  Battery	3.7 V rechargeable Li-ion, 860 mA for transmitter and receiver
  Rechargeable Battery Life	5 hours
  Operating Temperature	-0.4 to 134.6°F / -18 to 57°C
  Housing	Molded plastic and cast metal
  Dimensions	Transmitter: 1.2 x 1.1 x 3.9" / 3.1 x 2.9 x 9.8 cm Receiver: 1.2 x 1.1 x 3.9" / 3.1 x 2.9 x 9.8 cm
  Weight	Transmitter: 3.3 oz / 93 g Receiver: 3.2 oz / 92 g

  Box Dimensions (LxWxH)	6.4 x 4.4 x 2.6"

• Senal ENG-18RL Broadcast Omnidirectional Dynamic Microphone (Long)

  Polar Pattern	Omnidirectional
  Element Type	Dynamic
  Output Connector	3-Pin XLR Male
  Frequency Response	50 Hz - 18 kHz
  Output Impedance	500 Ohms
  Sensitivity	2.2 mV/Pa
  Case Material	Aluminum
  Dimensions (L x D)	1.3 x 9.1" / 33.0 x 231.0 mm
  Weight	4.8 oz / 136 g

  Box Dimensions (LxWxH)	11.1 x 5.1 x 2.6"
