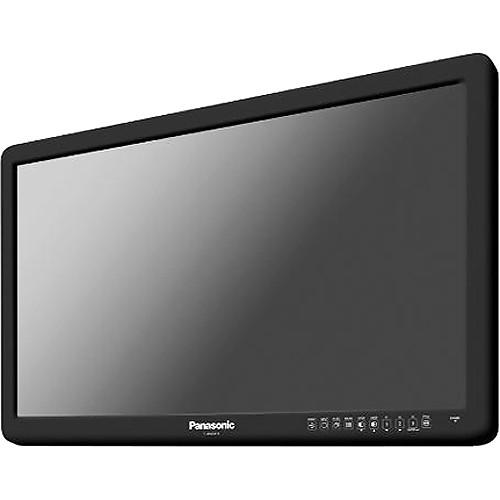

User Manual for Panasonic EJ-MDA32U-K 32" 3D HD LCD Medical Monitor Click to enlarge the picture
Contents of the user manual for the Panasonic EJ-MDA32U-K 32" 3D HD LCD
- Product category: Computer Monitors Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Computer Monitors
|
User manual for the Panasonic EJ-MDA32U-K 32" 3D HD LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More axduusyxcrzfybtwdexufdu The Panasonic EJ-MDA32U-K 32" 3D LCD Medical Monitor accepts multiple sources at once and displays 2D and 3D images simultaneously. The monitor features Xpol's circular polarizing system, which in contrast to linear polarizing solutions maintains a stereoscopic effect even when the viewer's head is tilted to the left or right. Several people can thus view the 3D output on the screen at the same time. The monitor is fully compliant with medical equipment standards. - Natural-Like 3D Effect
- Excellent 3D effect and image quality are best suitable for endoscopic surgery allowing quick recognition of affected areas and smooth saturation for procedures. Bright flicker-free images through lightweight 3D glasses (sold separately) greatly reduce 3D related nausea and eye fatigue. Fine adjustment of 3D effect is possible with included parallax adjustment function.
- Sharp Image Quality
- Advanced IPS (In-Plane-Switching) technology allows accurate color reproduction and consistent performance not affected by environment of usage, which improves efficiency in operation procedures in combination with better visibility with large screen and full-screen display mode function.
- Flexible Switching to 2D
- Panasonic's medical 3D LCD monitor features flexible selection from 2D/3D modes and multiple display modes via OSD, function key, GPI, and RS232C interfaces.
- 3D Feature
-
- Technology: Passive 3D with Xpol polarization filter
- Compatible 3D input format: Side-by-Side, Line-by-Line, Top & Bottom, Dual Stream
- 3D input terminal: HD-SDI / DVI-D
- 3D function: odd/even line selection / parallax adjustment
- 3D displayable input signals: 1080/60p (DVI), 1080/50p (DVI), 1080/30p, 1080/25p, 1080/24p, 1080/24PsF, 1080/60i, 1080/50i, 720/60p, 720/50p
In the Box Panasonic EJ-MDA32U-K 32" 3D HD LCD Medical Monitor AC Cord Operating Instructions 1-Year Parts & Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic EJ-MDA32U-K 32" 3D HD LCD Medical Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic EJ-MDA32U-K Specs | Panel | 32" diagonal (81.3 cm) IPS Pro | | Viewing Area | 27.5 x 15.5" (69.8 x 39.3 cm) | | Aspect Ratio | 16:9 | | Resolution | 1920 x 1080 | | Colors | 16.77 million | | Viewing Angle | 178°/178° | | Brightness | 400 nit | | Contrast Ratio | 1000:1 | | Response Time | Rise 8 ms / Fall 6 ms | | Inputs | 2x HD/SD-SDI
1x Composite on BNC
2x DVI-D on 24-pin (input 1 with HDCP, input 2 without HDCP)
1x YPbPr/RGB on 5 BNCs
1x HD15 on 15-pin D-sub
1x RS-232C 9-pin D-sub
1x GPI on 9-pin D-sub
1x S-Video on 4-pin mini DIN | | Outputs | 2x HD/SD-SDI
1x BNC Composite
1x DVI-D on 24-pin without HDCP
1x YPbPr/RGB on 5 BNCs
1x S-Video on 4-pin mini DIN | | Signal Level | HD/SD-SDI:
800 mV ± 10%
DVI-D:
TMDS single link
HD15:
R/G/B: 0.7 Vpp
HD/VD: TTL
YPbPr/RGB:
R/G/B: 0.7 Vpp
HD/VD: TTL
Y: 1 Vpp
Pb: 0.7 Vpp
Pr: 0.7 Vpp
Video: Video 1 Vpp
S-Video:
Y: 1 Vpp
C: 0.286 Vpp (NTSC Burst), 0.3 Vpp (PAL Burst) | | Frequency | Horizontal: 31.4 - 75 kHz, Vertical: 56.2 - 85.1 kHz | | Dot Clock | 25.1 - 162 MHz | | Mounting | VESA 200 x 200 mm | | Compliance | EN60601-1, EN60601-1-2, CE(MDD) | | Power | 100 - 240 V, 50/60 Hz, 1.44 -0.69 A | | Operating Conditions | Ambient temperature: 41 to 95°F (5 to 35°C)
Relative humidity: 30 - 85%
Atmospheric pressure: 700 - 1060 hPa | | Storage Conditions | Ambient temperature: -4 to 140°F (-20 to 60°C)
Relative humidity: 5 - 85% | | Dimensions | 30.5 x 18.6 x 4.5" (77.6 x 47.3 x 11.4 cm) | | Weight | 34.2 lb (15.5 kg) | | | | Package Weight | 50.0 lb | | Box Dimensions (LxWxH) | 38.5 x 28.0 x 15.0" |
