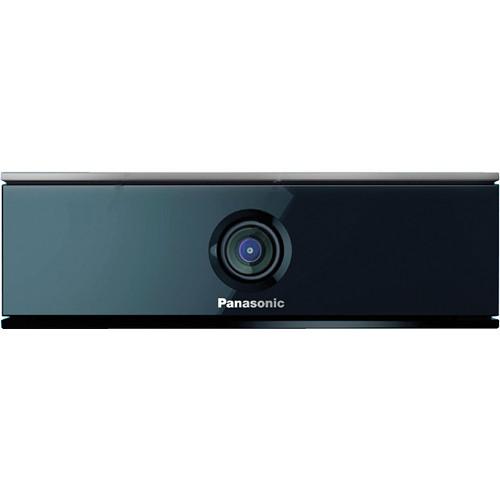

User Manual for Panasonic EKL3106 D-IMager 3D Image Sensor Click to enlarge the picture
Contents of the user manual for the Panasonic EKL3106 D-IMager 3D Image Sensor
- Product category: Monitor Accessories Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Monitor Accessories
|
User manual for the Panasonic EKL3106 D-IMager 3D Image Sensor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description The EKL3106 D-IMager 3D Image Sensor from Panasonic uses CCD along with near-infrared LEDs to sense human gestures and track full body motion allowing users a fully interactive experience. Applications include digital signage, audience measurement, security, medical, shape detection, and anti-tailgating. This image sensor features Time-of-Flight technology. Features Proprietary Imaging Sensor Based on Time-of-Flight Technology - D-IMager uses a proprietary CCD along with near-infrared LEDs to sense human gestures and track full body motion allowing users a fully interactive experience. Applications include digital signage, audience measurement, security, medical, shape detection, and anti-tailgating.
Slim and Compact Design - An ergonomic design integrates well with most display systems.
Operating Ambient Illumination Applications Entertainment and gaming - The D-IMager outputs three-dimensional information in real-time giving games the ability to become more immersive by allowing for control through a players' gestures or movements. It has a large horizontal 60° field of view and up to 30fps output.
Digital Signage - The D-IMager collects spatial (depth) information. This data can be used to control large screens without using touch panels or other cumbersome interfaces. The D-IMager enables signage to be interactive and more game-like or screen animation (i.e., augmented reality) in response to people moving in front of the screen.
Remote control - The D-IMager is capable of capturing hand-gestures, which could be used to change channels/slides and raise/lower volume among other functions for televisions, computers, and stereos.
Security - The D-IMager can also recognize shapes, making it possible to detect the difference or grouping of people. For example, building entrance security can be improved by implementing anti-tailgating and intrusion software that uses the D-IMager's detection data.
In the Box Panasonic EKL3106 D-IMager 3D Image Sensor Sensor Unit Fall Prevention Wire Installation Washer Installation Screw Wiring Fixation Cramp Installation Screw Password for Software Download Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic EKL3106 D-IMager 3D Image Sensor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic EKL3106 Specs | Frame Rate | 15, 20, 25, and 30 fps
(Default: 30 fps) The frame rate can be switched with the application software. | | Field of View | H x V: 60 x 44° approximately | | Array Size | H x V: 160 x 120p | | Operating Range | 3.9 to 16.4' (1.2 to 5.0 m) (Ambient Illumination : 0 lux)
4.9 to 16.4' (1.5 to 5.0 m) (Ambient Illumination : 100,000 lux) For a 90% near-infrared reflectance of target object.
Ambient temperature 77°F(25°C), 30 fps | | Resolution | σ = 1.18" (3.00 cm) maximum (Ambient Illumination : 0 lux)
σ = 5.51" (14.00 cm) maximum (Ambient Illumination : 100,000 lux) Ambient temperature 77°F(25°C), distance 6.56' (2.00m) ,90% near-infrared reflectance target object, at central pixel.(30 fps)
Depend on the environment and distance. | | Frequency | Modulation: 3 modes Mode selection is available using application software. It can be used to avoid interferences between different systems using 3D Image Sensors close by. | | Operating | Ambient Illumination: 100,000 lux and less (sunlight) | | Output Type | Range Data: 11-bit
Image Data: 8-bit USB 2.0 (Hi-Speed USB only) | | Connector | USB (mini-B type) | | Operating Voltage | Maximum: 25.2 VDC
Typical: 24.0 VDC
Minimum: 22.8 VDC | | Current Consumption | 0.35 A (average) (Sleep Period: 0.15 A)
2.5 A (peak) | | Operating System | Windows XP SP3 32-bit
Windows Vista SP2 32-bit / 64-bit
Windows 7 32-bit / 64-bit
At least one available USB 2.0 port. (USB3.0 not supported) Timing of turning on this product or connection of a USB cable to be after starting the PC.
This product does not support "Standby", "Sleep" and "Hibernate" in Windows. | | Wavelength | 850 nm (typical) IEC60825-1:2005 Class 1
IEC62471:2006 exempt group | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Dimensions (W x H x D) | 6.6 x 2.1 x 1.9" (170.0 x 54.0 x 50.5 mm) | | Weight | Approximately 19.4 oz (550.0 g) |
