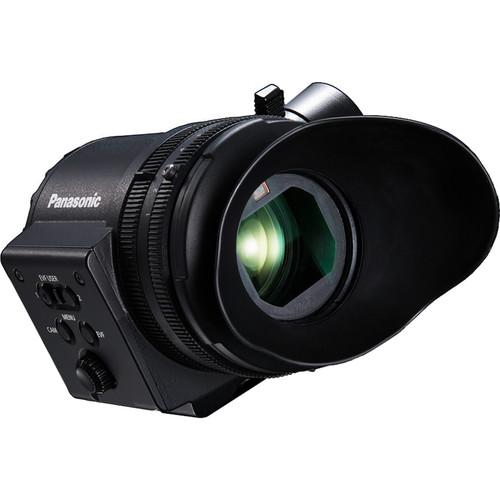

User Manual for Panasonic Electronic HD Color View Finder for VariCam LT Click to enlarge the picture
Contents of the user manual for the Panasonic Electronic HD Color View Finder
- Product category: Viewfinders Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Viewfinders
|
User manual for the Panasonic Electronic HD Color View Finder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description The Electronic HD Color View Finder for VariCam LT supports 1080p, 1080PsF, and 1080i video resolutions via SDI. It features an adjustable diopter range of -3.6 to +1.4, which makes it well suited for many different camera operators. You can access focus peaking as well as waveform (in single color and parade). The View Finder also allows you to zoom in on the image to check focus. Two user-assignable function buttons allow you to quickly access oft-used functions. The display also features both a red and green tally indicator, active when the camera is recording/in standby or when a tally signal is received. UPC: 885170329195 In the Box Panasonic Electronic HD Color View Finder for VariCam LT DC Power Cable BNC Cable Eyepiece Slider Unit 2 x Slider Unit Mounting Screw Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic Electronic HD Color View Finder for VariCam LT in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic AU-VCVF20GJ Specs | | | Color/Monochrome | Color | | Panel Type | OLED | | Display Size | 0.7" / 1.8 cm | | Screen Resolution | 1920 x 1080 | | Touchscreen | No | | Image Controls | Focus Peaking, RGB Parade, Waveform | | | | Video | 1 x BNC (3G-SDI) Input | | Video Format | SDI
1080p: 60/59.94/50
1080PsF: 29.97/25/24/23.98
1080i: 59.94/50 | | Camera Connection | 4-Pin Panasonic | | | | Diopter Correction | -3.6 to +1.4 | | | | Operating Humidity | 10 to 85% | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | | | Mounting | 1 x Accessory Rail | | Dimensions (W x H x D) | 3.7 x 3.46 x 4.37" / 94 x 88 x 111 mm | | Weight | 2.2 lb / 1.00 kg | | | | Package Weight | 4.35 lb | | Box Dimensions (LxWxH) | 14.4 x 11.0 x 7.5" |
