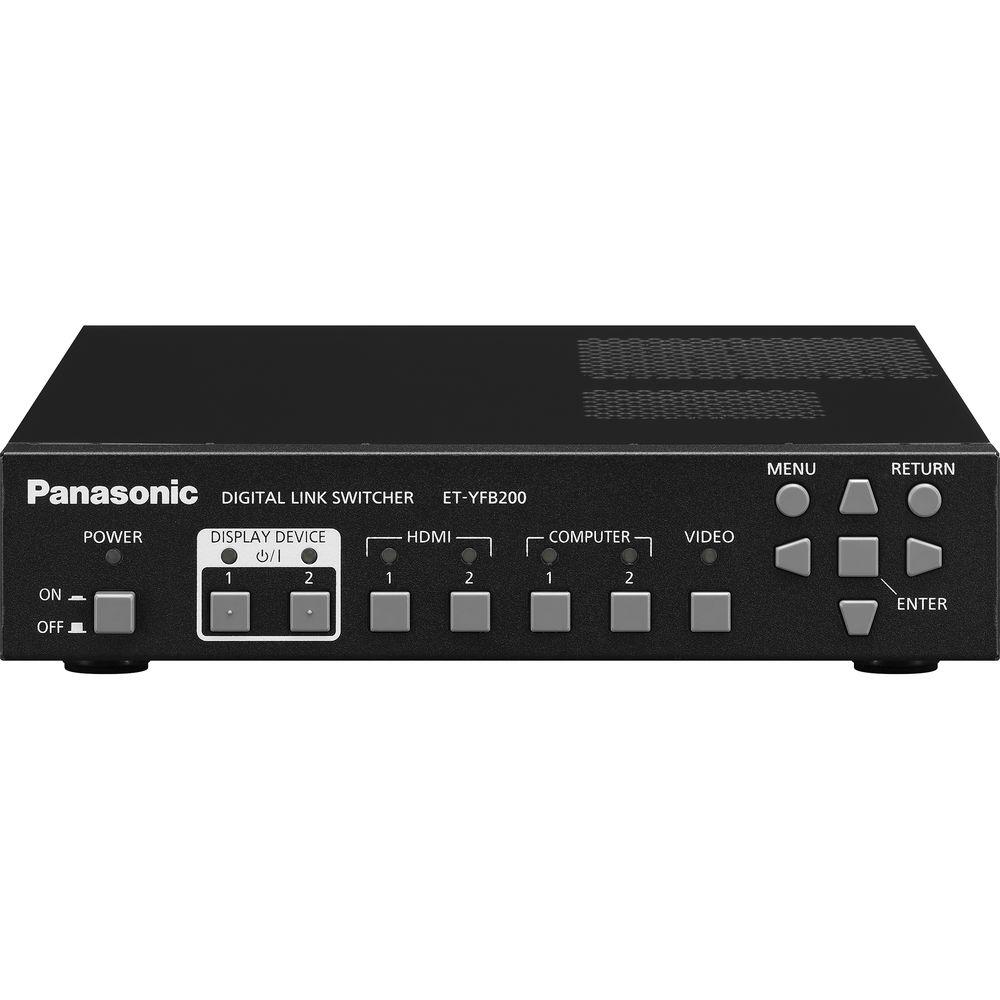

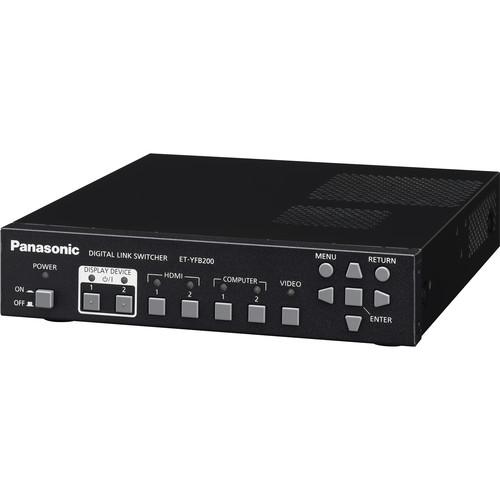

Product description The ET-YFB200G DIGITAL LINK Switcher from Panasonic can route signals from a single source to two display devices, such as a main projector and a professional flat-panel display. It can transmit uncompressed Full HD video for distances up to 492'. DIGITAL LINK is a connection system based on HDBaseT technology that supports the transmission of HDMI signals, uncompressed 4K (4.2.0) video, Full HD video, audio, and control commands through a single LAN cable for very long distances.
When more than two display devices need to be integrated into the AV network, multiple ET-YFB200G switcher units can be daisy-chained (cascaded) to relay signals to a network of projectors and displays. DIGITAL LINK simplifies projector installation for 360° panoramas and streamlines digital signage and communication systems. The Ultra HD video can be distributed via DIGITAL LINK to compatible displays, such as Panasonic LQ70 Series professional displays, with the addition of Crestron's 4K-compatible DMPS3-4K-150-C switching device. It transmits up to 328' with CAT 6A/7 cable and up to 230' with CAT 5e/6 cable. - Less chance of system failure with fewer cables and receivers
- Supports 4K video over distances of up to 328' with a single LAN cable
- Allows 1080/60p signal transmission for up to 492' via a single LAN cable using RJ45 connectors and in Long Reach Mode
- Single-cable connection for audio, video, and control
- Multi-screen calibration with a compatible camera
- Routing/switching technology in a secure remote location
- Each panel can be daisy-chained via DIGITAL LINK, combining digital content and control commands in one cable
UPC: 885170234819 In the Box Panasonic ET-YFB200G DIGITAL LINK Switcher AC Adapter 3 x 6.6' Power Cords AC Power Cord Holder AC Power Cord Holder Screw 2 x Mounting Brackets for Rack Installation 4 x Legs Mounting Screws Plug for 3-Pin 3.5mm Detachable Terminal Block Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic ET-YFB200G DIGITAL LINK Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic ET-YFB200G Specs | Computer Inputs | Input 1: 1 x D-sub HD 15-pin (female), (RGB/YPBPR/2 x YCBCR)
Input 2: 1 x D-sub HD 15-pin (female) | | HDMI | 2 x HDMI 19-pin (Deep Color, compatible with HDCP), Audio Signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)) | | Video Input | 1 x RCA (composite video) | | Audio Inputs | 3 x 3.5 mm | | Digital Link | 2 x RJ45 for DIGITAL LINK connection (video, audio and control signals), HDBaseT compliant | | DVI-D Output | 1 x 24-pin DVI-D (DVI 1.0 compliant, compatible with HDCP, compatible with single link only) | | Serial Input | 3-pin 3.5 mm detachable terminal block for external control (RS-232C compliant) | | Audio Output | 1 x 3.5 mm (L-R), variable | | Remote Input | 1 x D-sub 9-pin (female) for external control (parallel) | | LAN | 1 x RJ45 for network connection, 10Base-T/100Base-TX, compatible with PJLink | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Operating Humidity | 20-80% (no condensation) | | Dimensions | Not Including Protruding Parts: 8.3 x 1.7 x 9.8" (21 x 4.4 x 25 cm) | | Weight | 2.9 lb (1.3 kg) approximately | | | | Package Weight | 9.1 lb | | Box Dimensions (LxWxH) | 14.8 x 13.8 x 8.2" |
