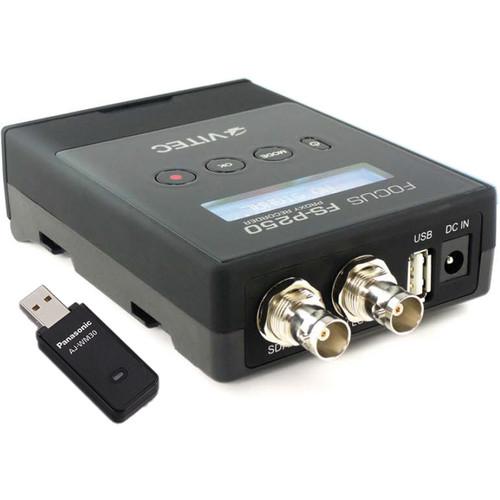

User Manual for Panasonic Focus FS-P250WF Wi-Fi Proxy Recorder for AG-HPX250 255 Camcorders Click to enlarge the picture
Contents of the user manual for the Panasonic Focus FS-P250WF Wi-Fi Proxy Recorder
- Product category: Recorders & Duplication Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Recorders & Duplication
|
User manual for the Panasonic Focus FS-P250WF Wi-Fi Proxy Recorder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description The Panasonic Focus FS-P250WF Wi-Fi Proxy Recorder for AG-HPX250 / 255 Camcorders is a camera-mountable recorder that connects to Panasonic's AG-HPX250 and AG-HPX255 camcorders by SDI and records H.264 proxy clips, recording in parallel with high-resolution clips while capturing matching timecode, frame rate management, and P2 metadata. Various resolutions and bit rates for proxy recording can be selected depending on workflow and application, and proxies are instantly ready for live streaming, editing, or sharing.
A wireless web interface is built in for live streaming and metadata input. The interface streams via an optional Panasonic AJ-WM30 wireless adapter, which connects to the recorder's USB port. The recorder also connects to a PC or mobile device to view live streams, recorded clips, and to customize metadata to your proxy recordings, and you can send the proxy clips directly from the PC or mobile device for instant sharing. You can also organize and catalog them for both production and cloud-based workflow. Included with the recorder is a desktop application -- the FS-PCS -- that synchronizes proxy clips to P2 clips and aggregates metadata with the camcorder's clips in preparation for post-production.
The recorder weighs only 5 oz and is about the size of a deck of cards. It attaches to the camcorder handle by a cold shoe mount, and it records more than 800 hours on a single 32GB SD/HC card. The shoe mount and SD/HC card are sold separately. A power supply and battery are included and either can be used. The battery lasts up to 3 hours on a single charge. -
- HD/SD-SDI input with loop through
- Battery powered / 3 hours on a single charge
- Records .MOV proxy clips onto standard SD card, sold separately
- Displays contents list, including clip duration, via clip thumbnail
- Displays TEXT MEMO tagged to selected recoded clips
- Quick logging / screening of media with wireless web interface
- Proxy clips can be shared for instant off-line editing and streamed in 'breaking news' scenarios
- Produces information-rich metadata for archive
- Allows broader implementation of metadata in production areas
UPC: 608938394224 In the Box Panasonic Focus FS-P250WF Wi-Fi Proxy Recorder for AG-HPX250 / 255 Camcorders Power Supply VITEC Battery Pack 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic Focus FS-P250WF Wi-Fi Proxy Recorder for AG-HPX250 255 Camcorders in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic FS-P250 Specs | Connections | 1x SD/HD-SDI input, 0.8Vp-p conforms to SMPTE 259M/292M
1x SD/HD-SDI loop-through output, 0.8Vp-p conforms to SMPTE 259M/292M
1x USB 2.0 type A for Panasonic AJ-WM30 Wi-Fi dongle connection only
1x DC power input, 2-pin DC jack, 5-16 VDC | | Supported Input Formats | 1080 60i/30PN/24PN/24PA/50i/25P
720 60P/30PN/24PN/50P/25PN/25P
480 60i/30P/24P/24PA, 576 50i/25P
4-channel SD/HD-SDI embedded audio, 2-channel recording
Support proprietary ancillary data from Panasonic AG-HPX250 camera (REC/STOP/SPAN commands and proprietary P2 metadata)
Any given supported input type (e.g. 1080 59.94i) will be automatically detected
Any given recording mode occurring on the AG-HPX250 camera will be automatically detected and set onto the recorder
SMPTE RP-188 timecode in the SD/HD-SDI stream | | Supported Output Formats | Loop Through -- all SD/HD-SDI input resolutions are supported
Audio and ancillary data path through from SD/HD-SDI input | | Supported Recording Modes | HD-SDI input:
SHQ / LPCM: MOV wrapper, 960 x 540, progressive, 30/25/24 FPS, 3-4 MB/s bit rate, high H.264 profile, 2 ch. audio, 48 kHz audio bit rate
HQ / AAC-LC: MOV wrapper, 640 x 360, progressive, 30/25/24 FPS, 1.5 MB/s bit rate, high H.264 profile, 2 ch. audio, 64 Kb/s and 48 kHz audio bit rate
LOW / AAC-LC: MOV wrapper, 480 x 270 / 320 x 180, progressive, 30/25/24 FPS, 800 Kb/s bit rate, baseline H.264 profile, 2 ch. audio, 64 Kb/s and 48 kHz audio bit rate
SD-SDI input:
LOW NTSC / AAC-LC: MOV wrapper, 352 x 240, progressive, 30 FPS, 800 Kb/s bit rate, baseline H.264 profile, 2 ch. audio, 64 Kb/s and 48 kHz audio bit rate
LOW PAL / AAC-LC: MOV wrapper, 352 x 288, progressive, 25 FPS, 800 Kb/s bit rate, baseline H.264 profile, 2 ch. audio, 64 Kb/s and 48 kHz audio bit rate | | Media Slot | 1x SD/HC card slot | | Status Display | 16 x 2 lines character monochrome LCD display | | Power | External 12 VDC input
Included battery: 3.7 V / 4000 mAh
Power consumption: 3.6 W (4.2W with optional Panasonic AJ-WM30 Wireless Dongle)
Autonomy: about 4 hours | | Compliance | CE
FCC Part 15
Class A
C-Tick
RoHS | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | 10 - 90% (relative humidity) | | Dimensions | Without cradle: 5.3 x 3.3 x 1.3" (13.5 x 8.4 x 3.3 cm) | | Weight | Without battery: .46 lb (210 g)
Battery: .25 lb (110 g) | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 11.4 x 6.7 x 3.7" |
