Product description - Introducing Major Functions on Panasonic Full-HD Camcorder HC-MDH3

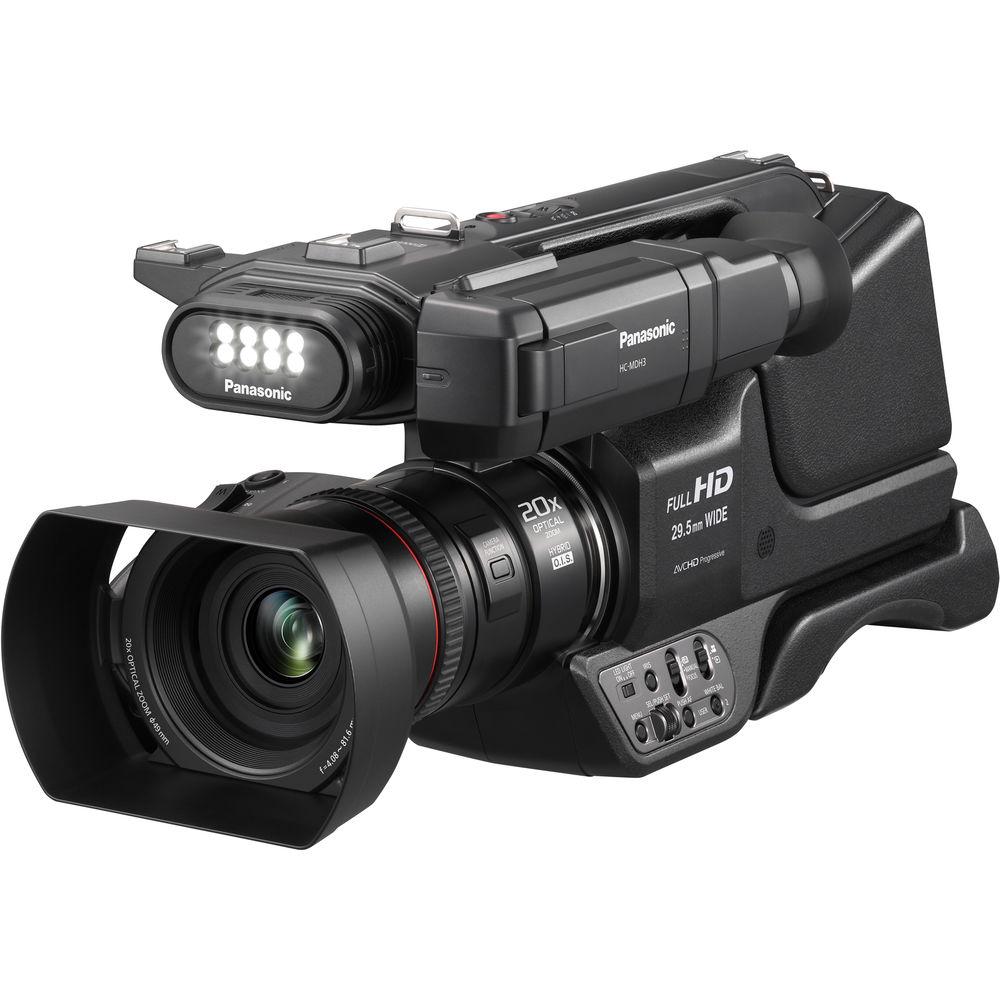

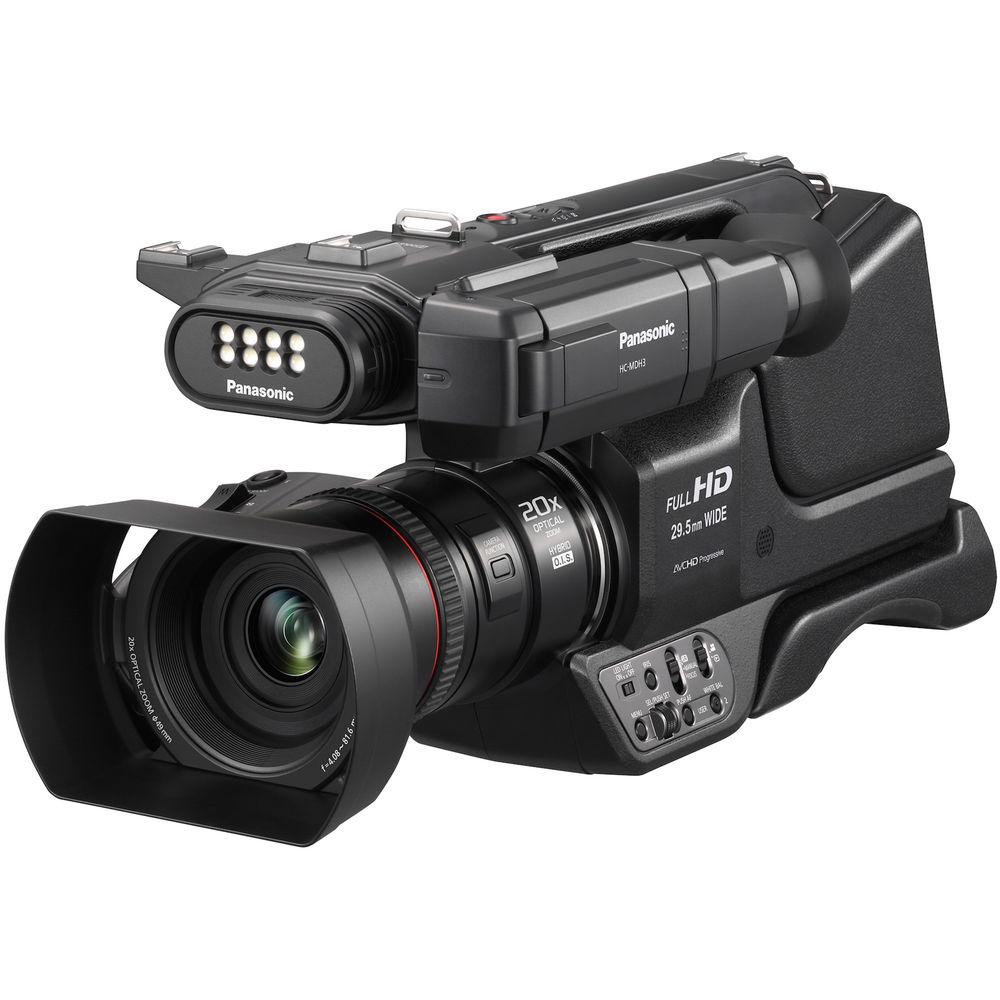

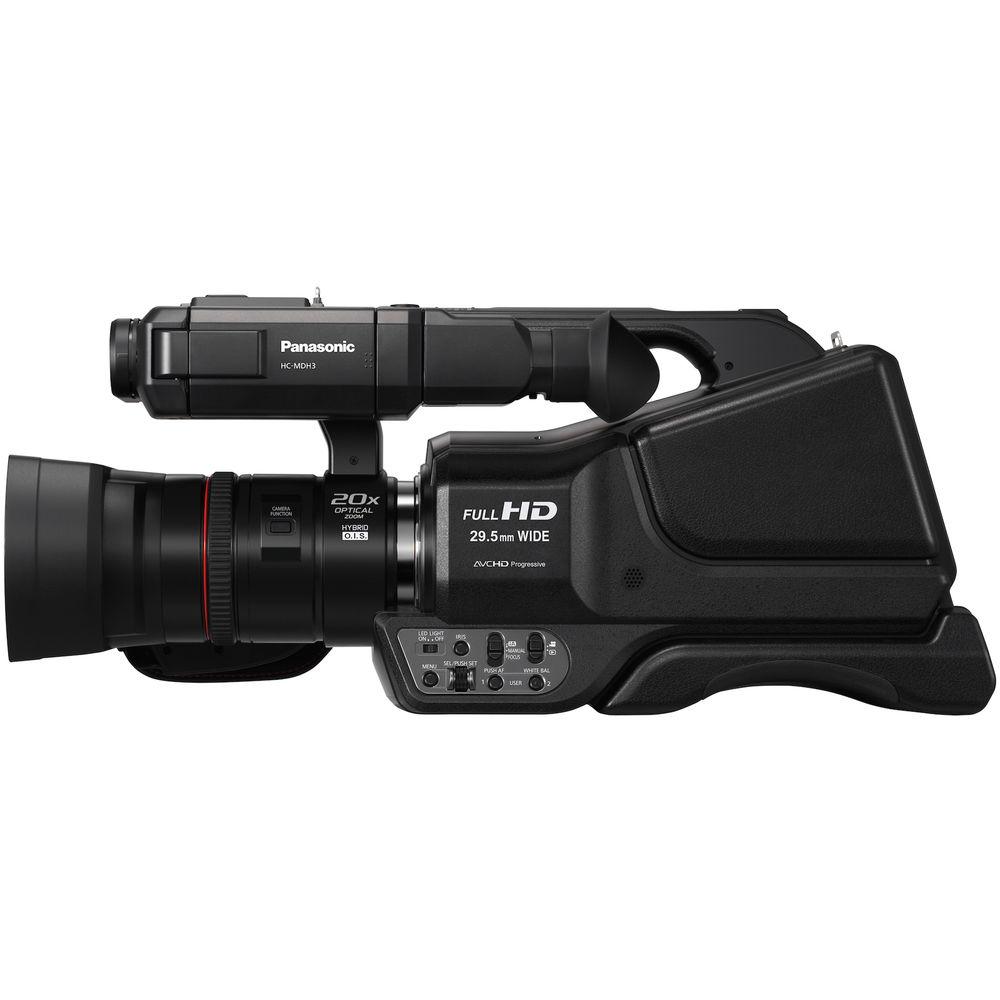

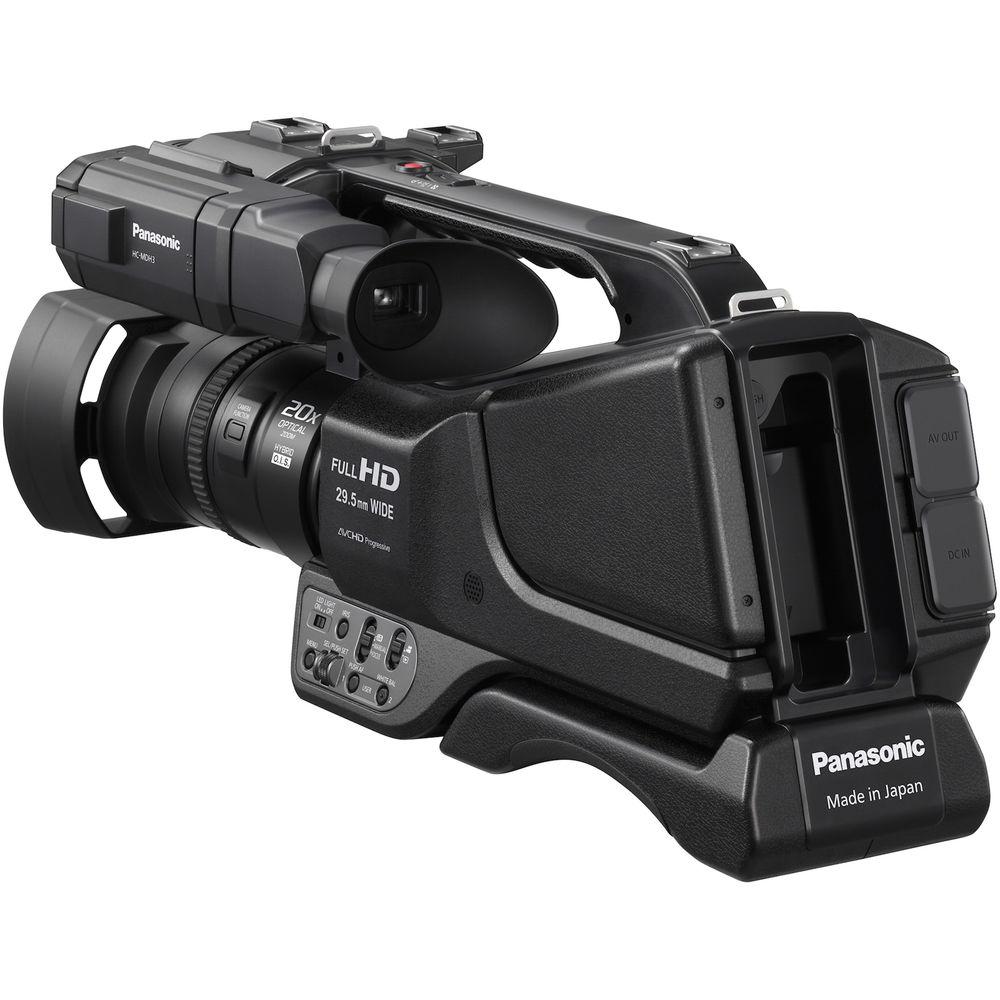

Panasonic's HC-MDH3 AVCHD Shoulder Mount Camcorder with LCD Touchscreen & LED Light is at home shooting corporate, event, or indie projects. It features a 1/3.1" BSI MOS sensor for improved low-light performance and incorporates a 20x zoom lens with five-axis hybrid image stabilization. The lens also features a single manual ring that you select to control focus, zoom, or iris. Built into the top handle is an LED light for illuminating your subject.

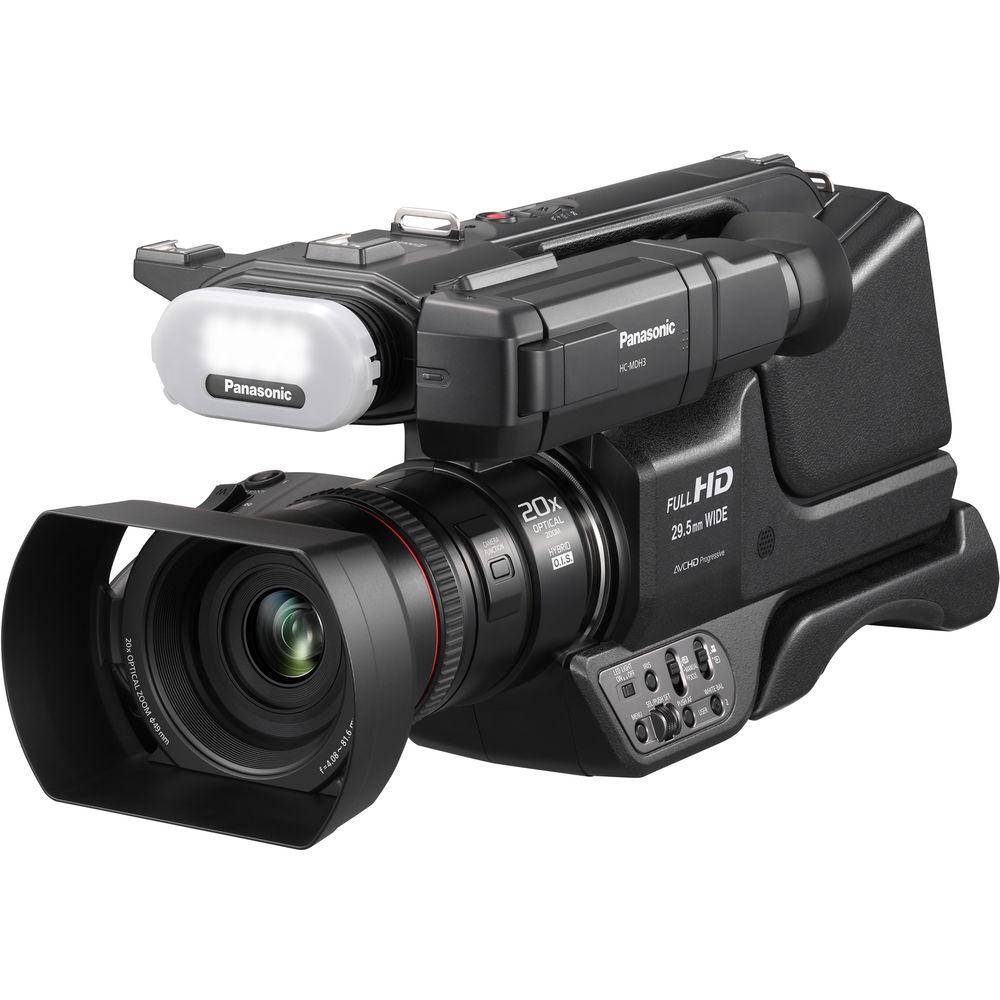

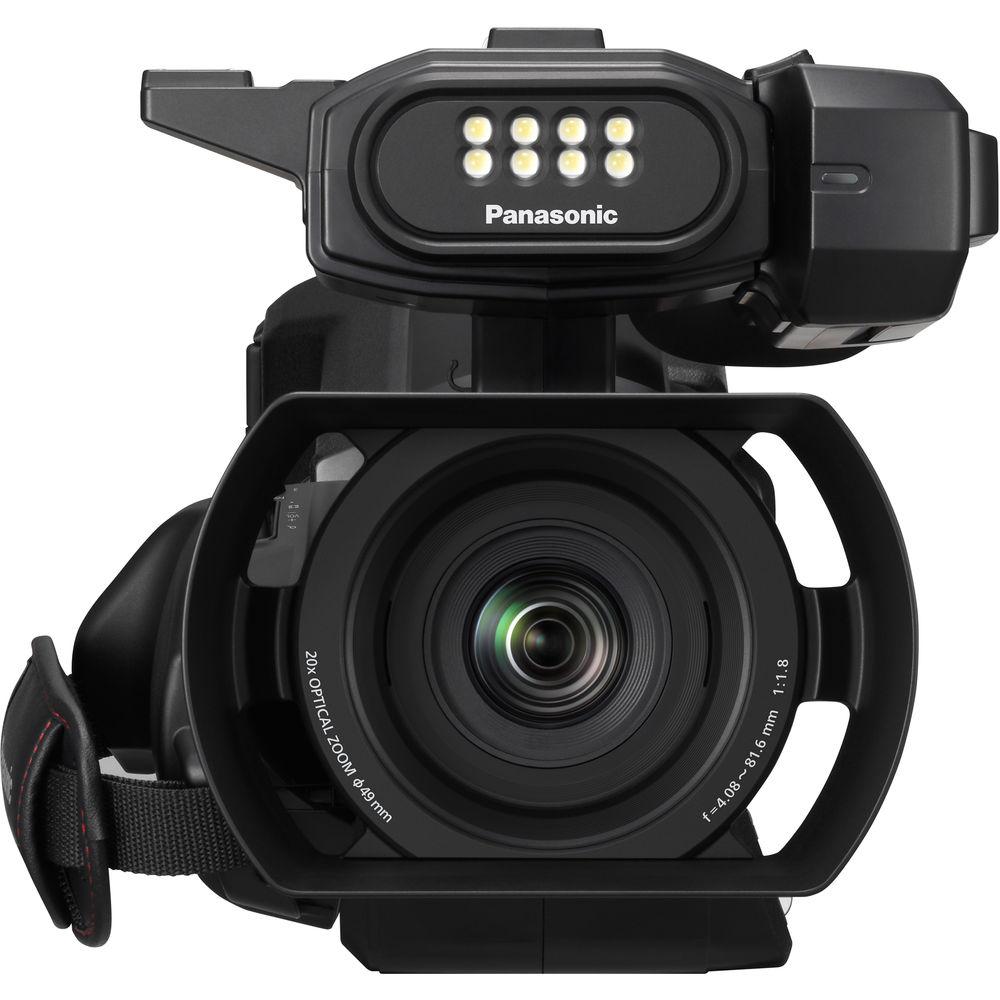

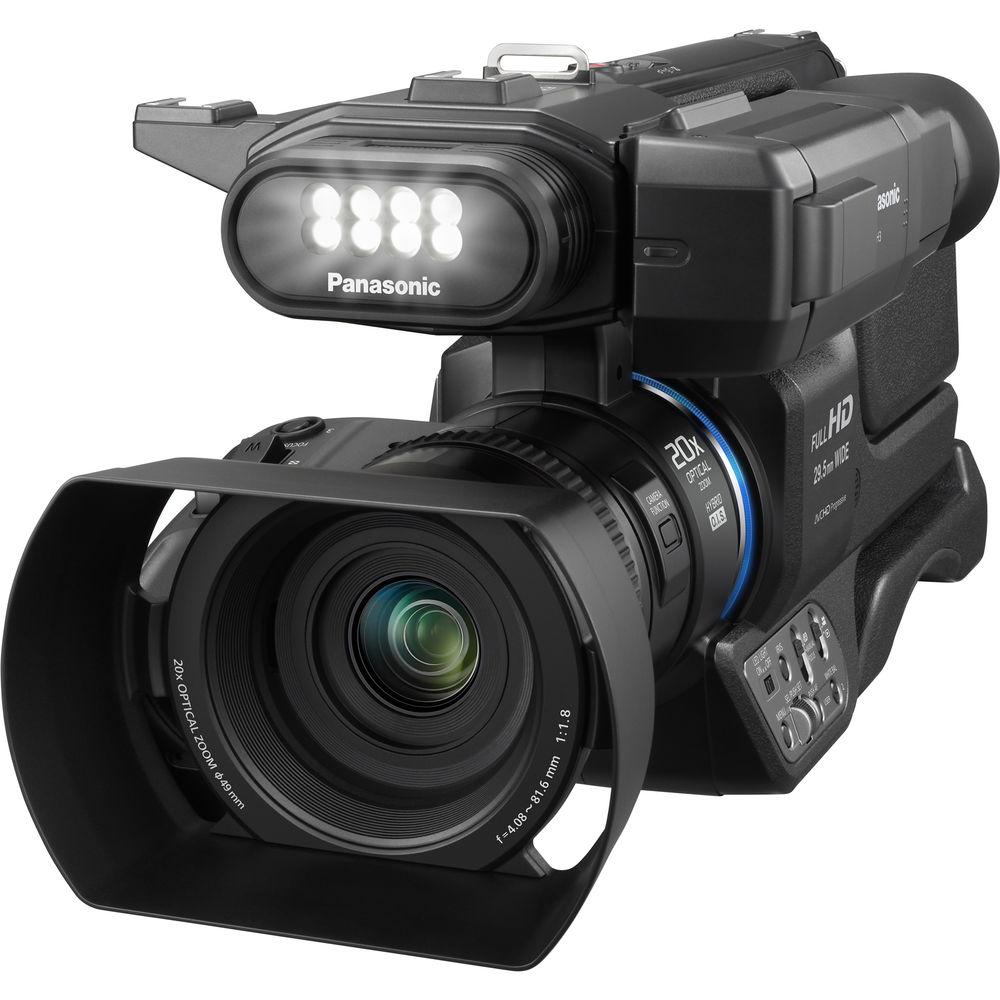

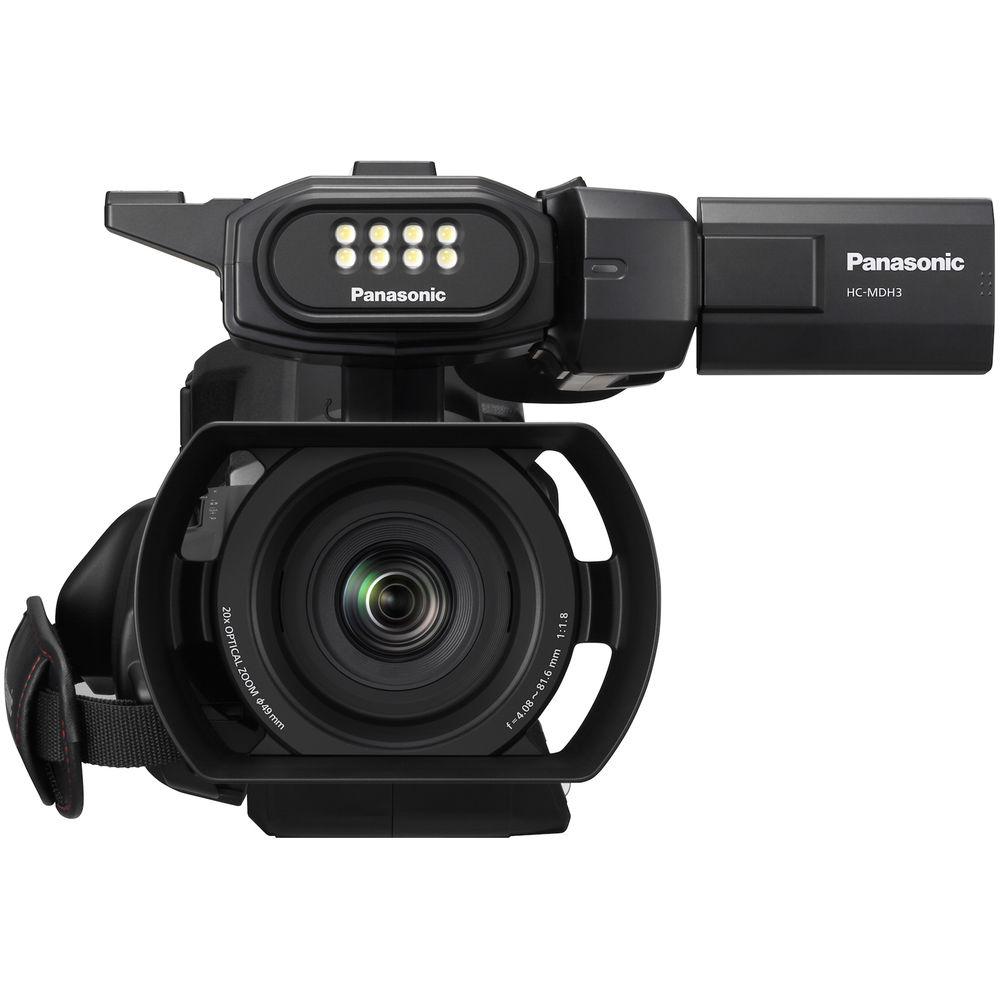

Two viewfinders provide you with a choice of operating the camera with either a traditional tilt-up color EVF, or a pullout LCD high-resolution touchscreen. The LCD touchscreen is positioned above the lens for a more natural viewing experience when shooting handheld. The camera records in MP4, MOV, or AVCHD codecs, and features dual SDXC media card slots, allowing you to use relay or simultaneous recording. The lens incorporates an illuminating ring that indicates when the camera is in standby or record mode. You can also deactivate the indicator if you wish. - A built-in LED light illuminates your subjects with a bright beam (300 lux at 3') of daylight-balanced light. If the beam is too harsh, an included diffusion filter covers and softens the light.
- The integrated 20x optical zoom lens provides sharp images and an equivalent 35mm focal length range of 29.5 to 612mm (16:9). The lens also features a 49mm filter thread.
- The camera employs a five-axis hybrid optical image stabilizer (O.I.S.) compensating for side-to-side, up-down, and forward-back handheld shake.
- Features Picture Tone settings—standard and sharp. Selecting sharp boosts the contrast and a more vibrant color matrix is used, while sharpening is applied.
- The sensor features a design that moves the circuitry normally found in front of the photosites to the back of the sensor's substrate. This allows for more photons to strike the photosites, increasing the sensitivity of the sensor.
- The camera incorporates a built-in microphone.
- White balance: Auto / 3200K / 5600K / VAR (2000-15,000K) / Ach Fixed / Bch Fixed.
- Selectable between 20 thumbnails/page, 9 thumbnails/page, and 1 thumbnail/page.
- It features professional assist functions such as histogram display, color bar monitor, zebra bars, focus expand, focus peaking, and Area Mode function.
UPC: 885170331822 In the Box Panasonic HC-MDH3 AVCHD Shoulder Mount Camcorder with LCD Touchscreen & LED Light AC Adapter AC Cable 2900mAh Rechargeable Battery EVF Eyepiece Cup Lens Cap Light Diffusion Filter Limited 1-Year Warranty User Manual PDF 4.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic HC-MDH3 AVCHD Shoulder Mount Camcorder with LCD Touchscreen & LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic HC-MDH3 Specs | | | Sensor | 1/3.1"-Type BSI MOS Sensor | | Effective Pixels | 6.03 MP (16:9) | | | | Illumination | Standard: 1400 Lux
Minimum: 1.2 Lux (Super Gain 36 dB, Shutter 1/25) | | Focus | Auto/Manual | | Shutter Speed | 50p/i: 1/6 to 1/8000
Super Slow: 1/100 to 1/8000 | | | | Focal Length | 4.08 to 81.6mm | | 35mm Equivalent Focal Length | 29.5 to 612mm (16:9) | | Maximum Aperture | f/1.8 to f/3.6 | | Zoom | Optical: 20x
Intelligent: 40x (In HD)
Digital: 2x, 5x, 10x | | Iris | Auto/Manual | | Filter Size | 49 mm | | | | System | NTSC | | Formats | MP4
1920 x 1080 59.94p 50M: Average 50 Mb/s (VBR), LPCM
1920 x 1080 59.94i 50M: Average 50 Mb/s (VBR), LPCM
1920 x 1080 29.97p 50M: Average 50 Mb/s (VBR), LPCM
1920 x 1080 23.98p 50M: Average 50 Mb/s (VBR), LPCM
MOV
1920 x 1080 59.94p 50M: Average 50 Mb/s (VBR), LPCM
1920 x 1080 59.94i 50M: Average 50 Mb/s (VBR), LPCM
1920 x 1080 29.97p 50M: Average 50 Mb/s (VBR), LPCM
1920 x 1080 23.98p 50M: Average 50 Mb/s (VBR), LPCM
AVCHD
PS: 1920 x 1080 59.94p, Average 25 Mb/s (VBR)
PH: 1920 x 1080 59.94i, Average 21 Mb/s (VBR))
PH: 1920 x 1080 23.98p, Average 21 Mb/s (VBR)
HA: 1920 x 1080 59.94i, Average 17 Mb/s (VBR)
HE: 1440 x 1080 59.94i, Average 5 Mb/s (VBR)
PM: 1280 x 720 59.94p, Average 8 Mb/s (VBR)
SA: 720 x 480 59.94i (Side Crop/Squeeze), Average 9 Mb/s (VBR) | | Card Slots | Dual SDHC/SDXC | | Media Capacity | 32 GB to 2 TB | | Still Image Resolution | JPEG
1920 x 1080: 2.1 MP
640 x 480: 0.3 MP
640 x 360: 0.2 MP | | Audio Format | MOV: LPCM
MP4: LPCM
AVCHD: Dolby (2-Ch) | | | | Inputs | 1 x 3.5 mm Mini Jack (Zoom)
1 x 2.5 mm Super Mini Jack (Focus/Iris)
1 x 3.5 mm Stereo Mini (Mic) | | Outputs | 1 x A/V
1 x HDMI Type A
1 x USB 3.0 Type-A (Host)
1 x USB 3.0 Micro-B | | Headphone Jack | 3.5 mm Stereo Mini | | Built-in Mic | Yes | | Built-in Speaker | Yes | | Accessory Shoe | 1 x Cold Shoe | | Tripod Mount | 1/4"-20 | | | | LCD Screen | Type: Touchscreen LCD
Size: 3.0" / 7.6 cm
Resolution: 460,800 Dots | | EVF | Size: 0.24" / 0.61 cm
Resolution: 1.55 MP | | | | Photometric Data | Clear: 300 Lux @ 3.28' / 1 m
With Included Diffusion: 70 Lux @ 3.28' / 1 m | | Beam Angle | 30° (Approximately) | | Color Temperature | 5000K (Approximately) | | | | Battery | Rechargeable Lithium-Ion Battery, 7.2 VDC | | Charging Method | AC Adapter | | Power Consumption | Recording: 9.2 W
Charging: 27. W | | Dimensions | 8.07 x 8.54 x 19.4" / 20.50 x 21.69 x 49.28 cm | | Weight | 5.1 lb / 2.3 kg (Without Battery or SD Card) | | | | Package Weight | 9.05 lb | | Box Dimensions (LxWxH) | 22.3 x 13.2 x 12.3" |
