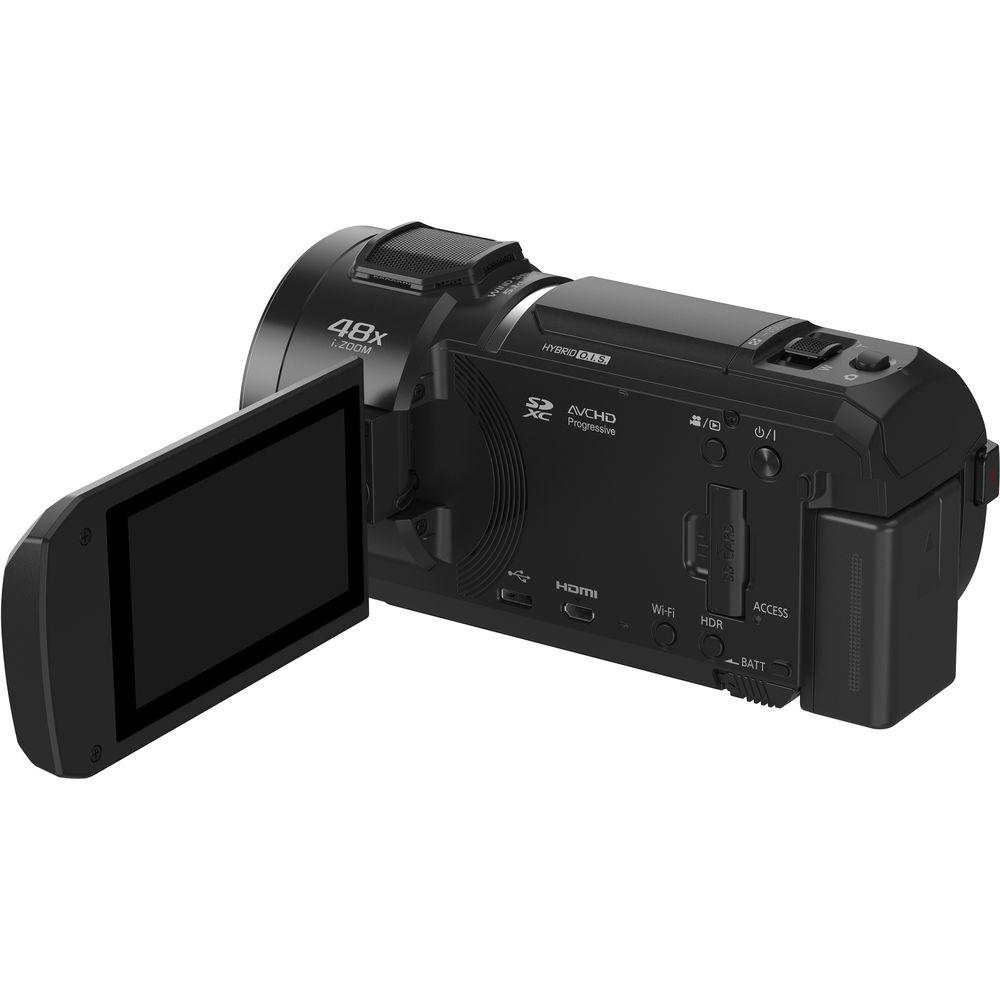

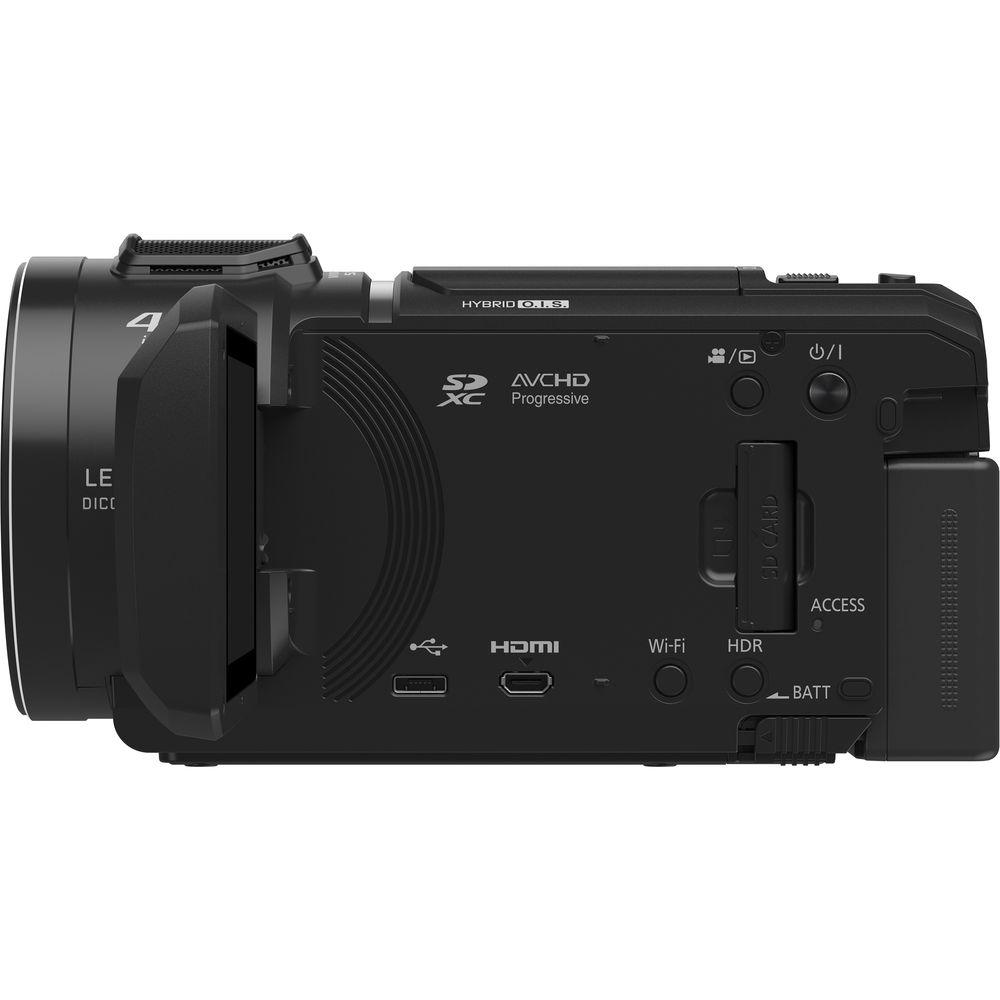

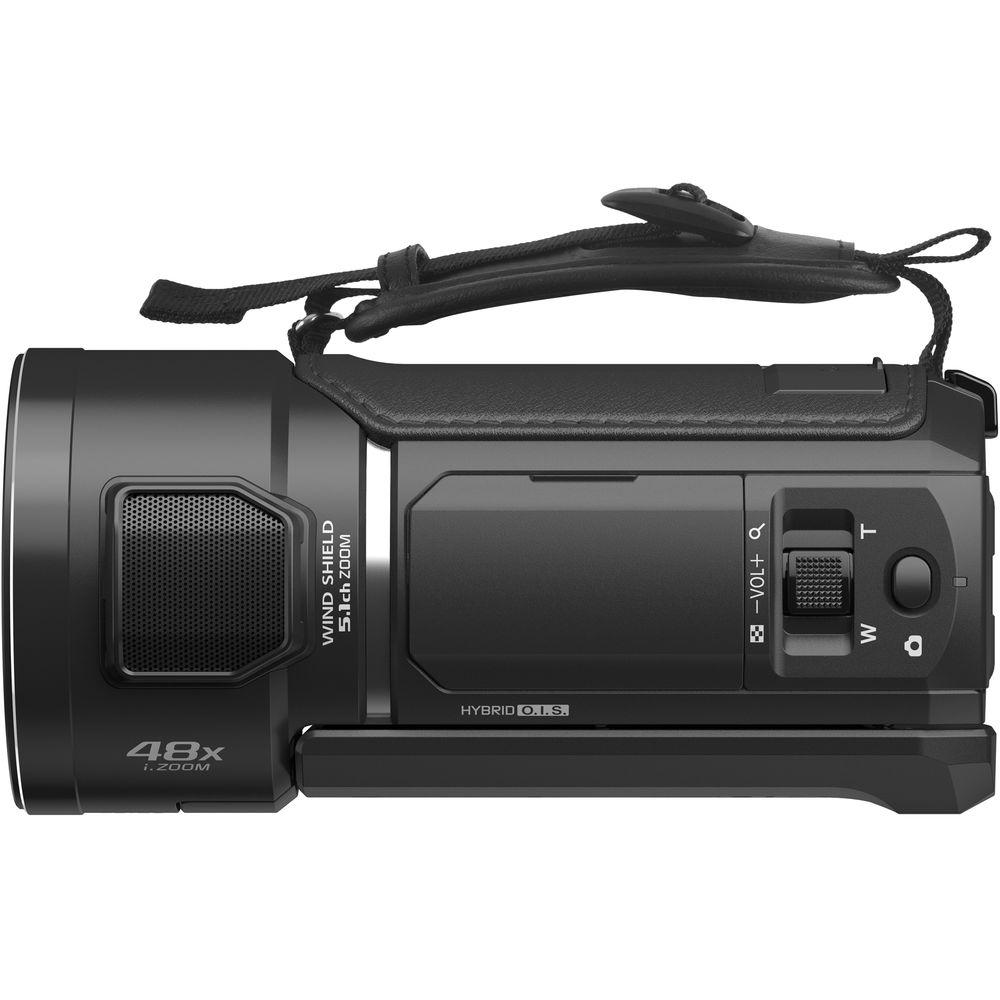

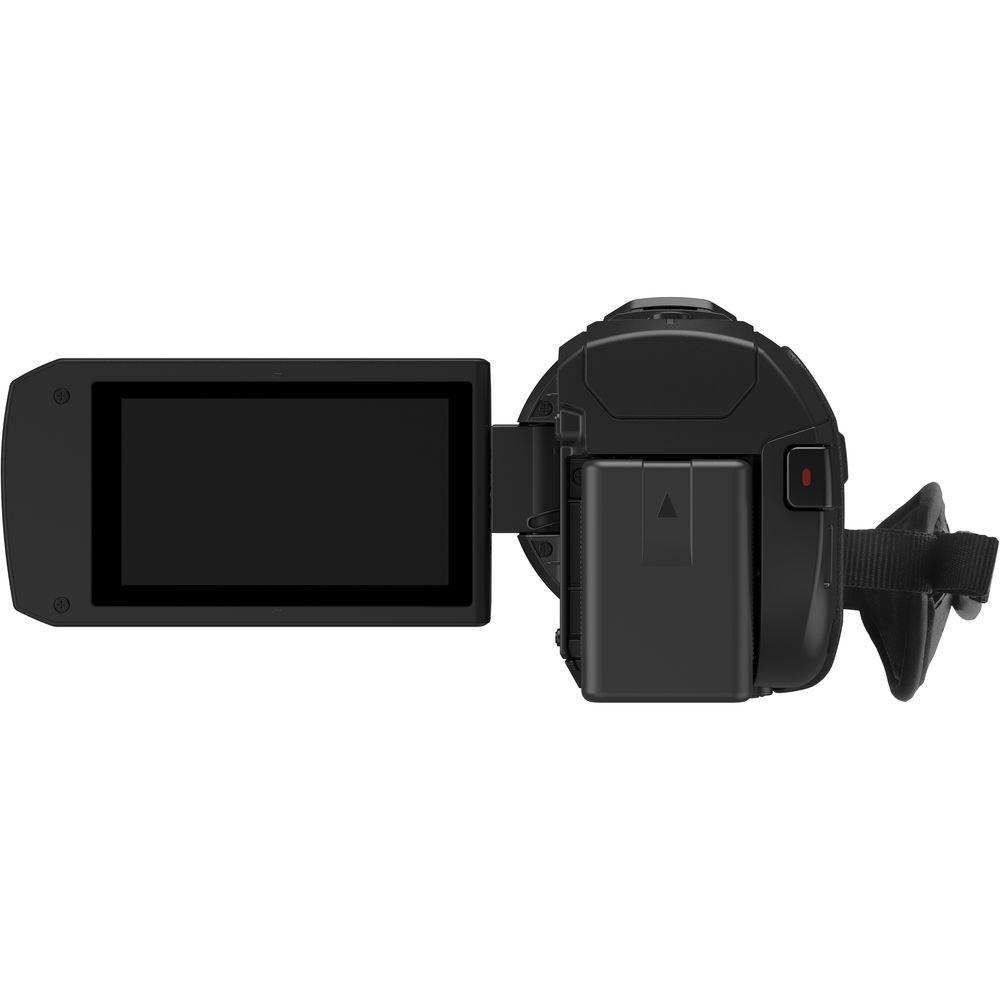

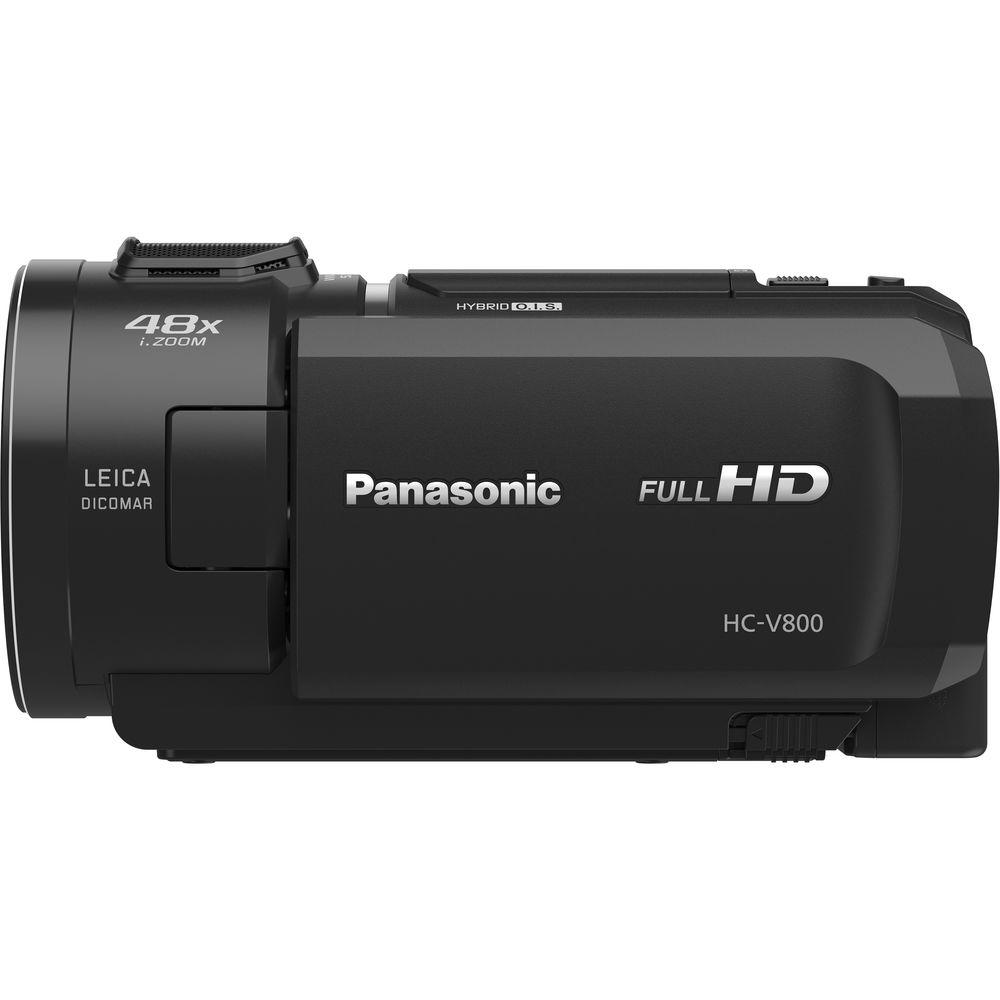

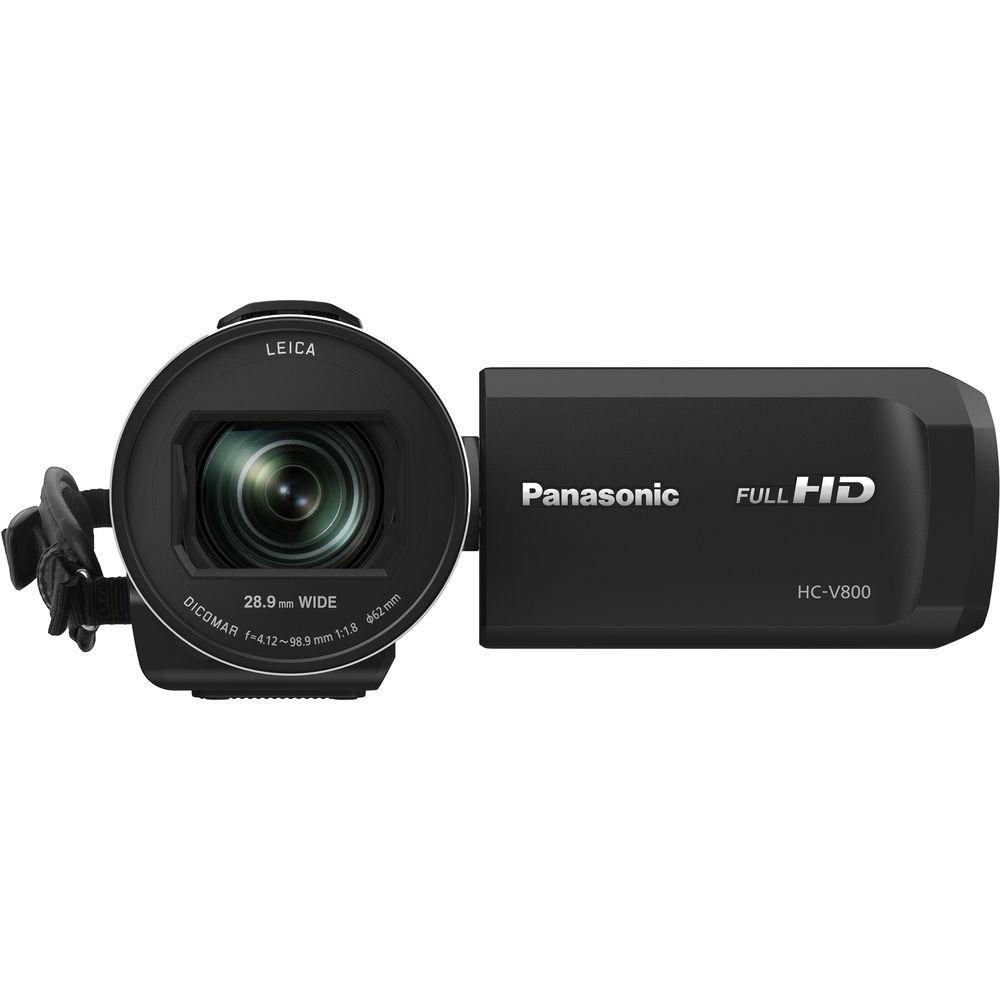

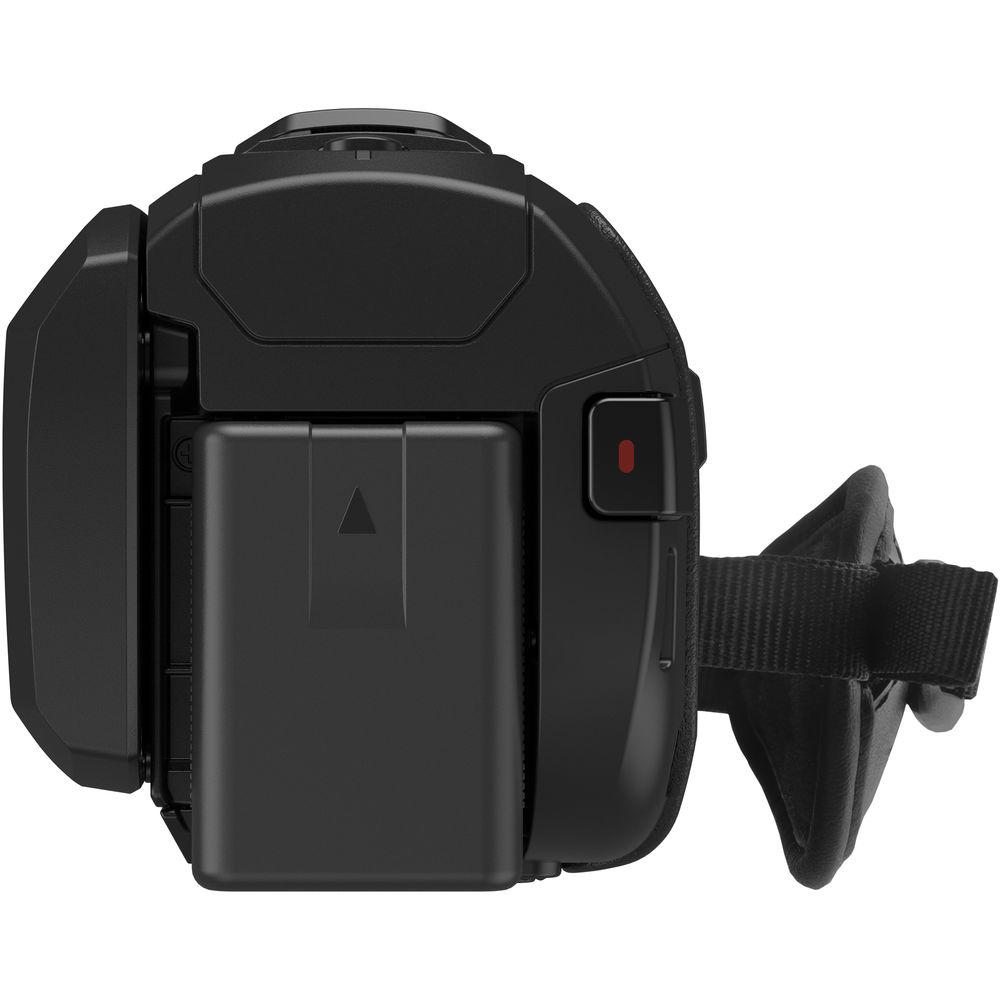

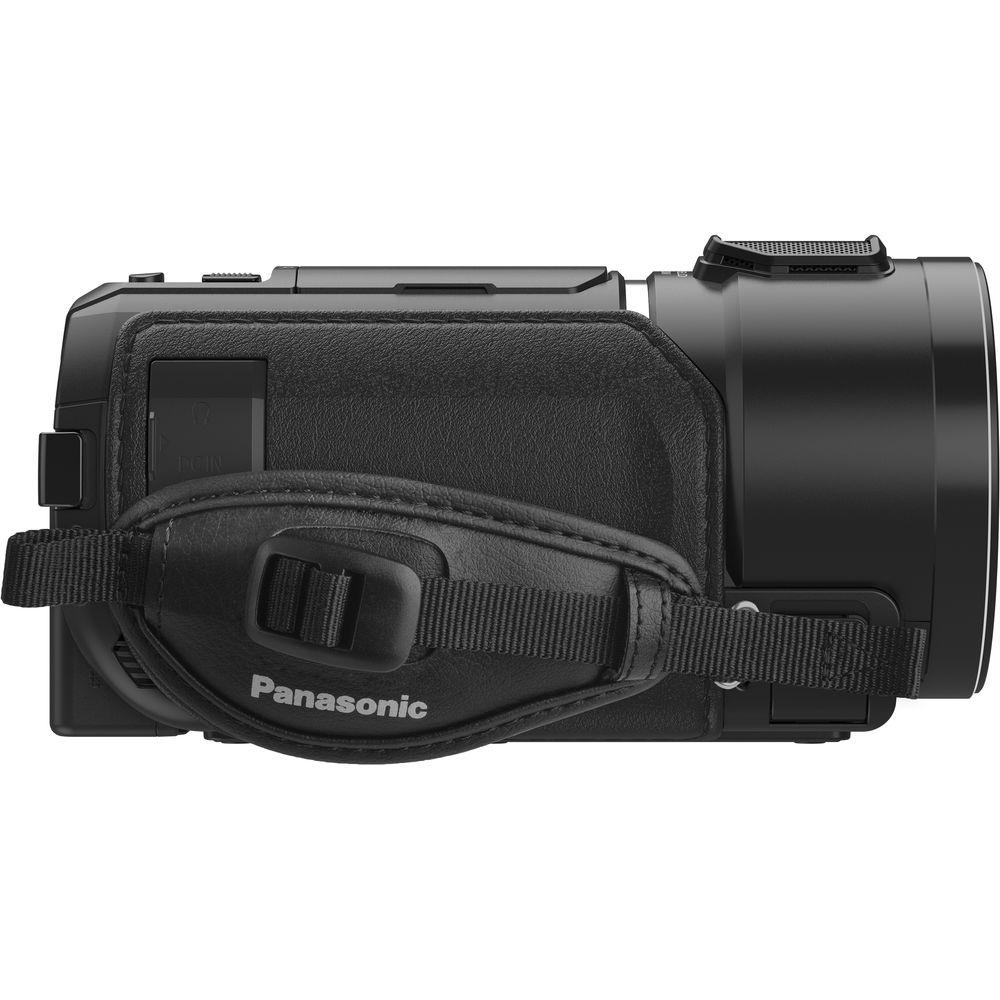

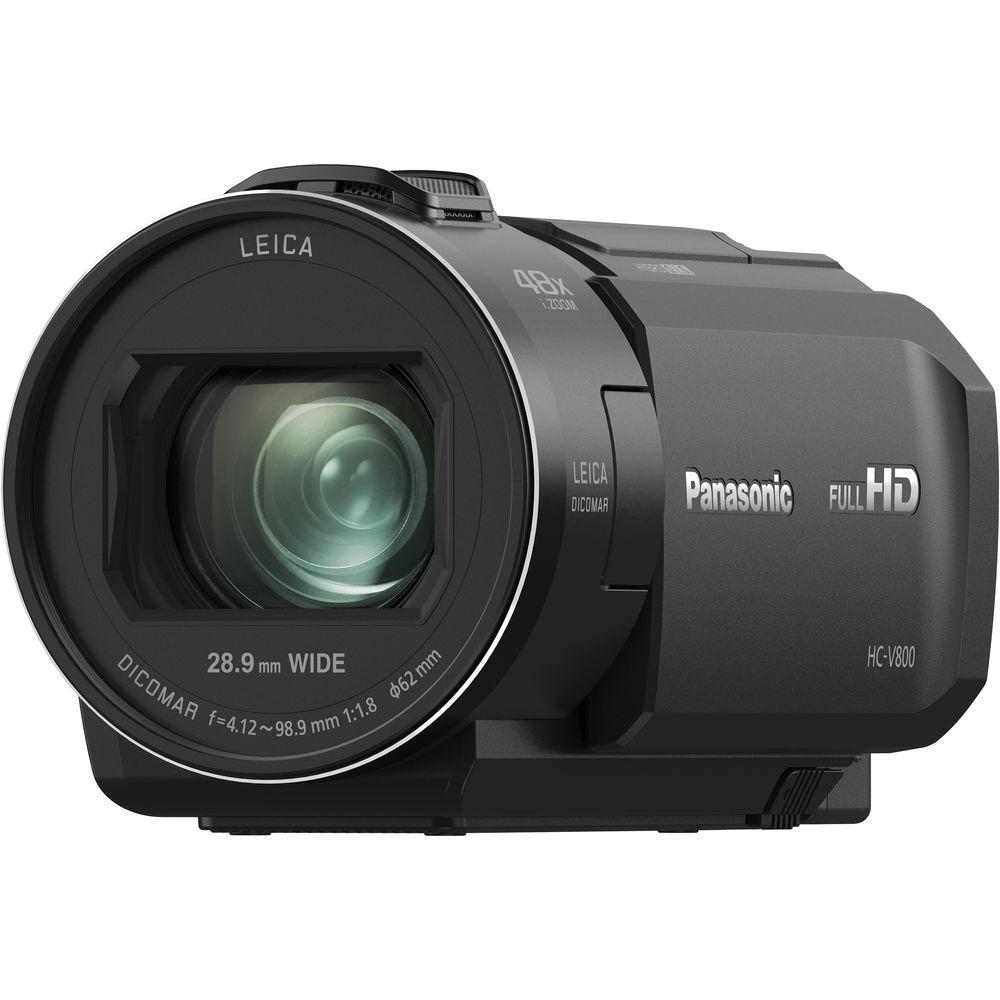

User Manual for Panasonic HC-V800 Full HD Camcorder Click to enlarge the picture
Contents of the user manual for the Panasonic HC-V800 Full HD Camcorder
- Product category: Consumer Camcorders Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Consumer Camcorders
 |
User manual for the Panasonic HC-V800 Full HD Camcorder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description CES 2018: Three New Camcorders from Panasonic Read More The HC-V800 Full HD Camcorder from Panasonic pairs an f/1.8 to f/4 24x Leica Dicomar zoom with a back-illuminated 1/2.5" MOS sensor, providing impressive optical imagery even at lower light levels. The HC-V800 captures Full HD video at rates up to 1080p60, and up to 26MP still photos. A Wi-Fi Twin-Camera feature enables you to simultaneously record a PiP-style camera angle using your smartphone as your second camera. Use the Image App and your wireless device to access multicamera, record/playback, remote viewing, and uploading functions via Wi-Fi. The HC-V800's 24x optical zoom lens features a focal length of 25 to 600mm and a 48x Intelligent Zoom, offering a substantial amount of telephoto scope. For steadier handheld shooting, the HC-800 features three optical stabilizer technologies including Panasonic's Hybrid OIS+, Ball OIS, and Adaptive OIS.
An Active Contrast feature smooths out gradations in high-contrast scenes, and an HDR Movie mode provides a wider dynamic range for more lifelike reproductions. Additional HC-V800 features include integrated Wi-Fi, a 3" touchscreen LCD display, SD/SDHC/SDXC recording, and multiple creative effects modes. The Panasonic HC-V800 features an integrated 5.1-channel, wind-shielded zooming microphone for optimal audio capture. - Full HD 1080p Recording
- Captures Full HD video up to 1080p60 and still photos up to 26MP; in-camera audio is recorded using a 5.1-channel, wind-shielded zooming microphone
- 24x Optical Zoom and 1/2.5" BSI MOS Sensor
- A Leica Dicomar 24x optical zoom lens (25 to 600mm, 35mm equivalent) and a large 1/2.5" BSI MOS sensor provide impressive image capture, even in low light
- Triple Optical Image Stabilization (OIS) Systems
- Three OIS technologies—5-Axis Hybrid OIS Plus, Ball OIS, and Adaptive OIS—work together to provide impressive stability in various shooting situations
- Wireless Twin-Camera Capture
- Record a second camera angle, PiP, simultaneously using your smartphone as your second camera
- Wi-Fi Functions
- Use the Image App and your wireless device to access multicamera, record/playback, remote viewing, and uploading functions via Wi-Fi
- Active Contrast and HDR Movie Modes
- The Active Contrast feature smooths out gradations in high-contrast scenes, and an HDR Movie mode provides a wider dynamic range for more lifelike imagery
UPC: 885170332423 In the Box Panasonic HC-V800 Full HD Camcorder AC Adapter Rechargeable Battery Micro-HDMI Cable USB Cable Limited 3-Year Warranty User Manual PDF 11.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic HC-V800 Full HD Camcorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic HC-V800 Specs | | | Sensor | 1-Chip 1/2.5" MOS | | Backside Illumination | Yes | | Sensor Resolution | 8.57 MP | | Effective Pixels | 6.17 MP (16:9 Video)
8.29 MP (16:9 Photo)
6.22 MP (4:3 Photo) | | | | Focal Length | 4.12 to 98.9mm | | 35mm-Equivalent Focal Length | 25 to 600 at 16:9 Video: Level Shot function OFF or Normal
28.9 to 693.7 at 16:9 60p/60i/30p, Video: Level Shot function OFF or Normal
25 to 600 at 16:9 Photo
30.6 to 734.4 at 4:3 Photo | | Maximum Aperture | f/1.8 - f/4 | | Zoom | Optical: 24x
Intelligent: 48x
Digital: 70x
Digital: 1500x | | Filter Size | 62 mm | | | | System | NTSC | | Recording Media | 1 x SD/SDHC/SDXC | | Recording Time | SD/SDHC/SDXC 64 GB
1920 x 1080 24p: 3 h
1920 x 1080 MP4, 60p, 50 Mb/s: 3 h
1920 x 1080 AVCHD, 60p: 5 h 20 minutes
1920 x 1080 AVCHD, 60i: 6 h
SDHC/SDXC 16 GB
1920 x 1080 24p: 45 minutes
1920 x 1080 MP4, 60p, 50 Mb/s: 45 minutes
1920 x 1080 AVCHD, 60p: 1 h 20 minutes
1920 x 1080 AVCHD, 60i: 1 h 30 minutes | | Video Format | 1920 x 1080p at 60 fps (50, 28 Mb/s MP4)
1920 x 1080p at 24 fps (50 Mb/s MP4)
1280 x 720p at 30 fps (9 Mb/s MP4)
1920 x 1080p at 60 fps (28 Mb/s AVCHD)
1920 x 1080i at 60 fps (24, 17, 13, 5 Mb/s AVCHD) | | Aspect Ratio | 16:9 | | Still Image Resolution | JPEG: 25.9 Megapixel, 6784 x 3816 (16:9)
JPEG: 14 Megapixel, 4992 x 2808 (16:9)
JPEG: 2.1 Megapixel, 1920 x 1080 (16:9)
JPEG: 20.4 Megapixel, 5216 x 3912 (4:3)
JPEG: 10.9 Megapixel, 3808 x 2856 (4:3)
JPEG: .3 Megapixel, 640 x 480 (4:3) | | Channels | 5.1-Channel Stereo | | Audio Format | AAC
Dolby Digital 2ch
Dolby Digital 5.1 | | | | Display Type | LCD | | Touchscreen | Yes | | Screen Size | 3" | | Screen Resolution | 460,800 Dots | | | | Shutter Speed | 1/60 - 1/8000 Second (Video)
1/2 - 1/2000 Second (Photo) Video: Auto Slow Shutter OFF | | Exposure Modes | Modes: Auto | | Shooting Modes | Auto
Low Light
Miniature Effect
Movie
Night
Time-Lapse Movie | | | | Image Stabilization | Optical & Digital | | Scene Modes | Preset: Yes | | Lux | 1.5 (Low Light Scene Mode)
1 (Night Mode (Color)) | | White Balance Modes | Auto
Cloudy
Indoor 1
Indoor 2
Outdoors
Overcast | | Creative Effects | Yes | | Built-In Mic | Yes | | Built-In Speaker | Yes | | Built-In Light/Flash | Light - No
Flash - No | | Wi-Fi | Yes, Wi-Fi 4 (802.11n) 2.4 GHz | | Accessory Shoe | 1 x Cold | | Tripod Mount | 1/4" - 20 | | | | Outputs | 1 x Micro-HDMI (Type D)
1 x USB 2.0 | | Microphone Input | Yes Stereo mini-jack | | Headphone Jack | Yes Stereo mini-jack | | | | Battery | Rechargeable Battery Pack, 1940 mAh
Max Runtime: 1 Hours per Charge | | Charging Method | AC Adapter | | Dimensions (W x H x D) | 2.7 x 3.0 x 5.6" / 68.0 x 77.0 x 142.0 mm | | Weight | 15.10 oz / 428 g | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 8.2 x 5.8 x 4.1" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 82 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Panasonic HC-V800 Full HD Camcorder
| Subject: setting up as webcam | | Date: 21.02.2021 19:13:11 | Name: chris | | hi. i have the HC-V800 & also have the hdmi cable plus a Pengo hdmi to usb grabber to plug my camcorder into my macbook pro. I can see the camera HDMI to U3Capture option to select for camera, but there is no view/only black...i cannot figure out how to get the hc v800 as my choice for camera in Zoom...instead of my laptop camera. thanks | | Post reply |
