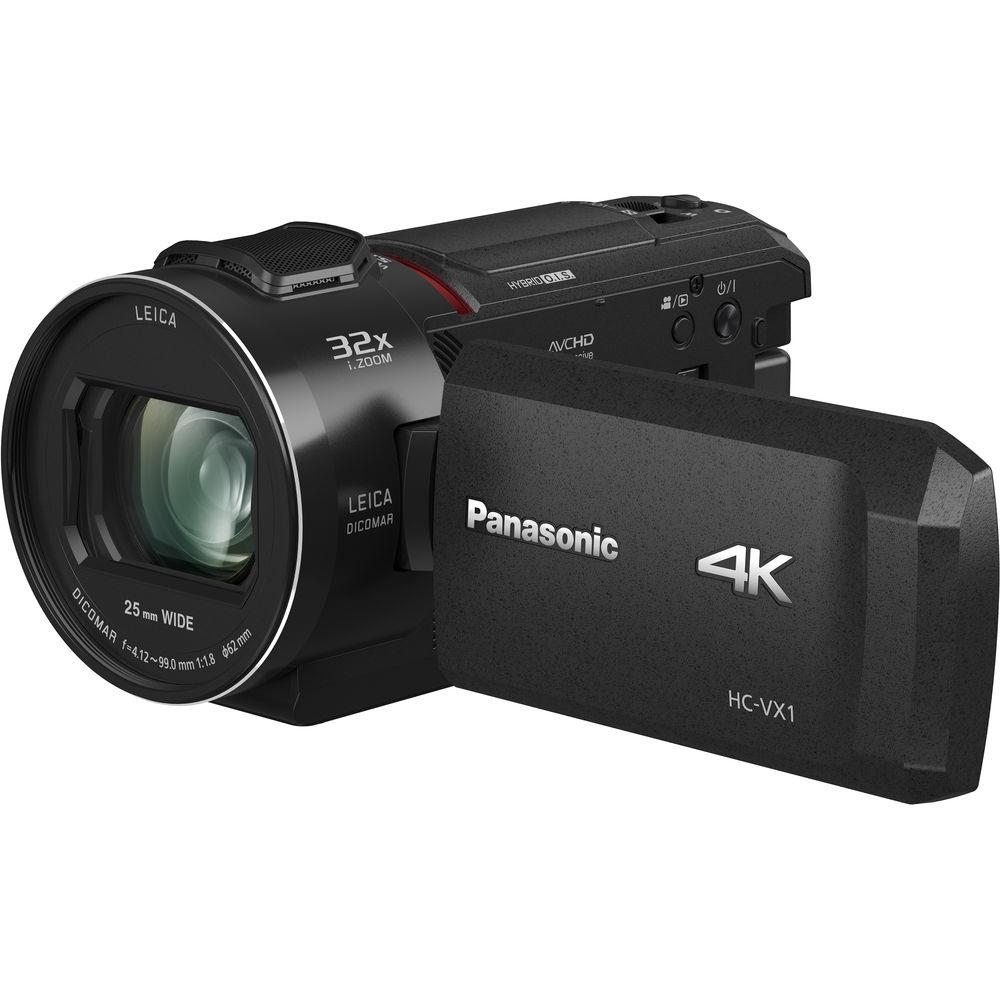

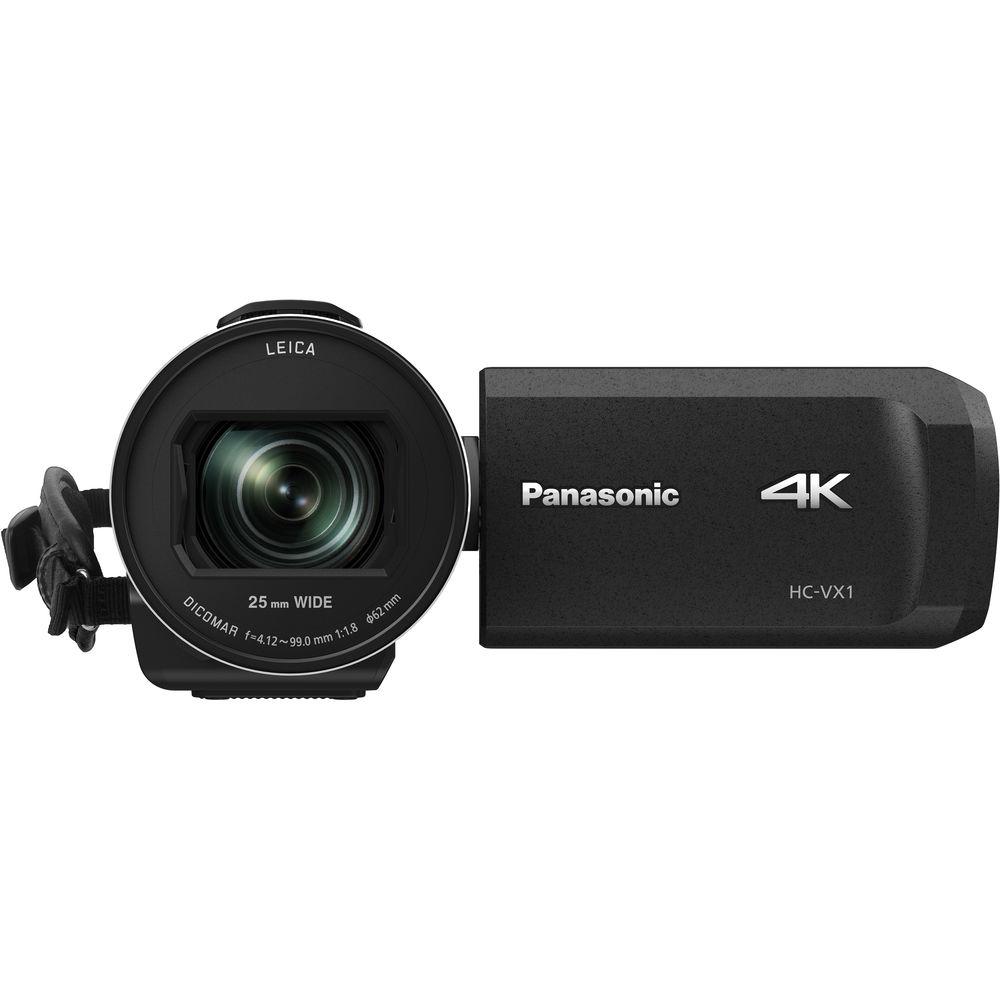

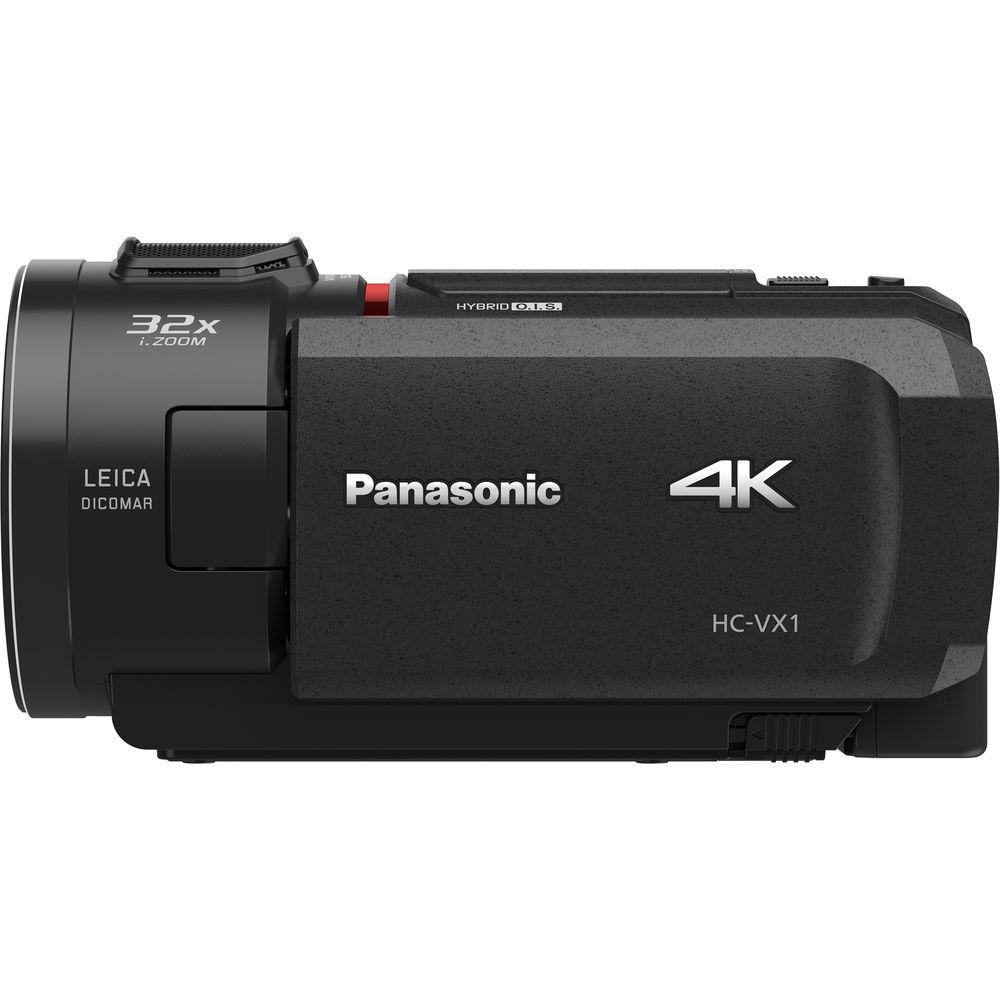

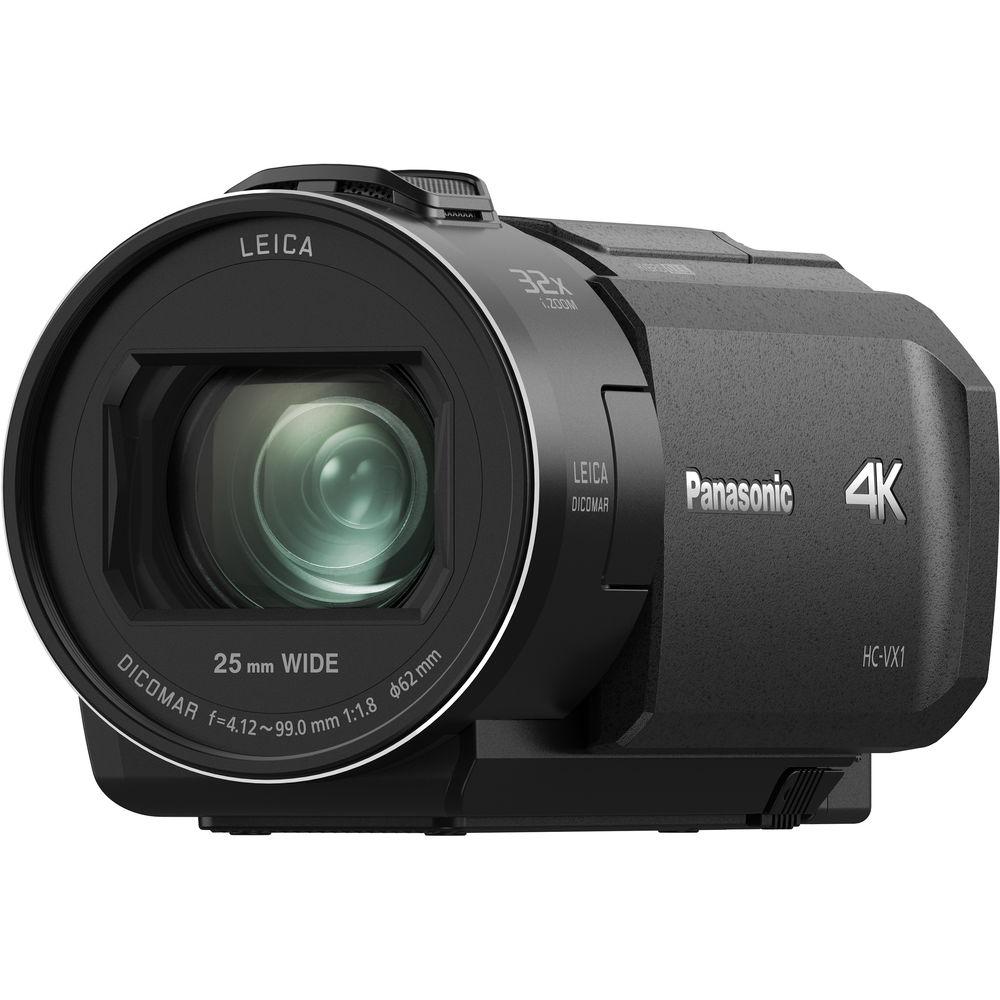

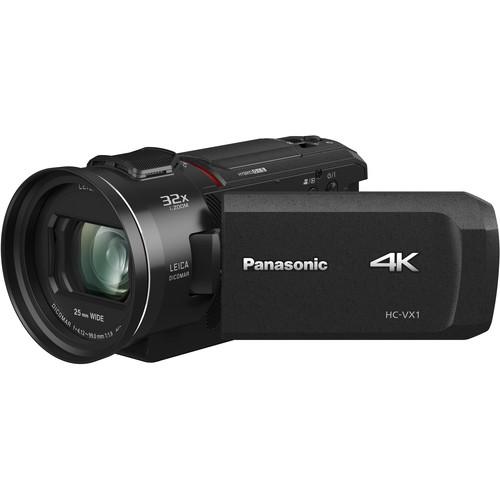

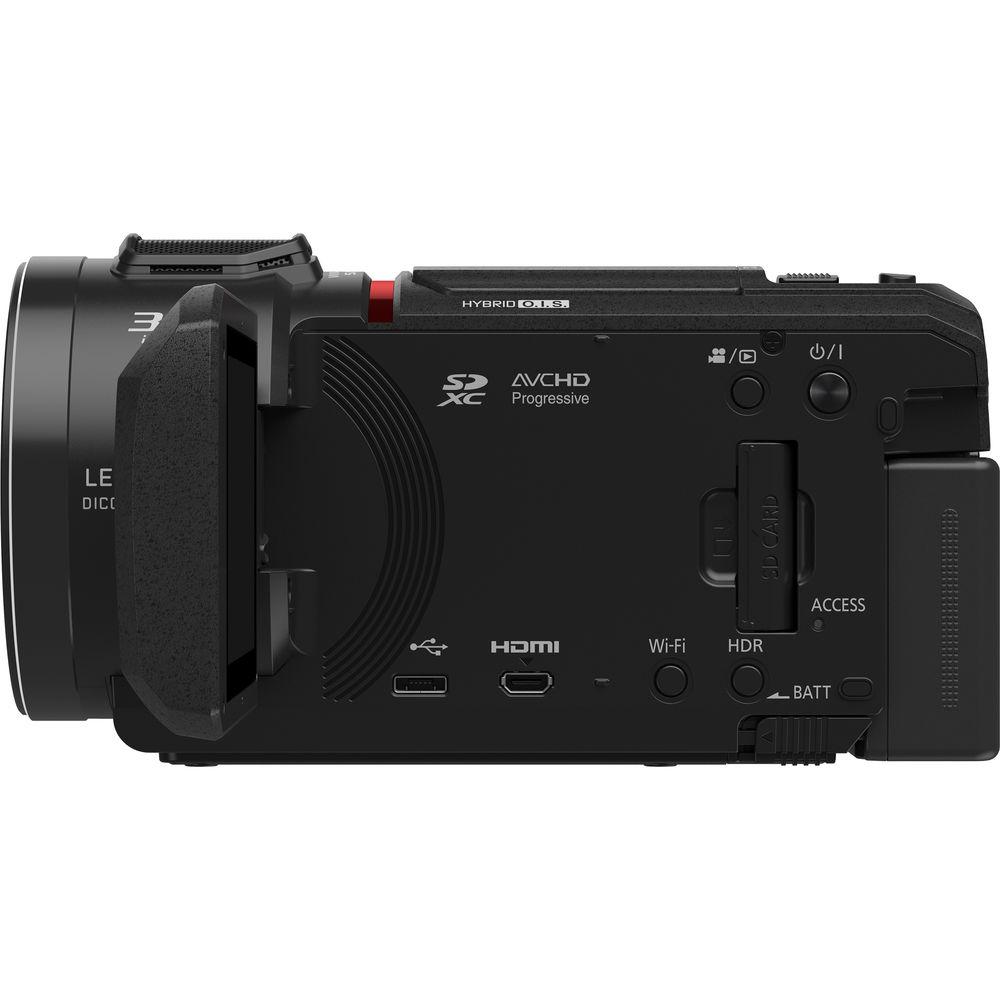

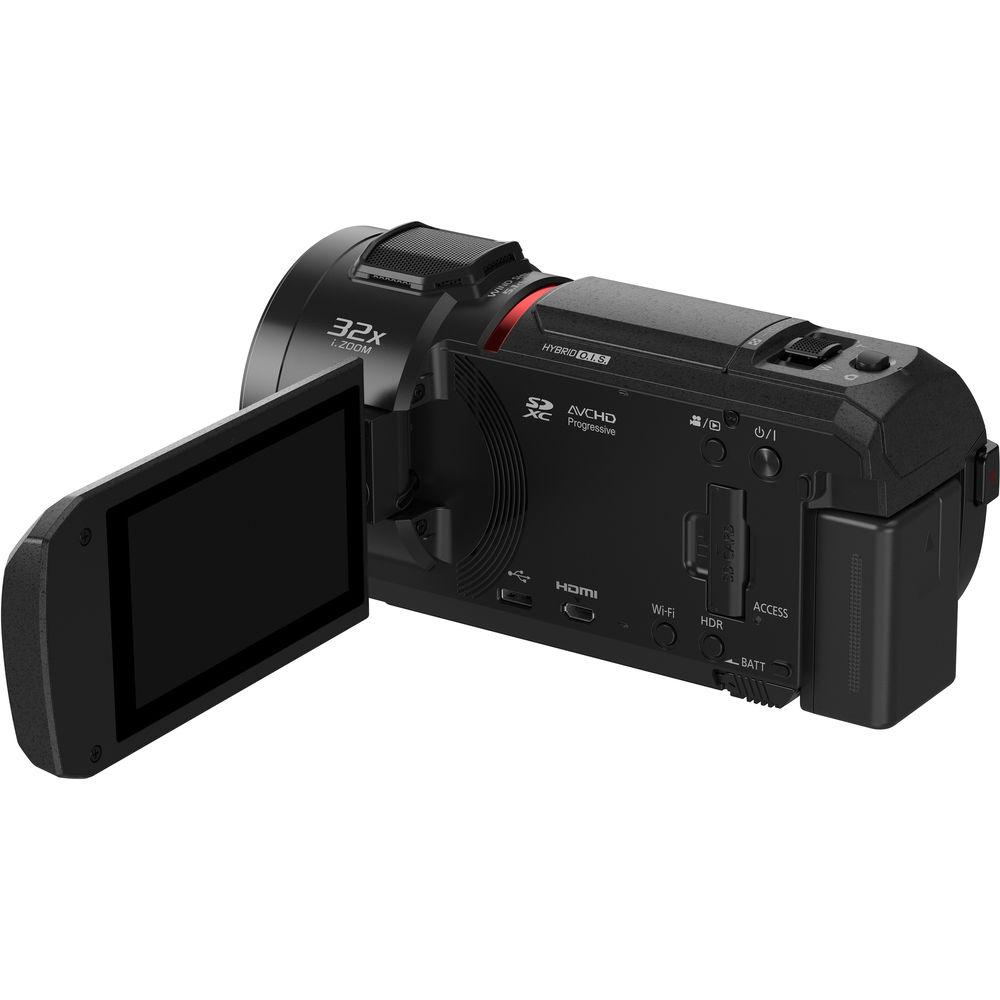

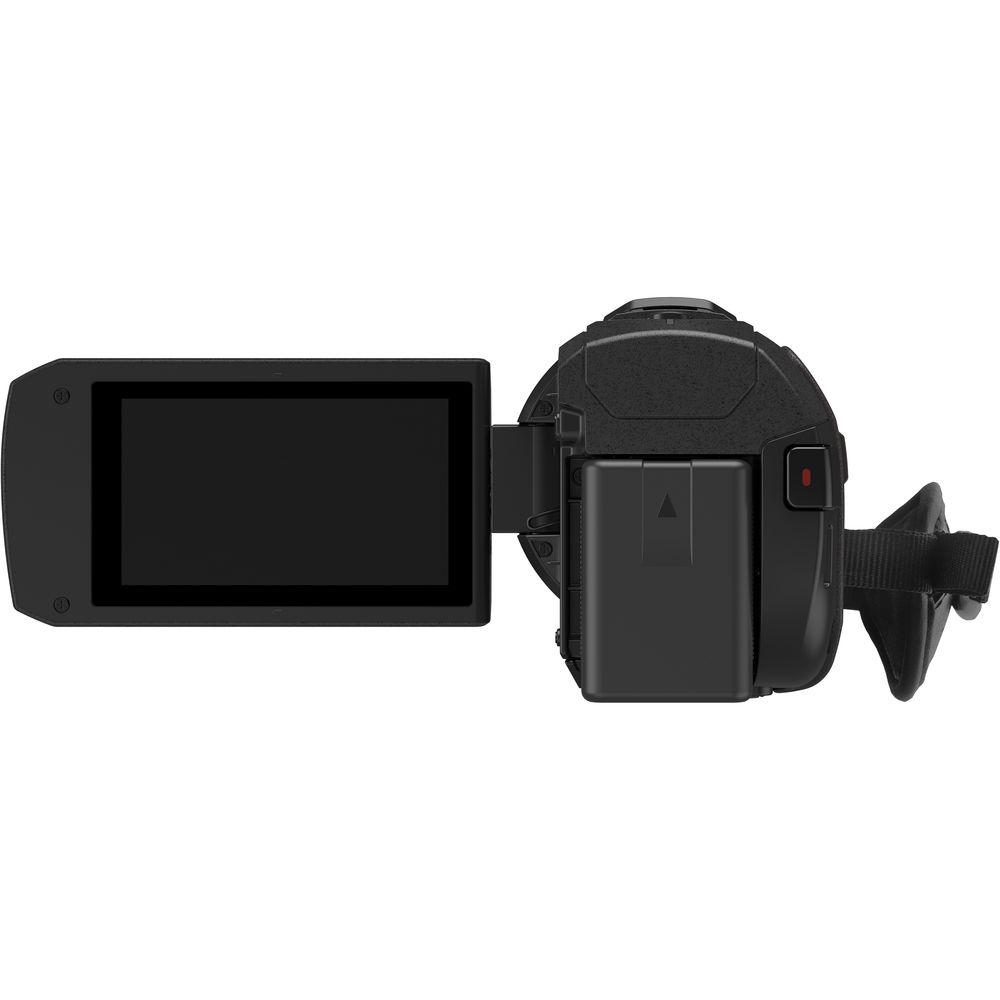

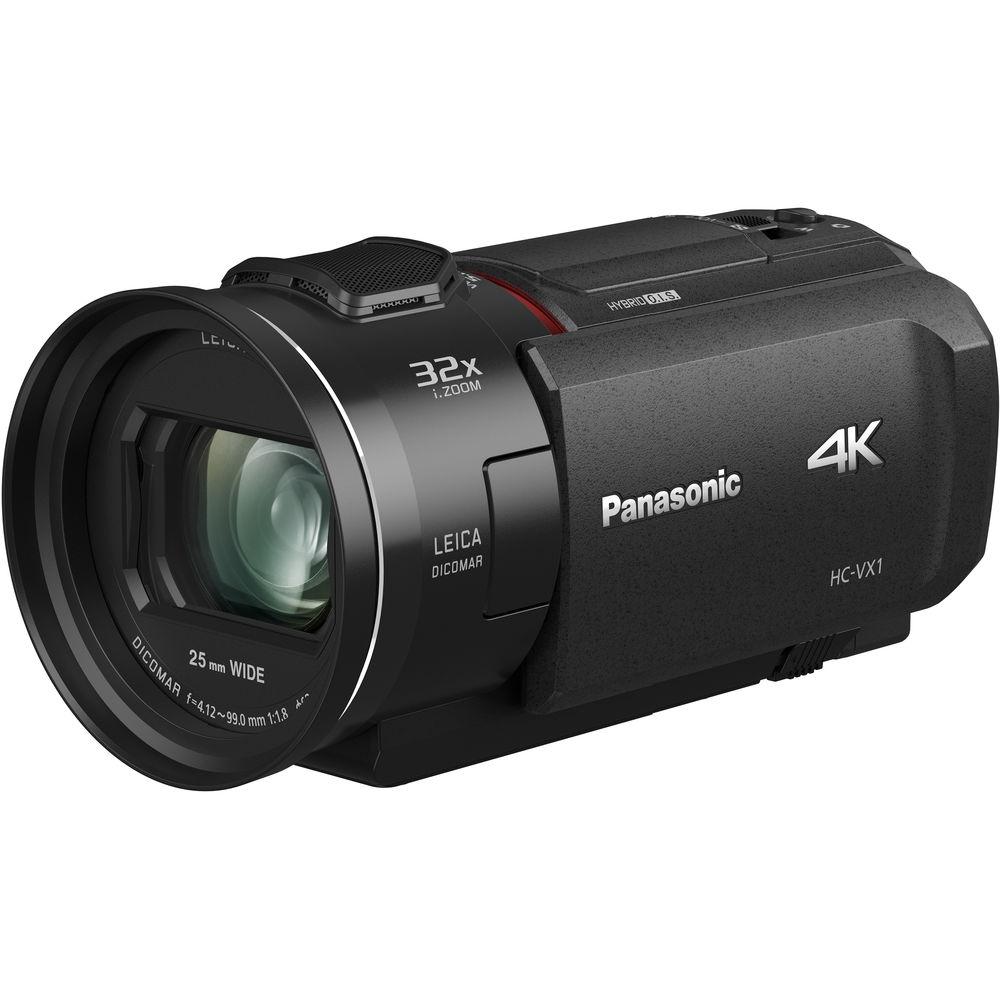

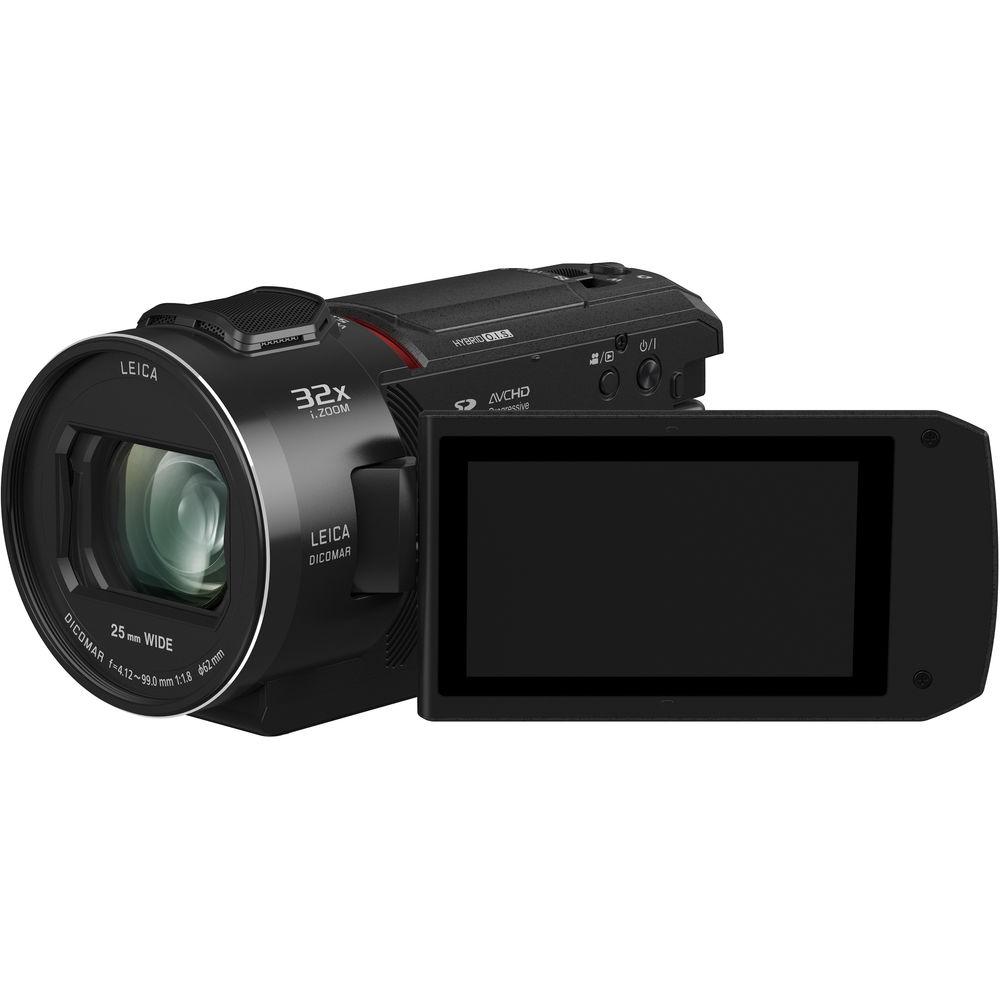

Panasonic HC-VX1 4K HD Camcorder

Search your instruction manual in PDF to download

User Manual for Panasonic HC-VX1 4K HD Camcorder

Click to enlarge the picture
Panasonic HC-VX1 4K HD Camcorder Contents of the user manual for the Panasonic HC-VX1 4K HD Camcorder
  • Product category: Consumer Camcorders Panasonic
  • Brand: Panasonic
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Panasonic Consumer Camcorders

Panasonic HC-VX1 4K HD Camcorder Panasonic HC-VX1 4K HD Camcorder Panasonic HC-VX1 4K HD Camcorder Panasonic HC-VX1 4K HD Camcorder Panasonic HC-VX1 4K HD Camcorder Panasonic HC-VX1 4K HD Camcorder Panasonic HC-VX1 4K HD Camcorder Panasonic HC-VX1 4K HD Camcorder Panasonic HC-VX1 4K HD Camcorder
User manual for the Panasonic HC-VX1 4K HD Camcorder contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Panasonic product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!



Product description

CES 2018: Three New Camcorders from Panasonic Read More The HC-VX1 4K Camcorder from Panasonic employs an f/1.8 to f/4 24x Leica Dicomar zoom and a back-illuminated 1/2.5" MOS sensor for optimal imaging, even at lower light levels. The HC-VX1 captures 4K video up to 30 fps, Full HD video at rates up to 1080p60, and up to 26MP still photos. A wireless Multicamera feature enables you to record up to three camera angles at once, using one or two smartphones as your additional cameras. The HC-VX1's 24x optical zoom lens features a focal length of 25 to 600mm and a 32x Intelligent Zoom in 4K, expanding to 48x in HD. For steadier handheld shooting, the HC-VX1 features three optical stabilizer technologies including Panasonic's Hybrid OIS+, Ball OIS, and Adaptive OIS.

An Active Contrast feature smooths out gradations in high-contrast scenes, and an HDR Movie mode provides a wider dynamic range for more lifelike reproductions. Additional HC-VX1 features include integrated Wi-Fi, a 3" touchscreen LCD display, SD/SDHC/SDXC recording, and multiple creative effects modes. The Panasonic HC-VX1 features an integrated 5.1-channel, wind-shielded zooming microphone for optimal audio capture.
    4K and Full HD 1080p Recording
  • Captures 4K video up to 30 fps, Full HD video at rates up to 1080p60, and up to 26MP still photos. In-camera audio is recorded using a 5.1-channel, wind-shielded zooming microphone.
    24x Optical Zoom and 1/2.5" BSI MOS Sensor
  • A Leica Dicomar 24x optical zoom lens (25 to 600mm 35mm-equivalent focal length), and a large 1/2.5" BSI MOS sensor provide impressive image capture, even in low light. With Intelligent Zoom, a 32x zoom is offered in 4K, and a 48x range in Full HD.
    Triple Optical Image Stabilization (OIS) Systems
  • Three OIS technologies: 5-Axis Hybrid OIS Plus, Ball OIS, and Adaptive OIS work together, providing impressive stability in various shooting situations.
    Wireless Multicamera Capture
  • Record up to three camera angles simultaneously, using one or two smartphones as your additional cameras.
    Active Contrast and HDR Movie Modes
  • The Active Contrast feature smooths out gradations in high-contrast scenes, and an HDR Movie mode provides a wider dynamic range for more lifelike imagery.
UPC: 885170332362 In the Box Panasonic HC-VX1 4K HD Camcorder
  • AC Adapter
  • Rechargeable Battery
  • Micro-HDMI Cable
  • USB Cable
  • Limited 3-Year Warranty
  • User Manual PDF 11.9mb Table of Contents




    Upload User Manual

    Have you got an user manual for the Panasonic HC-VX1 4K HD Camcorder in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    User manual for Panasonic HC-VX1 4K HD Camcorder can be downloaded below, so the upload option is not active.


    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%

    User manual for Panasonic HC-VX1 4K HD Camcorder can be downloaded below, so the upload option is not active.

    Download User Manual

    The user manual for the Panasonic HC-VX1 4K HD Camcorder can be downloaded in PDF format at the link stated below.
    Download PDF user manual - Panasonic HC-VX1 4K HD CamcorderDownload PDF User Manual - https://www.search-manual.com/ upload/ panasonic-hc-vx1-4k-hd-camcorder-325279-user-manual.pdf
    (PDF file, 13.96 MB)


    Technical parameters

    Panasonic HC-VX1 Specs

    Sensor 1-Chip 1/2.5" MOS
    Backside Illumination Yes
    Sensor Resolution 8.57 MP
    Effective Pixels 8.29 MP (16:9 Video)
    6.17 MP (16:9 Video)
    8.29 MP (16:9 Photo)
    6.22 MP (4:3 Photo)
    Focal Length 4.12 to 98.9mm
    35mm-Equivalent Focal Length 25 to 600 at 16:9 4K/Full HD 24p Video: Level Shot function OFF or Normal
    28.9 to 693.7 at 16:9 Full HD 60p/60i/30p, Video: Level Shot function OFF or Normal
    25 to 600 at 16:9 Photo
    30.6 to 734.4 at 4:3 Photo
    Maximum Aperture f/1.8 - f/4
    Zoom Optical: 24x
    Intelligent: 32x
    Intelligent: 48x
    Digital: 70x
    Digital: 1500x
    Filter Size 62 mm
    System NTSC
    Recording Media 1 x SD/SDHC/SDXC
    Video Format 3840 x 2160p at 30 fps (72 Mb/s MP4)
    3840 x 2160 at 24 fps (72 Mb/s MP4)
    1920 x 1080p at 60 fps (50, 28 Mb/s MP4)
    1920 x 1080p at 24 fps (50 Mb/s MP4)
    1280 x 720p at 30 fps (9 Mb/s MP4)
    1920 x 1080p at 60 fps (28 Mb/s AVCHD)
    1920 x 1080i at 60 fps (24, 17, 13, 5 Mb/s AVCHD)
    Aspect Ratio 16:9
    Still Image Resolution JPEG: 25.9 Megapixel, 6784 x 3816 (16:9)
    JPEG: 14 Megapixel, 4992 x 2808 (16:9)
    JPEG: 2.1 Megapixel, 1920 x 1080 (16:9)
    JPEG: 20.4 Megapixel, 5216 x 3912 (4:3)
    JPEG: 10.9 Megapixel, 3808 x 2856 (4:3)
    JPEG: .3 Megapixel, 640 x 480 (4:3)
    Channels 5.1-Channel Stereo
    Audio Format AAC
    Dolby Digital 2ch
    Dolby Digital 5.1
    Display Type LCD
    Touchscreen Yes
    Screen Size 3"
    Screen Resolution 460,800 Dots
    Shutter Speed 1/60 - 1/8000 Second (Video)
    1/2 - 1/2000 Second (Photo) Video: Auto Slow Shutter OFF
    Exposure Modes Modes: Auto
    Shooting Modes Auto
    Low Light
    Miniature Effect
    Movie
    Night
    Time-Lapse Movie
    Image Stabilization Optical & Digital
    Scene Modes Preset: Yes
    Lux 1.5 (Low Light Scene Mode)
    1 (Night Mode (Color))
    White Balance Modes Auto
    Cloudy
    Indoor 1
    Indoor 2
    Outdoors
    Overcast
    Creative Effects Yes
    Built-In Mic Yes
    Built-In Speaker Yes
    Built-In Light/Flash Light - No
    Flash - No
    Wi-Fi Yes, Wi-Fi 4 (802.11n) 2.4 GHz
    Accessory Shoe 1 x Cold
    Tripod Mount 1/4" - 20
    Outputs 1 x Micro-HDMI (Type D)
    1 x USB 2.0
    Microphone Input Yes
    Headphone Jack Yes
    Battery Rechargeable Battery Pack, 1940 mAh
    Max Runtime: 1 Hours per Charge
    Charging Method AC Adapter
    Dimensions (W x H x D) 2.7 x 3.0 x 5.6" / 68.0 x 77.0 x 142.0 mm
    Weight 15.10 oz / 428 g
    Package Weight 1.905 lb
    Box Dimensions (LxWxH) 8.25 x 5.8 x 4.05"
