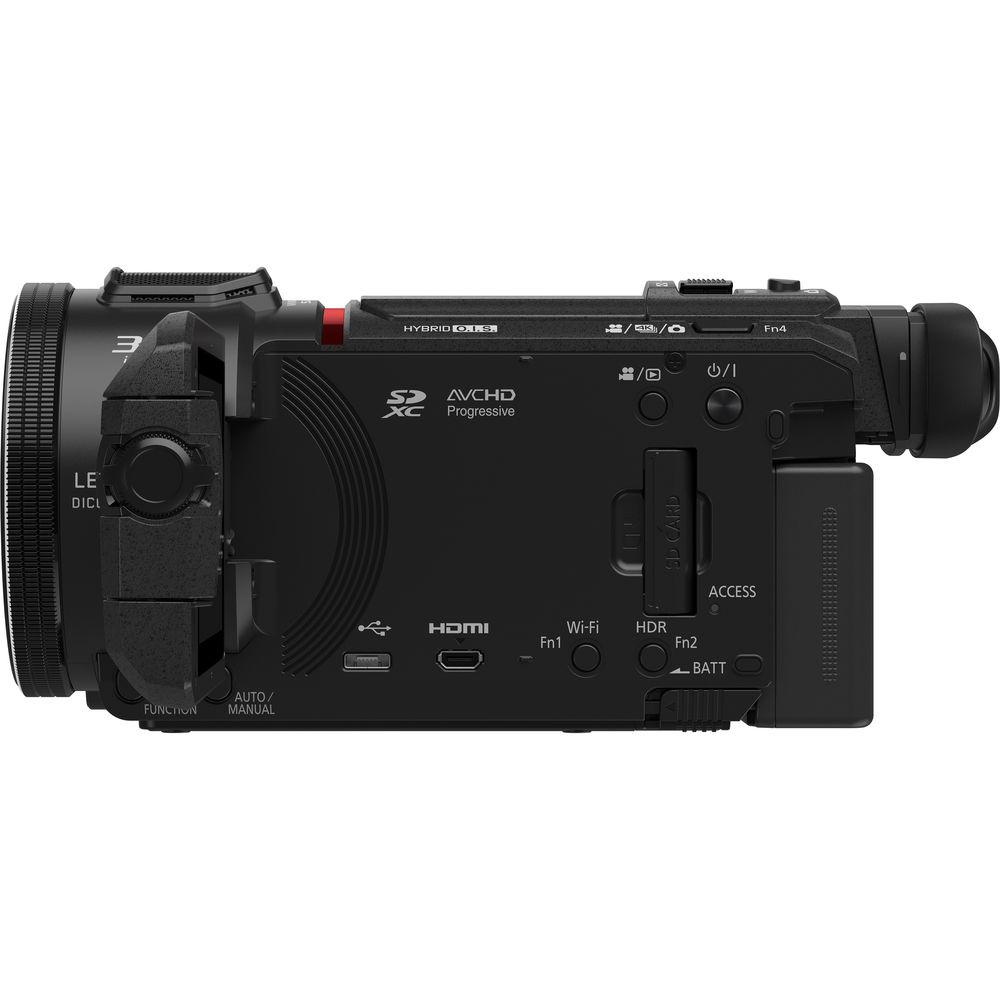

User Manual for Panasonic HC-WXF1 UHD 4K Camcorder with Twin & Multicamera Capture Click to enlarge the picture
Contents of the user manual for the Panasonic HC-WXF1 UHD 4K Camcorder with
- Product category: Consumer Camcorders Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Consumer Camcorders
 |
User manual for the Panasonic HC-WXF1 UHD 4K Camcorder with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|

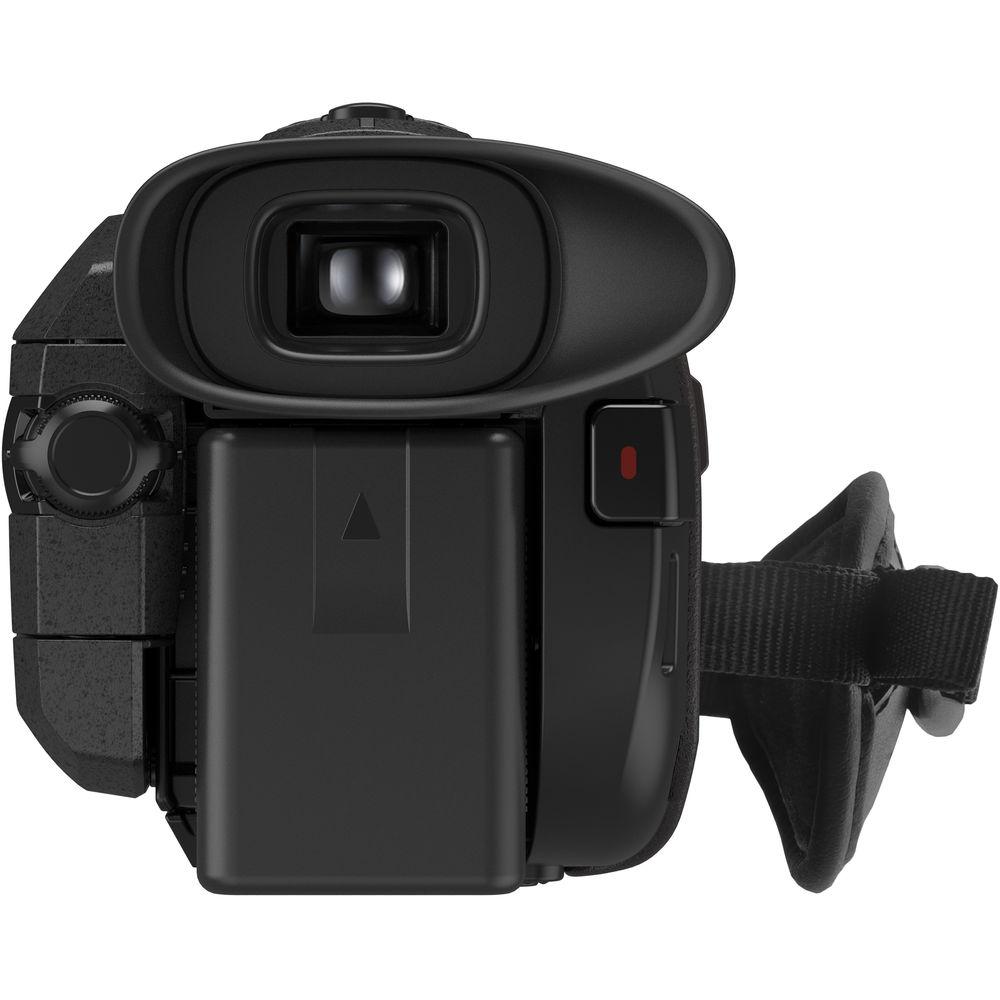

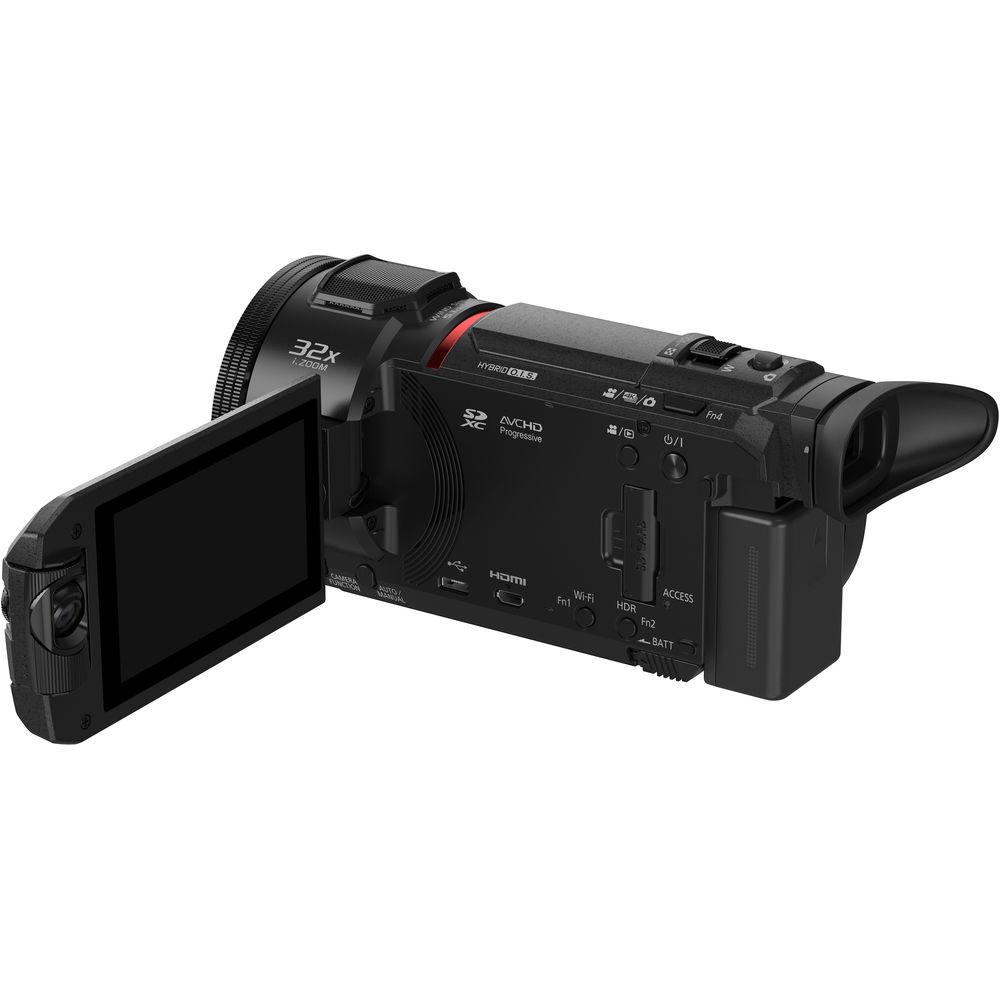

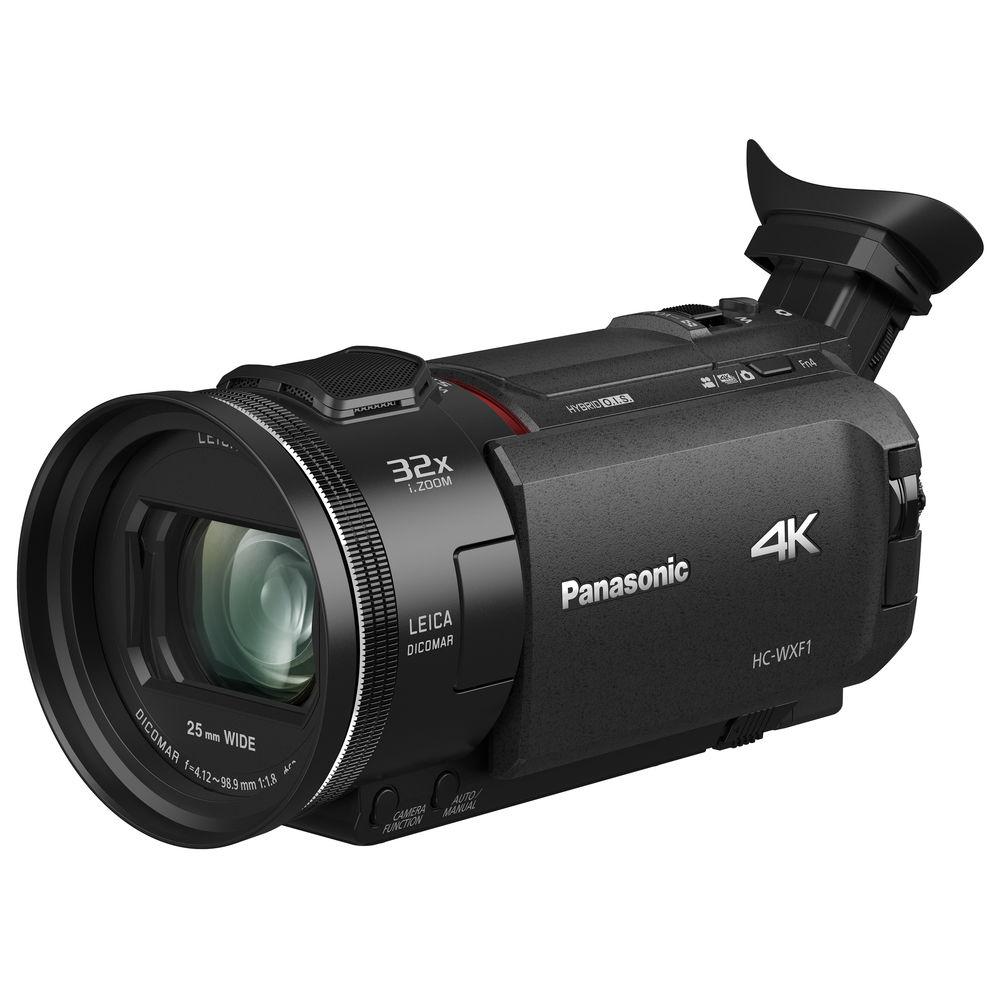

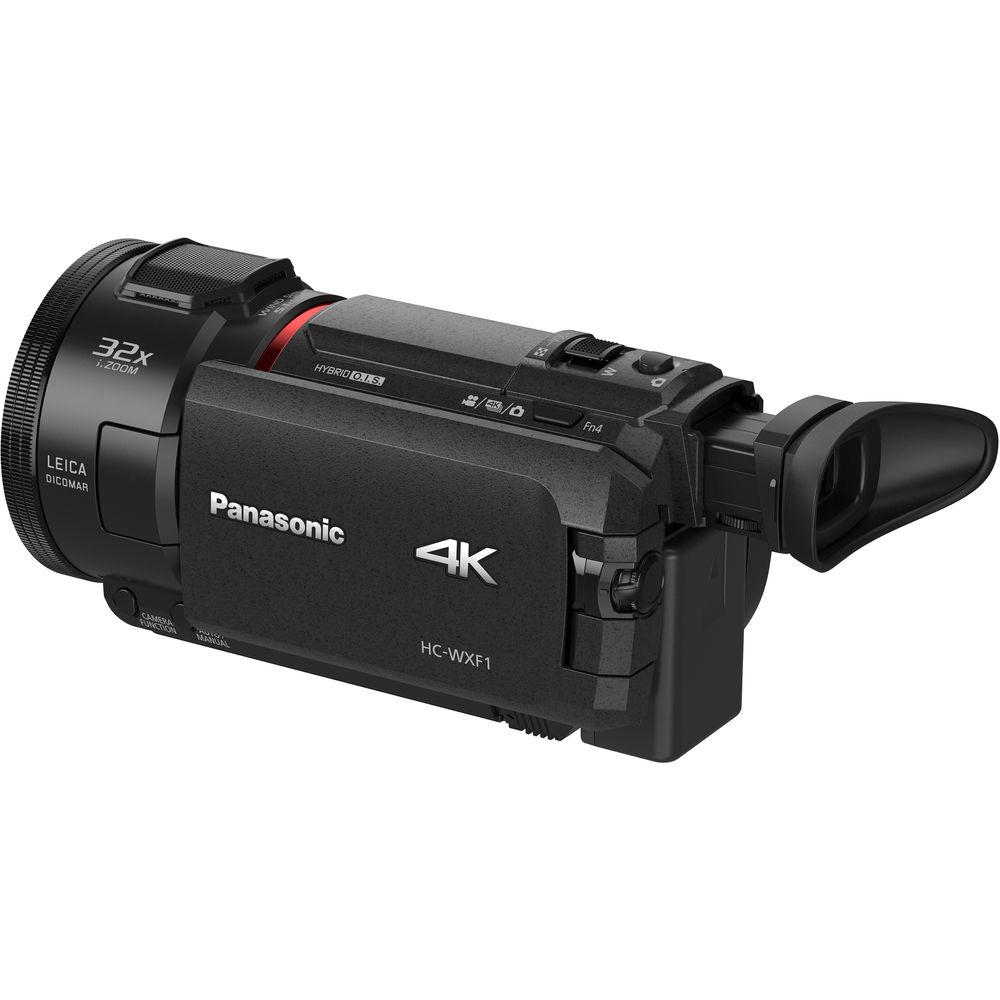

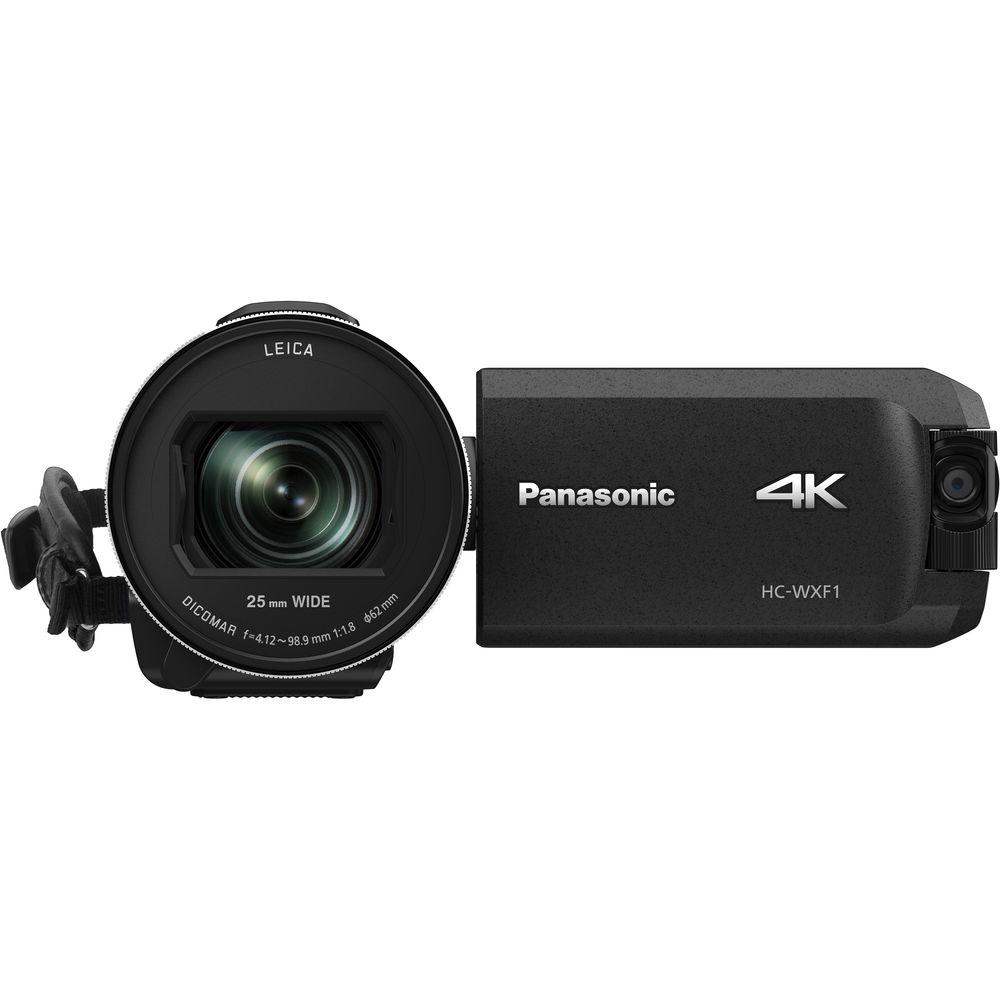

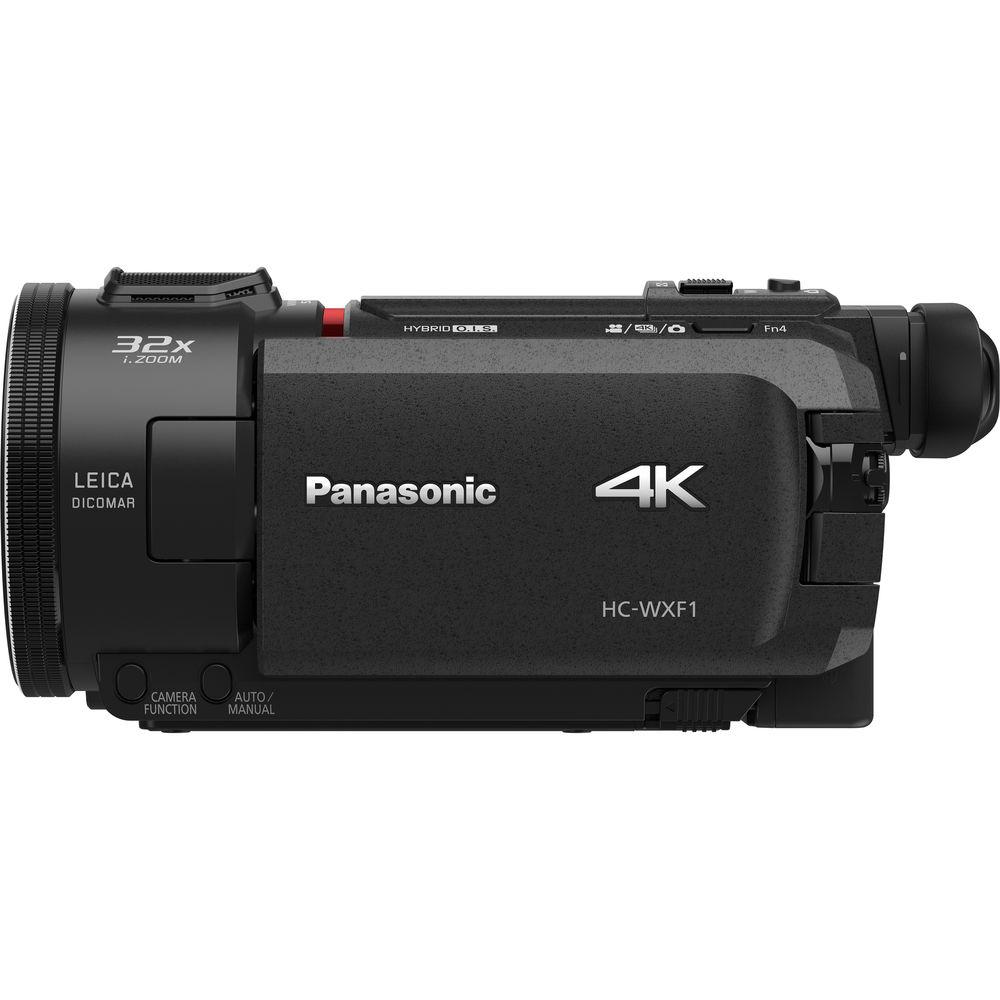

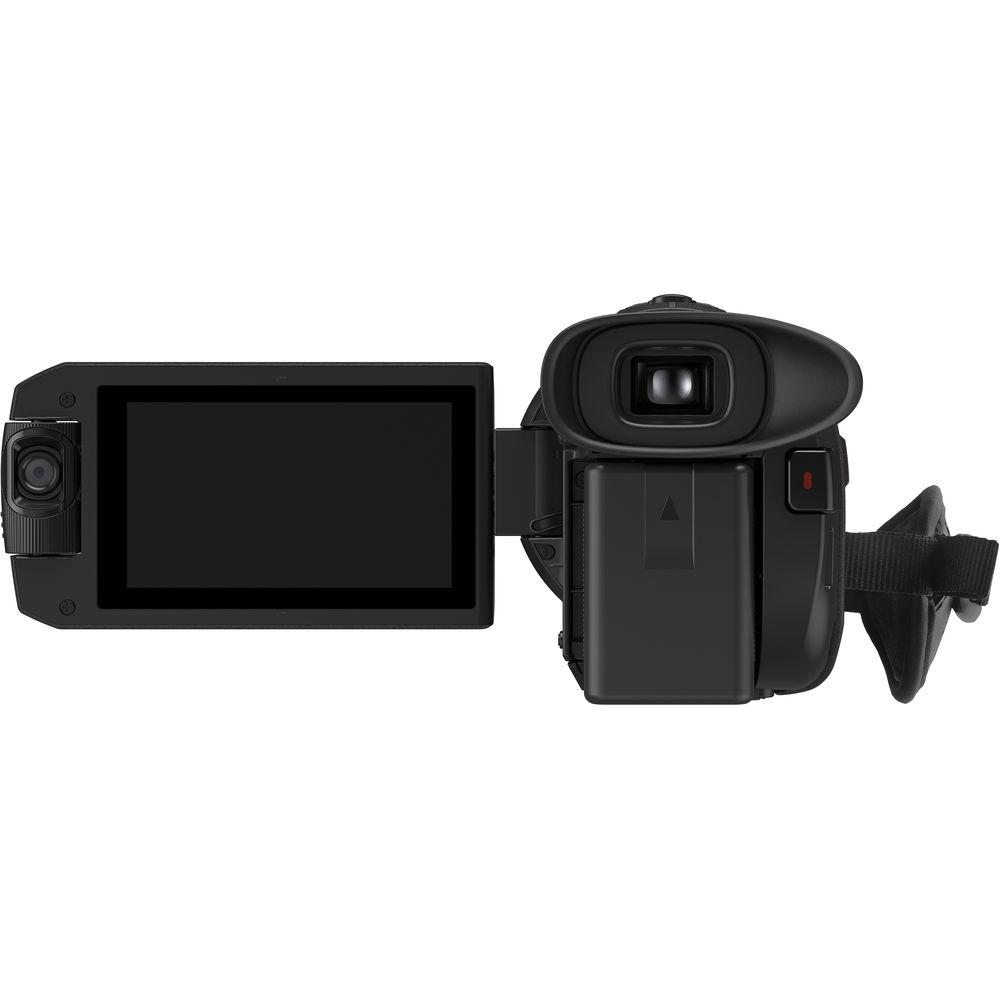

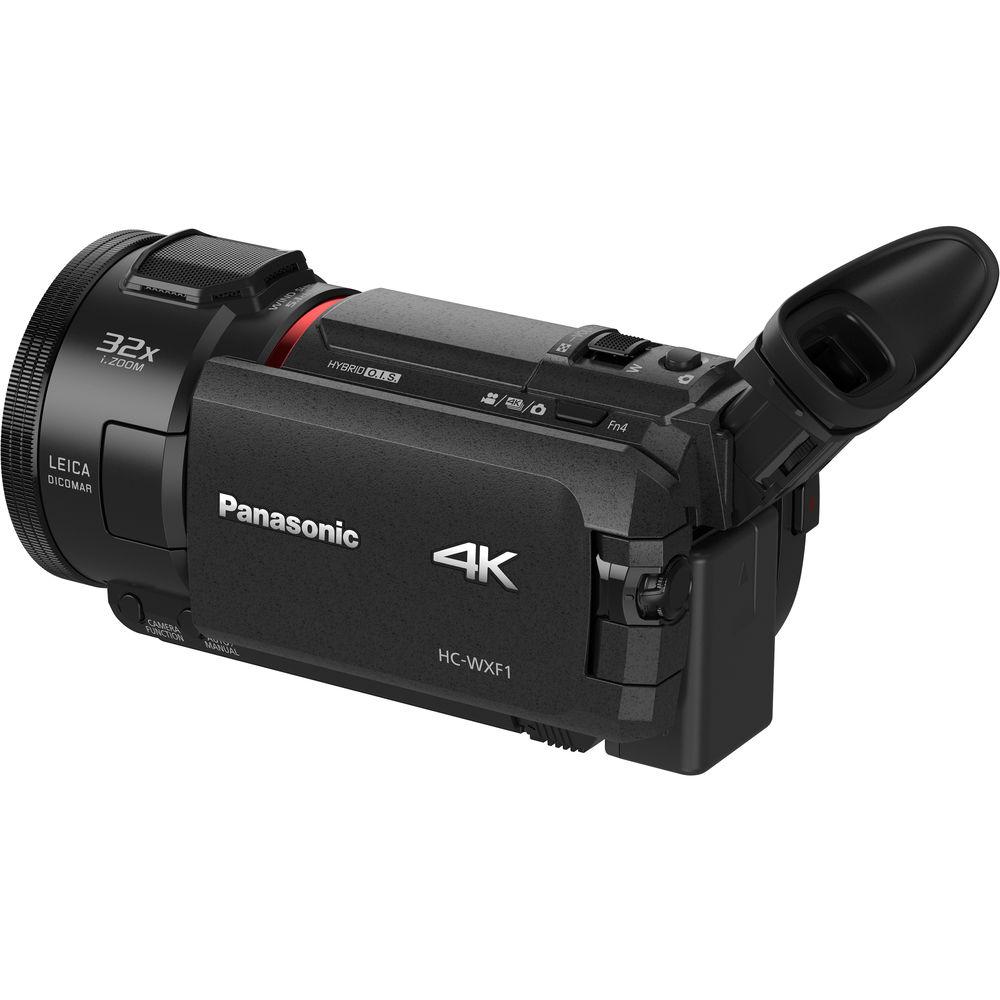

Product description CES 2018: Three New Camcorders from Panasonic Read More zscwfufbesrvdtawsddfcbcusavuav Offering several cine-style features not often found in a consumer camcorder, the Panasonic HC-WXF1 UHD 4K Camcorder combines UHD 4K capture with support for up to four picture-in-picture video feeds. The HC-VX1's integrated f/1.8 to f/4 24x Leica Dicomar zoom works with the back-illuminated 1/2.5" MOS sensor to provide optimal imaging, even at lower light levels. Use the HC-WXF1 to record UHD 4K video at 24 or 30 fps, Full HD video at rates up to 1080p 60 fps, and up to 26MP still photos.In addition to its 3" flip-out, touchscreen LCD, the HC-WXF1 has an electronic viewfinder (EVF) with a rubber eyecup which enables you to clearly view your shots, even when shooting outside in bright light. A control ring on the zoom gives you greater creative control over your shots, letting you adjust focus and iris manually. Two quick-access buttons enable you to quickly control functions like white balance, focus peaking, and expanded focus.A secondary camera built into the LCD screen neatly captures a shot of the user, or an alternate view of your subject or scenery. This Twin Camera can be tilted up or down a total of 40°, and has a limited number of independently adjustable controls. The secondary image is captured as a PiP shot, and can be displayed along with PiP shots using the Multicamera feature for a total of four PiP shots. The wireless Multicamera feature enables you to record feeds from up to three smartphones as PiP shots. When using a Class 10 SD card, a separate, clean main camera image can be recorded in addition to the PiP/main image combo. It is not possible to record the PiP images separately.The HC-WXF1's 24x optical zoom lens features a focal length of 25 to 600mm and a 32x Intelligent Zoom in 4K, expanding to 48x in HD. For steadier handheld shooting, the HC-WXF1 features three optical stabilizer technologies including Panasonic's HYBRID OIS+, Ball OIS, and Adaptive OIS. An Active Contrast feature smooths out gradations in high-contrast scenes, and an HDR Movie mode provides a wider dynamic range for more lifelike reproductions.
Additional HC-WXF1 features include integrated Wi-Fi, SD/SDHC/SDXC card recording, and multiple creative effects modes. The Panasonic HC-WXF1 features an integrated 5.1-channel, wind-shielded zooming microphone for optimal audio capture, and a Narration mode when in Twin Camera. - UHD 4K and Full 1080p HD Recording
- Captures UHD 4K video at 24 or 30 fps, Full HD video at rates up to 1080p60, and up to 26MP still photos. In-camera audio is recorded using a 5.1-channel, wind-shielded zooming microphone.
- 24x Optical Zoom and 1/2.5" BSI MOS Sensor
- A Leica Dicomar 24x optical zoom lens (25 to 600mm, 35mm-equivalent) and large 1/2.5" BSI MOS sensor provide impressive image capture, even in low light. With Intelligent Zoom, a 32x zoom is offered in 4K and a 48x range in Full HD.
- Twin-Camera and Wireless Multicamera Capture
- Record up to four camera angles simultaneously using the integrated Twin Camera, and up to three smartphones as your additional cameras. Twin- and multicamera views are displayed in picture-in-picture (PiP) format, and are recorded simultaneously. A clean feed of the main camera image can be recorded as a backup when recording to a Class 10-speed SD card.
- Advanced Cine-Style Functions
- Pro-style features include an electronic viewfinder (EVF), a manual focus/iris lens ring, and on-camera quick-access buttons.
- Triple Optical Image Stabilization (OIS) Systems
- Three OIS technologies—5-Axis HYBRID OIS Plus, Ball OIS, and Adaptive OIS—work together to provide impressive stability in various shooting situations.
- Active Contrast and HDR Movie Modes
- The Active Contrast feature smooths out gradations in high-contrast scenes, and an HDR Movie mode provides a wider dynamic range for more lifelike imagery.
UPC: 885170332317 In the Box Panasonic HC-WXF1 UHD 4K Camcorder with Twin & Multicamera Capture AC Adapter Rechargeable Battery Micro-HDMI Cable USB Cable Limited 3-Year Warranty User Manual PDF 11.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic HC-WXF1 UHD 4K Camcorder with Twin & Multicamera Capture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic HC-WXF1 Specs | | | Sensor | 1-Chip 1/2.5" MOS | | Backside Illumination | Yes | | Sensor Resolution | 8.57 MP | | Effective Pixels | 8.29 MP (16:9 Video)
6.17 MP (16:9 Video)
8.29 MP (16:9 Photo)
6.22 MP (4:3 Photo) | | | | Focal Length | 4.12 to 98.9mm | | 35mm-Equivalent Focal Length | 25 to 600 at 16:9 4K/Full HD 24p Video: Level Shot function OFF or Normal
28.9 to 693.7 at 16:9 Full HD 60p/60i/30p, Video: Level Shot function OFF or Normal
25 to 600 at 16:9 Photo
30.6 to 734.4 at 4:3 Photo | | Maximum Aperture | f/1.8 - f/4 | | Zoom | Optical: 24x
Intelligent: 32x
Intelligent: 48x
Digital: 70x
Digital: 1500x | | Filter Size | 62 mm | | | | System | NTSC | | Recording Media | 1 x SD/SDHC/SDXC | | Video Format | 3840 x 2160p at 30 fps (72 Mb/s MP4)
3840 x 2160 at 24 fps (72 Mb/s MP4)
1920 x 1080p at 60 fps (50, 28 Mb/s MP4)
1920 x 1080p at 24 fps (50 Mb/s MP4)
1280 x 720p at 30 fps (9 Mb/s MP4)
1920 x 1080p at 60 fps (28 Mb/s AVCHD)
1920 x 1080i at 60 fps (24, 17, 13, 5 Mb/s AVCHD) | | Aspect Ratio | 16:9 | | Still Image Resolution | JPEG: 25.9 Megapixel, 6784 x 3816 (16:9)
JPEG: 14 Megapixel, 4992 x 2808 (16:9)
JPEG: 2.1 Megapixel, 1920 x 1080 (16:9)
JPEG: 20.4 Megapixel, 5216 x 3912 (4:3)
JPEG: 10.9 Megapixel, 3808 x 2856 (4:3)
JPEG: .3 Megapixel, 640 x 480 (4:3) | | Channels | 5.1-Channel Stereo | | Audio Format | AAC
Dolby Digital 2ch
Dolby Digital 5.1 | | | | Display Type | LCD | | Touchscreen | Yes | | Screen Size | 3" | | Screen Resolution | 460,800 Dots | | | | Screen Size | .24" | | EVF Resolution | 1,555,200 Dots Pixel-equivalent dots | | | | Shutter Speed | 1/60 - 1/8000 Second (Video)
1/2 - 1/2000 Second (Photo) Video: Auto Slow Shutter OFF | | Exposure Modes | Modes: Auto | | Shooting Modes | Auto
Low Light
Miniature Effect
Movie
Night
Time-Lapse Movie | | | | Image Stabilization | Optical & Digital | | Scene Modes | Preset: Yes | | Lux | 1.5 (Low Light Scene Mode)
1 (Night Mode (Color)) | | White Balance Modes | Auto
Cloudy
Indoor 1
Indoor 2
Outdoors
Overcast | | Creative Effects | Yes | | Built-In Mic | Yes | | Built-In Speaker | Yes | | Built-In Light/Flash | Light - No
Flash - No | | Wi-Fi | Yes, Wi-Fi 4 (802.11n) 2.4 GHz | | Accessory Shoe | 1 x Cold | | Tripod Mount | 1/4" - 20 | | | | Outputs | 1 x Micro-HDMI (Type D)
1 x USB 2.0 | | Microphone Input | Yes Line-in shared with stereo mic mini-jack | | Headphone Jack | Yes | | | | Battery | Rechargeable Battery Pack, 1940 mAh
Max Runtime: 1 Hours per Charge | | Charging Method | AC Adapter | | Dimensions (W x H x D) | 2.7 x 3.0 x 6.6" / 69.0 x 77.0 x 167.0 mm | | Weight | 16.16 oz / 458 g Without battery and SD card | | | | Package Weight | 1.97 lb | | Box Dimensions (LxWxH) | 8.2 x 5.9 x 4.05" |
