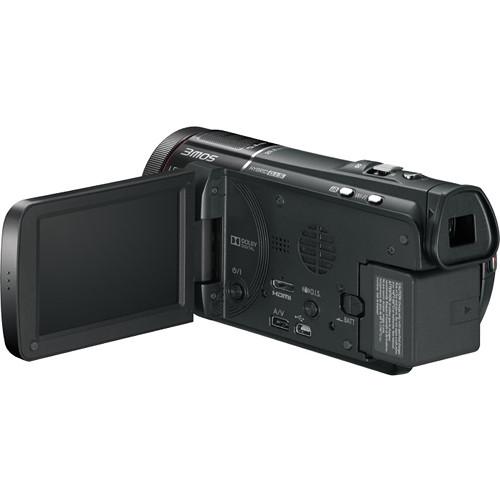

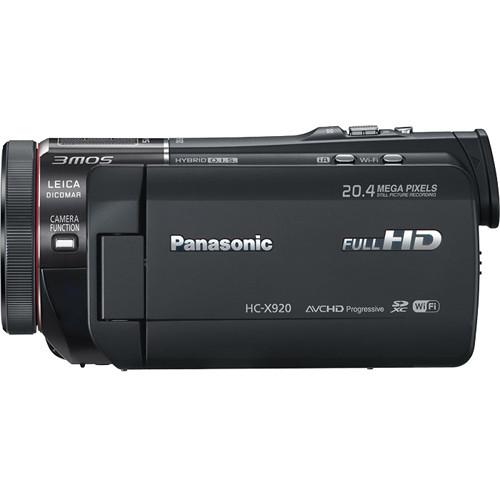

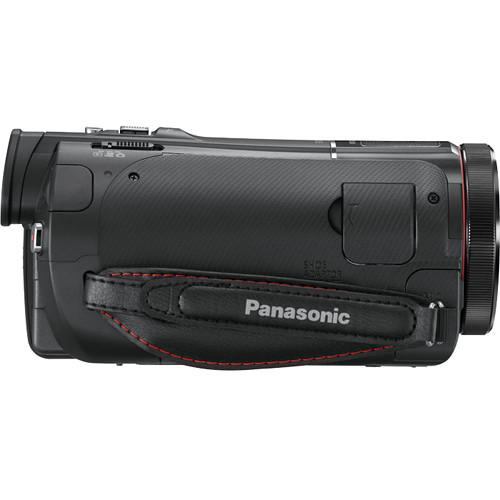

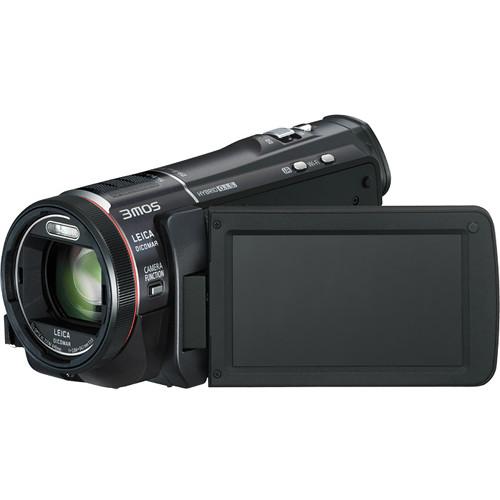

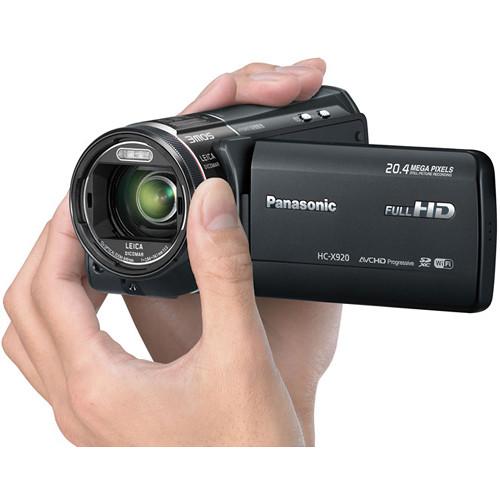

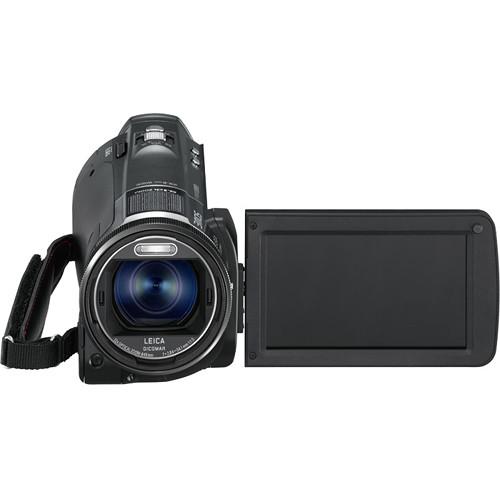

User Manual for Panasonic HC-X920 3MOS Ultrafine Full HD Camcorder Click to enlarge the picture
Contents of the user manual for the Panasonic HC-X920 3MOS Ultrafine Full HD
- Product category: Consumer Camcorders Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Consumer Camcorders
|
User manual for the Panasonic HC-X920 3MOS Ultrafine Full HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description The Panasonic HC-X920 3MOS Ultrafine Full HD Camcorder features three back-illuminated MOS sensors (3MOS) with an effective size of approximately 1/4" each and records Full HD 1080/60p video in the AVCHD format. The 12x Leica Dicomar zoom lens has a fast max aperture of f/1.5 and a 35mm equivalent of approximately 29.8-399.2mm, and the optical zoom is supplemented by an 25x Intelligent Zoom. Built-in Wi-Fi enables real time streaming and remote control via a smartphone or tablet. Other features include a 3.5" LCD touchscreen monitor, Five Axis Hybrid OIS, 5.1-channel surround sound, and iA Plus Mode. - Three 1/2.3" MOS Sensors with BSI
- The imaging system features three MOS sensors with back-side illumination (BSI) and a total size of 1/2.3" each. Of this total size, the camera uses approximately a 1/4" portion of the entire sensor to accommodate Panasonic's existing prism system. This means the effective sensor size for the camera is approximately 1/4". This effective size yields a 35mm equivalent focal length of 29.8 to 399.2mm.
- Leica Dicomar Lens
- The fast, f/1.5 lens features a Nano Surface Coating that suppresses ghosting and flare when shooting moving pictures, and let you record bright images with very little noise even in dark places. The lens has a 12x optical zoom ratio, which is further extended by a 25x Intelligent Zoom.
- Crystal Engine Pro II
- The ultra-high speed Crystal Engine Pro II can process a huge number of pixels – approximately equivalent to four times the pixel count of Full-HD – which enables pixel shift technology for superb Full-HD image quality.
- Live Channel Video Streaming
- The built-in Wi-Fi function enables real time broadcasting of important events via Ustream. This lets you deliver live images to people with Internet access around the world. There is also a function to send e-mail to notify the start of broadcasting to preregistered e-mail addresses.
- Remote Shooting and Home Monitoring
- The dedicated Panasonic Image App allows users to remotely zoom In/Out, activate record Start/Stop, check audio recording and view the live image on a smartphone or tablet. The HC-X920 can be used as a home monitor, allowing you can monitor and record live video using your smartphone or tablet, even when you are away from home.
- 3.5" Touchscreen LCD Monitor
- The 3.5" LCD features 1,152,000 dot resolution and intuitive fingertip touch-operation. When shooting, you can activate the shutter simply by touching a fingertip on the screen. For playback, you can also change thumbnail pages by sliding a fingertip across the screen.
- Electronic View Finder
- This extendable, 263,424 dot equivalent viewfinder is easy to use and convenient for focusing and other adjustments. The EVF makes it easy to see the scene under bright sunlight.
- 5-Axis HYBRID O.I.S. +
- 5-Axis HYBRID O.I.S. + thoroughly suppresses blurring over the entire shooting range. This makes it possible to capture crisp, clear images with reduced blur in almost every shooting situation.
- iA and Scene Modes
- iA (Intelligent Auto) senses the shooting conditions and automatically adjusts settings for optimal results. iA makes the bothersome settings for you and makes it easy to capture beautiful, well-focused images. Scene modes include Sports, Portrait, Low Light (motion image only), Spot Light, Snow, Beach, Sunset, Fireworks, Scenery, Night Scenery, Night Portrait (still image only), and Soft Skin Mode.
- Creative Control
- Four filter effects - Miniature Effect, 8mm Movie, Silent Movie and Time Lapse Recording - further enhance expressive capabilities. The filter results can be checked on the LCD while shooting. This makes it possible to shoot impressive video recordings that are matched to the shooting situation.
- 5.1-Channel Surround Sound
- The HC-X920 is equipped with multiple electret condenser microphones for a realistic sound space to match true-to-life HD images. Other audio features include Wide mode, 12x Zoom Mic mode, Focus Mic mode and a Wind Noise Canceller.
- Manual Control Ring and Focus Assist
- The manual ring gives you easy, fingertip control over the iris, focus, zoom and exposure settings. You'll find using the ring is a much more intuitive, comfortable, user-friendly process than accessing a menu screen. In addition, Focus Assist supports manual adjustments by displaying blue outlines around subjects that are in-focus. You can easily check the focus on the LCD monitor when focusing manually, to ensure sharp images.
- Optional 3D Conversion Lens
- By mounting the VW-CLT2 3D Conversion Lens (sold separately) you can record FULL HD 3D images with the Multiview Video Coding recording system of the AVCHD 3D format. Right-eye and left-eye images are both recorded and played in Full-HD quality, using the Frame Sequential Method to produce FULL HD 3D images.
- 2D to 3D Conversion
- 2D images can be easily transformed into 3D images with the 2D to 3D Conversion function. Simply connect the camcorder to a 3D-compatible TV with an HDMI cable. The 2D to 3D Conversion function then uses the image processing capability of the engine to convert 2D images into 3D.
- Level Gauge and Level Shot Function
- The built-in Level Gauge helps users correct slight tilting that can be difficult to see with the naked eye. In addition, the Level Shot Function automatically detects and corrects the tilting of captured images. It corrects tilt even if when shooting in an unstable or awkward position such as low-angle or high-angle shooting.
- 20.4MP Still Photographs
- Still Picture Recording mode lets you shoot with a maximum resolution of 20.4 megapixels.
- Highlight Playback and Easy Share
- You can enjoy Highlight Playback with a smartphone or tablet right after shooting. Favorite scenes can be shared on SNS with simple drag and drop operation.
- Wireless TV Playback
- An Access Point at home can be used to transfer data wirelessly to a compatible TV or a tablet in the living room, kitchen or other rooms in the home.
- Pre-Rec Function
- This smart function records three seconds of video even before you actually begin shooting. Before recording begins, the images are held in temporary, internal memory. This helps ensure that you won't miss the start of a moment you want to record, such as when an event begins all of a sudden.
- Color Night Rec
- Color Night Rec captures images with color even in dim lighting (1 lux).
- A Variety of Interfaces
- A mini jack on the side of the camcorder enables the use of an external microphone (sold separately), and the accessory shoe provides an interface for optional accessories. There is also a headphone jack, which allows you to monitor audio recordings or playback recorded footage with greater privacy.
- Plug and Copy to External HDD
- Recorded data can be easily copied to an HDD without having to use a PC.
- Auto Ground-Directional Standby
- The O.I.S. linear motor system can detect when the camera is in an unusual shooting position and automatically stops recording, saving both battery power and media storage space. This can be helpful if the user inadvertently engages the recording mode. Of course, this can feature can also be deactivated when necessary.
- HD Writer
- HD Writer software, included with the camcorder, makes it easy to play or edit videos on your PC and have more fun when the shooting's done. The Short Movie Story function makes it possible to transform still images and videos into dramatic short videos. Once the still images/videos, a theme, and background music are selected, the software takes over to automatically produce the movie. It's easy to add titles, rearrange scenes, provide transition effects, and edit images in single frame units.
In the Box Panasonic HC-X920 3MOS Ultrafine Full HD Camcorder AC Adapter AC Cable Rechargeable Battery Pack (1,250 mAh) HDMI Cable AV Cable Shoe Adapter Lens Hood USB Cable Software (HD Writer AE 5.0) Limited Warranty (1-Year Parts and 90-Days Labor) User Manual PDF 1.9mb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic HC-X920 3MOS Ultrafine Full HD Camcorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic HC-X920 Specs | Sensor | 3-Chip 1/2.3" MOS 1/2.3" total sensor size: Approx. 1/4" active area. | Backside Illumination | Yes | Sensor Resolution | 38.28 MP | Effective Pixels | 8.49 MP (16:9 Video) 7.62 MP (3:2 Photo) 6.78 MP (4:3 Photo) | | Focal Length | 2.84 to 34.1mm | 35mm-Equivalent Focal Length | 29.8 to 399.2 at 16:9 33.1 to 397.1 at 3:2 36 to 431.7 at 4:3 | Maximum Aperture | f/1.5 - f/2.8 | Zoom | Optical: 12x Intelligent On: 25x Digital: 40x Maximal Value: 700x | Filter Size | 49 mm | | Recording Media | x SD/SDHC/SDXC | Recording Time | SD/SDHC 4 GB 19 minutes with a 4 GB card in 1080/60p mode 30 minutes with a 4 GB card in HA mode 1.5 hours with a 4 GB card in HE mode 400x 15.1MP still photos with 4 GB card 28000x 0.3MP still photos with 4 GB card SDXC 64 GB 5.3 hours with a 64 GB card in 1080/60p mode 8.5 hours with a 64 GB card in HA mode 27.5 hours with a 64 GB card in HE mode 7000x 15.1MP still photos with 64 GB card 475000x 0.3MP still photos with 64 GB card | Video Format | 1920 x 1080p at 60 fps (28 Mb/s AVCHD) 1920 x 1080 (24 Mb/s AVCHD) 1920 x 1080 (17 Mb/s AVCHD) 1920 x 1080 (13 Mb/s AVCHD) 1920 x 1080 (5 Mb/s AVCHD) 960 x 540 (28 Mb/s iFrame) | Aspect Ratio | 16:9 4:3 3:2 | Still Image Resolution | JPEG: 20.4 Megapixel, 6016 x 3384 (16:9) JPEG: 16 Megapixel, 4896 x 3360 (3:2) JPEG: 15.1 Megapixel, 4480 x 3360 (4:3) JPEG: 9.4 Megapixel, 4096 x 2304 (16:9) JPEG: 8 Megapixel, 3456 x 2304 (3:2) JPEG: 5.8 Megapixel, 2784 x 2088 (4:3) JPEG: 2.1 Megapixel, 1920 x 1080 (16:9) JPEG: 2 Megapixel, 1728 x 1152 (3:2) JPEG: .3 Megapixel, 640 x 480 (4:3) | Audio Format | AAC Dolby Digital 2ch Dolby Digital 5.1 | | Display Type | LCD | Touchscreen | Yes | Screen Size | 3.5" | Screen Resolution | 1,152,000 Dots | Aspect Ratio | 16:9 | | Shutter Speed | 1/30 - 1/8000 Second () 1/60 - 1/8000 Second () 1/2 - 1/2000 Second () 1/2 - 1/500 Second () | | Image Stabilization | Optical & Digital | Scene Modes | Preset: Yes | Lux | 1400 (Standard Illumination) 1.6 (Scene Mode Low Light 1/30) 1 (Color Night Rec.) | White Balance Modes | Auto Cloudy Daylight Indoor 1 Indoor 2 Manual | Creative Effects | Yes | Built-In Mic | Yes | Built-In Speaker | Yes | Built-In Light/Flash | Light - No Flash - Yes | Wi-Fi | Yes, Wi-Fi 4 (802.11n) | Accessory Shoe | Cold | | Inputs | 1 x USB 2.0 Type-A (data and power) | Outputs | 1 x USB 2.0 (data and power) 1 x Mini-HDMI (Type C) 1 x A/V Multi | Microphone Input | Yes | Headphone Jack | Yes | | Battery | Rechargeable Battery Pack, 7.2 VDC, 1250 mAh | Charging Method | AC Adapter | Power Adapter | 9.3 VAC | Power Consumption | Recording: 9.3 W Charging: 10.3 W | Dimensions (W x H x D) | 2.6 x 2.8 x 5.9" / 66.0 x 71.1 x 149.9 mm | Weight | 0.92 lb / 417.30 g (without battery and SD card) | | Package Weight | 2.5 lb | Box Dimensions (LxWxH) | 7.5 x 5.7 x 5.5" |
