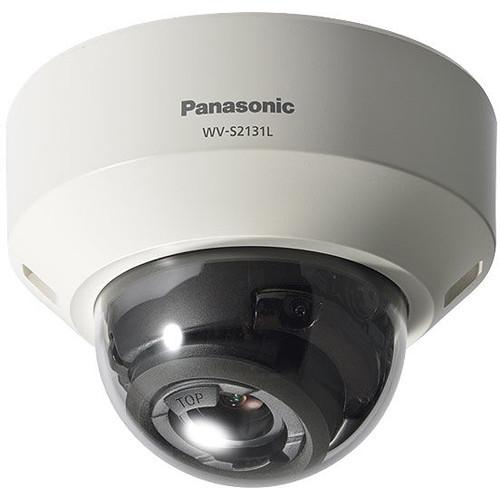

Product description The i-PRO Extreme 1080p Network Dome Camera from Panasonic features a 1/3" MOS image sensor and a focal length of 2.8-10mm for capturing videos at a maximum resolution of 1920 x 1080. This day/night camera provides 24-hour surveillance thanks to its removable IR cut filter and built-in IR LEDs with a range of up to 98'. It also features 144 dB wide dynamic range that delivers balanced exposure and accurate color in even challenging lighting environments. Furthermore, Intelligent Auto (iA) features like automatic scene detection continuously monitor the field of view and instantly adjust the camera's parameters to optimize for the best image capture based on scene dynamics, compensating for motion and constantly changing lighting. - Super Dynamic technologies deliver 144 dB wide dynamic range
- Intelligent Auto (iA) feature provides increased discernibility, even in environments with poor visibility
- High sensitivity with day/night function (IR cut filter removal)
- Built-in IR LEDs offer visibility up to 98'
- H.265 Smart Coding (Long GOP, Auto-VIQS, and Smart Face Coding) offer improved image quality streaming at lower bit rates
- H.264 compatibility and mixed mode streaming, recording, and viewing
- Up to 4-steam simultaneous H.265/264 encoding
- Intelligent Face Compression provides improved picture quality at "Face best shot area" while reducing unimportant areas to save the network bandwidth and the disk space of a recorder
- Encryption and alteration detection functions for enhancing security
UPC: 885170303904 In the Box Panasonic i-PRO Extreme 1080p Network Dome Camera with Night Vision & 2.8-10mm Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic i-PRO Extreme 1080p Network Dome Camera with Night Vision & 2.8-10mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic WV-S2131L Specs | | | Image Sensor | Approximately 1/3" MOS image sensor | | Minimum Illumination | Color:
0.012 lux at f/1.6, Maximum Shutter: 1/30 sec, AGC: 11
0.0008 lux at f/1.6, Maximum Shutter: 16/30 secs, AGC: 11
B&W:
0.006 lux at f/1.6, Maximum Shutter: 1/30 sec, AGC: 11
0.0004 lux at f/1.6, Maximum Shutter: 16/30 secs, AGC: 11
0 lux with IR LED on at f/1.6, Maximum Shutter: Off (1/30 sec), AGC: 11 | | White Balance | AWC (2000 to 10,000K)
ATW1 (2700 to 6000K)
ATW2 (2000 to 6000K) | | Shutter Speed | Off (1/30) to 1/10,000 sec
1/30 fix to 2/100 fix is available during 30 fps mode only | | Intelligent Auto | On/Off | | Super Dynamic | On/Off, the level can be set in the range of 0 to 31 | | Dynamic Range | 144 dB (Super Dynamic: On) | | Adaptive Black Stretch | The level can be set in the range of 0 to 255 | | BLC | BLC/HLC/Off (Only when Super Dynamic and Intelligent Auto: Off) | | Compensation | Fog: On/Off (Only when Intelligent Auto: Off) | | AGC | The level can be set in the range of 0 to 11 | | Day/Night | Off / On / Auto1 (Normal) / Auto2 (IR Light) / Auto3 (SCC) | | IR LED | Off/Auto (High/Mid/Low) | | IR Range | 98' / 30 m | | Digital Noise Reduction | 0 to 255 | | Video Motion Detection | On/Off, 4 areas available | | Privacy Zone | On/Off (up to 8 zones available) | | Camera Title (OSD) | On/Off up to 20 characters (alphanumeric characters, marks) | | Focus Adjustment | Auto back focus / Manual / Adjusting method (Auto/Preset/Fix) | | | | Focal Length | 2.8-10mm | | Zoom Ratio | 3.6x (Motorized zoom / Auto Focus) | | Angular Field of View | In 16:9 Mode
Horizontal: 30 to 110°
Vertical: 17 to 59°
In 4:3 Mode
Horizontal: 25 to 90°
Vertical: 19 to 66° | | Maximum Aperture Ratio | 1:1.6 to 1:3.35 | | Focusing Range | 0.3 m to infinity | | Adjusting Angle | Horizontal: -240 to 120°
Vertical: -30 to 85°
Yaw: ±100° | | | | Camera Control | Brightness, AUX on/off | | Audio | Mic (Line) Input / Audio Output: On/off
Volume Adjustment: Low/Middle/High | | GUI/Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese | | | | Network IF | 10Base-T/100Base-TX, RJ45 connector | | Image Resolution | 2 MP [16:9] (30/60 fps): 1920 x 1080 / 1280 x 720 / 640 x 360 / 320 x 180
3 MP [4:3] (30 fps): 2048 x 1536 / 1280 x 960 / 800 x 600 / 640 x 480 / 400 x 300 / 320 x 240 | | Transmission mode | H.265/ H.264: Constant bit rate / VBR / Framerate priority / Best effort | | Transmission Type | Unicast/Multicast | | Image Quality | JPEG: 10 steps | | Coding Method | Smart Facial Coding: On (Smart Facial Coding) / On (Auto VIQS) / Off
Smart Facial Coding is only available with Stream 1
GOP (Group of Pictures): On (Advanced) / On (Low) / On (Mid) / Off
On (Advanced) is only available with H.265. | | Audio Compression | G.726 (ADPCM): 32/16 kb/s
G.711: 64 kb/s
AAC-LC: 64/96/128 kb/s | | Audio Mode | Off / Mic (line) input / Audio output / Interactive (half duplex) / Interactive (full duplex) | | Supported Protocols | IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP, DiffServ
IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, DiffServ | | Number of Simultaneous Users | Up to 14 users (depends on network conditions) | | Memory Card | H.265/H.264 Recording: Manual REC / Alarm REC (Pre/Post) / Schedule REC / Backup upon network failure
JPEG Recording: Manual REC / Alarm REC (Pre/Post) / Backup upon network failure
Compatible SD (SDHC/SDXC) Card: Panasonic 2, 4, 8, 16, 32, 64, 128 GB model SDHC card, SDXC card | | Mobile Terminal Compatibility | iPad, iPhone, Android mobile terminals | | | | Alarm Source | 3 x terminal inputs, VMD, Command alarm, Audio detection alarm | | Alarm Actions | SDXC/SDHC/SD memory recording, email notification, HTTP alarm notification indication on browser, FTP image transfer, Panasonic protocol output | | | | Monitor Output | VBS: 1.0 V p-p / 75 Ohms, composite, RCA jack
An NTSC or PAL signal can be outputted from camera | | Microphone/Line Input | ø3.5 mm stereo mini jack (Applicable Microphone: Plug-in power type)
Supply Voltage: 2.5 V ±0.5 V | | Audio Output | ø3.5 mm stereo mini jack (monaural output)
Output Impedance: Approximately 600 Ohms (unbalanced) | | External I/O Terminals | 1 x alarm in 1 (Day/Night in, Auto time adjustment)
1 x alarm in 2 (Alarm out) 1 x alarm in 3 (Aux out) | | | | Power | DC Power Supply: 12 VDC / 560 mA / Approximately 6.8 W
PoE (IEEE 802.3af compliant) Device: 48 VDC / 150 mA / Approximately 7.2 W (Class 0 device)
Maximum power consumption on the camera power input side
Only connect 12 VDC class 2 power supply | | Ambient Operating Temperature | 14 to 122°F / -10 to 50°C | | Ambient Operating Humidity | 10 to 90% (no condensation) | | Construction | Main Body: ABS resin
Dome Section: Clear acrylic resin | | Dimensions | Ø x H: 5.09 x 3.97" / 129.5 x 101 mm
Dome Radius: 1.6" / 40 mm | | Weight | Approximately 1.21 lb / 0.55 kg | | | | Package Weight | 2.625 lb | | Box Dimensions (LxWxH) | 9.95 x 9.4 x 8.9" |
