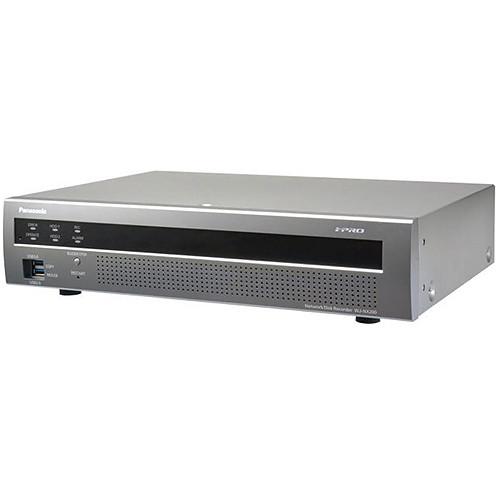

User Manual for Panasonic i-Pro Extreme 9-Channel NVR with 3TB HDD Click to enlarge the picture
Contents of the user manual for the Panasonic i-Pro Extreme 9-Channel NVR with
- Product category: Network Video Recorders (NVRs) Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Network Video Recorders (NVRs)
|
User manual for the Panasonic i-Pro Extreme 9-Channel NVR with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description Manage and record from up to nine cameras with the i-Pro Extreme NVR from Panasonic at resolutions of up to 4000 x 3000 with an aspect ratio of 4:3, and up to 3840 x 2160 with an aspect ratio of 16:9. The WJ-NXE20 can be purchased separately for additional licenses to record up to 16 channels. Equipped with two SATA ports, each of which can accommodate an HDD up to 6TB, this NVR supports up to 12TB of internal storage (3TB preinstalled). External storage options include PCs via internet connection, network servers, and USB storage devices. H.265 (HEVC), H.264, and JPEG compression help optimize network bandwidth while ensuring high-quality recording and playback.
The NVR supports simultaneous recording and playback of up to 16 channels at up to 3840 x 2160 resolution via its HDMI main monitor port and up to 1920 x 1080 via its HDMI sub monitor port. Up to 16 clients can be accessed via remote monitoring on a smartphone or tablet that features Panasonic Security Viewer v.3.0 or later. A maximum combined transfer speed of 384 Mb/s is supported. There are two RJ45 10BASE-T/100BASE-TX/1000BASE-T Ethernet interfaces as well as a BNC spot output connector. This camera features a built-in GUI, an audio output, and an alarm input and output. - Reduction of storage space use through H.265 and smart coding
- 9 to 16 channels of camera inputs
- Supports H.265/H.264 mixed recordings
- Symantec device certificates preinstalled (secure communication kits are necessary)
- No camera license fees with default number of cameras; no annual license updates required
- Built-in GUI and dual HDMI (4K/FHD) outputs
- Automatic camera configuration
- Time-saving playback, for high-speed all frames playback when there is no motion and normal-speed playback when there is motion
- Image search with thumbnails
- High-speed copy to USB storage
- Acceleration of data access (reading/writing) by original file system
- Normal operation at instantaneous power failure within 200 ms and safe shutdown at power failure of 200 ms or more
- Designed for retail, quick-service restaurants, hospitals, education, banks, and factories
In the Box Panasonic i-Pro Extreme 9-Channel NVR with 3TB HDD Mouse Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic i-Pro Extreme 9-Channel NVR with 3TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic WJ-NX200/3000T3 Specs | | | Compatibility | Panasonic i-PRO series network cameras
ONVIF NVT conformant camera and encoder | | Supported Image Formats | H.265 (HEVC), H.264, JPEG | | Image Resolution | Aspect Ratio 4:3: 4000 x 3000, 2560 x 1920, 2048 x 1536, 1280 x 960, 800 x 600, 640 x 480
Aspect Ratio 16:9: 3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 720, 640 x 360
Aspect Ratio 1:1: 2992 x 2992, 2816 x 2816, 2048 x 2048, 1280 x 1280
Aspect Ratio 9:16: 1080 x 1920, 720 x 1280, 360 x 640 | | Supported Audio Formats | G.711 for ONVIF, G.726 (ADPCM) 32 kb/s, AAC-LC | | Maximum Number of Cameras | 16 max.
Default: 9 (WJ-NXE20 is necessary, sold separately) | | | | Recording Mode | Event, schedule, emergency | | Recording | Pre-Alarm: Up to 15 seconds at up to 4 Mb/s
Sub-Stream: 64, 128, 256, 384, 512, 768 kb/s | | Scheduled Recording | 16 x programs, 6 x time zones/day, independent setup for each day of the week | | Frame Rate | Up to 60 fps (depending on the camera) | | | | Camera Control | Pan/tilt, zoom, focus, brightness, preset position call and program (up to 256), auto mode, click centering, wheel zoom, zoom reset, auto back focus, aux, wiper (for WV-SUD638) | | Multi-Screen Display | Main monitor:
Control Screen: 4/9/16 split-screen display
Wide View Screen: 2/3/4/5/6/7/9/12/16 split-screen display, 1 screen sequence, 4/9/16 split-screen sequence
Sub Monitor: 1/4/9/16 split-screen display, 1 screen sequence, 4/9/16 split-screen sequence | | Playback Control | Play, rev play, pause, stop, FF, FR, prev record, next record, prev image, next image, go to date, go to last (30 seconds), time-saving playback | | Search Modes | Search Criteria: Time/date, playback by designating a timeline, VMD, thumbnail | | Copy | File Format: Original format, MP4
Recorded data of selected cameras and time/date range can be copied to USB storage | | Camera Title | Up to 16 characters | | Clock Display | Time: 12- or 24-hour
Date: 5 formats | | Digital Zoom | Live/Play: 1.25x 1.5x 1.75x, 2x, 2.5x, 3x, 3.5x 4x, 5x, 6x, 7x, 8x (only for 1 screen or 4 screens) | | System Log | Operator access (500), network error (100), error (1000), event (1000), operation (500) | | System Setup | Setup page in English, French, Italian, Spanish, German, Russian, Portuguese, Thai, Simplified Chinese, Japanese | | 360 Camera Dewarp | 1-channel display mode | | Re-Encoding | 2Client | | SD Memory Data Download | Images recorded in the SD card in the i-PRO series cameras can be transferred to the recorder automatically. (H.265/H.264) | | | | Camera Control | Pan/tilt, zoom, focus, brightness, preset position call and program (up to 256), auto mode, click centering, wheel zoom, zoom reset, aux, wiper (for WV-SUD638) | | Playback Control | Play, rev play, pause, stop, FF, FR, prev record, next record, prev image, next image, go to date, go to last (30 seconds) | | Search Modes | Search Criteria: Time/date, event type, VMD, camera number | | Display Mode | 1, 4 screens | | Image Download | File Format: Original format, MP4
Recorded data of selected camera and time range can be downloaded to a PC
Viewer software can be downloaded separately | | Copy | File Format: Original format, MP4
Recorded data of selected cameras and time date range can be copied to USB storage | | Camera Title | Up to 16 characters | | Clock Display | Time: 12- or 24-hour
Date: 5 formats on the browser | | Alarm Control | Reset | | Digital Zoom | Live/Play: 2x, 4x (only for 1 screen) | | System Log | Operator access (500), network error (100), error (1000), event (1000), operation (500) | | GUI Language | Setup page in English, French, Italian, Spanish, German, Russian, Portuguese, Thai, Simplified Chinese, Japanese | | PC | CPU: Intel Core i7-860 or faster, RAM: 4 GB or more, VRAM: 128 MB or more (64 MB min.), Microsoft DirectX 9.0c or later | | | | Alarm Source | 9 x terminal inputs
16 x camera alarms (Panasonic alarm protocol)
128 x command alarms | | Event | Off/on | | Alarm Actions | Alarm recording, email notification, alarm message, camera positioning, terminal output, Panasonic alarm protocol output, buzzer, indicator | | Alarm Control | Reset | | Event Log | 1000 | | | | Spot Output | 1 x BNC, video output
1 V p-p, 75 Ohms NTSC/PAL (selectable in setup menu) | | Monitor | 1 x HDMI, A/V video main output
Main monitor: HDMI 4K UHD (3840 x 2160p) at 30 Hz, 4K UHD (3840 x 2160p) at 25 Hz, 1920 x 1080p at 60 Hz, 1920 x 1080p at 50 Hz, 1920 x 1080i at 60 Hz, 1920 x 1080i at 50 Hz
1 x HDMI, video SUB output
Sub Monitor:
HDMI 1920 x 1080p at 60 Hz, 1920 x 1080p at 50 Hz, 1920 x 1080i at 60 Hz, 1920 x 1080i at 50 Hz | | Audio Output Connector | 1 x RCA, unbalanced output
-10 dBv, 600 Ohms | | Alarm / Control Connectors | 1 x alarm input 1-9
1 x alarm output
1 x alarm reset input
1 x time adjustment input
1 x time adjustment output
1 x 5 V output
1 x emergency recording input
1 x network error output
1 x HDD error/recording error output
1 x camera error output
1 x recorder error output | | Mouse | 1 x USB, front port
1 x USB 2.0, rear port | | Network | 1 x RJ45, LAN PC port
1 x RJ45, LAN camera/PC port
10BASE-T/100BASE-TX/1000BASE-T | | USB Storage Device | 1 x USB 3.0, copy front port
1 x USB 3.0, copy rear port | | | | Recording Rate | 192 Mb/s max. | | Maximum Bandwidth | Total 384 Mb/s | | Supported Protocols | IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, FTP, SMTP, DNS, NTP, SNMP, RTP, RTSP, ICMP, ARP
IPv6: ICMPv6 | | Email Notification | Upon alarm or warning | | Number of Simultaneous Users | Up to 16 | | User Registration | Up to 32 users | | User Level | 3 levels (programmable) | | Partitioning | User level - camera (view & control, no access) | | Security | User authentication (ID and password), host authentication, alteration detection, SSL/TLS | | | | Time Synchronization | Terminal (master/slave), NTP (server/client) | | Summer Time | User definable (using menu setup) | | Remote Monitoring | On Smartphone/Tablet: 16 clients max. | | | | HDD Type | 3.5" / 8.89 cm SATA HDD, up to 2 x HDDs supported | | Maximum Capacity | Up to 12 TB | | HDD Included | 3 TB HDD preinstalled | | RAID | RAID 1 | | | | Playback Control | Play, rev play, pause, FF, FR, prev record, next record, prev image, next image | | Additional Functions | NX Viewer: Alteration detection, save as JPEG, two times zoom, print, copy, aspect ratio switching, fish eye correction, corridor display | | Supported OS | Language: English or Japanese software | | | | Safety / EMC Standard | cUL (UL60065), FCC Part15 Class A | | Power Source | 120 VAC, 50/60 Hz | | Power Consumption | 56 W approx. | | Ambient Operating Temperature | Main Body: 41 to 113°F / 5 to 45°C
Mouse: 41 to 104°F / 5 to 40°C | | Ambient Operating Humidity | 5 to 90% (without condensation) | | Maximum Operating Altitude | 6562' / 2000 m above sea level | | Dimensions | 16.5 x 3.5 x 11.8" / 42.0 x 8.8 x 30.0 cm | | Weight | 11.5 lb / 5.2 kg approx. without HDDs |
