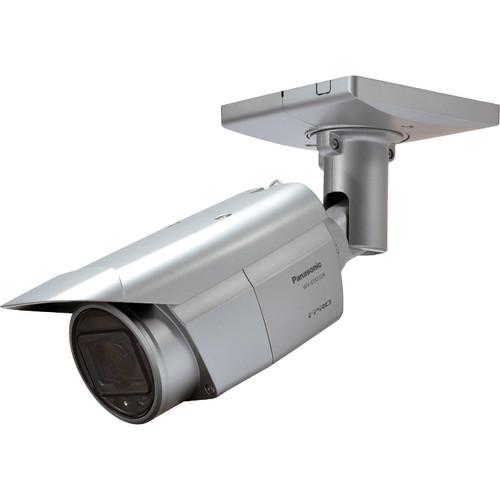

User Manual for Panasonic i-Pro Extreme iA WV-S1531LN 3MP Network Camera with Night Vision & 2.8-10mm Lens Click to enlarge the picture
Contents of the user manual for the Panasonic i-Pro Extreme iA WV-S1531LN 3MP
- Product category: Wired IP Cameras Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Wired IP Cameras
|
User manual for the Panasonic i-Pro Extreme iA WV-S1531LN 3MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description The i-Pro Extreme iA WV-S1531LN Network Camera from Panasonic is a 1/3" 3MP MOS sensor device that can record up to 2048 x 1536 resolution video at 60 fps. This camera has a 2.8-10mm lens with a 3.6x motorized zoom. It features Smart H.265 video compression, adjustable white balance, gain control, an auto day and night ICR, digital noise reduction, a 144 dB dynamic range, backlight compensation, highlight compensation, and fog compensation. This camera has an IR LED with a range of 131', as well as an audio input and output. It can be mounted on a ceiling or wall. It can be powered via PoE, simplifying installation and minimizing cable runs. - Auto shutter speed control for fast moving vehicles
- Low-light performance in true color with low noise for night time applications
- Super Dynamic 144 dB for backlit situations involving headlights and shadows
- Self-learning ROI encoding (Auto VIQS) detects movement within frame and compresses the areas with little motion to reduce transmitted data while maintaining the quality of the image
- Smart facial coding adds bandwidth reduction for ID camera applications
- Full encryption SD card edge recording to keep your data safe
- FIPS 140-2 Level 1 compliant
- Full end-to-end system encryption with supported VMS and devices to protect from IP snooping/spoofing and detect data alteration
UPC: 885170303966 In the Box Panasonic i-Pro Extreme iA WV-S1531LN 3MP Network Camera with Night Vision & 2.8-10mm Lens Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic i-Pro Extreme iA WV-S1531LN 3MP Network Camera with Night Vision & 2.8-10mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic WV-S1531LN Specs | | | Sensor | 3 MP 1/3" MOS | | Focal Length | 2.8 to 10mm | | Maximum Aperture | f/1.6 - f/3.4 | | Zoom | Optical: 3.6x | | Lens Field of View | Horizontal: 31 to 112°
Vertical: 17 to 60° | | Day/Night | Yes | | Minimum Illumination | Color: 0.0008 Lux
B&W: 0 Lux | | Shutter Speed | 1/10000 to 1/30 Seconds | | | | Streaming Resolution | 2048 x 1536 at 30 fps
1920 x 1080 at 30/60 fps
1280 x 960 at 30 fps
1280 x 720 at 30/60 fps
800 x 600 at 30 fps
640 x 480 at 30 fps
640 x 360 at 30/60 fps
400 x 300 at 30 fps
320 x 240 at 30 fps
320 x 180 at 30/60 fps | | Supported Video Compression | H.264, H.265, H.265+, MJPEG | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Audio Formats | AAC, G.711, G.726 | | Built-In Mic | No | | External Audio Input | 3.5 mm | | Built-In Speaker | No | | External Audio Output | 3.5 mm | | | | Security | HTTPS, IEEE 802.1X | | Supported Protocols | ARP, DDNS, DHCP, DNS, DiffServ, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP | | | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | | | Mobile Operating Systems | iOS, Android | | | | Recording Media | SD (Up to 256 GB) | | Pan/Tilt | Manual Pan: 180°
Manual Tilt: 100° | | Alarm I/O | 3 / 1 | | I/O Connections | 1 x Power
1 x RJ45
1 x RCA | | IR Range | 131.23' / 40 m | | Supported Languages | English
French
German
Italian
Japanese
Portuguese
Russian
Spanish
Traditional Chinese | | Certifications | CSA, IEC60950-1, UL, EN 55024, EN 55022 Class B, ICES-003 Class A, FCC (Part 15 Class A), as per Manufacturer | | Internal Storage | None | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | DC: 9 W
PoE: 9.4 W | | Material of Construction | Aluminum | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | 10 to 100% | | IP Rating | IP66 | | IK Rating | IK10 | | Dimensions | H: 5.1 x W: 5.1 x L: 13.3" / H: 130.0 x W: 130.0 x L: 337.0 mm | | Weight | 3.5 lb / 1.6 kg | | | | Package Weight | 6.315 lb | | Box Dimensions (LxWxH) | 19.6 x 7.3 x 6.4" |
