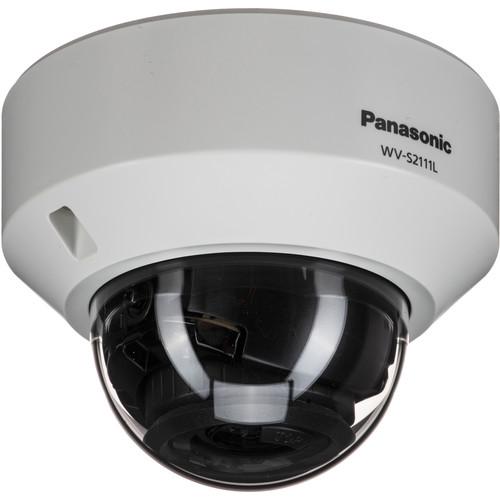

User Manual for Panasonic i-Pro Extreme WV-S2111L 720p Network Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Panasonic i-Pro Extreme WV-S2111L 720p Network
- Product category: Wired IP Cameras Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Wired IP Cameras
|
User manual for the Panasonic i-Pro Extreme WV-S2111L 720p Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description Capture 720p evidence in even challenging and fast-changing surveillance environments with the i-Pro Extreme WV-S2111L Network Dome Camera from Panasonic. Featuring Intelligent Auto (iA) technology, the WV-S2111L monitors scene dynamics and motion to adjust key camera settings automatically in real time, reducing image distortion from motion blur. The camera's 144 dB dynamic range delivers balanced exposure in extreme backlit environments and in scenes with sudden changes in lighting. In addition, the camera's i-Pro 1/3" sensor provides ultra-low-light performance with accurate color rendition and saturation for effective surveillance around the clock. - Auto shutter speed control for clear images of fast-moving vehicles
- Delivers sharp and clear images of walking individuals, both during the day and at night
- Low-light performance in true color with low noise for night-time applications
- Super Dynamic 44 dB for backlit and shadowy street scenes
- Horizontal 30 to 110° and vertical 17 to 59° field of view in 16:9 mode
- Horizontal 25 to 90° and vertical 19 to 66° field of view in 4:3 mode
- H.265 compression with Smart Coding for efficient storage and bandwidth use
- Self-learning ROI encoding (Auto VIQS) dynamically detects motion to capture vehicles and humans with high image quality while lowering bandwidth use
- Smart Facial Coding further reduces bandwidth use in ID camera applications
- Full-encryption SD card edge recording for data security
- FIPS 140-2 level 1 compliant
- Full end-to-end system encryption with supported VMS and devices to protect from IP snooping/spoofing and detect data alteration
- Suitable for use in retail stores, banks, education facilities, hospitals, residential buildings, and airports (e.g. passport control, security checkpoint, and ticket counter)
In the Box Panasonic i-Pro Extreme WV-S2111L 720p Network Dome Camera with Night Vision Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic i-Pro Extreme WV-S2111L 720p Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic iPro Extreme Specs | | | Sensor | 1.3 MP 1/3" MOS | | Focal Length | 2.8 to 10mm | | Maximum Aperture | f/1.6 - f/3.4 | | Zoom | Optical: 3.6x | | Lens Field of View | Horizontal: 30 to 110°
Vertical: 17 to 59° In 16:9 mode | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.0005 Lux
B&W: 0.0003 Lux | | Shutter Speed | 1/10000 to 1/30 Seconds | | Camera Angle Adjustment | Horizontal: -240 to 120°
Vertical: -30 to 85° | | | | Streaming Resolution | 1280 x 720 at 60 fps | | Supported Video Compression | H.264, H.265 | | Multi-View Streaming | Yes, 4 Streams | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Audio Formats | AAC, ADPCM, G.711, G.726 | | Built-In Mic | No | | External Audio Input | 3.5 mm | | Built-In Speaker | No | | External Audio Output | 3.5 mm | | | | Security | HTTPS | | Supported Protocols | ARP, DDNS, DHCP, DNS, DiffServ, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, ONVIF Profile G, ONVIF Profile S, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP | | | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Mobile Operating Systems | iOS, Android | | | | Recording Media | SD (Up to 128 GB) | | Pan/Tilt | None | | Alarm I/O | 3 / 2 | | I/O Connections | 1 x RJ45 | | IR Range | 98' / 29.87 m | | Supported Languages | English
French
German
Italian
Japanese
Portuguese
Russian
Spanish
Traditional Chinese | | Internal Storage | None | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | 7.2 W | | Material of Construction | Plastic, Polymer | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Operating Humidity | 10 to 90% | | Dimensions |
