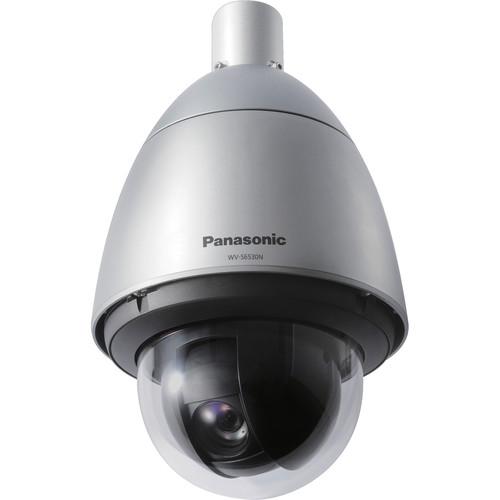

User Manual for Panasonic i-Pro Extreme WV-S6530N 2.1MP Outdoor PTZ Network Dome Camera Click to enlarge the picture
Contents of the user manual for the Panasonic i-Pro Extreme WV-S6530N 2.1MP Outdoor
- Product category: Wired IP Cameras Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Wired IP Cameras
|
User manual for the Panasonic i-Pro Extreme WV-S6530N 2.1MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description The i-Pro Extreme WV-S6530N 2.1MP Outdoor PTZ Network Dome Camera from Panasonic utilizes a 1/2.9" MOS sensor and a 4-84.6mm varifocal lens to capture video at resolutions up to 1920 x 1080 at 60 fps. With Intelligent Auto and ClearSight Coating, the camera capture can capture video of fast moving vehicles or objects. With the IP66-rated weather-resistant and IK10-rated vandal-resistant housing, this camera is suitable for outdoor applications.
Intelligent Auto (iA) monitors scene dynamics and motion to adjust key camera settings automatically in real time, reducing distortion, such as motion blur, on moving objects. The 144 dB dynamic range delivers balanced scene exposure. H.265 Smart Coding reduces bandwidth efficiency. - 144 dB wide dynamic range for scenes backlit by headlights with shadows on the streets at night
- Adaptive black stretch, Back light compensation (BLC), Fog compensation, High light compensation (HLC), Digital noise reduction
- Network IF: 10Base-T/100Base-TX, RJ45 connector
- ClearSight coating applied to the surface of the transparent cover makes it difficult for water droplets to adhere to it
- Self-learning ROI (Region of Interest) encoding (Auto VIQS) dynamically detects motion areas (when using 24 VAC power supply)
- Full encryption SD card edge recording to keep your data safe
- FIPS 140-2 Level 1 compliant
- ABS+PC resin coating sunshield and polycarbonate resin dome
- Up to 14 users depending on network conditions
- Full end-to-end system encryption with supported VMS and devices
In the Box Panasonic i-Pro Extreme WV-S6530N 2.1MP Outdoor PTZ Network Dome Camera Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic i-Pro Extreme WV-S6530N 2.1MP Outdoor PTZ Network Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic WV-S6530N Specs | | | Sensor | 2.1 MP 1/2.9" MOS | | Focal Length | 4 to 84.6mm | | Maximum Aperture | f/1.6 - f/4.5 | | Zoom | Optical: 21x
Digital: 16x | | Lens Field of View | Horizontal: 3.4 to 73°
Vertical: 2.0 to 42° | | Day/Night | Yes | | Minimum Illumination | Color: 0.001 Lux
B&W: 0.0004 Lux | | Shutter Speed | 1/10000 to 1/30 Seconds | | | | Streaming Resolution | 1920 x 1080 at 60 fps | | Supported Video Compression | H.264, H.265, MJPEG | | Multi-View Streaming | , 4 Streams | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Audio Formats | AAC, ADPCM, G.711, G.726 | | Built-In Mic | Yes | | External Audio Input | 3.5 mm | | Built-In Speaker | No | | External Audio Output | 3.5 mm | | | | Security | HTTPS, IEEE 802.1X | | Supported Protocols | ARP, DHCP, DNS, DiffServ, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4/v6, NTP, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP | | | | Event Trigger | None | | Data Streaming | Yes | | Built-In Installation Aids | None | | | | Mobile Operating Systems | iOS, Android | | | | Recording Media | SD (Up to 256 GB) | | Pan/Tilt | Manual Pan: 350° at 100°/s
Manual Tilt: 90° at 100°/s | | Alarm I/O | 3 / 3 | | I/O Connections | 1 x RJ45 | | Video Management Software | Plug-in software for i-VMD | | Supported Languages | English
French
German
Italian
Japanese
Portuguese
Russian
Simplified Chinese
Spanish | | Internal Storage | None | | External Storage Options | None | | Power Source | AC, DC, PoE 802.3at | | Power Consumption | 43 W | | Material of Construction | Aluminum | | Operating Temperature | -40 to 140°F / -40 to 60°C | | Operating Humidity | 10 to 100% | | IP Rating | IP66 | | IK Rating | IK10 | | Dimensions |
