Panasonic iPro Extreme WV-S2550L 5MP Outdoor

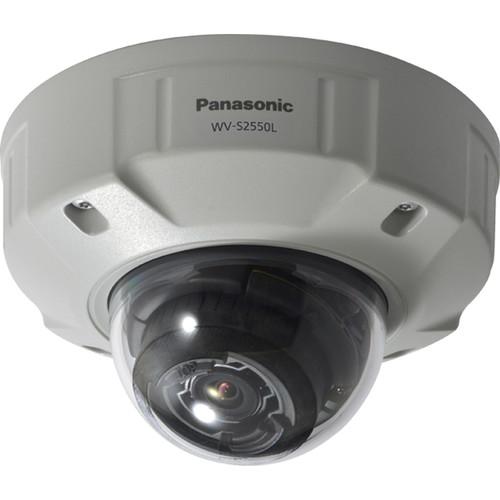

User Manual for Panasonic iPro Extreme WV-S2550L 5MP Outdoor Network Dome Camera with Night Vision

• Product category: Wired IP Cameras Panasonic
• Brand: Panasonic
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Panasonic Wired IP Cameras

Product description

• 5MP image quality at up to 30 fps

• Auto shutter speed control for capturing clear images of fast-moving objects such as vehicles

• Sharp and clear images of walking individuals, day and night

• Enhanced low-light performance in true color with low noise for night-time applications

• Super Dynamic 120 dB for backlit and shadowy scenes

• Color night vision at 0.0044 to 0.07 lux

• Built-in IR LED with 131' irradiation distance for clear monochrome images in zero-lux conditions

• Horizontal 33 to 103° and vertical 19 to 55° field of view in 16:9 mode

• Horizontal 33 to 103° and vertical 25 to 75° field of view in 4:3 mode

• IP66-rated for protection against water jets and dust

• IK10-rated for vandal resistance and 50J-rated for shock resistance

• H.265 compression with Smart Coding for efficient storage and bandwidth use

• Self-learning ROI encoding (Auto VIQS) dynamically detects motion to capture vehicles and humans with high image quality while lowering bandwidth use

• Full-encryption SD card edge recording for data security

• Adjustable digital noise reduction, level 0 to 255

• Auto white balance and gain control

• Up to eight privacy zones

• Up to four areas of motion detection

• Three levels of digital zoom (x1, x2, and x4)

• Adjustable fog compensation, level 0 to 8

• FIPS 140-2 level 1 compliant

• Full end-to-end system encryption with supported VMS and devices to protect from IP snooping/spoofing and detect data alteration

• Optional base bracket available separately

• Suitable for use in retail stores, ATMs, banks, educational facilities, hospitals, residential buildings, airports, and train/subway stations

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Panasonic WV-S2550L Specs

Recording Media	SD (Up to 256 GB)
Pan/Tilt	Manual Pan: 360° (-180 to 180°) Manual Tilt: 115° (-30 to 85°)
Alarm I/O	3 / 2
I/O Connections	1 x RJ45
IR Range	131' / 39.93 m
Supported Languages	English French German Italian Japanese Portuguese Russian Spanish Traditional Chinese
Certifications	CSA, IEC60068-2-6, IEC60950-1, UL, EN 55024, ICES-003 Class A, FCC (Part 15 Class A), as per Manufacturer
Internal Storage	None
Power Source	DC, PoE 802.3af (15 W)
Power Consumption	DC: 10.2 W PoE: 10.6 W
Material of Construction	Aluminum, Polymer
Operating Temperature	-40 to 140°F / -40 to 60°C
Operating Humidity	10 to 100%
IP Rating	IP66
IK Rating	IK10
Dimensions	Rating 80% users recommend this product to others. And what about you? This product has already been rated by 07 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
