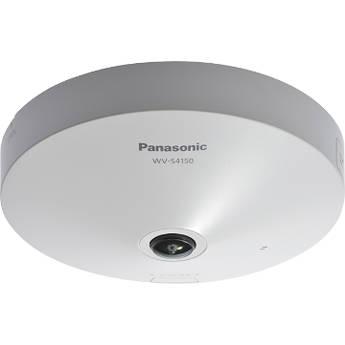

User Manual for Panasonic iPro Extreme WV-S4150 5MP Network Dome Camera with Fisheye Lens Click to enlarge the picture
Contents of the user manual for the Panasonic iPro Extreme WV-S4150 5MP Network
- Product category: Wired IP Cameras Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Wired IP Cameras
|
User manual for the Panasonic iPro Extreme WV-S4150 5MP Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description Capture 5MP panoramic fisheye video even in challenging and fast-changing surveillance environments with the iPro Extreme WV-S4150 Network Dome Camera from Panasonic. Featuring Intelligent Auto (iA) technology, the WV-S4150 monitors scene dynamics and motion to adjust key camera settings automatically in real time, reducing image distortion resulting from motion blur. The camera's 108 dB dynamic range makes for balanced exposure in backlit environments and in scenes with sudden changes in lighting. H.265 Smart Coding technology optimizes storage and bandwidth efficiency while compliance with FIPS 140-2 level 1 standards ensures the security of your footage. - 5MP image quality for capturing evidence under challenging conditions
- Delivers clear (less distorted) images of faces and objects at the edge of the fisheye
- Instant response to sudden light changes, e.g. at tunnel entry and exit
- Auto shutter speed control for fast-moving objects
- Super Dynamic 108 dB for backlit and shadowy scenes
- H.265 compression with Smart Coding for efficient storage and bandwidth use
- Self-learning ROI encoding (Auto VIQS) dynamically detects motion areas to capture vehicles and humans with high image quality while lowering your bandwidth use
- Full-encryption SD card edge recording for data security
- FIPS 140-2 level 1 compliant
- Full end-to-end system encryption with supported VMS and devices to protect from IP snooping/spoofing and detect data alteration
- Optional video analytics including Heat Map, People Counting, and MOR (Moving Objects Remover) with WV-SAE200 software (available separately)
- Suitable for use in retail stores, banks, educational facilities, hospitals, residential buildings, airports, and subway stations
In the Box Panasonic iPro Extreme WV-S4150 5MP Network Dome Camera with Fisheye Lens Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic iPro Extreme WV-S4150 5MP Network Dome Camera with Fisheye Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic iPro Extreme Specs | | | Sensor | 5 MP 1/3" MOS | | Focal Length | 0.84mm | | Maximum Aperture | f/2.4 | | Zoom | Digital: 4x | | Lens Field of View | Horizontal: 186°
Vertical: 186° | | Day/Night | Yes | | Minimum Illumination | Color: 0.02 Lux
B&W: 0.013 Lux | | Shutter Speed | 1/10000 to 16/30 Seconds | | | | Streaming Resolution | 2192 x 2192 at 30 fps | | Supported Video Compression | H.264, H.265 | | Multi-View Streaming | Yes, 4 Streams | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Audio Formats | AAC, G.711, G.726 | | Built-In Mic | Yes | | External Audio Input | 3.5 mm | | Built-In Speaker | No | | External Audio Output | 3.5 mm | | | | Security | HTTPS, IEEE 802.1X | | Supported Protocols | ARP, DDNS, DHCP, DNS, DiffServ, FTP, HTTP, , ICMP, IGMP, IPv4/v6, NTP, ONVIF Profile G, ONVIF Profile S, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP | | | | Analytics | With optional WV-SAE200 software | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Mobile Operating Systems | iOS, Android | | | | Recording Media | SD (Up to 256 GB) | | Pan/Tilt | None | | Alarm I/O | 3 / 2 | | I/O Connections | 1 x RJ45 | | IR Illuminators | None | | Video Management Software | SAE200 | | Supported Languages | English
French
German
Italian
Japanese
Portuguese
Russian
Spanish
Traditional Chinese | | Certifications | UL, as per Manufacturer | | Internal Storage | None | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | 4.6 W | | Material of Construction | Plastic | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Operating Humidity | 10 to 90% | | Dimensions |
