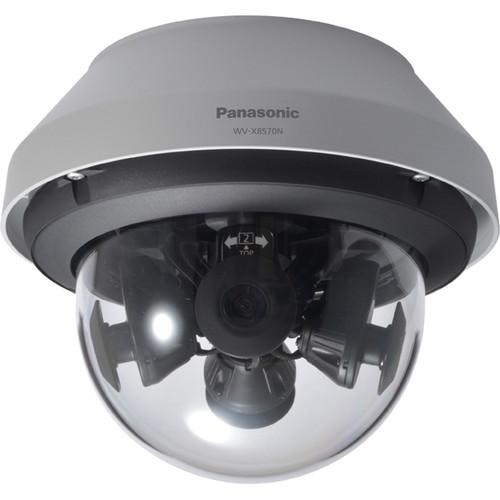

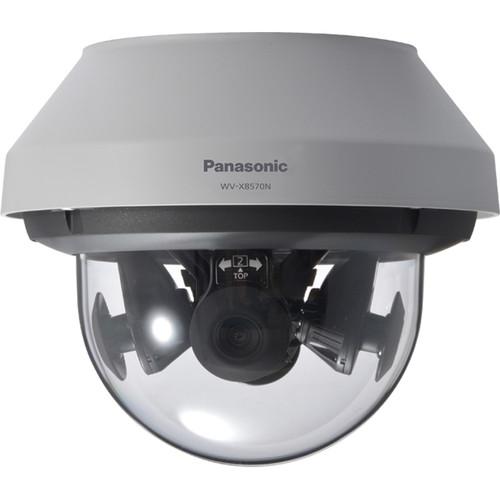

User Manual for Panasonic iPro Extreme WV-X8570N 33MP Multi-Sensor Outdoor Network Dome Camera Click to enlarge the picture
Contents of the user manual for the Panasonic iPro Extreme WV-X8570N 33MP Multi-Sensor
- Product category: Wired IP Cameras Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Wired IP Cameras
 |
User manual for the Panasonic iPro Extreme WV-X8570N 33MP Multi-Sensor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description Capture four 4K views with a single camera in even challenging and fast-changing environments with the iPro Extreme WV-X8570N 33MP Multi-Sensor Outdoor Network Dome Camera from Panasonic. Featuring four sensors and four position-adjustable lenses, the WV-X8570N helps minimize blind spots when surveying areas such as traffic intersections and subway stations. The camera is geared toward public safety and transportation applications, and is designed to be able to capture clear color images of moving vehicles in even low-light night conditions.
Integrated Intelligent Auto (iA) technology enables the WV-S2550L to monitor scene dynamics and motion to adjust key camera settings automatically in real time, reducing image distortion from motion blur. The camera's 108 dB dynamic range provides balanced exposure in backlit environments and scenes with sudden changes in lighting. Moreover, H.265 Smart Coding technology optimizes storage and bandwidth efficiency, while compliance with FIPS 140-2 level 1 standards ensures the security of your footage. - Four positionable lenses with wide-range tilt mechanism to minimize blind spots
- Four 4K image sensors, each with a resolution of 3840 x 2160 pixels at up to 15 fps
- Sharp and clear images of fast moving objects, such as vehicles, with Intelligent Auto and ClearSight Coating
- Enhanced low-light performance in true color with low noise for night-time applications
- Super Dynamic 108 dB for backlit and shadowy scenes
- Color night vision at 0.0088 to 0.12 lux
- Can be monitored from smartphone or tablet via Wi-Fi using separately available Wi-Fi USB adapter
- IP66-rated for protection against water jets and dust
- IK10-rated for vandal resistance
- Integrated dehumidification device
- H.265 compression with Smart Coding for efficient storage and bandwidth use
- Self-learning ROI encoding (Auto VIQS) dynamically detects motion to capture vehicles and humans with high image quality while lowering bandwidth use
- Full-encryption SD card edge recording for data security
- Up to eight privacy zones
- Up to four areas of motion detection
- Three levels of digital zoom (x1, x2, and x4)
- FIPS 140-2 level 1 compliant
- Full end-to-end system encryption with supported VMS and devices to protect from IP snooping/spoofing and detect data alteration
- Optional base bracket available separately
- Suitable for use in public places, highway toll booths, parking gates, airports, and train/subway stations
In the Box Panasonic iPro Extreme WV-X8570N 33MP Multi-Sensor Outdoor Network Dome Camera Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic iPro Extreme WV-X8570N 33MP Multi-Sensor Outdoor Network Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic WV-X8570N Specs | | | Sensor | 4 x 8.3 MP 1/1.8" CMOS | | Focal Length | 4.6mm | | Maximum Aperture | f/1.6 | | Zoom | Digital: 4x | | Lens Field of View | Horizontal: 97°
Vertical: 53° | | IR Cut Filter | Mechanical | | Minimum Illumination | Color: 0.008 Lux
B&W: 0.003 Lux | | Shutter Speed | 1/10,000 to 16/30 Seconds | | Camera Angle Adjustment | Horizontal: 0 to 360°
Vertical: 30 to 80°
Vertical: -15 to 80° The first vertical range is for lenses 1, 2, and 3. The second vertical range is for lens 4. | | | | Streaming Resolution | 3840 x 2160 at 15 fps | | Supported Video Compression | H.264, H.265 | | Multi-View Streaming | Yes | | Automatic Gain Control | Yes | | | | Streaming | Single | | Audio Formats | AAC, ADPCM, G.711, G.726 | | Built-In Mic | No | | External Audio Input | 3.5 mm | | Built-In Speaker | No | | | | Security | HTTPS, IEEE 802.1X | | Supported Protocols | ARP, DDNS, DHCP, DNS, DiffServ, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, ONVIF Profile G, ONVIF Profile S, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP | | | | Analytics | Motion detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Mobile Operating Systems | iOS, Android | | | | Recording Media | SD (Up to 256 GB) | | Pan/Tilt | None | | Alarm I/O | 3 / 2 | | I/O Connections | 1 x RJ45 | | IR Illuminators | None | | Supported Languages | English
French
German
Italian
Japanese
Portuguese
Russian
Spanish
Traditional Chinese | | Certifications | CSA, IEC60950-1, UL, EN 55024, EN 55022 Class B, ICES-003 Class A, FCC (Part 15 Class A), as per Manufacturer | | Internal Storage | None | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | 12.95 W | | Material of Construction | Aluminum, Polymer | | Operating Temperature | -40 to 140°F / -40 to 60°C | | Operating Humidity | 10 to 100% | | IP Rating | IP66 | | IK Rating | IK10 | | Dimensions |
