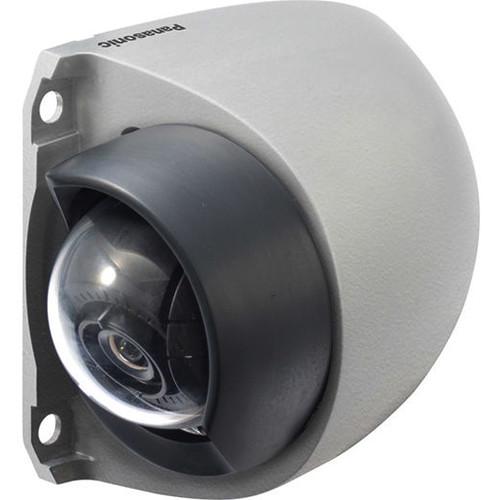

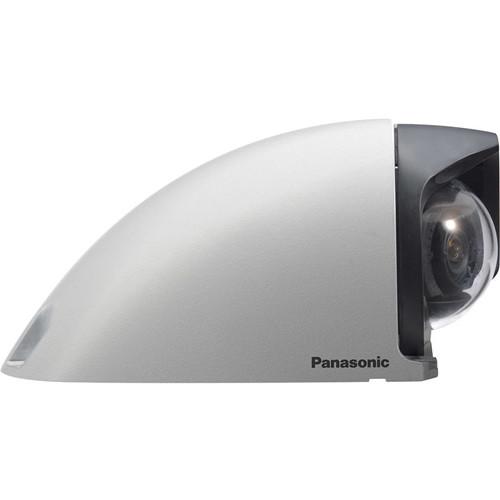

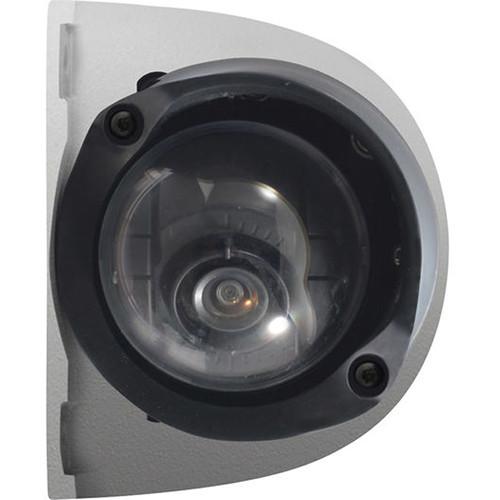

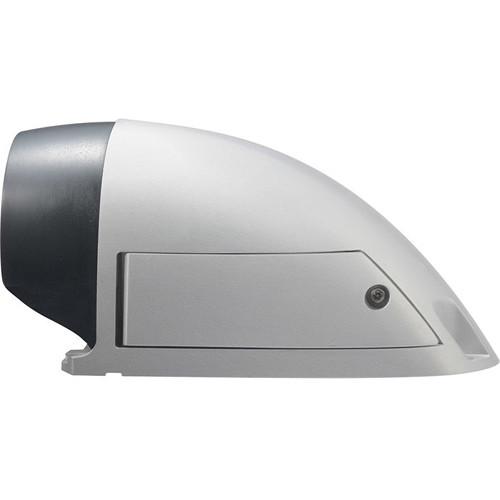

User Manual for Panasonic iPro SmartHD WV-SBV111M Vandal-Resistant Mobile Network Camera Click to enlarge the picture
Contents of the user manual for the Panasonic iPro SmartHD WV-SBV111M Vandal-Resistant Mobile
- Product category: Wired IP Cameras Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Wired IP Cameras
 |
User manual for the Panasonic iPro SmartHD WV-SBV111M Vandal-Resistant Mobile contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description The iPro SmartHD WV-SBV111M Rugged Vandal-Resistant Mobile Network Camera from Panasonic incorporates a 1/3-type MOS image sensor that captures images in 720p HD resolution at 30 fps. Multiple H.264 (high profile) streams and JPEG streams ensure simultaneous monitoring and recording. Variable Image Quality on Specified area (VIQS) technology allows the designated eight areas to retain higher image quality while the excluded area will have a decreased image quality, which minimizes image file size and bit rate. The integrated Frequency Divided Filter (FDF) removes fine noise generated under low illumination to achieve a low bit rate. Also, Multi-process Noise Reduction (3D-MNR) ensures noise reduction in various conditions and achieves a low bit rate under low illumination. - 720p HD images up to 30 fps
- Multiple H.264 (high profile) and JPEG streams ensure simultaneous monitoring and recording
- Wide Dynamic Range and ABS (Adaptive Black Stretch) technologies deliver wider dynamic range compared with conventional cameras
- Variable Image Quality on Specified area (VIQS) technology allows eight designated areas to retain higher image quality while the excluded area will have a decreased image quality, which minimizes image file size and bit rate
- Digital Noise Reduction 3D-MNR (Multi-process Noise Reduction) ensures noise reduction in various conditions and achieves a low bit rate under low illumination
- FDF (Frequency Divided Filter): Removing fine noise generated under low illumination to achieve a low bit rate
- VMD (Video Motion Detection) with 4 programmable detection areas, 15 steps sensitivity and 10-level area size
- Fog compensation function equipped as standard
- HLC (High Light Compensation) technology reduces strong light sources such as vehicle headlights to prevent camera being blinded
- Still images (JPEG) can be viewed on mobile phones via Internet.
- Low profile design for discrete installation
- Conforms to IP66, Type 4X (UL50) and IP6K9K, is compliant with NEMA 4X ratings, and provides high dust resistance and waterproof performance
- High-level vibration resistance with EN50155 and MIL-STD-810G compliance
- Vandal-resistant mechanism for reliability
In the Box Panasonic iPro SmartHD WV-SBV111M Vandal-Resistant Mobile Network Camera Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic iPro SmartHD WV-SBV111M Vandal-Resistant Mobile Network Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic WV-SBV111M Specs | | | Image Sensor | 1/3 type MOS image sensor | | Scanning Mode | Progressive | | Scanning Area (H x V) | 0.18 x 0.15" (4.86 x 3.65 mm) | | Minimum Illumination | Color: 0.04 lux (f/2.2, Maximum shutter: Off (1/30s), AGC: High), 0.003 lux (f/2.2, Maximum shutter: Max. 16/30s, AGC: High)
B&W: 0.03 lux (f/2.2, Maximum shutter: Off (1/30s), AGC: High), 0.002 lux (f/2.2, Maximum shutter: Max. 16/30s, AGC: High) | | White Balance | AWC (2,000 - 10,000K), ATW1 (2,700 - 6,000K), ATW2 (2,000 - 6,000K) | | Light Control Mode | ELC / Indoor scene 50 Hz / Indoor scene 60 Hz | | Wide Dynamic Range | On / Off | | Adaptive Black Stretch | On / Off (only when Wide dynamic range is off) | | Compensation | Fog: On / Off (only when Wide dynamic range is off)
Highlight: On / Off (only when Wide dynamic range / Backlight compensation (BLC) off) | | AGC | On (High) / On (Mid) / On (Low) / Off | | Shutter Speed | Maximum 1/10,000, 1/4,000, 1/2,000, 1/1,000, 1/500, 1/250, 1/120, 1/100, 2/120, 2/100, 3/120, 3/100, 1/30, 2/30, 4/30, 6/30, 10/30, 16/30 sec | | Day/Night | Off / Auto | | Digital Noise Reduction | High / Low | | Video Motion Detection | On/Off, 4 areas available | | Privacy Zone | On/Off (Up to 8 zones available) | | VIQS | On/Off (Max. 8 locations) | | Camera Title | Up to 20 characters (alphanumeric characters, marks), On / Off | | Focus Adjustment | Manual | | | | Focal Length | 1.95mm | | Digital Zoom | 3 Levels: x1, x2, x4 | | Zoom Ratio | 1x, Extra zoom 2x | | Angular Field of View | 16:9 Mode: Horizontal: 104°, Vertical: 69°
4:3 Mode: Horizontal: 104°, Vertical: 85° | | F-Number (f) | f/2.2 | | Focus Distance | 0.5 m - ∞ | | Adjustable Angle Range | Horizontal: ±170°
Vertical: ±90° | | Tilt Adjustment | -170 (Left) to +170° (Right) | | | | Camera Control | Brightness | | Display Mode | Spot, Quad: Image from 16 cameras can be displayed in 4 different quad screens or 16 split-screen (JPEG only). 20-character camera title available | | Camera Title | Up to 20 alphanumeric characters | | Clock Display | Time: 12H/24H
Date: 5 formats on the browser
Summer time (Manual) | | One Shot Capture | A still picture will be displayed on a newly opened window. | | SD Card | SDXC/SDHC/SD | | GUI/Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Chinese, Russian, Japanese | | System Log | Up to 100 (Internal), Up to 4,000 (SDXC/SDHC/SD memory when the recording format is set to JPEG) error logs | | Supported OS | Microsoft Windows 10, Microsoft Windows 8.1, Microsoft Windows 8, Microsoft Windows 7 | | Supported Browsers | Windows Internet Explorer 11 (32-bit), Windows Internet Explorer 10 (32-bit), Windows Internet Explorer 9 (32-bit), Windows Internet Explorer 8 (32-bit) | | | | Network Interface | 10Base-T/100Base-TX, M12 connector (female) | | Image Resolution | 1.3 MP (16:9): H.264 (1)(2)(3)(4) / JPEG (1)(2)(3)
1280 x 720 / 640 x 360 / 320 x 180 / 160 x 90
1.3 MP (4:3): H.264 (1)(2)(3)(4) / JPEG (1)(2)(3)
1280 x 960 / 800 x 600 / VGA / 400 x 300 / QVGA / 160 x 120 | | | | Transmission Mode | Constant bit rate / Variable bit rate / Frame rate priority / Best effort / Advanced VBR | | Frame Rate | 1 / 3 / 5 / 7.5 / 10 / 12 / 15 / 20 / 30 fps | | Maximum Bit Rate | 64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 1,536 / 2,048 / 3,072 / 4,096 / 6,144 / 8,192 / 10,240 / 12,288 / 14,336 / 16,384 / 20,480 / 24,576 / 30,720 / 40,960 kb/s The available range of H.264 bit rate varies depending on the setting selected for "image capture size". | | Image Quality | Low / Normal / Fine
0 SUPER FINE /1 FINE /2 / 3 / 4 / 5 NORMAL / 6 / 7 / 8 / 9 LOW | | Transmission Type | Unicast / Multicast | | JPEG | Image Quality: 10 steps
Refresh Interval: 0.1-30 fps
Transmission Type: Pull / Push | | Total Bit Rate | 64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 2,048 / 4,096 / 8,192 kb/s / Unlimited | | Supported Protocols | IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP
IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP | | FTP Client | Alarm image transmission, FTP periodic transmission (When the FTP transmission is failed, back up on an optional SDXC/SDHC/SD memory card is available.) | | Number of Simultaneous Users | Up to 14 users (Depends on network conditions) | | Memory Card | Manufactured by Panasonic
SDXC memory card: 64 GB, 128 GB
SDHC memory card: 4 GB, 8 GB, 16 GB, 32 GB
SD memory card: 256 MB, 512 MB, 1 GB, 2 GB | | Cellular Phone Compatibility | JPEG image | | Mobile Terminal Compatibility | iOS 4.2.1 or later and Android mobile terminal | | | | Alarm Source | VMD, Command alarm | | Alarm Actions | SDXC/SDHC/SD memory recording, email notification, Indication on browser, FTP image transfer, Panasonic protocol output | | Alarm Log | With SDXC/SDHC/SD memory card: 5,000 logs, without SDXC/SDHC/SD memory card: 1,000 logs | | Schedule | VMD | | | | Safety/EMC Standard | UL (UL60950-1), C-UL (CAN/CSA C22.2 No.60950-1), CE, IEC60950-1 FCC Part15 ClassA, ICES003 ClassA, EN55022 ClassB, EN55024 | | Power Source and Consumption | PoE (IEEE 802.3af-compliant) / PoE (Alternative A): 48 VDC: 80 mA / Approximately 3.8 W (Class 2 device) | | Ambient Operating Temperature | -40 to 140°F (-40 to +60°C)
Power On Range: -22 to 140°F (-30 to +60°C) | | Ambient Operating Humidity | 10% to 90% (no condensation) | | Impact Protection | IK10 (IEC 62262) | | Water and Dust Resistance | IP66 (IEC60529), IP6K9K, Type 4X (UL50), NEMA 4X | | Application | EN50155-T3, EN50121, ECE-R10, EN45545, EN50498 | | Finish | Aluminum die cast light gray | | Dome Cover | Polycarbonate resin Clear (with hard coating), Tamper-resistant | | Dimensions | 3.93 x 3.14 x 6.33" (100 x 80 x 161 mm) | | Weight | Approximately 1.65 lb (750 g) |
