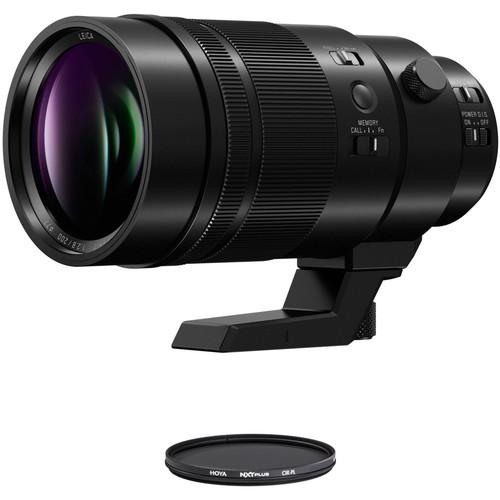

User Manual for Panasonic Leica DG Elmarit 200mm f 2.8 POWER O.I.S. Lens with Circular Polarizer Filter Kit

• Product category: Mirrorless System Lenses Panasonic
• Brand: Panasonic
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Panasonic Mirrorless System Lenses

Product description

• Panasonic Leica DG Elmarit 200mm f/2.8 POWER O.I.S. Lens A big lens for the Micro Four Thirds system, the Leica DG Elmarit 200mm f/2.8 POWER O.I.S. Lens from Panasonic is a 400mm-equivalent super telephoto prime, developed in partnership with Leica, that promises sharp imagery and excellent handling. With a fast f/2.8 maximum aperture users can work in low-light conditions and create images with a shallow depth of field. Ensuring optimal image quality, the design incorporates two Ultra Extra-Low Dispersion (UED) elements that combat aberrations while a Nano Surface Coating is applied to minimize flare.

  Optimized for the capture of distant and fast-moving subject matter, this lens is equipped with a quiet triple linear motor autofocus system that has a 240 fps sensor drive for exceptionally fast performance in both stills and video. Also, a POWER Optical Image Stabilizer will compensate for camera shake and works with Panasonic's Dual I.S. and Dual I.S. 2.0 in-camera stabilization functions. Along with this, quick access lens controls, including a focus limiter, focus button, and focus memory switch, are available for tactile control over numerous settings.

  Further benefitting the professional nature of this optic is a splash, dust, and freezeproof design for use in less-than-ideal weather conditions. It is compatible with teleconverters for added reach and the DMW-TC14 1.4x Teleconverter is included for creating a 560mm-equivalent lens at the cost of one stop of light.
  • With a 400mm equivalent focal length on Micro Four Thirds cameras, this telephoto prime is well suited to working with distant subject matter.
  • A fast f/2.8 maximum aperture excels when working in difficult lighting conditions and provides extensive control over depth of field.
  • Two ultra extra-low dispersion elements minimize various aberrations in order to produce a high degree of clarity, sharpness, and color accuracy.
  • Nano Surface Coating has been applied to individual elements to reduce flare and ghosting for improved contrast and color neutrality.
  • A triple linear motor autofocus system delivers smooth, near-silent performance that is especially beneficial to video applications when working in noise-sensitive areas. It is also able to drive the motor at up to 240 fps for high-speed applications and is silent for use in video.
  • POWER Optical Image Stabilizer minimizes the appearance of camera shake for sharper handheld shooting, and also supports the Dual I.S. and Dual I.S. 2.0 functions for increased stabilization performance.
  • Physical controls located on the lens barrel provide quick access to many commonly adjusted settings. This includes a focus control limiter for changing from full-range focusing or 9.8' to infinity for faster operation in some circumstances. Also, there is a focus button and a focus memory switch that can be set up to store focus position or to recall a specific camera function. In addition to these more unique controls, there is an AF/MF switch and a POWER O.I.S. on/off switch.
  • Splash, dust, and freezeproof design benefits working in inclement weather conditions down to -14°F.
  • A quick-shift, two-part rotating tripod collar permits quick switching between horizontal and vertical shooting orientations, and keeps the lens controls in the same place once rotated for more intuitive handling.
  • The lens comes supplied with a 1.4x teleconverter, providing users with a 560mm-equivalent focal length at a cost of 1 stop of light. For even more reach, an optional 2x teleconverter is available for an 800mm-equivalent focal length.
  UPC: 885170327849
• Hoya 77mm NXT Plus Circular Polarizer Filter The 77mm NXT Plus Circular Polarizer Filter helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface. The light from the sun naturally becomes partially polarized due to reflecting off electrons in air molecules, causing the light to scatter into what appears as haze. A polarizing filter arranges and filters this directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of this light. This results in a noticeable reduction of glare and reflections from non-metallic surfaces and an increase in the saturation of skies and foliage.

  A circular polarizer only differs from a linear polarizer in that it contains a quarter wave plane in addition to the linear polarizing filter. The addition of this quarter wave plane is to circularly polarize the linearly polarized light for the use of auto focus and exposure functions. Due to how the light is broken down and filtered with a linear polarizer, auto focus and exposure accuracy become skewed during use. When the light becomes circularly polarized, it permits the use of these functions.

  This filter is constructed from optical glass for clarity as well as color fidelity and features an aluminum-alloy filter ring that can be rotated in order to adjust the intensity of the polarization effect. To prevent internal ghosting and reflections, each glass surface includes five layers of anti-reflection coating. An additional hydrophobic coating results in an improved beading effect when in contact with water for greater cleaning efficiency.
  • Helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface.
  • Polarizing filters arrange, and filter, directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of the light.
  • Clears up haze in distant landscapes and provides more saturated, vivid colors.
  • Strongest effect when used at a 90° angle from the sun.
  • Circular polarizers are ideal for use with digital cameras and autofocus lenses where a linear polarizer will often disrupt auto exposure and focus features.
  • 1.7x filter factor reduces exposure by 0.8 stop.
  • Multicoated to prevent internal ghosting and reflections while providing an improved beading effect with water for more efficient cleaning.
  • Aluminum-alloy filter ring for durability while remaining lightweight.
  • Filter ring can be rotated to adjust the intensity of the polarization effect.
  • 77mm front filter threads allow for use with other filters.
  • Top knurling to provide a more textured grip when mounting or removing it from a lens.
  • Constructed from optical glass for clarity and color fidelity.
  • Plastic filter case for storage and transport.
  UPC: 024066068132

• Leica DG Elmarit 200mm f/2.8 POWER O.I.S. Lens ecvcvfbqwbvrxfsqybuevxdxvr
• DMW-TC14 1.4x Teleconverter
• Front Lens Cap
• Rear Lens Cap for Lumix G Lenses
• Lens Hood
• External Tripod Mount
• Storage Bag
• Limited 1-Year Warranty

• Hoya - 77mm NXT Plus Circular Polarizer Filter

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Panasonic Leica DG Elmarit 200mm f/2.8 POWER O.I.S. Lens

  Focal Length	200mm (35mm Equivalent Focal Length: 400mm)
  Maximum Aperture	f/2.8
  Minimum Aperture	f/22
  Lens Mount	Micro Four Thirds
  Format Compatibility	Micro Four Thirds
  Angle of View	6.2 Rating 50% users recommend this product to others. And what about you? This product has already been rated by 60 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
