Product description

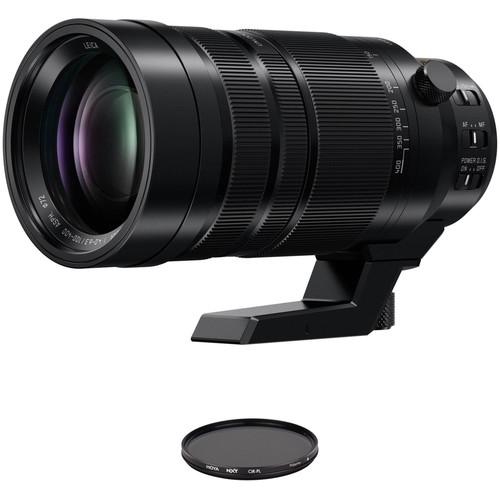

• Panasonic Leica DG Vario-Elmar 100-400mm f/4-6.3 ASPH. POWER O.I.S. Lens A Micro Four Thirds lens with a not-so-micro zoom range, the Leica DG Vario-Elmar 100-400mm f/4-6.3 ASPH. POWER O.I.S. Lens from Panasonic offers a truly expansive 200-800mm equivalent focal length range, yet retains a relatively compact stature to suit the Micro Four Thirds system. Characterized by its Leica branding, this sophisticated optic employs aspherical and extra-low dispersion elements to significantly reduce chromatic and spherical aberrations throughout the zoom range for a high degree of image clarity and sharpness. Also benefitting image sharpness, a POWER O.I.S. system, which is compatible with Lumix G camera's Dual I.S. function, helps to minimize the appearance of camera shake for sharper handheld shooting at longer focal lengths.

  Benefitting both stills shooting and video recording, a 240 fps high-speed AF motor is both quiet and precise, and a focus limiter function can be employed to constrain the focusing range for even quicker performance. Additionally, the physical design of the lens utilizes a gapless construction that renders it both dust- and moisture-resistant for use in inclement conditions. And while its lightweight, compact form factor is suitable for handheld shooting, the 100-400mm f/4-6.3 also features a removable rotating tripod collar for fast switching between horizontal and vertical shooting orientations when working atop a monopod or tripod.
  • Telephoto zoom designed for Micro Four Thirds system cameras, this lens offers a 200-800mm equivalent focal length.
  • Designed in collaboration with Leica, the 20 elements, 13 groups optical design incorporates one aspherical extra-low dispersion element, one Ultra Extra-Low Dispersion element, and two extra-low dispersion elements. The combination of aspherical and low dispersion elements helps to reduce spherical aberrations and color fringing throughout the zoom range for improved sharpness, clarity, and color accuracy.
  • POWER O.I.S. mechanism helps to control camera shake for sharper handheld shooting. This system is also compatible with the Dual I.S. function in select Lumix G cameras, which more effectively minimizes the appearance of camera shake by using both sensor-shift and lens-shift type stabilization methods.
  • A 240 fps AF motor offers fast, precise, and near-silent focusing performance to benefit both stills shooting and video recording applications.
  • Focus Limiter allows you to constrain the focusing range of the lens from its minimum focusing distance to infinity, or from 16.4' to infinity.
  • The minimum focusing distance is 4.3', which pairs with an equivalent maximum magnification of 0.5x to support working with close-up subjects.
  • A rounded nine-blade diaphragm contributes to a pleasing bokeh quality when working with selective focus and shallow depth of field techniques.
  • Gapless construction renders the lens both dust- and moisture-resistant to support photographing in outdoor and harsh environments.
  • A quick-shift, two-part rotating tripod collar permits quick switching between horizontal and vertical shooting orientations, and keeps the lens controls in the same place once rotated for more intuitive handling.
  • An integrated hide-away lens hood can retract around the lens when not in use, or be deployed to guard against stray light from causing unwanted lens flare and ghosting.
  • A zoom ring lock prevents unwanted lens creep from occurring while carrying the lens.
  • Dedicated levers are available to select the Focus Limiter position, AF or MF focusing methods, or to deactivate the lens-based POWER O.I.S.
  UPC: 885170265295
• Hoya 72mm NXT Circular Polarizer Filter The Hoya 72mm NXT Circular Polarizer Filter helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface. The light from the sun naturally becomes partially polarized due to reflecting off electrons in air molecules, causing the light to scatter into what appears as haze. A polarizing filter arranges, and filters, this directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of this light. This results in a noticeable reduction of glare and reflections from non-metallic surfaces and an increase in the saturation of skies and foliage.

  A circular polarizer only differs from a linear polarizer in that it contains a quarter wave plane in addition to the linear polarizing filter. The addition of this quarter wave plane is to circularly polarize the linearly polarized light for the use of auto focus and exposure functions. Due to how the light is broken down and filtered with a linear polarizer, auto focus and exposure accuracy become skewed during use. When the light becomes circularly polarized, it permits the use of these functions.

  This filter is non-coated. Hoya NXT filters have over 97% average light transmission, and are constructed from heat-resistant, high-transparency optical glass.
  • Helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface.
  • Polarizing filters arrange, and filter, directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of the light.
  • Clears up haze in distant landscapes and provides more saturated, vivid colors.
  • Non-coated.
  • Strongest effect when used at a 90° angle from the sun.
  • Circular polarizers are ideal for use with digital cameras and autofocus lenses where a linear polarizer will often disrupt auto exposure and focus features.
  • Over 97% average light transmission.
  • Constructed from heat-resistant, high-transparency optical glass.
  UPC: 024066055699

• Leica DG Vario-Elmar 100-400mm f/4-6.3 ASPH. POWER O.I.S. Lens auccdryevcytwuatrybztqre
• Front Lens Caps
• Rear Lens Cap for Lumix G Lenses
• Tripod Collar
• Storage Bag
• Limited 1-Year Warranty

• Hoya - 72mm NXT Circular Polarizer Filter auccdryevcytwuatrybztqre

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Panasonic Leica DG Vario-Elmar 100-400mm f/4-6.3 ASPH. POWER O.I.S. Lens

  Focal Length	100 to 400mm (35mm Equivalent Focal Length: 200 to 800mm)
  Maximum Aperture	f/4 to 6.3
  Minimum Aperture	f/22
  Lens Mount	Micro Four Thirds
  Format Compatibility	Micro Four Thirds
  Angle of View	12 Rating 90% users recommend this product to others. And what about you? This product has already been rated by 36 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
