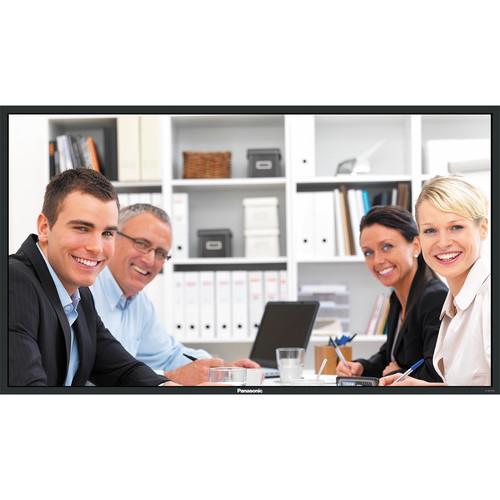

Panasonic LFC70 Series TH-80LFC70U 80" Full

User Manual for Panasonic LFC70 Series TH-80LFC70U 80" Full HD Widescreen Edge-Lit LED VA LCD Display

• Product category: Commercial Monitors Panasonic
• Brand: Panasonic
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Panasonic Commercial Monitors

Product description

Miracast for Instant Wireless Sharing
• The display supports Miracast wireless technology, which allows transmitting documents, Full HD videos, images, and audio from compatible Android devices and Windows PCs to the display. With no cables required, fast connection, and high bandwidth to enable display of 1080p video at up to 60 fps, Miracast is a powerful tool for sharing media.

Bright, Vibrant Images
• Featuring Full HD resolution and edge-lighting, this LED-backlit display delivers bright, vibrant images while consuming less energy. It produces a maximum brightness of 350 cd/m² for vividly clear pictures.

Instant Playback of Content via USB
• The provision of a USB port for media playback allows playing back Full HD video, still images, and digital documents from USB storage devices (none included), without having to first connect a PC. The USB Memory Viewer app enables image (JPEG, BMP) and video (WMV, AVI, MOV, MP4, MPG) selection from handy thumbnail previews.

Easy Wireless Display of PC Screen
• PC users can use the Wireless Manager ME 6.0.2 software to wirelessly transmit content from their computer screen (including audio) to the display. Simultaneous transmission from up to 16 devices is enabled in Multi-Screen Mode, while one PC can transmit content to up to eight displays. ¹

  Please Note:

  Wireless Manager ME 6.0.2 supported by Windows XP/Vista/7/8 and Mac OS X v10.6/10.7/10.8; Windows Vista/7 users must log into the Administrator account to be able to transmit audio; The sound driver may require adjustment. close

Save Time with Easy Wireless Stick
• The ET-UW100 Easy Wireless Stick (available separately) incorporates built-in wireless application software and a wireless LAN adapter. When connected to a USB port, it allows streaming the PC screen to the display wirelessly, without having to install any software. This feature is useful for allowing visiting clients or students to share content when time is limited. ²

  Please Note:

  ET-UW100 cannot transfer audio; only the 16-Window Index Style can be used in Multi-Live Mode; a firmware update is necessary before using the ET-UW100 close

Wireless Apps for iOS
• The Panasonic Wireless Projector app for iOS enables wireless transmission of media from iPad, iPhone, and iPod touch. PowerPoint documents and PDF files can be shared quickly and conveniently on the big screen. The app also supports simultaneous display from multiple devices using Multi Mode.

Simplified DIGITAL LINK Connection
• DIGITAL LINK transmits uncompressed Full HD video, audio, and control commands through a single CAT5e cable up to 100 m (328 ft). All the source devices can be connected to the ET-YFB100G Digital Interface Box (available separately), and only one cable is required to link the display. This simplifies installation and optimizes installation cost.

Compatible with Third-Party Peripheral Devices
• Based on the HDBaseT transmission standard, DIGITAL LINK is adapted to include specialized proprietary functions. This enables the connection of third-party peripheral devices supporting the same transmission standard.

Expand and Customize with SLOT2.0
• SLOT2.0 allows adding the functionality and connectivity needed for virtually any application. Optional function boards with HDMI and HD-SDI can be mounted to support a customized content distribution system. The PLUGTHA54 Plug-in PC (available separately) can be configured for easy access to web conferencing systems and Whiteboard Software.

Supports Crestron Connected Software
• The display's wired LAN terminal is compatible with Crestron Connected automation and control software. The display devices in the network can be monitored and controlled remotely from a single PC via Ethernet.

Connect a Second Display
• A VGA cable can be used to mirror content (including notes added to documents, images, or video during a presentation) on a second display or projector. This dual-display capability makes the display suitable for use in large venues. ³

  Please Note:

  Mirroring supports 1080/60p signal only close

Built-In Speakers
• The display features 10W stereo speakers for audio playback for presentations with audio and video content.

Toughened Non-Reflective Glass Provides Clear Visibility
• The non-reflective screen surface makes it easy to view content in bright ambient illumination. Toughened scratch-resistant glass enhances the level of impact protection when the screen is touched-suitable for classrooms or busy meeting rooms.

Compliance with PJLink
• Compliance with PJLink Class 1 enables remote control and monitoring of the display with a wide network of third-party PJLink-compatible AV components. Incorporating this display into an existing system via the local network is seamless and cost effective.

Picture-in-Picture Capability
• Picture-in-Picture functions offer the versatility to display images from multiple input sources on the same screen. Documents, videos, and stills can be displayed full-screen with a sub-window showing content from a different source. The Picture-in-Picture mode is suitable for web conferencing - you can display meeting documents on the main screen and live video footage from a remote location in the sub-window. The Picture-in-Whiteboard mode allows for displaying media in a window in the whiteboard interface, while making notes in the blank space surrounding it. ⁴

  Please Note:

  Writing & drawing on the sub-screen is not available. Miracast and Memory Viewer do not support PIP. HDMI, DVI, DIGITAL LINK, component, and PC combination is not available. Whiteboard and Panasonic Application combination is not available. close

1:1 Pixel Mode
• The 1:1 Pixel mode maps the 1920 x 1080 video content to Full HD panel pixels to display the whole video content. By skipping the scaling process, this mode is able to produce high-definition images in their original, 1:1 pixel form. ⁵

  Please Note:

  Compatible Signal Format: 1125/50i, 60i, 24sF, 24p, 25p, 30p, 50p, 60p, 1250/50i close

4x Digital Zoom
• The 4x Digital Zoom function lets you enlarge a portion of an image up to four times its normal size and display it on the full screen. This function adds impact to presentations. ⁶

  Please Note:

  Digital Zoom does not work in Multi Display or Dual Picture mode. Some degradation occurs when images are enlarged. close

Failover Input
• When there is no signal, the specified input signal is automatically switched.

Energy-Saving Functions
• The energy-saving functions are especially beneficial when the display is in the standby mode for prolonged periods of time. The power is automatically turned on or off in response to a sync signal from the equipment connected to the DVI-D or PC (DPMS compliant) input terminal. When a device is connected to the function slot and there is no sync signal for approximately 10 minutes, the power is automatically turned off.

Tamper Resistance
• The Input Lock function locks the input switch operation, and the Button Lock function restricts the button operation of the display.

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Panasonic TH-80LFC70U Specs

Screen Size (Diagonal)	80"
Resolution	1920 x 1080
Panel Type	VA LCD
Brightness	350 cd/m Rating 80% users recommend this product to others. And what about you? This product has already been rated by 72 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
