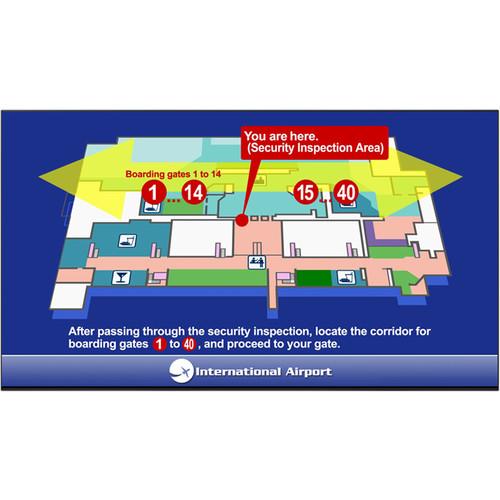

User Manual for Panasonic LFV8 Series 49" Ultra-Narrow Bezel IPS LCD Video Wall Display Click to enlarge the picture
Contents of the user manual for the Panasonic LFV8 Series 49" Ultra-Narrow Bezel
- Product category: Commercial Monitors Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Commercial Monitors
|
User manual for the Panasonic LFV8 Series 49" Ultra-Narrow Bezel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description The LFV8 Series 49" Ultra-Narrow Bezel IPS LCD Video Wall Display from Panasonic features a bezel width of 0.14", making it suitable for video wall installations. It features AGLR (Anti-Glare Low-Reflection) panel for improving visibility by adding a low-reflection coating instead of the anti-glare treatment. The display offers a maximum resolution of 1920 x 1080 and brightness rating of 450 cd/m2.
The Multi-Display function enlarges images to up to 100 times their original size. It can increase image size using the same zoom ratio in both vertical and horizontal directions to suit 2 x 2, 3 x 3, 4 x 4, 5 x 5, and 10 x 10 video-wall configurations, or can apply different ratios to suit alternative screen layouts. In this way, users can maximize the image size according to size and shape of a video wall configuration.
The Panasonic Video Wall Manager software allows you to calibrate display color using a color sensor, adjust display settings, and control and manage data via Windows software. If the software is upgraded with an optional TY-VUK10 Auto Display Adjustment Upgrade Kit, brightness and color settings among multiple displays can be automatically calibrated using a compatible camera (Nikon D5200/D5300/D5500/D5600). Display - MST (Multi Stream Transport) system supports dot-by-dot display of 4K images in 2 x 2 multi- screen configuration
- SST (Single Stream Transport) system supports enlarged display of 4K images in multi- screen configuration
- IPS panel preserves true color accuracy for a wider proportion of 178° viewing angle
- Direct-lit LED backlighting with Local Dimming ensures a contrast of 500,000:1
- Backlight brightness is automatically optimized to deepen blacks in dark areas and boost whites in lighter areas of individual scenes displayed on the screen for more realistic and immersive picture quality
- Supports landscape and portrait installations
- Color pre-calibration to minimize color differences between displays for multi-screen usage, making it possible to create a single image without any visible differences from display to display
- User Memory Function enables users to store color adjustment data in the main unit memory
- Stored data can be retrieved later when you want to re-install the display
- Works with optional ET-SWA100 Series Early Warning Software for monitoring displays over a network
UPC: 885170314733 In the Box Panasonic LFV8 Series 49" Ultra-Narrow Bezel IPS LCD Video Wall Display DPVF1663ZA Remote Control 2 x AA Batteries (AA/R03/UM4 Type) 3 x DPVF1056ZA Cable-Tie Fasteners RS-232C Conversion Cable RS-232C Daisy Chain Cable IR Daisy Chain Cable IR Receiver Cable JP155AF1U 6.56' Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic LFV8 Series 49" Ultra-Narrow Bezel IPS LCD Video Wall Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic TH-49LFV8U Specs | | | Screen Size (Diagonal) | 49" | | Native Resolution | 1920 x 1080 | | Panel Type | IPS-Type LCD | | Brightness | 450 cd/m
