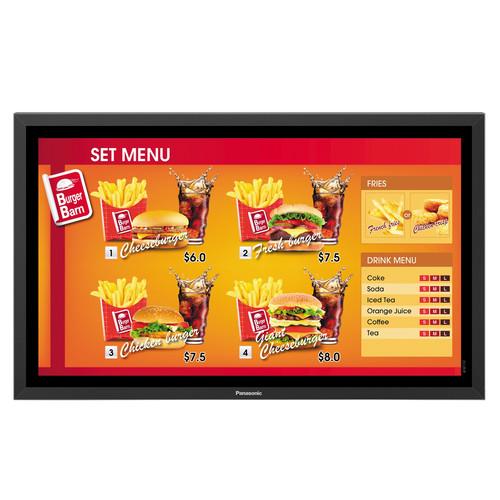

Panasonic LFX60 Series TH-47LFX6NU 47" Full

User Manual for Panasonic LFX60 Series TH-47LFX6NU 47" Full HD Widescreen Direct LED-Backlit Outdoor LCD Display

• Product category: Commercial Monitors Panasonic
• Brand: Panasonic
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Panasonic Commercial Monitors

Product description

High Brightness for Good Visibility under Direct Sunlight

• Full brightness of 1200 cd/m² for good visibility under direct sunlight

• Information such as menu items and prices are clear and easy to read

• Suitable for installation in drive-through lanes and public places

IPS Panel for Good Viewing Angle

• IPS panel has a wide viewing angle, so colors don't change when the image is viewed from right or left angles

Forced Air-Cooling System Helps Prevent Blackouts and Dew Condensation

• Outside air is drawn into the cabinet to produce airflow between the front glass and the LCD panel, which suppresses internal temperature rises and prevents blackouts when the display is installed outdoors

• This is also a countermeasure against condensation

Resistant to Temperature Changes

• With an operating temperature range of -4 to 122°F (-20 to 50°C), performance remains unchanged even in hot and cold climates ¹

  Please Note:

  -4°F (-20°C) when used in the Outdoor mod close

Aluminum Cabinet and Tempered Glass

• Aluminum cabinet resists corrosion and tempered glass ensures rugged strength against impacts

IP55 Rated, Dust and Water Resistant

• Being IP55 rated, the display will function optimally in harsh conditions

Transmission of Audio, Video, and Control Signals with a Single LAN Cable

• Only a single LAN cable is required to transmit uncompressed HD video, audio, and control signals for a distance of up to 328.1' (100m)

• PC can therefore be installed indoors and other devices can be connected to the display at an outdoor location in order to protect the PC and devices from rain and dust

• Cable routing work is quick and easy

Remote System Monitoring

• The status of the display, such as the power supply, input signal, display temperature and accumulated hours of use, can be remotely monitored via an RS-232C interface

• The remote system monitoring feature enables a quicker response to problems when operating systems for advertising purposes or information displayf

ECO Function

• In order to lower the power consumption, the sensor detects the ambient lighting and automatically adjusts the backlight brightness to match the viewing environment

• Power consumption can also be reduced by lowering the screen brightness

Energy-Saving

• Power is automatically turned on or off in response to a sync signal from the equipment connected to the built-in PC (DMPS compliant) input terminal

• The display goes into standby mode after about 10 minutes if no sync signal is received from the device connected to the terminals

• The Standby Power Save mode reduces power consumption when on standby

Tamper-Resistant Settings

• You can prevent operating errors in public places by adjusting the tamper-resistant settings in advance

• You can set the maximum volume level, restrict the button operations of the display, restrict the key operation of the remote control, and lock the input switch operation

Screen Saver

• The screen saver reduces the possibility of image retention that can occur when displaying still images with constant, unchanging brightness for long periods of time

• The Auto Power Off setting can also be set to automatically turn the power off when the screensaver operation ends

Failover Input

• When there is no signal, the specified input signal is automatically switched

Power-On Delay Function

• For video walls and other multi-display applications, this function automatically shifts the power-on time slightly for each display unit in the system, so there's less load on the power supply

Automatic Picture Positioning

• Pressing the Auto Setup key on the remote control allows positioning the picture

• This feature automatically corrects the horizontal and vertical picture positions, the clock phase, and the dot clock when an RGB signal is input ²

  Please Note:

  When digital RGB signal is input, dot clock and clock phase cannot be adjusted close

• The adjustment results in optimal standard values for horizontal and vertical picture sizes

1:1 Pixel Mode

• The 1:1 Pixel mode maps the 1920 x 1080 video content to Full HD panel pixels to display the entire original content ³

  Please Note:

  Compatible Signal Format: 1125/50i, 60i, 24sF, 24p, 25p, 30p, 50p, 60p, 1250/50i close

• By skipping the scaling process, this mode is able to produce high-definition images in their original, 1:1 pixel form

4x Digital Zoom

• This function lets you enlarge a portion of an image up to 4 times its normal size and display it on the full screen ⁴

  Please Note:

  Digital Zoom does not work in Multi Display or Dual Picture mode. Some degradation occurs when images are enlarged. close

• This function adds impact to presentations

Multi-Screen System Dynamically Displays Images in Large Spaces

• The Multi-Display function enlarges images up to five times their original size, both vertically and horizontally

• Images are enlarged in the same zoom ratio in both vertical and horizontal directions, such as 2x2, 3x3, 4x4 and 5x5, or by different ratios in order to effectively use vertically or horizontally elongated spaces ⁵

  Please Note:

  Some degradation occurs when images are enlarged. close

• The versatility of the display can be further enhanced by freely selecting the zoom ratio to match the installation space

Seam Hides Video Mode

• When this mode is turned off, a full-screen image of the display panel, including edges (the entire width of the frame), is displayed

• This mode is suitable for displaying text information, since content is not overlapped by the frame

• The areas of the image overlapped by the frame can be adjusted in both vertical and horizontal directions

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Panasonic TH-47LFX6NU Specs

Screen Size (Diagonal)	46.9"
Resolution	1920 x 1080
Panel Type	IPS-Type LCD
Brightness	1200 cd/m Rating 70% users recommend this product to others. And what about you? This product has already been rated by 71 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
