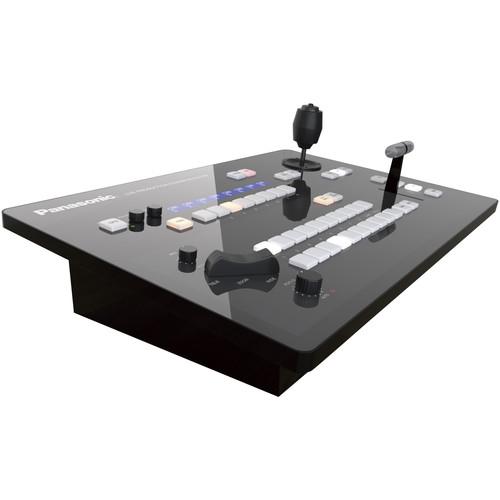

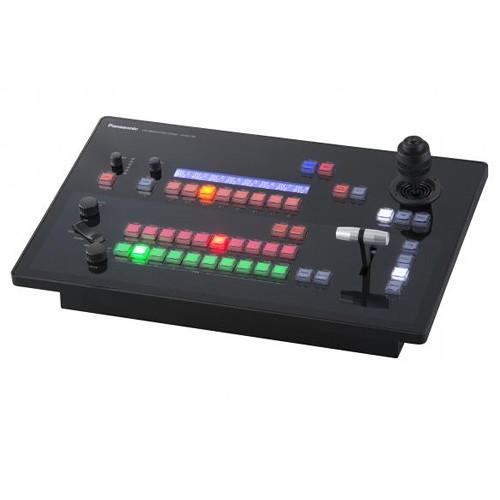

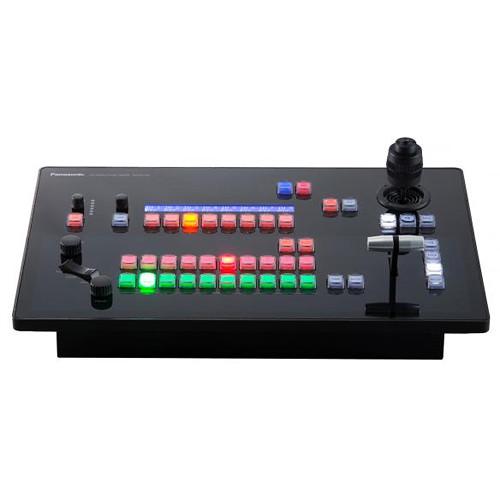

Product description The Panasonic Live Production Streaming Switcher Controller and PTZ Camera Controller is well suited for use in a variety of environments including live events, education, live musical performances, and lectures. It supports ten channels of video and can simultaneously accept input from SDI, HDMI, and NDI/IP. Supporting up to 12 audio channels, the switcher can use the audio embedded in digital video, as well as from analog audio, and even the microphone input.
Still image capture is available at the push of a button on the console. The T-bar (transition bar) is pretty much a given on a switcher panel, offering you manual control over transitions. The built-in joystick works in conjunction with the panel's built-in PTZ controls. The NDI input and output options make this board suitable for live streaming as well as IP recording. - Usability
- User-friendly operations and compatibility with NDI and NDI/HX standards for smooth live productions.
- Transition Slider
- A physical transition slider provides tactile control of a transition, for moments when a manual slider is preferable to a preprogramed transition.
- Camera Control and Document Sharing for Lectures and Presentations

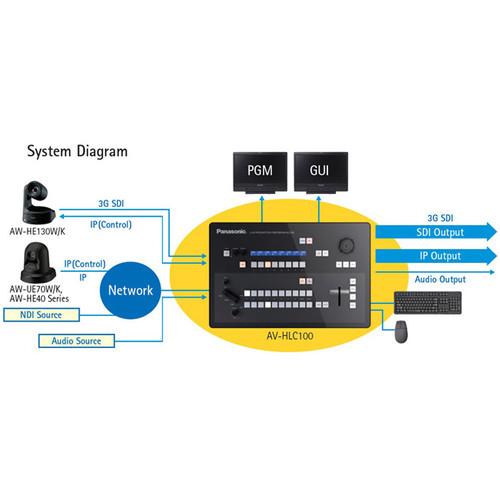

- Connect the AV-HLC100 to Panasonic's HD integrated cameras to switch between footage from up to eight cameras, controlling each camera easily through a single LAN cable. Lecture documents can be input from a computer or captured in advance, then displayed on sub-screens during live streaming.
- Simultaneous Live Streaming and Recording
- Footage can be output directly to video streaming services without an external converter, and can even be recorded simultaneously. The content is recorded in formats that can be played on off-the-shelf computers, enabling streaming to users who are unable to view the live broadcast. Streaming and recording can all be done on one AV-HLC100 unit.
- PTZ
-

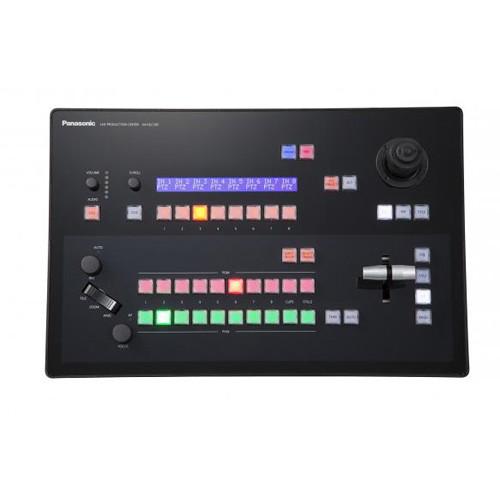

- Tele/Wide zooming can be done with the seesaw switch similar to what you would find on a camera. This is found on the left of the control panel.
- Iris and Focus adjustment can be performed by individual dials, while position control such as PTZ camera, PiP, or Title can be assigned to the 3D joystick at the top right
- Audio
- The volume knob is the master audio level control. Audio levels can be checked in the LCD display. Detailed adjustments can be made using a GUI.
- LCD Menu Bar
- Small and unobtrusive, the built-in LCD menu bar provides a wealth of information. It displays a wide range of statuses and settings including PTZ camera selection, PTZ/PST operation, PiP material selection, title material selection, transition pattern selection, CLIP/STILL operation, and input-source selection.
- Effects and Transitions
- The switcher supports over 190 transitions, as well as PiP and 3D-DVE.
- Titles
- Built-in title templates speed title creation and customization.
- RTMP
- The AV-HLC100 supports RTMP, which allows you to stream your PGM output.
UPC: 608938401298 In the Box Panasonic Live Production Streaming Switcher Controller and PTZ Camera Controller AC Power Supply Power Cable Keyboard Mouse Limited 1-Year Warranty User Manual PDF 3.5mbxfytcfrfxvascbauvqzyzvscvbwt Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic Live Production Streaming Switcher Controller and PTZ Camera Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

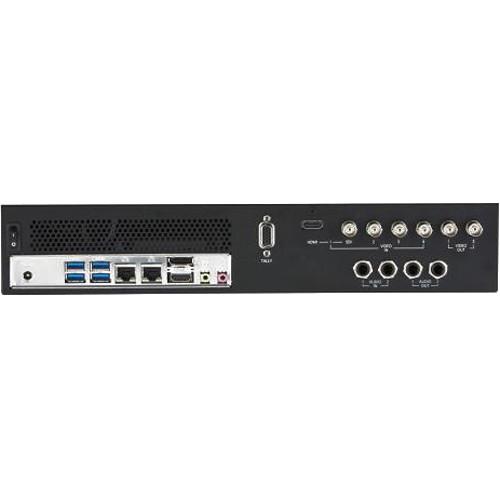

Technical parametersPanasonic AV-HLC100P Specs | | | Inputs | Video
4 x 3G/HD/SD-SDI
1 x HDMI type A (shared with SDI #1)
NDI
8 x Inputs (NDI compatible equipment including IP input from Skype TX compatible PC)
Audio
2 x 1/4" phone (TRS)
1 x 3.5 mm stereo mini jack
4 x BNC (embedded audio in SDI signal)
8 x NDI (embedded audio in NDI signal) | | Outputs | Video
Program: 1 x BNC (3G-SDI corresponds to Level-A only)
Program/Preview/Aux (Selectable): 1 x BNC, AUX (3G-SDI corresponds to Level/DisplayPort (shared): 1 x HDMI type A, 1 x DisplayPort (for GUI)
Network Program/Preview/AUX (Selectable): 1 x RJ45
Audio
2 x 1/4" Phone (TRS)
1 x 3.5 mm Stereo mini jack
2 x BNC (embedded audio in SDI signal)
1 x NDI (embedded audio in NDI signal) | | Other | 1 x D-Sub 9, RS-422
2 x RJ45, Ethernet
4 x USB 3.0 Type-B
1 X IEC C13, power
1 X 4-pin XLR, power | | | | Format Support | 1080p: 59.94/50/23.98 (59.94/50p are not supported over HDMI)
1080i: 59.94/50
1080PsF: 29.97/25
720p: 59.94/50/29.97/25 | | Network Protocol Support | NDI
RTMP | | | | Audio Mixer | 8-channel | | Power | 19 VDC | | Power Draw | 110 W | | Environmental | Operating: 32 to 104°F / 0 to 40°C
Relative Humidity: 20 to 80% non-condensing | | Dimensions | 16.81 x 3.66 x 10.94" / 42.7 x 9.3 x 27.8 cm | | Weight | 13.3 lb / 6.1 kg | | | | Package Weight | 22.7 lb | | Box Dimensions (LxWxH) | 20.9 x 15.6 x 12.7" |
