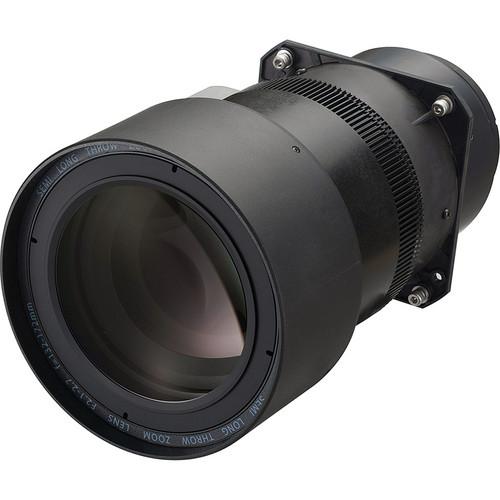

User Manual for Panasonic LNS-M02 Semi-Long Throw Zoom Lens Click to enlarge the picture
Contents of the user manual for the Panasonic LNS-M02 Semi-Long Throw Zoom Lens
- Product category: Projector Lenses Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Projector Lenses
|
User manual for the Panasonic LNS-M02 Semi-Long Throw Zoom Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description The Sanyo LNS-M02 Semi-Long Throw Zoom Lens allows you to change the focal length, which enables a range of projection distances. For this lens, the focal distance is 125 - 162mm. It has a zoom ratio of 1.3:1 and a long-throw ratio of 3.4 - 4.5:1, which is ideal for projecting well-defined, vivid images from a distance. Even smaller sized images projected from far away will be sharp and clear. Installing a zoom lens affords greater flexibility since you can alter the projection distance without actually moving the projector. This is convenient for permanently installed projectors. You can compensate for miscalculations during installation and it's possible to adjust your display proportions depending on class size or type of presentation. - Long-Throw Ratio
- Ideal for projecting smaller, sharper images from a further distance away, the LNS-M02 is a perfect lens for more expansive venues. You'll be able to hide away your projector in the back of the room. With the LNS-M02, moving further away from the screen won't affect the picture quality
- Motorized Zoom
- The LNS-M02 is a motorized zoom lens with a 1.3:1 zoom ratio. Its focal length is 125 - 162 mm
- Vertical & Horizontal Lens Shift
- Vertical lens shift allows the projector to optically move the image up and down so the projector will always be properly placed, even in varying installation scenarios. Horizontal lens shift works the same way for side-to-side movement
In the Box Panasonic LNS-M02 Semi-Long Throw Zoom Lens Front Lens Cap Rear Lens Cap Screw Driver Instillation Manual Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic LNS-M02 Semi-Long Throw Zoom Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic LNS-M02 Specs | | | Lens Type | Long-Throw, Zoom | | Motorized | Yes | | | | Throw Ratio | 3.4 to 4.5:1 | | Aperture | f/2.1 to 2.7 | | Focal Length | f = 125 to 162mm | | Throw Distance | 9.2 to 205.7' / 2.8 to 62.7 m | | Lens Shift Ratio | PLC-HF10000L / PLC-HF10000L
Vertical: 10:0 to 0:10
Horizontal: 3:2 to 2:3
PLC-XF47 / PLC-XF47
Vertical: 5:2 to 2:5
Horizontal: 3:2 to 2:3
PLC-XF1000 / PLC-XF1000
Vertical: 5:2 to 2:5
Horizontal: 3:2 to 2:3 | | Zoom Ratio | 1.3 | | | | Exterior Dimensions |
