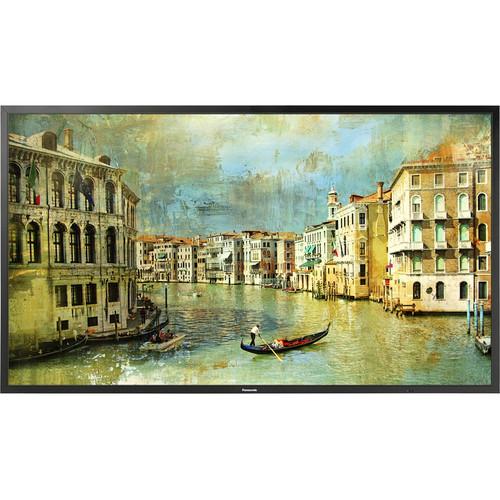

User Manual for Panasonic LQ70L Series 98" Class 4K Large Format Professional Display Click to enlarge the picture
Contents of the user manual for the Panasonic LQ70L Series 98" Class 4K
- Product category: Commercial Monitors Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Commercial Monitors
|
User manual for the Panasonic LQ70L Series 98" Class 4K contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description The black LQ70L Series 98" Class 4K Large Format Professional Display from Panasonic provides 500 cd/m2 bright output and supports native resolution of up to 3840 x 2160. It offers a contrast ratio of 1300:1 and response time of 8 ms. For tamper resistance, the monitor supports two modes of locking; input locking and button locking. The input lock restricts the key operations for the remote control while the button lock restricts the button operations for the display.
The Local Dimming function controls the LED backlight intensity of particular parts of the displayed image. This significantly increases the contrast ratio of a certain area of the screen image. The 20W (10W + 10W) speakers are built into the rear of the display. There is no need for external speakers when viewing content that has a soundtrack.A built-in light sensor automatically adjusts the backlight brightness for reducing power consumption. A 3D LUT (Look-Up Table) developed for broadcast monitors also enables color reproduction in places ranging from low to high brightness. - Portrait installation capability
- Detail Clarity Processor3 image processing technology non-4K image content, such as Full-HD images and PC signals and compensates motion images
- HDMI, DisplayPort,LAN, and VGA ports
- 3D-LUT (Look Up Table) color correction has a look up table for each luminance level
- 6-Axis Coordinate Correction applies image processing to balance the 6 axes of the three primary colors (RGB) and their complementary colors (CMY) to keep the intermediate shades of extremely fine colors vibrant and lifelike
- Tough frame resists twisting and distortion
- Can be installed using the existing peripheral accessories of a Panasonic plasma display (103" or 85" model)
- 4-Input Multi Display function enables image switching from a full-screen display to a 4-input multi display with a single press of a remote control button, making the display suitable for use in , digital signage, and surveillance monitoring
- Slot NX 4K input makes it possible to change the interface to match the application
- Supports SDI connection via an optional 3G-SDI terminal board
- Suitable for applications such as public information, store signage, rental and staging, control rooms, broadcast studios, and meeting rooms
- Screen saver reduces the afterimages that can occur when continuously displaying still images or 4:3 images for long periods of time
- Input Search - When there is no signal, the specified input signal is automatically switched
- Optional ET-SWA100 Early Warning software lets you check the status of system equipment with a tablet of PC located at a distance from the monitoring server
- Automatic Picture Position corrects the horizontal and vertical picture positions, the Clock Phase, and the Dot Clock for a RGB input
- HDMI, PC, and DVI-D power management functions
In the Box Panasonic LQ70L Series 98" Class 4K Large Format Professional Display (Black) 9.8' / 3m AC Power Cord Remote Control 2 x Battery Clamper Eyebolt Cap Eyebolt Panasonic Badge Panasonic Badge Attachment Plate Allen Wrench Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic LQ70L Series 98" Class 4K Large Format Professional Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic TH-98LQ70LU Specs | | | Screen Size | 97.5" / 247.69 cm | | Panel Type | IPS/Direct-LED | | Aspect Ratio | 16:9 | | Effective Display Area | 85 x 47.8" / 215.9 x 121.4 cm | | Resolution | 3840 x 2160 | | Brightness | Typical: 500 cd/m2 | | Contrast Ratio | Typical: 1300:1
Dynamic: 500,000:1 | | Response Time | GTG: 8 ms | | Viewing Angle (H/V) | 178 / 178° | | Refresh Rate | 60 Hz | | Panel Life | Typical: Approximately 50,000 hours | | Operating Time | 24 hours/day | | Orientation | Landscape / Portrait | | Protective Glass | No | | | | Inputs | 4 x HDMI (2 x 4K, 2 x 2K)
1 x DisplayPort (DP1.2a) (HDCP1.3 supported, Embedded audio supported)
1 x 24-pin DVI-D (Compliance with DVI revision 1.0, HDCP1.1 supported)1 x Stereo mini jack (M3) (shared with PC IN)
1 x Mini D-sub 15Pin (female) (RGB / YPbPr switchable)1 x Stereo mini jack (M3) (shared with DVI-D IN)
2 x Slot NX (vacant) (option 3G-SDI terminal board TY-TBN03G: (w/ active through)) | | Control | 1 x D-sub 9-pin (RS-232C compatible)
1 x RJ45 100BASE-TX
Digital Link: 1 x RJ45 100BASE-TX (shared with LAN), PJLink compatible (shared with Digital Link) | | | | Audio Out | 1 x Stereo mini jack (M3) | | Built-In Speakers | Total: 20 W at 10% THD
Each Speaker: 10 W x 2 | | | | Power Requirements | 110 to 127 VAC, 50 / 60 Hz | | Power Consumption | Typical: 650 W / 666 VA
On Mode: 485 W
Power Off: 0.3 W
Standby: 0.5 W
Network Standby: 3 W | | BTU | Maximum: 2218 | | Mounting Screw | Mount Screw Holes
Diameter: M16
Valid Screw Depth: 1.1" / 26 mm
Eyebolt Screw Holes
Diameter: M12
Valid Screw Depth: 1" / 25 mm | | Installation | Orientation: Landscape / portrait
Tilting Angle: 10° with landscape setting / 5° with portrait setting | | Operating Environment | Temperature: 32 to 104°F / 0 to 40°C, up to 4593' / 1400 m altitude
Temperature: 32 to 95°F / 0 to 35°C, between 4593 to 7874' / 1400 to 2400 m altitude
Humidity: 20 to 80% (non condensation) | | Operating Altitude | 0 to 7874' / 0 to 2400 m | | Storage Environment | Temperature: -4 to 140°F / -20 to 60°C
Humidity: 20 to 80% (non condensation) | | Certifications | Safety Regulations: UL60065, CAN/CSA22.2 No 60065:03
Radiation Regulations: FCC Part15 Class B, ICES-003 | | Cabinet | Metal | | Dimensions (WxHxD) | 87.9 x 50.7 x 4.5" / 223.3 x 128.8 x 11.3 cm | | Weight | 231.5 lb / 105 kg |
