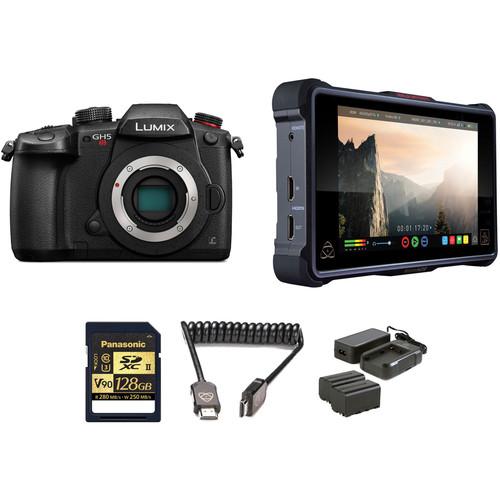

Panasonic Lumix DC-GH5S Mirrorless Micro Four Thirds Digital Camera HDR Filmmaker Kit Contents of the user manual for the Panasonic Lumix DC-GH5S Mirrorless Micro Four
  • Product category: Mirrorless System Cameras Panasonic
  • Brand: Panasonic
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Panasonic Mirrorless System Cameras

User manual for the Panasonic Lumix DC-GH5S Mirrorless Micro Four contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Panasonic product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!



Product description

Configured for achieving accurate color and a wide dynamic range, the Panasonic Lumix DC-GH5S Mirrorless Micro Four Thirds Digital Camera HDR Filmmaker Kit from bundles the multimedia mirrorless body with an Atomos Inferno 7" 4K HDMI Recording Monitor, a power kit for the external monitor, an HDMI cable, and a memory card.
  • Panasonic Lumix DC-GH5S Mirrorless Micro Four Thirds Digital Camera
    • Hands-On Review | Panasonic Lumix GH5S
    Proving that they can push the GH-series even farther into the video realm, the Panasonic Lumix DC-GH5S is a mirrorless Micro Four Thirds camera optimized for movie recording and low-light performance. Revolving around a 10.28MP Digital Live MOS sensor, DCI and UHD 4K video recording is possible at up to 60p and the large individual pixel size also affords impressive low-light performance to an extended ISO 204800, along with Dual Native ISO technology at ISO 400 and ISO 2500. Coupled with an updated Venus Engine, the sensor and processor combination also enables faster readout speeds along with 1.3x less rolling shutter distortion compared to previous GH-series cameras. Internal DCI 4K30p recording is available with 4:2:2 10-bit sampling and a full-size HDMI A connector can be used to simultaneously output to an optional external monitor or recorder. The sensor's extended sensitivity range has also been used to promote working with V-Log L and Hybrid Log Gamma HDR modes for effectively increasing your dynamic range and affording more flexibility when color grading during post-production.

    Beyond its video prowess, the GH5S is no slouch when it comes to stills shooting, either. The sensor and Venus Engine combination enable recording 14-bit raw files with a top continuous shooting rate of 12 fps with single-shot AF, or up to 8 fps with continuous autofocus. Borrowing from the video side, 4K PHOTO modes are also available for shooting 8MP stills at up to 60 fps. Benefitting stills, the Depth-From-Defocus AF system works quickly and accurately using 225 dedicated AF areas, and is sensitive to -5 EV luminance for working in extreme low-light conditions.

    Beyond imaging specs, the GH5S retains its professional build quality the GH-series is known for. The magnesium alloy body is fully weather-sealed for working in inclement conditions, and physical controls have been enhanced for easier tactile control. A large 3.68m-dot OLED electronic viewfinder is featured, for high-resolution eye-level monitoring, as well as a rear 3.2" 1.62m-dot LCD touchscreen with free-angle movement to suit working from high and low angles. Dual UHS-II SD memory card slots are available for flexible file recording and built-in Wi-Fi with NFC and Bluetooth wireless connectivity enable seamless image sharing and remote camera control from a mobile device.
      10.28MP Digital Live MOS Sensor and Venus Engine
    • Engineered specifically for low-light shooting and high-resolution video recording, a 10.28MP Digital Live MOS sensor is featured, along with an optimized Venus Engine for clean color detail and texture along with fast readout speeds. Using Multipixel Luminance Generation and Intelligent Detail Processing, it will maximize sharpness and detail as well as accuracy in a variety of lighting conditions.

      The sensor features a multi aspect ratio design, which enables the use of 4:3, 17:9, 16:9, and 3:2 ratios for shooting stills, recording DCI and UHD 4K, and for working in Anamorphic mode. This unique design allows you to maintain a lens's native angle of view despite changing the image format. Additionally, the sensor and processor combination avails high readout speeds and suppresses rolling shutter distortion by approximately 1.3x compared to the GH5 when recording video or working with the electronic shutter.

      The sensor's deliberately low resolution design, and subsequently larger pixel size, also optimizes it for low-light performance and enables recording a greater dynamic range. Borrowing from Panasonic's broadcast line of video cameras, Dual Native ISO technology is used that sets ISO 400 and ISO 2500 as base sensitivities for low noise levels. The overall native sensitivity range runs from ISO 160-51200, and can be extended to ISO 80-204800.
      DCI and UHD 4K Video Recording
    • Specifically geared for video shooting, the GH5S features a versatile and capable range of video specs, including the ability to internally record DCI 4K at up to 60 fps and 150 Mbps with 4:2:0 8-bit Long GOP; 30 fps and 150 Mbps with 4:2:2 10-bit Long GOP; and 24 fps and 400 Mbps with 4:2:2 10-bit ALL-I. UHD 4K recording is also supported along with Full HD at up to 240 fps for slow-motion playback. A full-size HDMI port is present on the camera for high-quality output at 4:2:2 10-bit in all settings for use with external monitors and recorders.

      Optimizing your recording for post-production color adjustment, the GH5S features a pair of gamma settings suited to capturing a wide dynamic range. V-Log L has been pre-installed on this camera and is used to capture a flat, neutral gamma curve well-suited for grading. Additionally, a High Dynamic Range mode, and Hybrid Log Gamma, can be used to record greater detail in both the shadow and highlight regions of a scene. Additional picture styles are available to provide a more gradable image, such as CINELIKE V and CINELIKE D, as well as an in-camera LUT to make monitoring easier. Also, users will have access to overcranking and undercranking Variable Frame Rate settings which provide speeds up to 2.5x slower in 4K (60 fps) and 7.5x slower in Full HD (240 fps). Also, a 4K Anamorphic mode is available, which will let you record in a proper 4:3 ratio for adjustment in post-production.

      For greater recording versatility, the recording system frequency can be changed between 59.94 Hz (NTSC), 50.00 Hz (PAL), or 24.00 Hz (Cine) for worldwide use, and there is no recording duration limit for all settings. Three separate video control panels can also be used—shutter duration/ISO, shutter angle/ISO, or shutter duration/dB—to match various worldwide production needs.

      The GH5S is designed to be an expandable system, with multiple options available to help improve video recording capabilities. Examples of this are the included BNC conversion cable for syncing time code settings with an external device for multi-camera setups; LINE input support via the 3.5mm mic input for using an external audio device; and the optional XLR Microphone Adapter that provides XLR inputs and physical controls through a hot shoe connection. Users can also use standard microphones and headphones via the 3.5mm input and output jacks.
      Stills Recording and Depth-From-Defocus AF System
    • Beyond just a video camera, the GH5S is also adept at recording stills. Using the unique sensor architecture, the low-light capabilities and fast readout speeds make it ideal for working in difficult lighting conditions and for photographing fast-moving subjects. For 12-bit raw shooting, and when working with AF-S, continuous shooting up to 12 fps is possible, along with a top 8 fps shooting rate with AF-C. For greater color information, a 14-bit raw recording setting can also be used, and 11 fps and 7 fps continuous shooting rates are available.

      For accelerated autofocus performance, and Advanced DFD (Depth-From-Defocus) technology is employed to quickly calculate the distance to subjects and adjust the focusing position in as little as 0.05 seconds. This contrast-detection type focus method benefits both still and video recording modes, as well as subject tracking applications where subject color, size, and motion vectors are used to intelligently lock-onto the moving subjects and ensure precise focus. The sensitivity and speed can be adjusted to further improve performance with certain subjects. It also features 225 AF areas which provide excellent control over where the camera will focus. Additionally, supporting working in low-light conditions, a Starlight AF feature enables accurate AF performance down to -5 EV.

      Benefitting manual focus operation, focus peaking is available that highlights bright edges of contrast with a colored outline for quickly recognizing your focus point, as well as Touch MF Assist for touch-to-focus operation.
      4K PHOTO Modes
    • Utilizing the GH5S's video recording capabilities, a trio of still shooting modes are available for recording continuous 8MP stills at a 60 or 30 fps shooting rate:
      • Burst: This mode will allow you to continuously record, making it ideal for instances where you need a fast frame rate in order to capture the best moment.
      • Pre-Burst: This mode is ideal for times when you're unsure of the critical moment to press the shutter button and will record images one second prior to and one second after pressing the shutter button in order to give you 60 frames to choose from.
      • Burst (S/S): This mode most closely follows the video recording process, and allows you to playback your video, pause at the chosen moment, and use the shutter button to mark a chosen frame from the video and save it as a single 8MP frame.
        Body Design and Built-In Wi-Fi
        • A large OLED Live View Finder has an impressive 3.68m-dot resolution and 0.76x magnification for eye-level composition.
        • A larger means for image composition and playback, the 3.2" 1.62m-dot rear RGBW LCD monitor has a free angle, tilt and swivel design to support viewing from a variety of angles. It is also a touchscreen, which permits intuitive menu navigation and settings control.
        • Optimized for nighttime shooting, the viewfinder and rear screen can be tuned to benefit working in low-light conditions. A Night Mode allows you to separately reduce the brightness of the screen and finder in order to maintain your night-adjusted vision. Alternatively, brightness can be boosted by lowering the frame rate and increasing the gain in live view for working in extremely dark situation. And, for manual focusing, an MF Assist feature lets you zoom into the scene by 20x for focusing on small subjects.
        • Dual UHS-II SD card slots are present which provides settings such as Relay Recording to automatically switch cards when one is full; Backup Recording, which recording the same data to both cards simultaneously; and Allocation Recording, which lets you save certain files to each card for easier organization.
        • Constructed from magnesium alloy with die-cast front and rear frames, the GH5S features a durable design that also incorporates extensive sealing at each joint, dial, and button to render it both splash- and dust-proof as well as freezeproof to 14°F.
        • A joystick is available on the rear of the camera to make changing many settings easier and more intuitive, such as changing a focus point.
        • The sleek flat-body profile incorporates both front and rear dials for intuitive control over aperture and shutter speed settings. Multiple assignable function buttons are also available, as well as a dedicated exposure compensation dial.
        • Built-in 5 GHz Wi-Fi connectivity with NFC and Bluetooth 4.2 Low Energy allows for wireless image sharing and remote camera control from linked smartphones and tablets. Bluetooth LE also enables a constant connection to your mobile device, allowing for functions such as geolocation and automatic image transfer.
        Other Camera Features
        • Lumix Tether software allows you to shoot tethered to a computer via USB connection. This software enables full camera control and shooting from the computer, along with video and 4K PHOTO modes support, with the added benefit of previewing and reviewing your imagery from a larger computer monitor.
        • A mechanical focal plane shutter enables a fast maximum shutter speed of 1/8000 sec., as well as a top flash sync speed of 1/250 sec. An electronic shutter function also avails a top shutter speed of 1/16,000 sec. to better enable working in bright conditions and with wider aperture settings.
        • Raw image files can be processed in-camera for a more streamlined post-production workflow.
        • Depending on the lens in use, the included DMW-BLF19 battery provides approximately 440 shots per charge when using the rear monitor, or 410 with the electronic viewfinder.
        • Photo Style modes: Standard, Vivid, Natural, Monochrome, Scenery, Portrait, Custom, Cinelike D, and Cinelike V.
        • Creative Control modes: Expressive, Retro, Old Days, High Key, Low Key, Sepia, Monochrome, Dynamic Monochrome, Rough Monochrome, Silky Monochrome, Impressive Art, High Dynamic, Cross Process, Toy Effect, Toy Pop, Bleach Bypass, Miniature Effect, Soft Focus, Fantasy, Star Filter, One Point Color, and Sunshine.
      UPC: 885170328266
    • Panasonic 128GB UHS-II SDXC Memory Card
      • Hands-On Review | Panasonic Lumix GH5S
      Designed primarily so that GH5 users will be able to fully embrace all of the features in its 2.0 firmware update, the 128GB UHS-II SDXC Memory Card from Panasonic features a storage capacity of 128GB and takes advantage of the UHS-II bus to support maximum read speeds of 280 MB/s and maximum write speeds of 250 MB/s. This card has also been designed with the V90 Video Speed Class rating, which guarantees minimum write speeds of at least 90 MB/s. All of this allows for users to immerse themselves the 4:2:2, 10-bit ALL-Intra and Long GOP video recording modes at resolutions of anamorphic 6K (4992 x 3744), DCI 4K (4096 x 2160), UHD 4K (3840 x 2160), anamorphic 4K (3328 x 2496), 4K HDR, and Full HD (1920 x 1080) with progressive frame rates of 23.98, 24, 25, 29.97, and 59.94 fps at bitrates of 200 and 400 Mb/s. In addition to its video capabilities, this card will support 6K and 4K photo captures.

      UHS-II media achieves its speed through an extra row of pins and while this card has been designed for cameras that are UHS-II / V90 compatible, it may be used in devices that do not support UHS-II / V90. However, bear in mind that this card will then default to your device's speed class and bus rating, such as UHS-II and V60, which supports minimum write speeds of 60 MB/s, UHS-II and V30, which supports minimum write speeds of 30 MB/s, or UHS-I and U3, which also supports minimum write speeds of 30 MB/s. If your device does not support U3, this card is compatible with the U1 and Class 10 standards, each of which guarantees minimum write speeds of 10 MB/s.

      Built for extreme conditions, Panasonic's 128GB UHS-II SDXC Memory Card utilizes Proof 7 technology, which provides protection against water, shock, magnets, x-rays, static electricity, and temperature. There is also a built-in fuse, and Smart Guard technology further helps to provide protection with power failure recovery and error guard, both of which can retain data in the event of a sudden power loss. A built-in write protect switch further helps to safeguard your content from being erased.

      General Features

      • Video Speed Class: V90 (90 MB/s minimum write speed)
      • ALL-Intra compatibility suitable for the LUMIX GH5 4K Mirrorless Camera
      • UHS II SDXC: 280 MB/s maximum read speed & 250 MB/s maximum write speed
      • Class 3 (U3) and Class 10 compatible
      • Leveled Writing functionality helps level the frequency of writing to the memory, which can reduce the possibility of data writing errors
      • Equipped with Proof 7 technology for protection against water, shock, magnets, x-rays, static electricity, and temperature, plus a built-in fuse
      • Smart Guard technology provides power failure recovery and error guard, which helps to retain data in the event of a sudden power loss
      UPC: 885170305410
    • Atomos AtomFLEX HDMI (Type-A) Male to HDMI (Type-A) Male Coiled Cable (12 to 24")
      • Hands-On Review | Panasonic Lumix GH5S
      The 12 to 24" AtomFLEX HDMI (Type-A) Male to HDMI (Type-A) Male Coiled Cable lets you transmit HDMI 2.0 signals between devices and components. The coiled design reduces clutter, and the die-cast metal HDMI (type-A) connector provides a stable connection. This cable supports 4K video at up to 60 fps and HD video at up to 240 fps. UPC: 814164020619
    • Atomos Ninja Inferno 7" 4K HDMI Recording Monitor
      • Hands-On Review | Panasonic Lumix GH5S
      Able to record DCI and UHD 4K signals at up to 60 fps, the Atomos Ninja Inferno makes a great companion to cameras and camcorders that output uncompressed video over HDMI. The monitor itself features 10-bit FRC processing and AtomHDR display technology that supports a 10-stop brightness range, allowing you to more accurately monitor your log gamma footage without having to view flat, washed-out looking images or use a LUT to compress the dynamic range and color space. The monitor offers built-in presets to accurately translate popular log formats from Sony, Canon, Panasonic, ARRI, RED, and JVC cameras. The settings only affect viewing, with recorded video remained unaltered. In addition to HDR monitoring, the monitor also offers a High Bright mode for traditional Rec. 709 monitoring. This mode takes advantage of the full 1500 cd/m² brightness to allow for more confident monitoring in bright outdoor environments, even without a sun hood. In HDR mode, use of an included snap-on sun hood is available, as displaying a wider brightness range reduces the overall brightness of the monitor. Incoming video signals can be recorded in a wide range of Apple ProRes and Avid DNx codecs which maintain high quality while not requiring the storage space of uncompressed video. Both ProRes and DNx are edit-friendly, requiring no conversion in post-production to ensure smooth playback and compatibility with most common video editing software. Standard 2.5" SATA III recording media is supported, with compatible SSDs able to record in all formats including 4K and high-frame-rate HD. Note: check the Atomos website for an updated list of supported drives Built to withstand the rigors of production, the Ninja Inferno features built-in protective armor that features silicone-covered corners and chamfered edges. Like its predecessor, the Ninja Flame, the Inferno features dual Sony L-Series battery plates that support battery hot-swapping, enabling longer run times with hot-swapping. For audio recording, the monitor supports balanced XLR inputs with 48V phantom power and XLR outputs via separately available audio breakout cables. Additional features include a variety of onscreen exposure analysis, framing, and focus assist tools. A power supply, SSD Caddy, and a travel case are included with the unit.
        AtomHDR
      • With AtomHDR you can monitor up to 10 stops of dynamic range of your camera's LOG image. Most conventional monitors can only display 6 or 7 stops, which is fine for standard footage, but a LOG image will look overly flat. It is also superior to monitoring with a loaded LUT, which can clip the highlights and mask shadows.
        4K 60p Capabilities
      • Record high-resolution 4K footage in DCI or UHD formats up to 60 fps, including 24 and 25 fps for a more film-like aesthetic. All recordings are stored as high quality Apple ProRes or Avid DNxHR files with 10-bit 4:2:2 chroma subsampling. A variety of bit-rates are available to fit your project and storage needs.
        Audio I/O
      • Audio can be input and output via the multi-pin locking connector. Separately available breakout cables can provide XLR audio input with 48v phantom power and output. A 3.5mm headphone jack on the side can be used for convenient audio monitoring.
        7" Daylight Viewable Screen
      • The Ninja Inferno's 7" LCD screen is illuminated by a bright 1500 cd/m² LED backlight, making it possible to view in daylight without requiring a hood. Plus, the screen is also color calibrated from the factory to ensure accurate image representation.
        HDR Signal Management
      • LOG and HDR signals can be difficult to monitor with conventional equipment. Though, with the Ninja Inferno's built-in HDR signal management functions, the LOG signal can be converted to the PQ standard for compatibility with existing consumer and professional HDR equipment.
      UPC: 814164020688
    • Atomos Power Kit for Shogun/Ninja Inferno & Flame
      • Hands-On Review | Panasonic Lumix GH5S
      The Atomos Power Kit includes two NP-F750 5200mAh batteries, a charger, and a power adapter for the Shogun/Ninja Inferno and Flame. UPC: 814164020756
    In the Box
    • Lumix DC-GH5S Mirrorless Micro Four Thirds Digital Camera zxvdferxuwwfxtxczq
    • DMW-BLF19 Rechargeable Lithium-Ion Battery Pack (7.2V, 1860mAh)
    • DMW-BTC10 Battery Charger
    • Body Cap
    • Hot Shoe Cover
    • Eye Cup
    • Flash Sync Socket Cap
    • Battery Grip Connector Cover
    • USB Cable
    • Shoulder Strap
    • Cable Holder
    • BNC Converter Cable
    • Limited 1-Year Warranty
    • 128GB UHS-II SDXC Memory Card
    • Atomos - AtomFLEX HDMI (Type-A) Male to HDMI (Type-A) Male Coiled Cable (12 to 24")
    • Atomos - Ninja Inferno 7" 4K HDMI Recording Monitor
    • Atomos - Power Kit for Shogun/Ninja Inferno & Flame
    Table of Contents




Upload User Manual

Have you got an user manual for the Panasonic Lumix DC-GH5S Mirrorless Micro Four Thirds Digital Camera HDR Filmmaker Kit in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

  • Panasonic Lumix DC-GH5S Mirrorless Micro Four Thirds Digital Camera
    Lens Mount Micro Four Thirds
    Camera Format Micro Four Thirds (2x Crop Factor)
    Pixels Actual: 11.93 Megapixel
    Effective: 10.28 Megapixel
    Maximum Resolution 3680 x 2760
    Aspect Ratio 1:1, 3:2, 4:3, 16:9
    Sensor Type MOS
    Sensor Size 17.3 x 13 mm
    Image File Format JPEG, RAW
    Bit Depth 14-Bit
    Image Stabilization None
    ISO Sensitivity Auto, 160 to 51200 (Extended: 80 to 204800)
    Shutter Speed Electronic Front Curtain Shutter
    1/8000 to 60 Seconds
    1 to 30 Minutes in Bulb Mode
    1/16000 to 1/24 Second in Movie Mode
    Electronic Shutter
    1/16000 to 1 Second
    Metering Method Center-Weighted Average, Multiple, Spot
    Exposure Modes Aperture Priority, Manual, Program, Shutter Priority
    Exposure Compensation -5 to +5 EV (1/3 EV Steps)
    Metering Range 0 to 18 EV
    White Balance Auto, Cloudy, Color Temperature, Daylight, Flash, Incandescent, Shade, White Set 1, White Set 2, White Set 3, White Set 4
    Continuous Shooting Up to 12 fps at 10.3 MP for up to 80 Exposures (Raw Format)
    Up to 11 fps at 10.3 MP for up to 80 Exposures (Raw Format)
    Up to 12 fps at 10.3 MP for up to 600 Exposures (JPEG Format)
    Up to 11 fps at 10.3 MP for up to 600 Exposures (JPEG Format)
    Up to 8 fps at 10.3 MP
    Up to 7 fps at 10.3 MP
    Up to 6 fps at 10.3 MP
    Up to 5 fps at 10.3 MP
    Up to 2 fps at 10.3 MP
    Up to 60 fps at 8 MP
    Interval Recording Yes
    Self Timer 2/10-Second Delay
    Recording Modes AVCHD
    Full HD (1920 x 1080) at 50p/59.94p [28 Mb/s]
    Full HD (1920 x 1080) at 50i/59.94i [17 to 24 Mb/s]
    Full HD (1920 x 1080) at 23.976p [24 Mb/s]
    MP4 4:2:0 10-Bit
    UHD 4K (3840 x 2160) at 23.976p/25p/29.97p [72 Mb/s]
    MOV/MP4 4:2:0 8-Bit
    DCI 4K (4096 x 2160) at 23.976p/24p/25p/29.97p [100 Mb/s]
    DCI 4K (4096 x 2160) at 50p/59.94p [150 Mb/s]
    UHD 4K (3840 x 2160) at 23.976p/24p/25p/29.97p [100 Mb/s]
    UHD 4K (3840 x 2160) at 50p/59.94p [150 Mb/s]
    Full HD (1920 x 1080) at 23.976p/24p/25p/29.97p/50p/59.94p [100 Mb/s]
    Full HD (1920 x 1080) at 25p/29.97p [20 Mb/s]
    Full HD (1920 x 1080) at 23.976p/24p [24 Mb/s]
    Full HD (1920 x 1080) at 50p/59.94p [28 Mb/s]
    MOV/MP4 4:2:2 10-Bit
    DCI 4K (4096 x 2160) at 23.976p/24p [150 to 400 Mb/s]
    DCI 4K (4096 x 2160) at 25p/29.97p [150 Mb/s]
    UHD 4K (3840 x 2160) at 23.976p/24p/25p/29.97p [150 to 400 Mb/s]
    Full HD (1920 x 1080) at 23.976p/24p/25p/29.97p/50p/59.94p [100 to 200 Mb/s]
    External Recording Modes 4:2:2 10-Bit
    Video Encoding NTSC/PAL
    Audio Recording Built-In Microphone (Stereo)
    External Microphone Input
    Audio File Format AAC, Dolby Digital 2ch, Linear PCM (Stereo)
    Focus Type Auto and Manual Focus
    Focus Mode Continuous-Servo AF (C), Flexible (AFF), Manual Focus (M), Single-Servo AF (S)
    Autofocus Points Contrast Detection: 225
    Autofocus Sensitivity -5 to +18 EV
    Viewfinder Type Electronic
    Viewfinder Resolution 3,686,000 Dot
    Viewfinder Eye Point 21 mm
    Viewfinder Coverage 100%
    Viewfinder Magnification Approx. 0.76x
    Diopter Adjustment -4 to +3 m
    Monitor Size 3.2"
    Monitor Resolution 1,620,000 Dot
    Monitor Type Articulating Touchscreen LCD
    Built-in Flash None
    Flash Modes Auto, Auto/Red-Eye Reduction, Forced On, Forced On/Red-Eye Reduction, Off, Slow Sync, Slow Sync/Red-Eye Reduction
    Maximum Sync Speed 1/250 Second
    Flash Compensation -3 to +3 EV (1/3 EV Steps)
    Dedicated Flash System TTL
    External Flash Connection Hot Shoe, PC Terminal
    Memory Card Slot 2 x SD/SDHC/SDXC
    Connectivity 3.5mm Headphone, 3.5mm Microphone, 2.5mm Sub-Mini, HDMI A (Full Size), USB 3.0, USB Type-C, X-Sync Socket
    Wireless Wi-Fi
    Bluetooth
    GPS None
    Operating Temperature 14 to 104°F / -10 to 40°C
    Operating Humidity 10 to 80%
    Battery 1 x DMW-BLF19 Rechargeable Lithium-Ion, 7.2 VDC, 1860 mAh
    Dimensions (W x H x D) 5.5 x 3.9 x 3.4" / 138.5 x 98.1 x 87.4 mm
    Weight 1.45 lb / 660 g (Body with Battery and Memory)
    Box Dimensions (LxWxH) 7.6 x 6.1 x 5.9"
  • Panasonic 128GB UHS-II SDXC Memory Card
    Card Type SDXC
    Storage Capacity 128 GB
    Bus Type UHS-II
    Speed Class 10
    UHS Speed Class U3
    Video Speed Class V90
    Data Transfer Read Speed: 280 MB/s Maximum (Burst)
    Write Speed: 250 MB/s Maximum (Burst)
    Write Speed: 90 MB/s Minimum
    Durability Magnet-Proof, Shockproof, Static Proof, Temperature Extremes, Waterproof, X-Ray Proof
    Wireless Capability None
    Wireless Security None
    Box Dimensions (LxWxH) 6.0 x 4.0 x 4.0"
  • Atomos AtomFLEX HDMI (Type-A) Male to HDMI (Type-A) Male Coiled Cable (12 to 24")
    Connector 1 HDMI Type-A Male
    Connector 2 HDMI Type-A Male
    Cable Length 12 to 24" / 30.5 to 61 cm
    Maximum Resolution Support 3840 x 2160 at 60 Hz
    HDMI Version 2.0
    Box Dimensions (LxWxH) 9.5 x 4.3 x 0.7"
  • Atomos Ninja Inferno 7" 4K HDMI Recording Monitor
    Panel Type IPS-Type LCD
    Display Size 7.1" / 18.0 cm
    Screen Resolution 1920 x 1200
    Aspect Ratio 16:9
    Touchscreen Yes
    Maximum Brightness 1500 cd/m2
    Bit Depth / Color Support 8-Bit+FRC (1.07 Billion Colors)
    Pixels Per Inch (ppi) 325 ppi
    Real-Time LUT Monitoring SDR
    Video 1 x HDMI Type A (HDMI 2.0) Output
    1 x HDMI Type A (HDMI 2.0) Input
    Embedded Audio HDMI: 8-Channel
    Audio 1 x 3.5 mm Headphone Output
    1 x 10-Pin LEMO Input/Output
    Built-In Speaker None
    Power 1 x Barrel Input
    Other I/O 1 x LANC (2.5 mm)
    Card Slot None
    Video Format HDMI (8/10-Bit 4:2:2)
    DCI 4K: 24/25/30/50/60
    UHD 4K: 24/25/30/50/60
    1080p: 24/25/30/50/60/120
    1080i: 50/60
    720p: 50/60
    Pulldown Conversion 2:2, 3:2
    Camera Trigger HDMI
    Encoding Formats 3840 x 2160
    ProRes 422, LT, HQ
    DNxHR HQ, HQX, SQ, LB
    Recording Media 1 x 2.5" SSD (SATA III)
    Phantom Power +48 V
    DC Input Power 6.2 to 16.8 VDC
    Battery Type 2 x L-Series
    Power Consumption 10 W (Typical)
    33 W (Maximum)
    Material of Construction Polycarbonate
    Dimensions (W x H x D) 8.4 x 5 x 1.8" / 1.4 x 12.7 x 4.5 cm
    Weight 1.4 lb / 0.65 kg
    2.4 lb / 1.09 kg, Including Battery, Recording Media
    Box Dimensions (LxWxH) 12.85 x 8.6 x 3.95"
  • Atomos Power Kit for Shogun/Ninja Inferno & Flame
    Box Dimensions (LxWxH) 7.2 x 4.35 x 3.8"

Rating

90% users recommend this product to others. And what about you?
Rating: 4.5 of 5

This product has already been rated by 38 owners. Add your rating and experience with the product.

Discussion

Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems.

The discussion is empty - enter the first post

Post a new topic / query / comment:

Items marked with * are required.
Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution.
Processing of personal data in accordance with GDPR


Request for user manual
You can’t find the operation manual you are looking for? Let us know and we will try to add the missing manual:

I’m looking for a manual / Request for manual

Current requests for instruction manuals:

LG43LK5100PVB...
Barska varmint scope 10-40x50...
NcStar scope ...
Gitzo G1329...
Manuel d'utilisation pour radio bidirectionnelles T600 H2O Motorola en FRANCAIS SVP...

Discussion
Latest contributions to the discussion:

will this tv support g5 fiber input
Name: Jerry
Samsung MU6290 65" Class HDR UHD
will this tv support g5 fiberinput...
Scanning
Name: John Blair
HP OfficeJet Pro 6968 All-in-One Inkjet
Hi, using HP Office Jet pro 6968, can I do ‘auto’scanning , meaning I can easily scan many pages or do I need to feed each page manually? thank you very much? ...
Manual
Name: Cathy
Swann SWADS-ALARMK Driveway Alert Kit
You make it out to be an act of Congress to get the driveway alarm manual and I just need to see the back page that is missing on mine. Guess I will figure it out with no help from you don't have all day...
Print size?
Name: Frank Trucchio
Arkay Automatic Powered Stainless Steel Print
Is this unit capable to wash 20” x 24” prints, if so how many?...
12in dobsonian (s11740) sky watcher collapseable tube missing box 2 of 2
Name: tracy young
Sky-Watcher 12" Dobsonian Telescope
how can I get box 2 of 2 for dobsonian 12in collapsible sky watcher 300.. buying a floor model that is incomplete? ...

PDF User Manuals
We regularly supplement and update our library. Latest instruction manuals added for download:

Detail - Yamaha L-125B Wooden Keyboard Stand for
https://www.search-manual.com/ upload/ yamaha-l-125b-wooden-keyboard-stand-for-p-125-keyboard-287049-user-manual.pdf
Detail - LG 34WK95C-W 34" 21:9 Curved UltraWide
https://www.search-manual.com/ upload/ lg-34wk95c-w-34-21-9-curved-ultrawide-nano-ips-monitor-341369-user-manual.pdf
Detail - Meade 4000 MA 12mm Achro Illuminated
https://www.search-manual.com/ upload/ meade-4000-ma-12mm-achro-illuminated-astrometric-reticle-eyepiece-6805-user-manual.pdf
Detail - BANDAI NAMCO Digimon World: Next Order
https://www.search-manual.com/ upload/ bandai-namco-digimon-world-next-order-244221-user-manual.pdf
Detail - PhotoBert CheatSheet for Canon EOS 1DX
https://www.search-manual.com/ upload/ photobert-cheatsheet-for-canon-eos-1dx-mark-ii-dslr-camera-216205-user-manual.pdf


What our users say about us:

Peter Morgan: "Thanks for this website! With help from your instructions I’ve got my dishwasher working again."

Nick Jackson: "Your site’s been a massive help because the user manual didn’t come with the product. Thanks a lot."

Leslie Scott: "I finally found the user's guide with you that I couldn’t find anywhere else! Totally happy!"

Take a look through our user manuals in our on-line library, with instruction manuals and service handbooks downloadable in PDF format. Our instructions database is constantly updated and supplemented with new products. Looking for instruction manuals? Ask us!
SEARCH-MANUAL.com
Sitemap.xml
