User manual

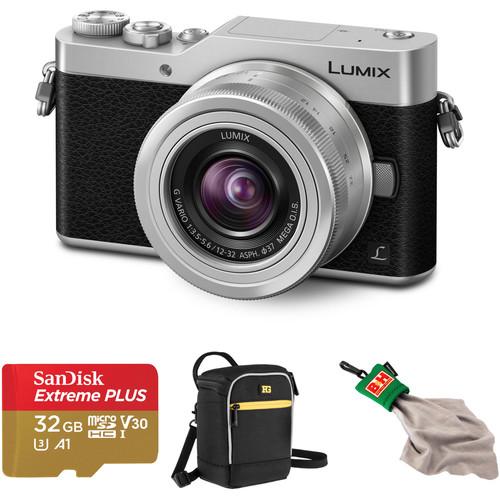

Panasonic Lumix DC-GX850 Mirrorless Micro Four

User Manual for Panasonic Lumix DC-GX850 Mirrorless Micro Four Thirds Digital Camera with 12-32mm Lens and Accessories Kit

• Product category: Mirrorless System Cameras Panasonic
• Brand: Panasonic
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Panasonic Mirrorless System Cameras

Product description

• Panasonic Lumix DC-GX850 Micro Four Thirds Mirrorless Camera with 12-32mm Lens (Silver) A pocketable powerhouse of a camera, the silver Lumix DC-GX850 Micro Four Thirds Mirrorless Camera from Panasonic manages to squeeze an outstanding level of performance into a super compact body with a 3.0" 180° tilting touchscreen that is perfect for selfies. This camera comes with a retractable Lumix G 12-32mm f/3.5-5.6 ASPH. lens that provides a versatile 24-64mm equivalent focal range and takes up little space when not in use. Beyond this, the GX850 is a member of the Micro Four Thirds system, allowing it to work with a wide range of interchangeable lenses. Also, it features a 16MP Live MOS image sensor that can create sharp images at sensitivities up to ISO 25600 and record UHD 4K video at 24/30 fps.

  With a 49-point AF system that uses Depth-from-Defocus technology to provide sharp images, the GX850 does not dissapoint. Also, multiple 4K PHOTO modes are available, which take a burst of images from which you can then select the best moment to save. Also, it can capture up to 10 full-size images each second with AF-S and work at 6 fps with AF-C. Furthermore, built-in Wi-Fi connectivity makes it easy to control the camera and transfer files to a mobile device.

  Improving usability is the inclusion of a built-in flash along with a variety of settings and functions to make taking pictures simpler. This includes 22 creative filters that will enhance your images and a couple of auto shutter settings to make taking selfies and group photos easy. Additionally, it features a microSD card slot that is UHS-1 rated.
  16MP Live MOS Sensor
  • Using a 16MP Live MOS sensor, the GX850 is capable of capturing clear, high-resolution stills as well as UHD 4K video. The sensor's design omits an optical low-pass filter in order to achieve a high degree of sharpness and resolution, and its design also affords a sensitivity range from ISO 200-25600 to suit working in a variety of lighting conditions. Additionally, fast shooting performance is also afforded, with the ability to shoot at up to 30 fps at 8MP using the 4K Photo Modes, 10 fps with AF-S and an electronic shutter, or 5.8 fps with a mechanical shutter.
  UHD 4K Video Recording
  • In addition to the versatile still shooting modes, the GX850 also supports recording UHD 4K (3840 x 2160) video with either 30p or 24p frames rates at 100 Mbps in the MP4 format. Full HD 1080p/60 is also supported, in both MP4 and AVCHD formats, as well as HD and SD resolutions. Users will be able to record UHD 4K footage for up to 5 minutes at a time and Full HD 60p video for up to 20 minutes. A built-in stereo microphone can be used during recordings, and features an integrated wind-cut filter for cleaner audio quality when shooting outdoors. Also, a micro-HDMI port permits the use of external monitors and recorders at up to 4K resolution.
  4K Photo Modes
  • Utilizing the 4K video recording capabilities, a trio of still shooting modes are available for recording continuous 8MP stills at a 30 fps shooting rate:

    • 4K Burst: Just as with video recording, this mode will allow you to continuously record 8MP images at 30 fps, making it ideal for instances where you need a fast frame rate in order to capture the best moment.
    • 4K Pre-Burst: This mode is ideal for times when you're unsure of the critical moment to press the shutter button and will record 8MP images at 30 fps one second prior to and one second after pressing the shutter button in order to give you 60 frames to choose from.
    • 4K Burst (S/S): This mode most closely follows the 4K video recording process, and allows you to playback your video, pause at the chosen moment, and use the shutter button to mark a chosen frame from the video and save it as a single 8MP frame.
  Depth-From-Defocus AF Technology
  • For accelerated autofocus performance, DFD (Depth-From-Defocus) technology is employed to quickly calculate the distance to subjects and adjust the focusing position in order to suit working with continuous shooting rates up to 6 fps with continuous AF. This contrast-detection type focus method benefits both still and video recording modes, as well as subject tracking applications where subject color, size, and motion vectors are used to intelligently lock-onto the moving subjects and ensure precise focus. Additionally, supporting working in low-light conditions, a Starlight AF feature enables accurate AF performance down to -4 EV.

    Benefitting manual focus operation, focus peaking is available that highlights bright edges of contrast with a colored outline for quickly recognizing your focus point, as well as Touch MF Assist for touch-to-focus operation.
  Body Design and Built-In Wi-Fi
  • • For image composition and playback, the 3.0" 1.04m-dot rear OLED monitor has a 180° tilting design to support viewing from a variety of angles, including selfies. It is also a touchscreen, which permits intuitive menu navigation and settings control.
    • Programmable function buttons can be used to control a wide variety of settings and tools.
    • Built-in Wi-Fi connectivity allows for wireless image sharing and remote camera control from linked smartphones and tablets.
    • Built-in flash with guide number of 13' at ISO 100 will help illuminate subjects in dim lighting conditions.
  Other Camera Features
  • • An electronic shutter function avails a top shutter speed of 1/16,000 sec. to better enable working in bright conditions and with wider aperture settings.
    • Post Focus allows users to select the point of focus after an image has been taken.
    • Focus Stacking helps create an image with a deep depth of field by taking multiple images with varying focus points and blending them together.
    • Photo Style modes: Standard, Vivid, Natural, Monochrome, L. Monochrome, Scenery, Portrait, and Custom.
    • Creative Control modes: Expressive, Retro, Old Days, High Key, Low Key, Sepia, Monochrome, Dynamic Monochrome, Rough Monochrome, Silky Monochrome, Impressive Art, High Dynamic, Cross Process, Toy Effect, Toy Pop, Bleach Bypass, Miniature Effect, Soft Focus, Fantasy, Star Filter, and One Point Color.
    • Touch shutter, auto face shutter, and buddy shutter modes make taking photos simple and intuitive.
    • Time lapse and stop motion animation modes allow for creative imaging techniques.
  Lumix G Vario 12-32mm f/3.5-5.6 ASPH. Lens
  • A versatile standard zoom, the Lumix G Vario 12-32mm f/3.5-5.6 ASPH. is a 24-64mm equivalent wide-to-short tele featuring a sleek design to pair well with the compact camera body. Three aspherical elements and one extra-low dispersion element are incorporated within the lens design to reduce both spherical and chromatic aberrations in order to increase image clarity and sharpness. Complementing the optical design is an internal focusing system and stepping motor that pairs with the camera's contrast-detection AF for quick, accurate focusing performance.
  UPC: 885170309883
• SanDisk 32GB Extreme PLUS UHS-I microSDHC Memory Card with SD Adapter Designed for microSD devices such as smartphones, interchangeable-lens cameras, drones, or GoPro action cameras that can capture Full HD, 3D, and 4K video, as well as raw and burst photography, the 32GB Extreme PLUS UHS-I microSDHC Memory Card from SanDisk has a capacity of 32GB, is compatible with the UHS-I bus, and features a speed class rating of V30, which guarantees minimum write speeds of 30 MB/s. If your device does not support the V30 standard, this card also supports the U3 standard, which also guarantees minimum write speeds of 30 MB/s. Read speeds are supported up to 100 MB/s and write speeds max out at 90 MB/s.

  While this card has been designed for cameras that are UHS-I / V30 / U3 compatible, it may be used in devices that do not support UHS-I / V30 / U3. However, bear in mind that this card will then default to your device's speed class and bus rating, such as UHS-I and U1, which supports minimum write speeds of 10 MB/s, or Class 10, which also supports minimum write speeds of 10 MB/s.

  Aside from support for UHS-I, V30, and U3, SanDisk also built this card with support for the Application Performance Class 1 (A1) spec, which includes optimizations to give Android users an improved mobile experience, delivering faster mobile app performance. The A1 spec allows the card to manage random read input-output access per second (IOPS) operations so it can quickly open apps and process accompanying tasks, such as audio, graphics, saved profiles, and in-app permissions.

  As with most SanDisk media, this memory card is shockproof, X-ray proof, and waterproof, while also being able to withstand temperatures, allowing you to take this card with you into extreme environments. Should the card's data become compromised, you also benefit from the option to download RescuePRO Deluxe software, and SanDisk's Memory Zone app offers users a simple way to organize, browse, and back up files on their Android mobile device. Included is a microSD to SD adapter, allowing this card to be used in SD-compatible devices.

  General Features

  • Read speeds up to 100 MB/s, write speeds up to 90 MB/s, and minimum write speeds of 30 MB/s for fast shooting and transfers
  • Class 10, App Performance Class 1 (A1), Video Speed Class 30 (V30), and UHS Speed Class 3 (U3)
  • Water / temperature / shock / x-ray proof
  • SanDisk Memory Zone app available as a free download
  • RescuePRO Deluxe data recovery software download offer
  UPC: 619659148119
• Ruggard Lyra 60 Camera Pouch (Black) Store, transport and protect your digital mirrorless or bridge camera from moisture, dirt and dust with the black Lyra 60 Camera Pouch from Ruggard. The pouch features an easy access, zippered, clamshell opening, and an interior SD memory card pocket. Soft, padded, interior nylon helps protect your camera from impact, scratches and abrasion. This protection is complemented by a weather-resistant nylon exterior. Carry the pouch with the top grab handle, handy belt loop with touch-fasten tabs, or with the removable shoulder strap. The bright yellow interior makes it easier to locate stored items in low light.
  • Durable, weather-resistant nylon exterior for protection from moisture, dirt, and dust
  • Thick foam padding to protect against bumps and impact
  • Soft nylon interior to prevent lens and screen scratches and abrasions
  • Interior media pocket for storing 2 SD memory cards
  • Zippered front pocket for added cards, lens cloth, spare battery and other small items
  UPC: 847628571358
• Spudz Microfiber Cleaning Cloth with Logo This Spudz Microfiber Cleaning Cloth has an integrated storage pouch with the Photo logo, and hook for keeping the cloth close at hand. This cloth is useful for photographers, videographers, birders, and anyone who needs to clean their optics in the field.
  • 5.5 x 5.5" Cloth (1.5 x 2" Pouch)
  • Handy hook for keeping cloth at the ready
  • Integrated pouch with logo
  UPC: 873442000446

• Lumix DC-GX850 Micro Four Thirds Mirrorless Camera with 12-32mm Lens (Silver) eszaxvqweauddqwbuucqybdfss
• Lumix G Vario 12-32mm f/3.5-5.6 ASPH. Lens (Silver)
• Battery Pack
• Lens Cap
• Shoulder Strap
• USB Cable
• AC Adapter & Cable
• Limited 1-Year Warranty

• SanDisk - 32GB Extreme PLUS UHS-I microSDHC Memory Card with SD Adapter

• Ruggard - Lyra 60 Camera Pouch (Black)

• Spudz - Microfiber Cleaning Cloth with Logo

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Panasonic Lumix DC-GX850 Micro Four Thirds Mirrorless Camera with 12-32mm Lens (Silver)

  Lens Mount	Micro Four Thirds
  Camera Format	Micro Four Thirds (2x Crop Factor)
  Pixels	Actual: 16.84 Megapixel Effective: 16 Megapixel
  Maximum Resolution	4592 x 3448
  Aspect Ratio	1:1, 3:2, 4:3, 16:9
  Sensor Type	MOS
  Sensor Size	17.3 x 13 mm
  Image File Format	JPEG, MPO, RAW
  Image Stabilization	None

  ISO Sensitivity	Auto, 200 to 25600 (Extended: 100 to 25600)
  Shutter Speed	Electronic Front Curtain Shutter 1/16000 to 60 Seconds
  Metering Method	Center-Weighted Average, Multiple, Spot
  Exposure Modes	Aperture Priority, Manual, Program, Shutter Priority
  Exposure Compensation	-5 to +5 EV (1/3 EV Steps)
  Metering Range	0 to 18 EV
  White Balance	Auto, Cloudy, Color Temperature, Daylight, Flash, White Set
  Continuous Shooting	Up to 10 fps at 16 MP for up to 15 Exposures (Raw Format) Up to 10 fps at 16 MP for up to 100 Exposures (JPEG Format) Up to 30 fps at 8 MP
  Interval Recording	Yes
  Self Timer	2/10-Second Delay

  Recording Modes	MP4 UHD 4K (3840 x 2160) at 24p/29.97p [100 Mb/s] Full HD (1920 x 1080) at 59.94p [28 Mb/s] Full HD (1920 x 1080) at 29.97p [20 Mb/s] HD (1280 x 720) at 29.97p [10 Mb/s] AVCHD Full HD (1920 x 1080) at 59.94p [28 Mb/s] Full HD (1920 x 1080) at 24p/29.97p [24 Mb/s] Full HD (1920 x 1080) at 59.94i [17 Mb/s]
  External Recording Modes	UHD 4K (3840 x 2160) Full HD (1920 x 1080)
  Recording Limit	Up to 20 Minutes
  Video Encoding	NTSC
  Audio Recording	Built-In Microphone (Stereo)
  Audio File Format	AAC, Dolby Digital 2ch

  Focus Type	Auto and Manual Focus
  Focus Mode	Continuous-Servo AF (C), Flexible (AFF), Manual Focus (M), Single-Servo AF (S)
  Autofocus Points	Contrast Detection: 49
  Autofocus Sensitivity	-4 to +18 EV

  Monitor Size	3"
  Monitor Type	Tilting Touchscreen LCD

  Built-in Flash	Yes
  Flash Modes	Auto, Auto/Red-Eye Reduction, Flash On, Flash On w/ Red-Eye Reduction, Off, Slow Sync, Slow Sync/Red-Eye Reduction
  Guide Number	13.12' / 4 m at ISO 100
  Maximum Sync Speed	1/50 Second
  Flash Compensation	-2 to +2 EV (1/3 EV Steps)
  External Flash Connection	None

  Memory Card Slot	1 x microSD/microSDHC/microSDXC
  Connectivity	HDMI D (Micro), USB 2.0 Micro-B
  Wireless	Wi-Fi
  GPS	None

  Operating Temperature	32 to 104°F / 0 to 40°C
  Operating Humidity	10 to 80%

  Battery	1 x Rechargeable Lithium-Ion, 7.2 VDC, 680 mAh
  Dimensions (W x H x D)	4.2 x 2.5 x 1.3" / 106.5 x 64.6 x 33.3 mm
  Weight	9.49 oz / 269 g (Body with Battery and Memory)

  Focal Length	12 to 32mm (35mm Equivalent Focal Length: 24 to 64mm)
  Maximum Aperture	f/3.5 to 5.6
  Minimum Aperture	f/22
  Angle of View	84 Rating 100% users recommend this product to others. And what about you? This product has already been rated by 48 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
