Product description

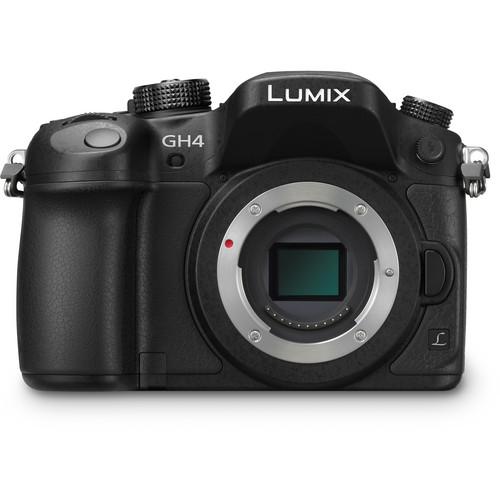

The Panasonic Lumix DMC-GH4 Mirrorless Micro Four Thirds Digital Camera is a true hybrid camera designed for both professional photo and video use. It features a 16.05-megapixel Digital Live MOS sensor and a 4-CPU Venus Engine, capable of capturing high-resolution JPEG and RAW stills, as well as UHD 4K 3840x2160 30p/24p and cinematic DCI 4K 4096x2160 video at 24p. Like its predecessor, the GH4 features a weather-sealed magnesium alloy body, while offering increased resolution on both the OLED monitor and electronic viewfinder. It also features built-in Wi-Fi with NFC technology, in-camera creative controls, and a high-speed 49-point autofocus in both photo and video mode.

The GH4 delivers video quality surpassing many professional video cameras. Video can be recorded in a variety of formats, from efficient AVCHD and AVCHD Progressive, to 200 Mbps All-Intra and 100 Mbps IPB MOV and MP4 formats. And because the GH4 is a global camera, the system frequency can be switched between 59.94 Hz (23.98 Hz) and 50 Hz, yielding a variety of recording options including 23.98p, 25p, 29.97p, 50p, and 59.94p. The system can also be switched to 24 Hz to capture true 24p in HD and 4K resolutions.

Video and photos are recorded to SD/SDHC/SDXC memory cards. For high bit-rate 100 Mbps and 200 Mbps formats, SDHC/SDXC UHS-I Speed Class 3 (U3) cards are supported and recommended. Video recorded to SD cards is 4:2:0 8-bit. Real-time 4:2:2 8-bit and 4:2:2 10-bit video can also be sent to an external monitor or recorder with an optional micro HDMI cable. Additional video features include focus peaking, timecode support, and cine-like gamma options. For unique expressions, VBR (Variable Frame Rate), time-lapse, and stop motion animation videos can be recording internally without the need for additional post-production processing. The GH4 comes with a rechargeable lithium-ion battery pack, battery charger with AC cable, body cap, hot shoe cover, USB cable, shoulder strap, and DVD with supplied software.
    16.05 Megapixel Digital Live MOS Sensor and Venus Engine
  • The 16.05-megapixel Digital Live MOS sensor delivers high-quality images with high sensitivity and quick response times. The increased signal speed readout helps to suppress the effects of rolling shutter. In conjunction with the quad-core Venus Engine image processor, you'll enjoy dramatically improved sensitivity (maximum ISO 25600), gradation performance, resolution, and color reproduction.
    Micro Four Thirds System and Lens Mount
  • The DMC-GH4's 4/3" type sensor is large enough for shallow depth of field and yet small enough to take advantage of lighter, more compact lenses than a larger format camera would require. Plus, the short flange focal distance of the Micro Four Thirds Lens Mount makes it possible to add optional adapters (sold separately) to use a wide range of lenses, including PL-mount cinema lenses.

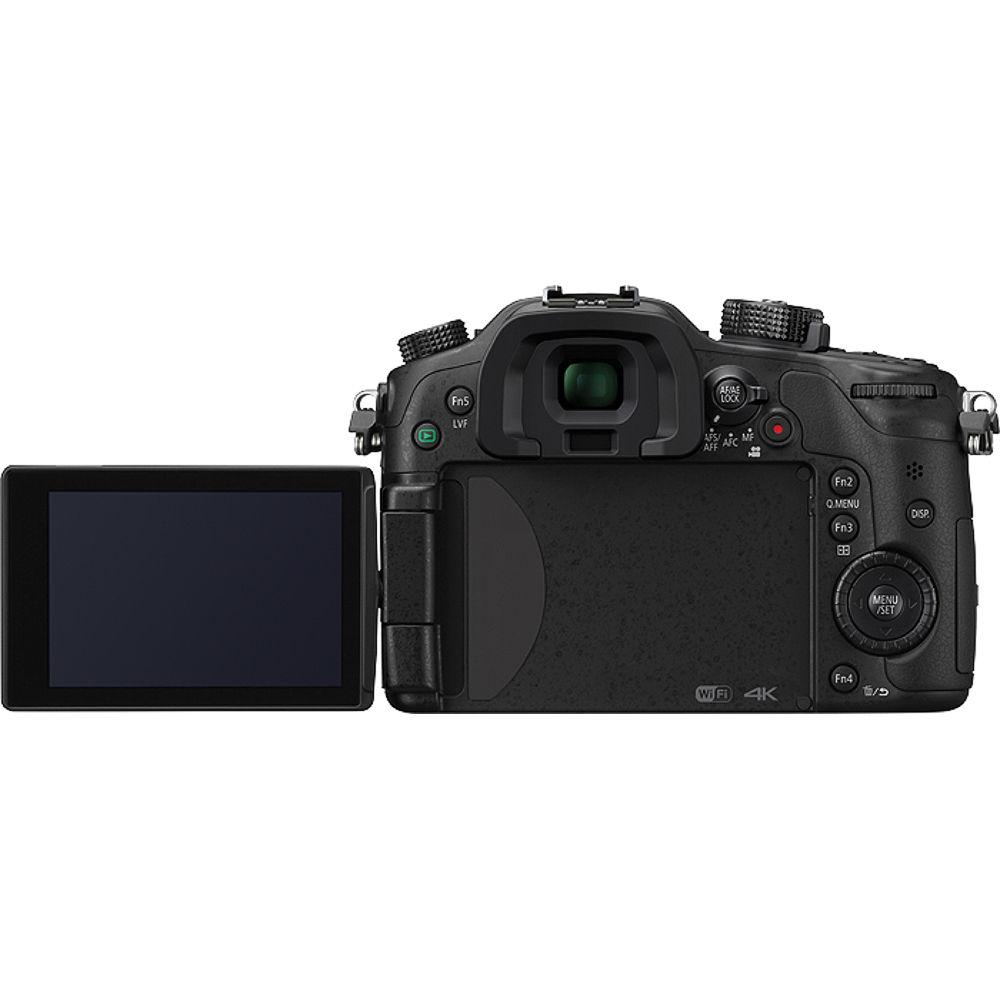

    Dual OLED Displays - Monitor and Live View Finder
  • High-speed, organic LED displays are used for both the Live View Finder and the rear monitor. The 3.0" monitor features a 1,036K-dot resolution and a touchscreen interface for intuitive control, while the LVF features a 2,359K-dot resolution. These displays feature 100% coverage and a 10,000:1 contrast ratio. An Eye Sensor automatically switches between the Live View-Finder and the rear monitor, for easy shooting with both.

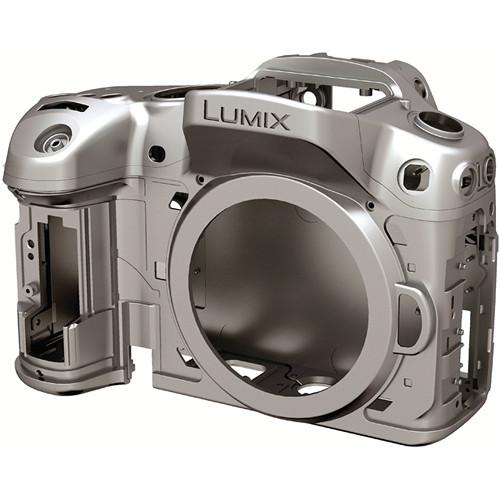

    Magnesium Alloy, Weather Sealed Body
  • The DMC-GH4 features a magnesium alloy full die cast front and rear frame. A splash and dustproof design is achieved by tightly sealing the joints and control components. To further meet the demands of professional use, the shutter is rated for approximately 200,000 releases.
    Wi-Fi with NFC Technology
  • The DMC-GH4 integrates Wi-Fi connectivity with NFC, letting you use the Panasonic Image App for remote photo and video shooting with compatible smartphones or tablets. The app also lets you embed location data to an image after shooting. If your mobile device isn't NFC compatible, you can still connect to the camera by scanning a QR code displayed on the GH4's monitor.
    49-Area AF / Custom Multi AF
  • The newly developed AF system features 49 points, giving you more flexibility when composing shots. The Custom Multi mode extends that flexibility even more with the ability to freely select what blocks to focus out of the 49 possible focusing areas.
    High-Speed Autofocus
  • The high-precision Contrast AF integrates DFD (Depth from Defocus) technology to achieve AF speeds of approximately 0.07 sec in AFS mode. This enables the camera to shoot bursts of 12 fps in AFS mode.
    Silent Mode
  • The Silent mode switches the shutter from mechanical to electronic and turns off sounds, while suppressing the AD assist lamp and flash with just a single setting. This is useful when capturing photos in situations where noise and light from the camera would be a distraction to performers or people around you.
    In-Camera RAW Data Development
  • Shoot RAW photos and process the images in-camera to create JPEG images, instead of relying on post-processing. You can adjust the color space setting (sRGB / AdobeRGB), white balance, noise reduction, sharpness, and hue. Lumix's Photo Style, Intelligent D-Range Control, and Intelligent Resolution can also be applied.
    Picture Profiles
  • Choose from a range of Photo Styles and Creative Control modes. Photo Styles for stills or video include Standard, Vivid, Natural, Monochrome, Scenery, Portrait, and Custom. Contrast, sharpness, noise reduction, saturation, and hue parameters can be adjusted for each mode and even set into the camera's memory.
    Professional 4K Video Recording
  • The DMC-GH4 brings the GH-line into the 4K age by offering both 16:9 UHD 4K 3840x2160 video at 23.98p, 24p or 29.97p, and 17:9 DCI (Digital Cinema Initiatives) 4K 4096x2160 videos at 24p. 4K resolutions can be recorded as MOV or MP4 files in high bitrate 100 Mbps IPB codec. When recording at 100 Mbps, you will need an SDHC/SDXC memory card capable of handling the transfer speed.

    Please note: For better quality, 4K recording modes use a 1:1 pixel map of the sensor. This yields a slight crop of the sensor, resulting in approximately a full-frame crop factor of approximately 2.3x when shooting DCI 4K resolution.
    Selectable System Frequency
  • The DMC-GH4 is a true global camera, with system frequency switchable from 59.94 Hz (23.98 Hz) and 50 Hz. You can also select 24 Hz frequency for true 24 fps cinematic video.
    VFR (Variable Frame Rate)
  • The VFR mode enables Full HD video recording with slow/fast motion, depending on the video format and system frequency selected.

    59.94 Hz
    MOV/FHD/100 Mbps/29.97p, MP4(LPCM)/FHD/100 Mbps/29.97p:
    2 fps, 15 fps, 26 fps, 28 fps, 30 fps, 32 fps, 34 fps, 45 fps, 60 fps, 75 fps, 90 fps, 96 fps
    MOV/FHD/100 Mbps/23.98p, MP4(LPCM)/FHD/100 Mbps/23.98p:
    2 fps, 12 fps, 20 fps, 22 fps, 24 fps, 26 fps, 28 fps, 36 fps, 48 fps, 60 fps, 72 fps, 84 fps, 96 fps
    AVCHD/FHD/24 Mbps/29.97p:
    2 fps, 15 fps, 26 fps, 28 fps, 30 fps, 32 fps, 34 fps, 45 fps, 60 fps
    AVCHD/FHD/24 Mbps/23.98p:
    2 fps, 12 fps, 20 fps, 22 fps, 24 fps, 26 fps, 28 fps, 36 fps, 48 fps, 60 fps

    50 Hz
    MOV/FHD/100 Mbps/25.00p, MP4(LPCM)/FHD/100 Mbps/25.00p:
    2 fps, 12 fps, 21 fps, 23 fps, 25 fps, 27 fps, 30 fps, 37 fps, 50 fps, 62 fps, 75 fps, 96 fps
    AVCHD/FHD/24 Mbps/25.00p:
    2 fps, 12 fps, 21 fps, 23 fps, 25 fps, 27 fps, 30 fps, 37 fps, 50 fps

    24 Hz
    MOV/FHD/100 Mbps/24.00p, MP4(LPCM)/FHD/100 Mbps/24.00p:
    2 fps, 12 fps, 20 fps, 22 fps, 24 fps, 26 fps, 28 fps, 36 fps, 48 fps, 60 fps, 72 fps, 84 fps, 96 fps
    Versatile Video Recording Formats
  • Choose the video format that is right for each project. The DMC-GH4 is capable of ultra high bitrate video recording at 200 Mbps (All-Intra) or 100 Mbps (IPB). Available formats include MOV, MP4, AVCHD Progressive, and AVCHD at a variety of frame rates. In MP4 / MOV, high quality LPCM (Linear Pulse Code Modulation) sound can be recorded. All internally recorded video codecs use 4:2:0 color sampling and an 8-bit color depth.
    Real-Time 4:2:2 Output with HDMI
  • Send 4:2:2 8-bit or 4:2:2 10-bit video in real-time to external monitors or recorders via the micro HDMI output. An optional micro HDMI cable is required. When outputting a 4:2:2 10-bit signal over HDMI, video cannot be recorded on the SDHX/SDXC memory card in the camera.
    Focus Peaking
  • For easy focusing, the GH4 incorporates a Focus Peaking function that shows the peak of focus in MF and AF+MF modes. Users can see the peaking of focus while monitoring the subject in live view. It can be set to HIGH / LOW / OFF and the color can also be changed to blue, white or orange according to the color of the shooting scene during live view. Focus peaking is also available while remote photo/video shooting with smartphone or tablet via Wi-Fi.
    Luminance Level Adjustment
  • In addition to the standard luminance level of 16-235 and 16-255, the DMC-GH4 also offers 0-255.
    Additional Video Features
    • Timecode - SMPTE-compliant timecode for synching multiple devices
    • Color bars - benchmark for fixing color or brightness
    • 1 kHz test tone - benchmark for fixing sound or volume
    • Center marker - guide mark for video composition
    • Synchro scan - suppress flicker on monitors or from fluorescent lights
    • Cine-like gamma - "CINELIKE D" and "CINELIKE V" produce a cinema-like tones
    • Master Pedestal - adjust brightness balance ±15 steps based on the color black
    • Zebra Pattern - display lines on over-exposed areas
    Professional 4K Video Interface Unit (Optional)
  • For professional video workflows, the optional DMW-YAGH Interface Unit is available. The Interface Unit attaches to the bottom of the camera and provides 2 XLR input terminals, for line or condenser microphones, with independent volume controls and an audio level display monitor. It also has two 3G-SDI capable BNC connectors and two HD-SDI capable BNC connectors for quad-link SDI 4K video in 4:2:2 10-bit, dual-link 4:2:2 10-bit 1080p up to 60 fps, or four simultaneous 1080p streams up to 30 fps - all with timecode. Power is supplied to the unit by a 12 VDC 4-pin XLR input.

    Please note: When using 4:2:2 10-bit output, simultaneous video recording on an SDHC/SDXC memory card in the DMC-GH4 is not possible.
    4K Photo Modes
  • Utilizing the 4K video recording capabilities, a trio of still shooting modes are available for recording continuous 8MP stills at a 30 fps shooting rate:
  • 4K Burst: Just as with video recording, this mode will allow you to continuously record 8MP images at 30 fps for up to 29 min. 59 sec., making it ideal for instances where you need a fast frame rate in order to capture the best moment.
  • 4K Pre-Burst: This mode is ideal for times when you're unsure of the critical moment to press the shutter button and will record 8MP images at 30 fps one second prior to and one second after pressing the shutter button in order to give you 60 frames to choose from.
  • 4K Burst (S/S): This mode most closely follows the 4K video recording process, and allows you to playback your video, pause at the chosen moment, and use the shutter button to mark a chosen frame from the video and save it as a single 8MP frame.
    Interface
  • The DMC-GH4 comes with a variety of connection terminals including 1/8" microphone and headphone jacks. The camera also features a micro HDMI port, AV output, flash sync terminal, and a 2.5mm remote controller jack.
    Supports UHS-I Class 3 Speed SD Cards
  • The DMC-GH4 uses a variety of advanced recording media, including SDXC, SDHC, and SD Memory Cards. The fastest of these cards is the UHS-I Class 3 (U3), which is recommended when using high bit rate video recording modes over 100 Mbps.
    High-Speed Burst Shooting
  • The DMC-GH4 allows for high-speed burst shooting at 12 fps in single autofocus mode using the mechanical shutter, for up to approximately 40 RAW or 100 JPEG images, and 7.5 fps in continuous AF mode. This lets you capture fast moving subjects in clear focus. When using the electronic shutter, you can shoot in bursts up to 40 fps.
    Highlight / Shadow Control
  • Highlight and shadow can be separately adjusted with the front or rear dial. Three patterns of settings can be customized in addition to three preset patterns.
    Button Layout
  • For intuitive control, exposure compensation, ISO sensitivity, and white balance controls are positioned around the shutter button to make operation fast and easy while looking at the viewfinder. A programmable function button is also available.
    Additional Features
    • Post Focus settings allows photographers to pick the in-focus area after the image has been taken
    • In-camera time-lapse and stop motion animation
    • 1/8000 second maximum shutter speed
    • 1/250 second shutter speed sync for built-in and external flash
    • Face / Eye Detection AF
    • External Flash Burst enables consecutive flash bursts with compatible on-camera units
    • Magnification of 1-Area focus point
    • Language support: English and Spanish.

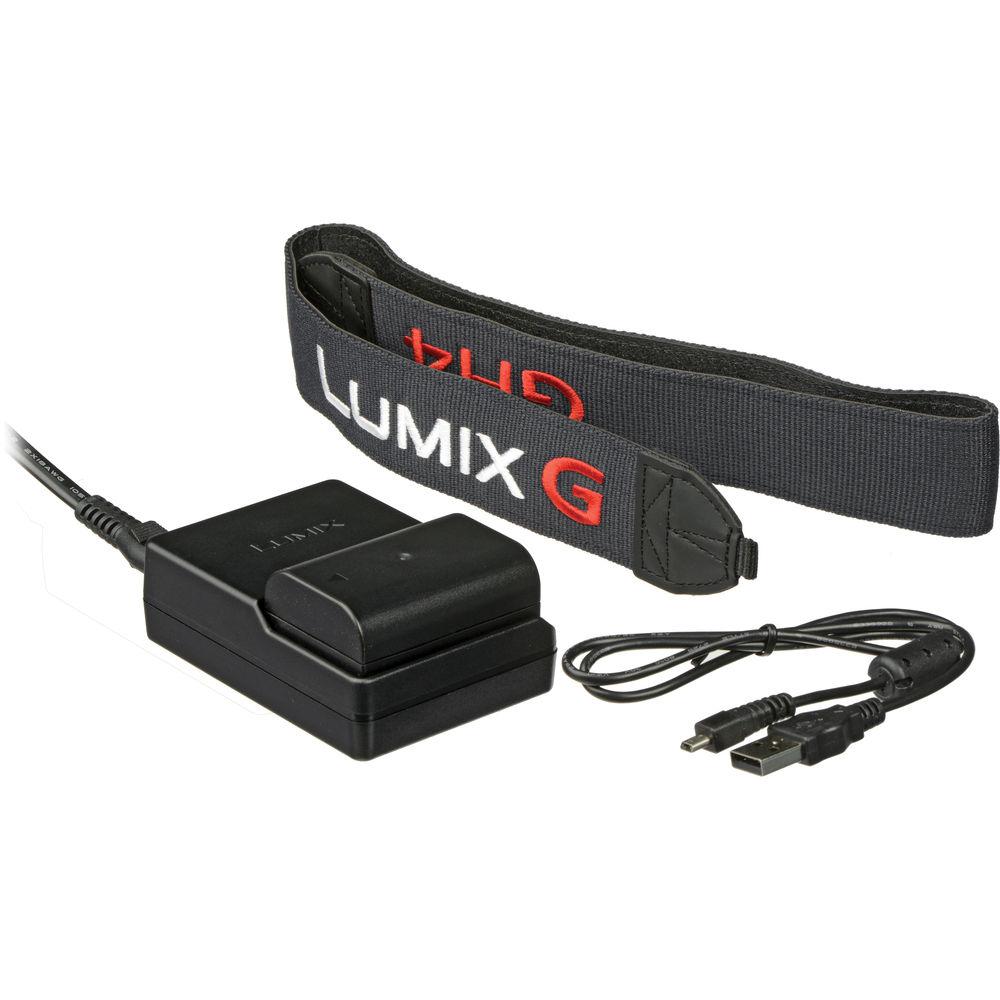

In the Box Panasonic Lumix DMC-GH4 Mirrorless Micro Four Thirds Digital Camera (Body Only)
  • 7.2V 1860mAh Lithium-Ion Battery Pack
  • Battery Charger
  • Body Cap
  • Hot Shoe Cover
  • K1HY08YY0031 USB Connection Cable
  • Shoulder Strap
  • DVD
  • PHOTOfunSTUDIO 9.5 PE (Windows)
  • SILKYPIX® Developer Studio 4.1 SE (Windows & Mac)
  • LoiLoScope (Trial Version, Windows)
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Panasonic Lumix DMC-GH4 Mirrorless Micro Four Thirds Digital Camera in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Lens Mount Micro Four Thirds
    Camera Format Micro Four Thirds (2x Crop Factor)
    Pixels Actual: 17.2 Megapixel
    Effective: 16.05 Megapixel
    Maximum Resolution 4608 x 3456
    Aspect Ratio 4:3
    Sensor Type MOS
    Sensor Size 17.3 x 13 mm
    Image File Format JPEG, MPO, RAW
    Image Stabilization None
    ISO Sensitivity 200 to 25600 (Extended: 100 to 25600)
    Shutter Speed 1/8000 to 60 Seconds
    0 to 60 Minutes in Bulb Mode
    1/16000 to 1/24 Second in Movie Mode
    Metering Method Center-Weighted Average, Multiple, Spot
    Exposure Modes Aperture Priority, Manual, Program, Shutter Priority
    Exposure Compensation -5 to +5 EV (1/3 EV Steps)
    Metering Range 0 to 18 EV
    White Balance Auto, Cloudy, Color Temperature, Daylight, Flash, Incandescent, Shade, White Set
    Continuous Shooting Up to 40 fps
    Interval Recording Yes
    Self Timer 2/10-Second Delay
    Recording Modes MOV
    DCI 4K (4096 x 2160) at 24p [100 Mb/s]
    UHD 4K (3840 x 2160) at 23.976p/24p/25p/29.97p [100 Mb/s]
    Full HD (1920 x 1080) at 23.976p/24p/25p/29.97p/50p/59.94p [200 Mb/s]
    MP4
    DCI 4K (4096 x 2160) at 24p [100 Mb/s]
    UHD 4K (3840 x 2160) at 23.976p/24p/25p/29.97p [100 Mb/s]
    Full HD (1920 x 1080) at 23.976p/24p/25p/29.97p/50p/59.94p [200 Mb/s]
    Full HD (1920 x 1080) at 25p/29.97p [20 Mb/s]
    Full HD (1920 x 1080) at 50p/59.94p [28 Mb/s]
    HD (1280 x 720) at 25p/29.97p [10 Mb/s]
    SD (640 x 480) at 25p/29.97p [4 Mb/s]
    AVCHD
    Full HD (1920 x 1080) at 23.976p [24 Mb/s]
    Full HD (1920 x 1080) at 50p/59.94p [28 Mb/s]
    Full HD (1920 x 1080) at 50i/59.94i [24 Mb/s]
    Full HD (1920 x 1080) at 50i/59.94i [17 Mb/s]
    External Recording Modes 4:2:2 10-Bit
    Recording Limit Up to 220 Minutes
    Video Encoding NTSC/PAL
    Audio Recording Built-In Microphone (Stereo)
    External Microphone Input
    Audio File Format AAC, Dolby Digital 2ch, Linear PCM
    Focus Type Auto and Manual Focus
    Focus Mode Continuous-Servo AF (C), Flexible (AFF), Manual Focus (M), Single-Servo AF (S)
    Autofocus Sensitivity -4 to +18 EV
    Viewfinder Type Electronic
    Viewfinder Resolution 2,359,000 Dot
    Viewfinder Eye Point 21 mm
    Viewfinder Coverage 100%
    Viewfinder Magnification Approx. 1.34x
    Diopter Adjustment -4.0 to +4.0 m
    Monitor Size 3"
    Monitor Resolution 1,036,000 Dot
    Monitor Type Articulating Touchscreen OLED
    Built-in Flash Yes
    Flash Modes Auto, Auto/Red-Eye Reduction, Forced On, Forced On/Red-Eye Reduction, Off, Slow Sync, Slow Sync/Red-Eye Reduction
    Maximum Sync Speed 1/250 Second
    Flash Compensation -3 to +3 EV (1/3 EV Steps)
    Dedicated Flash System TTL
    External Flash Connection Hot Shoe
    Memory Card Slot 1 x SD/SDHC/SDXC
    Connectivity 3.5mm Headphone, 3.5mm Microphone, HDMI D (Micro), USB 2.0, Wired Remote Port
    Wireless Wi-Fi
    GPS None
    Operating Temperature 32 to 104°F / 0 to 40°C
    Operating Humidity 10 to 80%
    Battery 1 x Rechargeable Lithium-Ion, 7.2 VDC, 1860 mAh
    Dimensions (W x H x D) 5.2 x 3.7 x 3.3" / 132.1 x 94.0 x 83.8 mm
    Weight 19.75 oz / 559.91 g (Body with Battery and Memory)
    Package Weight 2.8 lb

    Rating

    94% users recommend this product to others. And what about you?
    Rating: 4.7 of 5

    This product has already been rated by 47 owners. Add your rating and experience with the product.

    Discussion

    Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems.

    The discussion is empty - enter the first post

    Post a new topic / query / comment:

    Items marked with * are required.
    Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution.
    Processing of personal data in accordance with GDPR


    Request for user manual
    You can’t find the operation manual you are looking for? Let us know and we will try to add the missing manual:

    I’m looking for a manual / Request for manual

    Current requests for instruction manuals:

    Casio CPS-80s...
    Hammond E-311 Manuals...
    Puissant digital camera binoculars...
    Cyberpowerpc Model C series ET 8830-1084...
    Polaroid Blue speaker manual for BTS10W...

    Discussion
    Latest contributions to the discussion:

    Emergency Calls Off - Galaxy SM-J737U
    Name: adrian
    Samsung Galaxy J7 SM-J737U 32GB Smartphone
    Hi, By mistake I pressed Emergency Call On and after I disabled that feature. But I was seeing on the top left hand side the "Emergency Calls Only" and I lost connection with Network. I can operate only with wifi. I tried to shut it off, remove the sim card, rest the networ...
    WHAY KIND OF BATTERY SHOUL I BUY VIVICAM XX14
    Name: wayne searle
    Vivitar ViviCam XX14 Digital Camera
    WHAT KIND OF BATTERYS I NEED TO BUY I TRUED BATTERIES TWICE BRAND NEW SAYS BATTERY LOW ETC CAN I BUT RECHARBLE BATTERIES ...
    Program Scanner
    Name: Abuwi Coleman
    Adesso NuScan 4100B Bluetooth Handheld CCD
    How do I program the scanner?...
    Request for catalogue of Spectrophotometer
    Name: Md. Kaisar Reza
    X-Rite i1Studio Spectrophotometer
    Please send a catalogue. we will buy one meter soon ...
    battery
    Name: Rhonda K Gregoire
    Fitbit Versa Fitness Watch Special Edition
    My Fitbit will not stay charged it only last 6hrs when fully charged...

    PDF User Manuals
    We regularly supplement and update our library. Latest instruction manuals added for download:

    Detail - SIG SAUER Romeo5 XDR Compact Red
    https://www.search-manual.com/ upload/ sig-sauer-romeo5-xdr-compact-red-dot-sight-299832-user-manual.pdf
    Detail - Audio-Technica Consumer AT-LP1240-USB XP Professional DJ
    https://www.search-manual.com/ upload/ audio-technica-consumer-at-lp1240-usb-xp-professional-dj-direct-drive-turntable-with-at-xp5-cart-333056-user-manual.pdf
    Detail - Plantronics CS510 Wireless Headset System
    https://www.search-manual.com/ upload/ plantronics-cs510-wireless-headset-system-124766-user-manual.pdf
    Detail - HP Wireless Keyboard and Mouse 800
    https://www.search-manual.com/ upload/ hp-wireless-keyboard-and-mouse-800-340391-user-manual.pdf
    Detail - Blackmagic Design SmartView Duo Rackmountable Dual
    https://www.search-manual.com/ upload/ blackmagic-design-smartview-duo-rackmountable-dual-8-lcd-monitors-100642-user-manual.pdf


    What our users say about us:

    Peter Morgan: "Thanks for this website! With help from your instructions I’ve got my dishwasher working again."

    Nick Jackson: "Your site’s been a massive help because the user manual didn’t come with the product. Thanks a lot."

    Leslie Scott: "I finally found the user's guide with you that I couldn’t find anywhere else! Totally happy!"

    Take a look through our user manuals in our on-line library, with instruction manuals and service handbooks downloadable in PDF format. Our instructions database is constantly updated and supplemented with new products. Looking for instruction manuals? Ask us!
    SEARCH-MANUAL.com
    Sitemap.xml
