User Manual for Panasonic Lumix DMC-GX85 Mirrorless Micro Four Thirds Digital Camera with 12-32mm Lens Click to enlarge the picture
Contents of the user manual for the Panasonic Lumix DMC-GX85 Mirrorless Micro Four
- Product category: Uncategorized Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Uncategorized
 |
User manual for the Panasonic Lumix DMC-GX85 Mirrorless Micro Four contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|

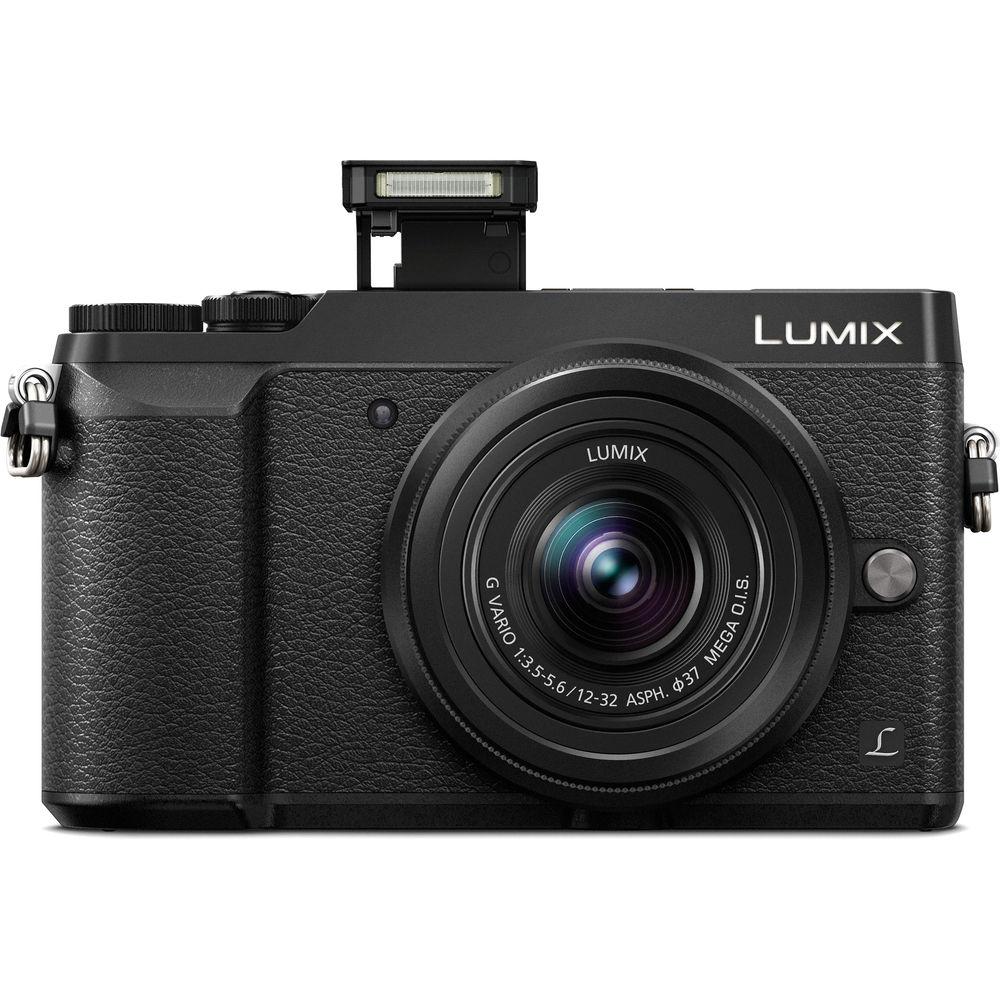

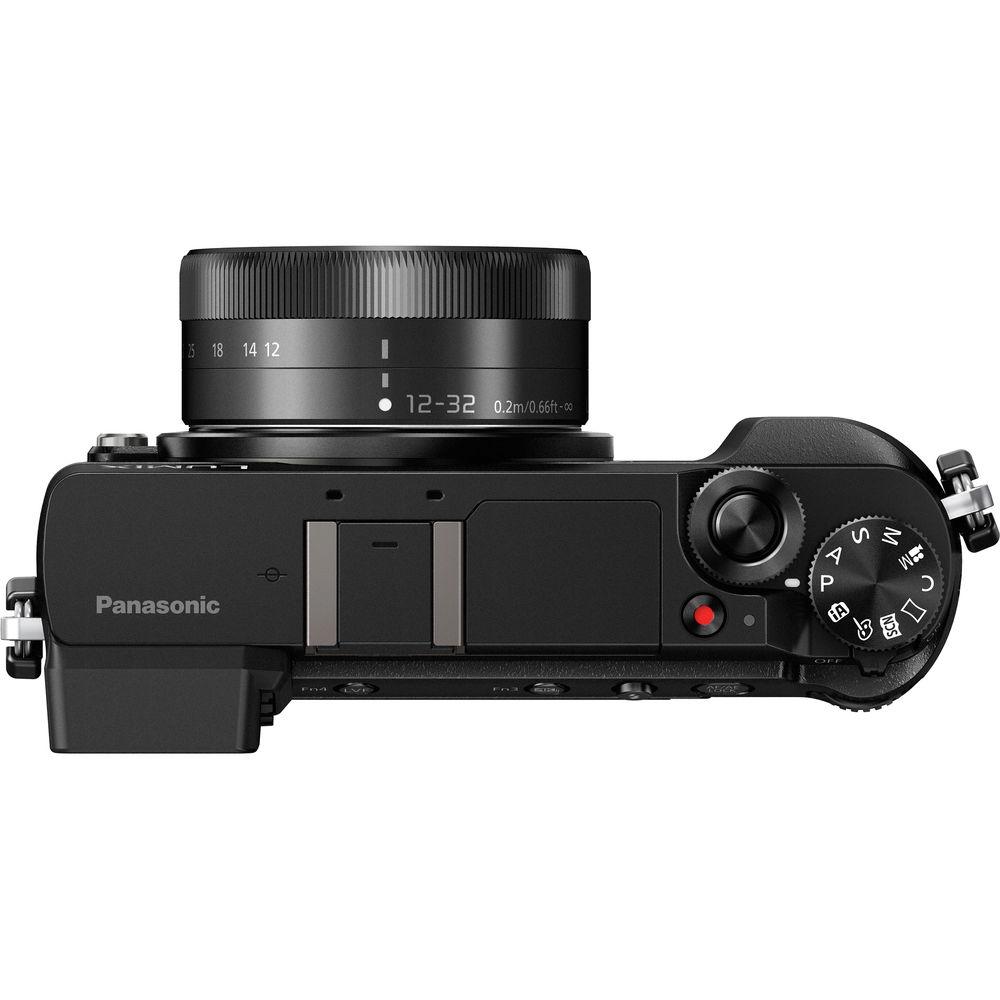

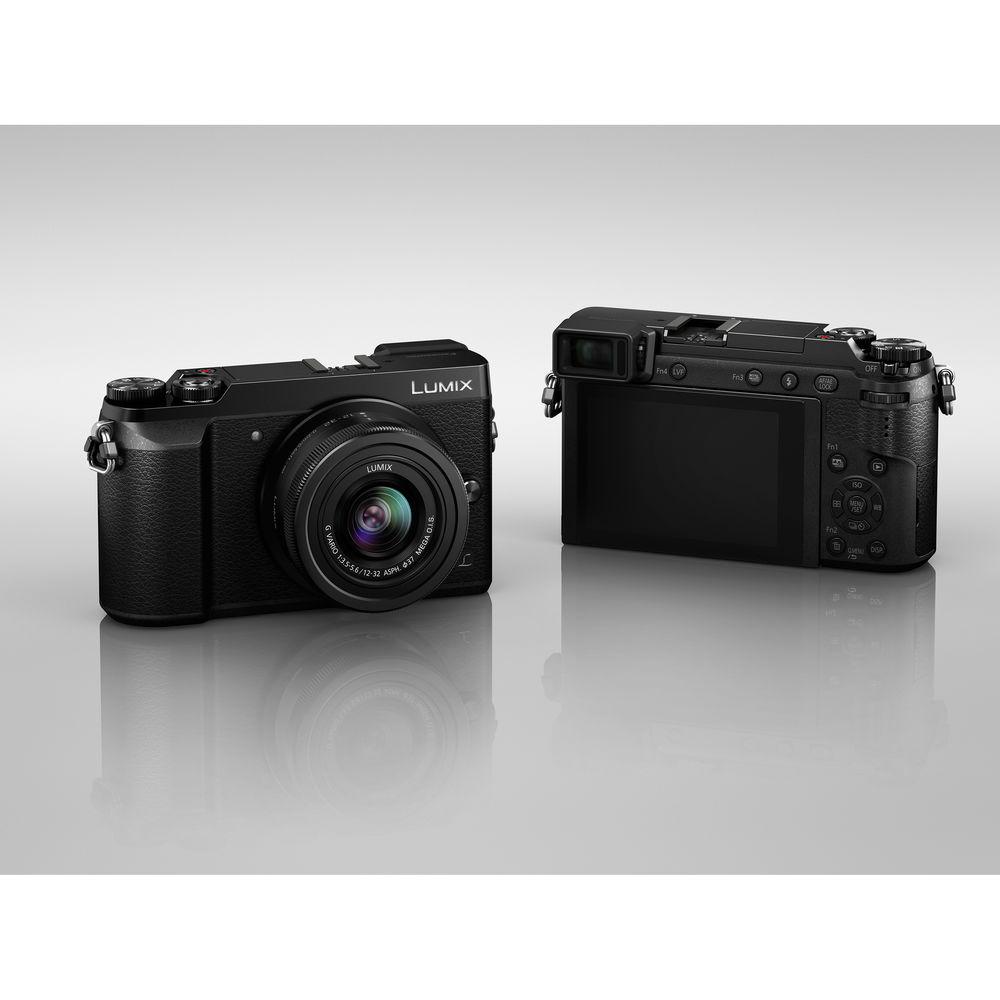

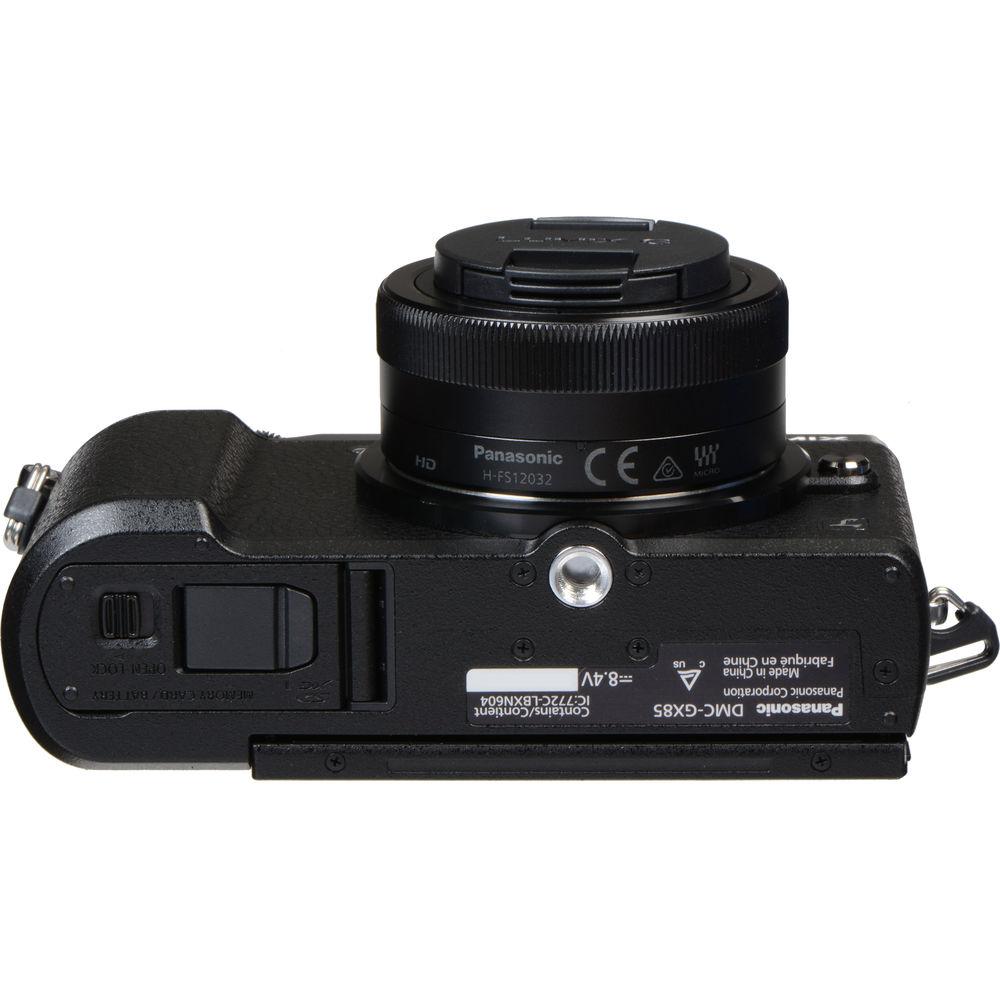

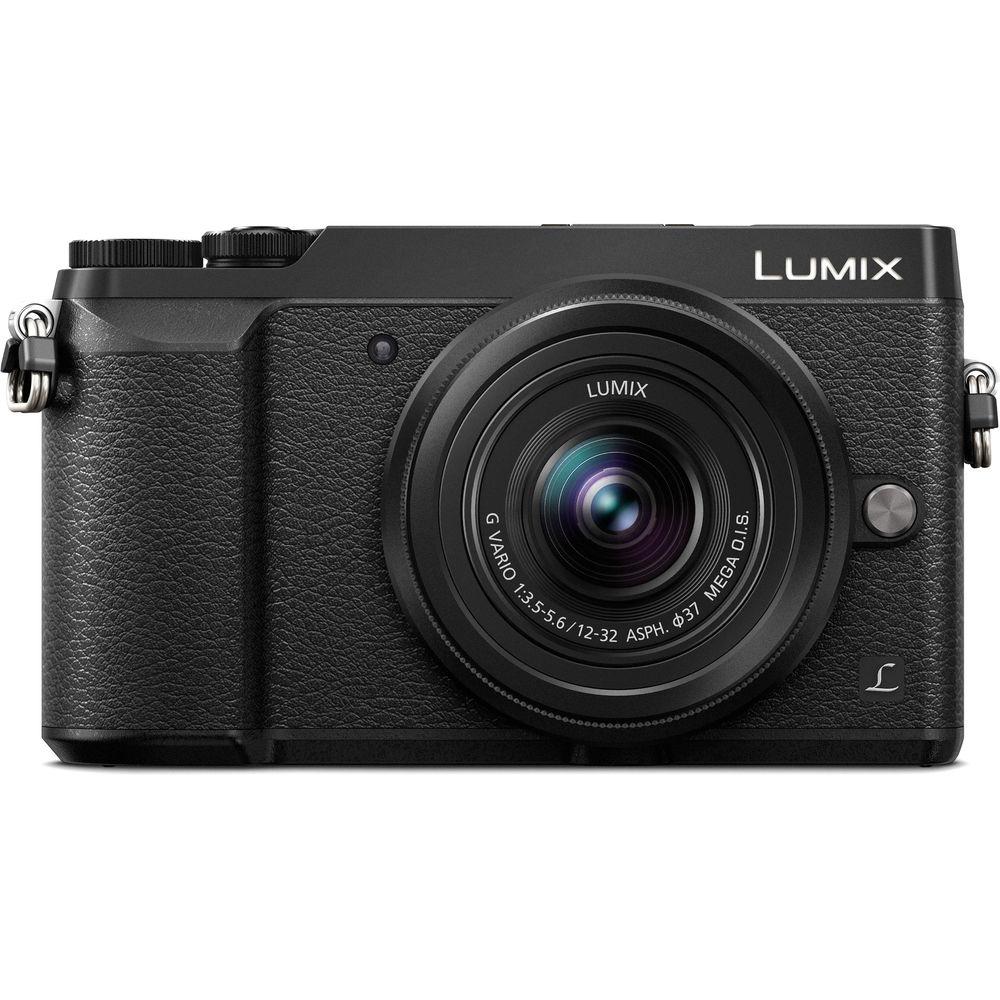

Product description An all-around Micro Four Thirds camera designed for photographers and videographers, the black Lumix DMC-GX85 from Panasonic features a compact build and intuitive layout, along with a feature-set to suit a multimedia lifestyle. Utilizing a 16MP Live MOS sensor, which lacks an optical low-pass filter for increased sharpness, the GX85 is capable of shooting continuously at up to 10 fps with single-shot autofocus, or 6 fps with continuous autofocus, as well as up to 40 fps when using an electronic shutter function. UHD 4K video recording is also supported in 30 and 24 fps frame rates, as well as Full HD 1080p, and the 4K recording abilities also permit shooting 8MP stills at a 30 fps rate. A sensitivity range up to ISO 25600 permits working in difficult and low-light settings while 5-axis sensor-shift image stabilization also helps to minimize the appearance of camera shake for sharper handheld shooting. Spanning a broad range of features for both still and moving images, the GX85 is a versatile mirrorless camera further characterized by its sleek form factor and connected functionality.
Complementing the imaging attributes, the camera also incorporates both a 2.76m-dot electronic viewfinder as well as a 3.0" 1.04m-dot touchscreen LCD, which has a tilting design to better enable working from high and low angles. Built-in Wi-Fi is also integrated into the design, which facilitates wireless image transferring and remote camera control from linked smartphones or tablets.

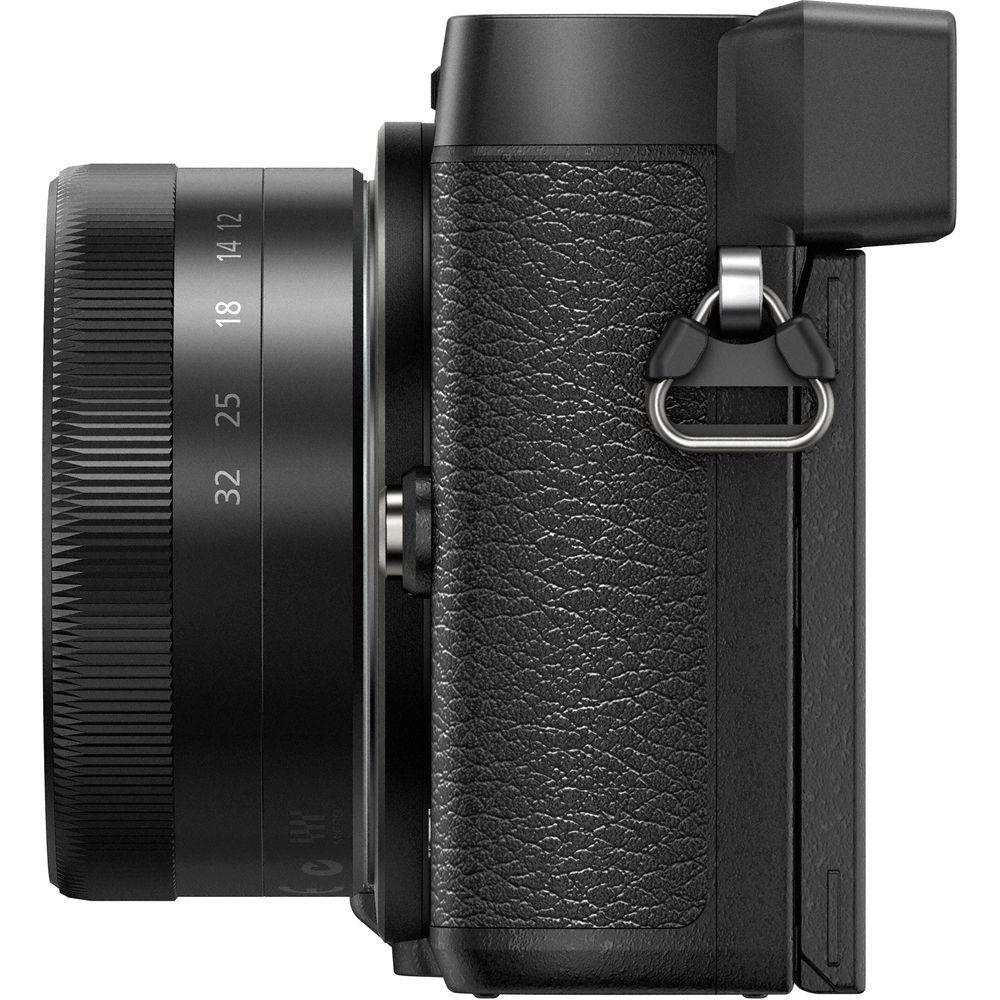

Included with the camera body is the versatile Lumix G Vario 12-32mm f/3.5-5.6 ASPH. lens, which provides a 24-64mm equivalent focal length range. The lens is characterized by its sleek profile that pairs well with the camera body, and its optical design incorporates three aspherical elements and one extra-low dispersion element to control a variety of aberrations and distortions. Additionally, a stepping AF motor is employed to provide quick, quiet, and accurate focusing performance to suit both stills and video recording applications. - 16MP Live MOS Sensor
- Using a 16MP Live MOS sensor, the GX85 is capable of capturing clear, high-resolution stills as well as UHD 4K video. The sensor's design omits an optical low-pass filter in order to achieve a high degree of sharpness and resolution, and its design also affords a sensitivity range from ISO 200-25600 to suit working in a variety of lighting conditions. Additionally, fast shooting performance is also afforded, with the ability to shoot at up to 40 fps with an electronic shutter function, 30 fps at 8MP using the 4K Photo Modes, 10 fps with AF-S and an electronic shutter, or 8 fps using a mechanical shutter with AF-S.
- UHD 4K Video Recording
- In addition to the versatile still shooting modes, the GX85 also supports recording UHD 4K (3840 x 2160) video with either 30p or 24p frames rates at 100 Mbps in the MP4 format. Full HD 1080p/60 is also supported, in both MP4 and AVCHD formats, as well as HD and SD resolutions. A built-in stereo microphone can be used during recordings, and features an integrated wind-cut filter for cleaner audio quality when shooting outdoors.
- 4K Photo Modes
- Utilizing the 4K video recording capabilities, a trio of still shooting modes are available for recording continuous 8MP stills at a 30 fps shooting rate:
- 4K Burst: Just as with video recording, this mode will allow you to continuously record 8MP images at 30 fps for up to 29 min. 59 sec., making it ideal for instances where you need a fast frame rate in order to capture the best moment.
- 4K Pre-Burst: This mode is ideal for times when you're unsure of the critical moment to press the shutter button and will record 8MP images at 30 fps one second prior to and one second after pressing the shutter button in order to give you 60 frames to choose from.
- 4K Burst (S/S): This mode most closely follows the 4K video recording process, and allows you to playback your video, pause at the chosen moment, and use the shutter button to mark a chosen frame from the video and save it as a single 8MP frame.
- Dual Image Stabilization
- Helping to achieve the utmost sharpness when photographing handheld, Dual I.S. combines the GX85's 5-axis sensor-shift image stabilization technology with lens-based image stabilization to compensate for a broader range of movement types to render sharper, clearer imagery. Dual I.S. requires the use of compatible Lumix lenses featuring O.I.S.
- Depth-From-Defocus AF Technology
- For accelerated autofocus performance, DFD (Depth-From-Defocus) technology is employed to quickly calculate the distance to subjects and adjust the focusing position in order to suit working with continuous shooting rates up to 6 fps with continuous AF. This contrast-detection type focus method benefits both still and video recording modes, as well as subject tracking applications where subject color, size, and motion vectors are used to intelligently lock-onto the moving subjects and ensure precise focus. Additionally, supporting working in low-light conditions, a Starlight AF feature enables accurate AF performance down to -4 EV.
Benefitting manual focus operation, focus peaking is available that highlights bright edges of contrast with a colored outline for quickly recognizing your focus point, as well as Touch MF Assist for touch-to-focus operation. - Body Design and Built-In Wi-Fi
-

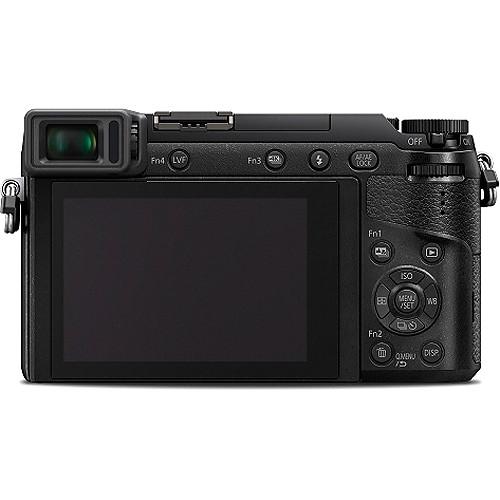

- An integrated 2.76m-dot electronic viewfinder offers a bright, clear eye-level means for composing images, and features a 0.7x effective magnification.

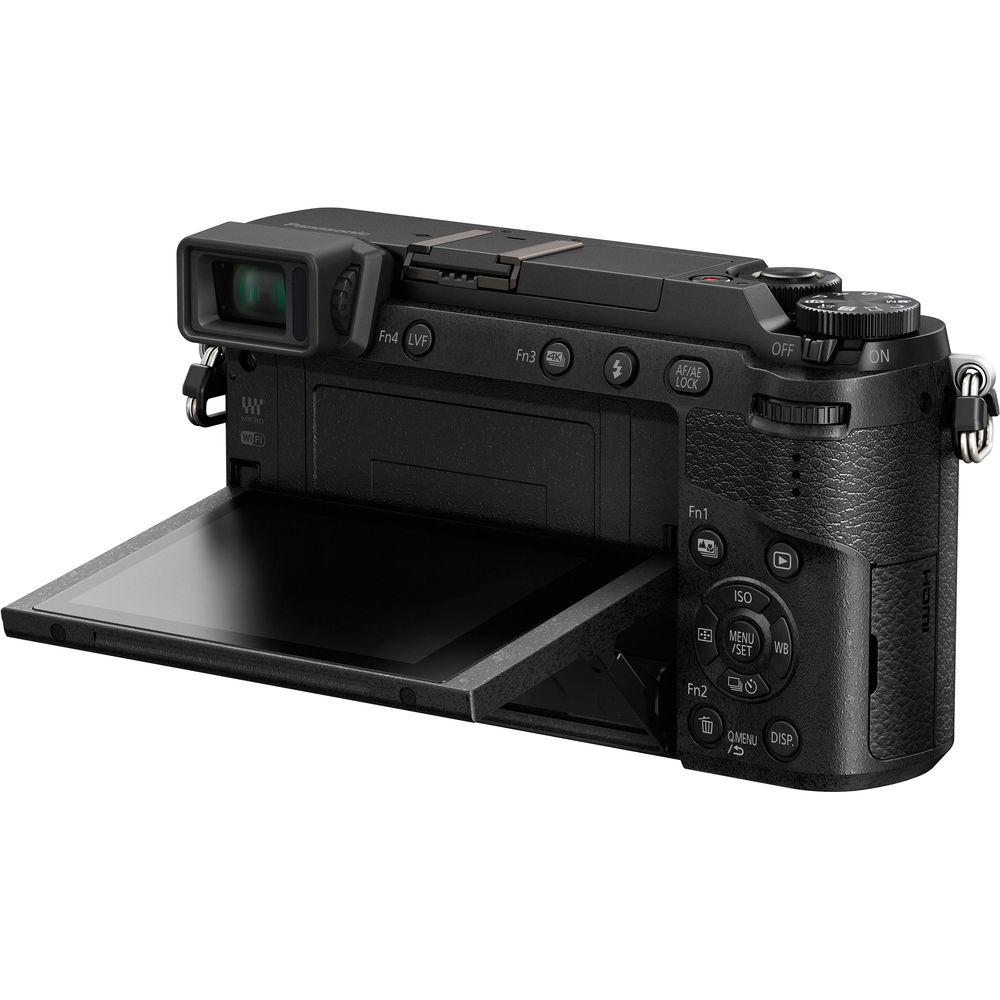

- A larger means for image composition and playback, the 3.0" 1.04m-dot rear OLED monitor has a tilting design to support viewing from a variety of angles. It is also a touchscreen, which permits intuitive menu navigation and settings control.
- Nine programmable function buttons can be used to control a wide variety of settings and tools.
- Built-in Wi-Fi connectivity allows for wireless image sharing and remote camera control from linked smartphones and tablets.

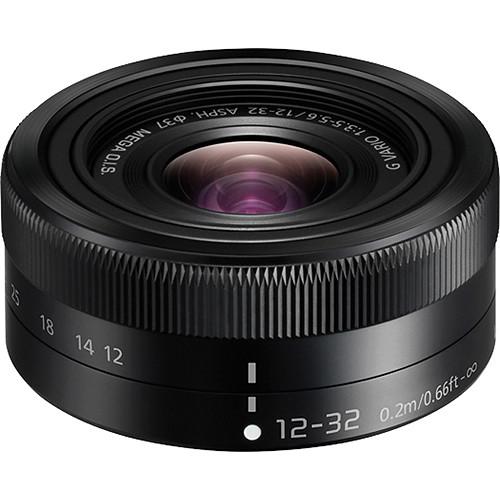

- Lumix G Vario 12-32mm f/3.5-5.6 ASPH. Lens
- A versatile standard zoom, the Lumix G Vario 12-32mm f/3.5-5.6 ASPH. is a 24-64mm equivalent wide-to-short tele featuring a sleek design to pair well with the compact camera body. Three aspherical elements and one extra-low dispersion element are incorporated within the lens design to reduce both spherical and chromatic aberrations in order to increase image clarity and sharpness. Complementing the optical design is an internal focusing system and stepping motor that pairs with the camera's contrast-detection AF for quick, accurate focusing performance.
- Other Camera Features
-
- A mechanical focal plane shutter enables a fast maximum shutter speed of 1/4000 sec., as well as a top flash sync speed of 1/160 sec. An electronic shutter function also avails a top shutter speed of 1/16,000 sec. to better enable working in bright conditions and with wider aperture settings.
- Photo Style modes: Standard, Vivid, Natural, Monochrome, L. Monochrome, Scenery, Portrait, and Custom.
- Creative Control modes: Expressive, Retro, Old Days, High Key, Low Key, Sepia, Monochrome, Dynamic Monochrome, Rough Monochrome, Silky Monochrome, Impressive Art, High Dynamic, Cross Process, Toy Effect, Toy Pop, Bleach Bypass, Miniature Effect, Soft Focus, Fantasy, Star Filter, One Point Color, and Sunshine.
In the Box Panasonic Lumix DMC-GX85 Mirrorless Micro Four Thirds Digital Camera with 12-32mm Lens (Black) Lumix G Vario 12-32mm f/3.5-5.6 ASPH. Lens Rechargeable Lithium-Ion Battery AC Adapter USB Connection Cable Shoulder Strap Hot Shoe Cover Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic Lumix DMC-GX85 Mirrorless Micro Four Thirds Digital Camera with 12-32mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters | | | Pixels | Actual: 16.84 Megapixel
Effective: 16 Megapixel | | | | Focus Mode | Continuous-Servo AF (C), Flexible (AFF), Manual Focus (M), Single-Servo AF (S) | | Autofocus Points | Contrast Detection: 49 | | | | Viewfinder Eye Point | 17.5 mm | | Viewfinder Coverage | 100% | | Viewfinder Magnification | Approx. 0.7x | | Diopter Adjustment | -4 to +3 m | | | | Metering Method | Center-Weighted Average, Multiple, Spot | | White Balance | Cloudy, White Set 2, Incandescent, Daylight, Flash, Color Temperature, Shade, White Set 3, White Set 1, Auto, White Set 4 | | Continuous Shooting | Up to 40 fps at 16 MP
Up to 30 fps at 8 MP
Up to 10 fps at 16 MP
Up to 8 fps at 16 MP
Up to 6 fps at 16 MP
Up to 2 fps at 16 MP | | | | Flash Modes | Slow Sync/Red-Eye Reduction, Off, Slow Sync, Forced On/Red-Eye Reduction, Auto/Red-Eye Reduction, Auto, Forced On | | External Flash Connection | Hot Shoe | | | | Battery | 1 x Rechargeable Lithium-Ion, 7.2 VDC, 1025 mAh | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 80% | | | | Angle of View | 84
