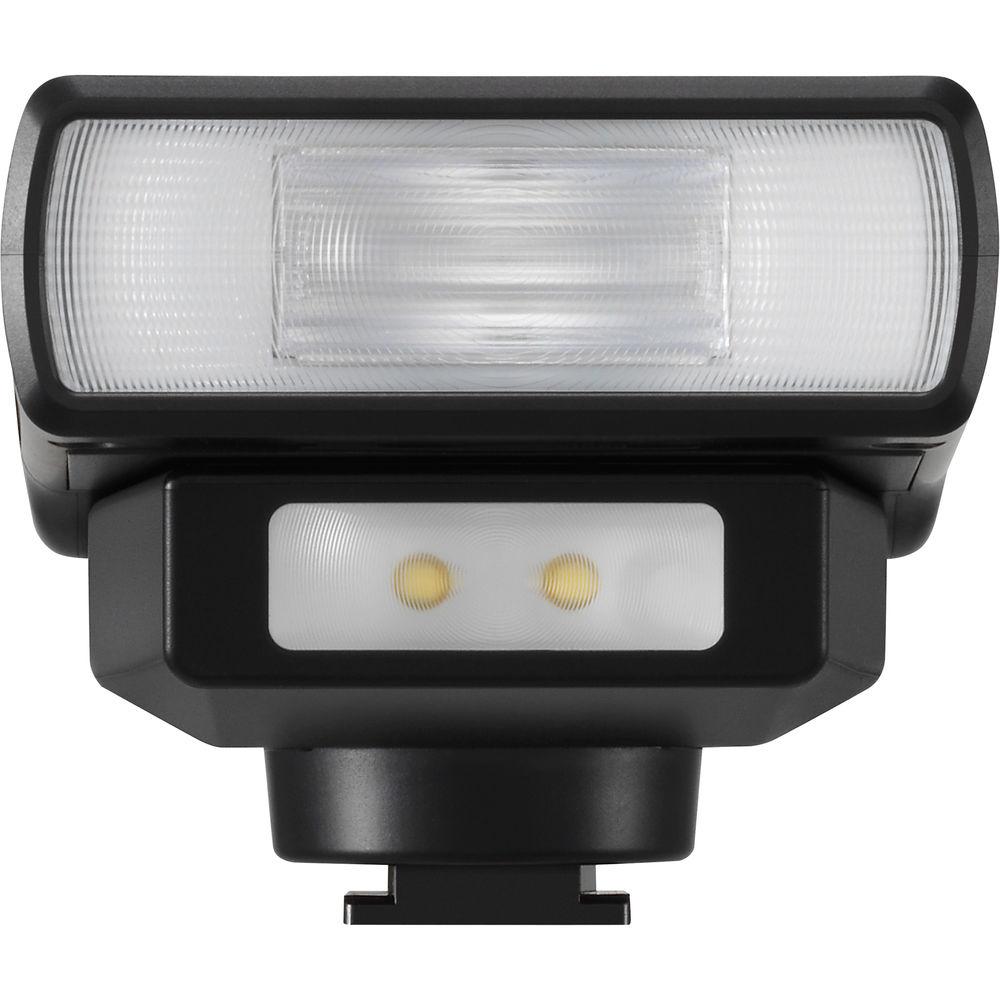

User Manual for Panasonic Lumix DMW-FL200L External Flash Click to enlarge the picture
Contents of the user manual for the Panasonic Lumix DMW-FL200L External Flash
- Product category: On Camera Flashes Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic On Camera Flashes
 |
User manual for the Panasonic Lumix DMW-FL200L External Flash contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|

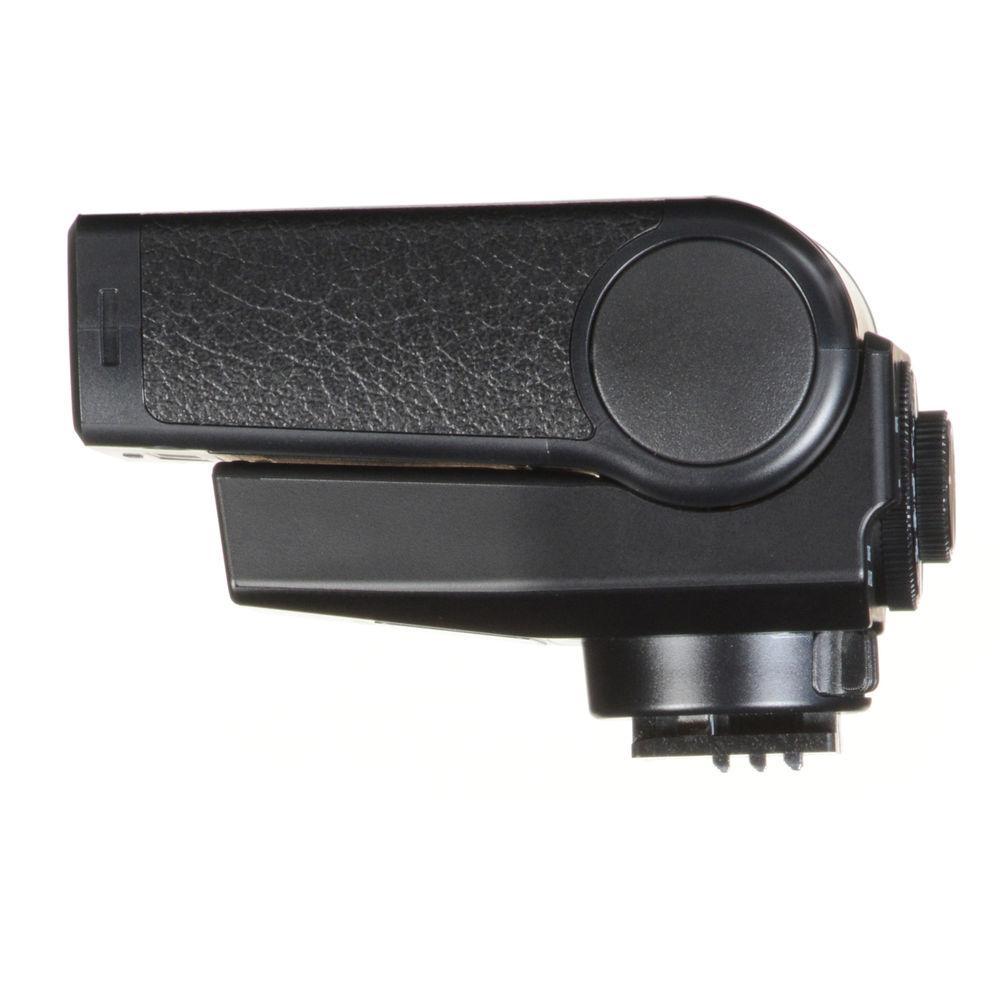

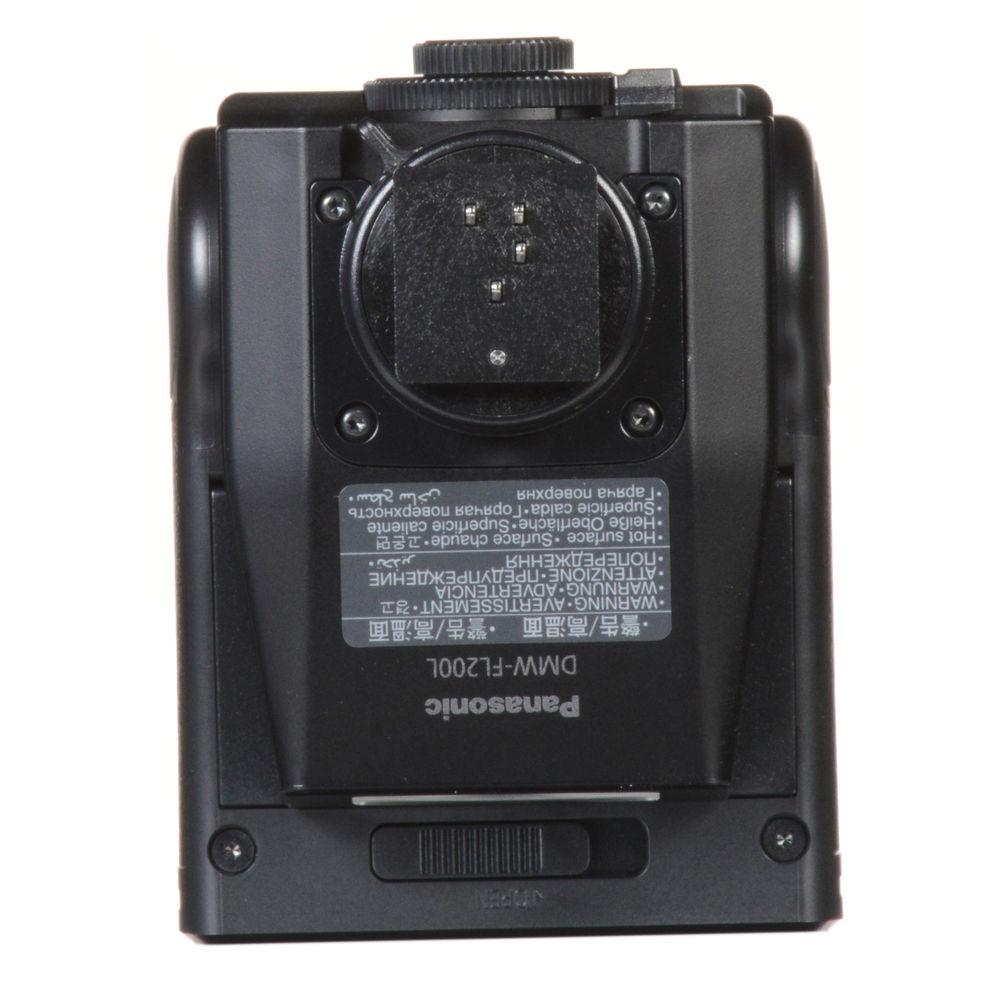

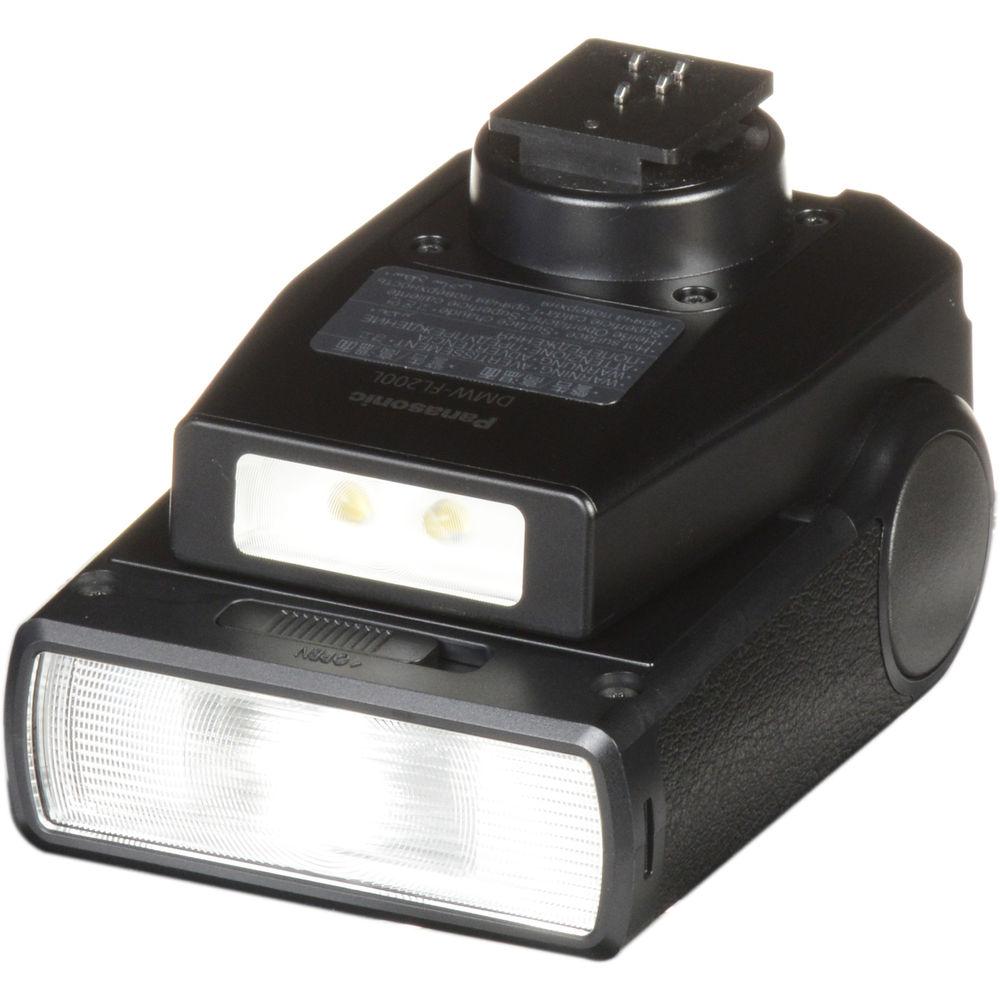

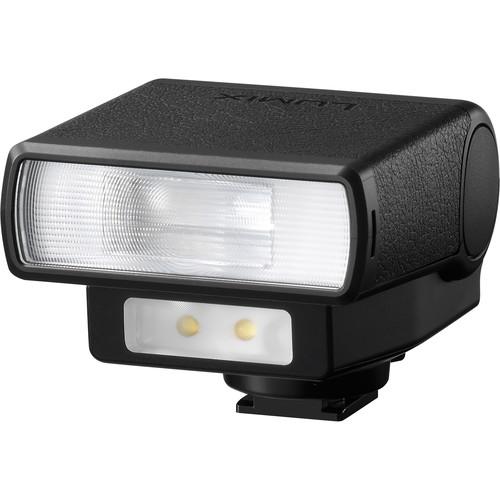

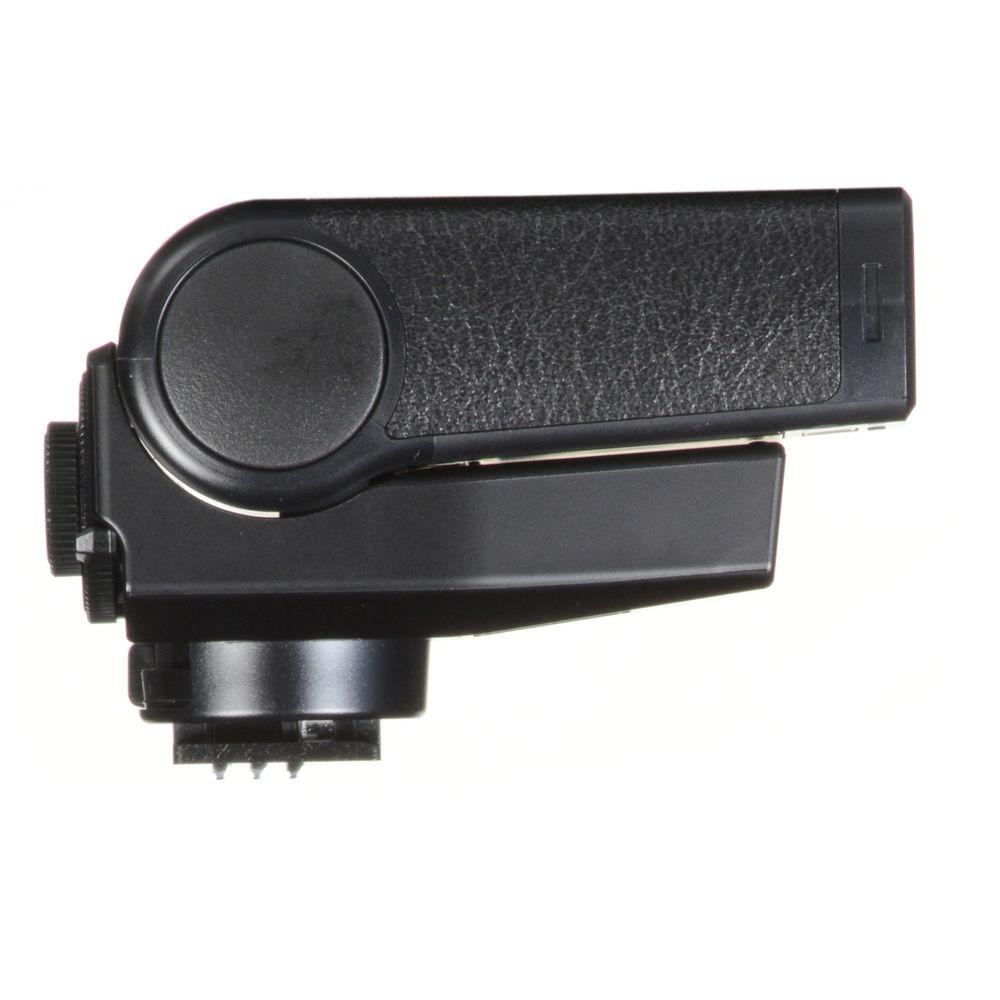

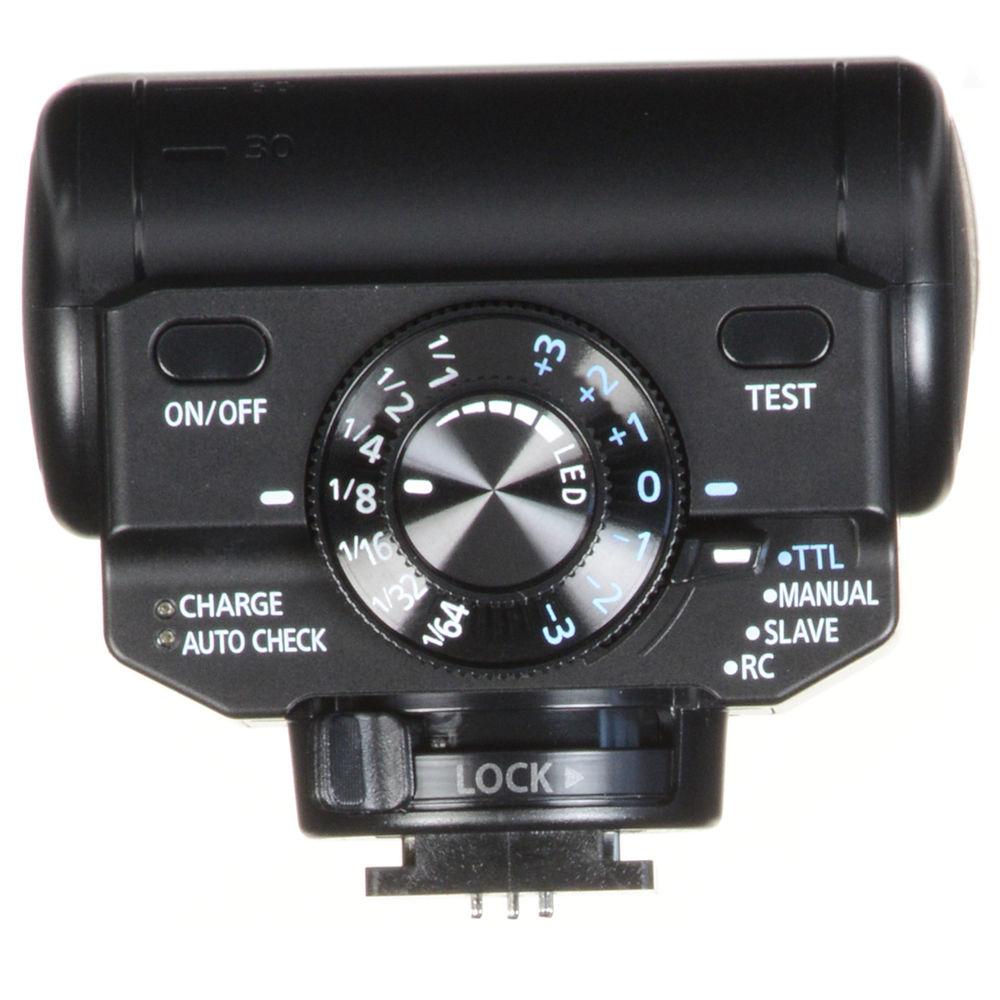

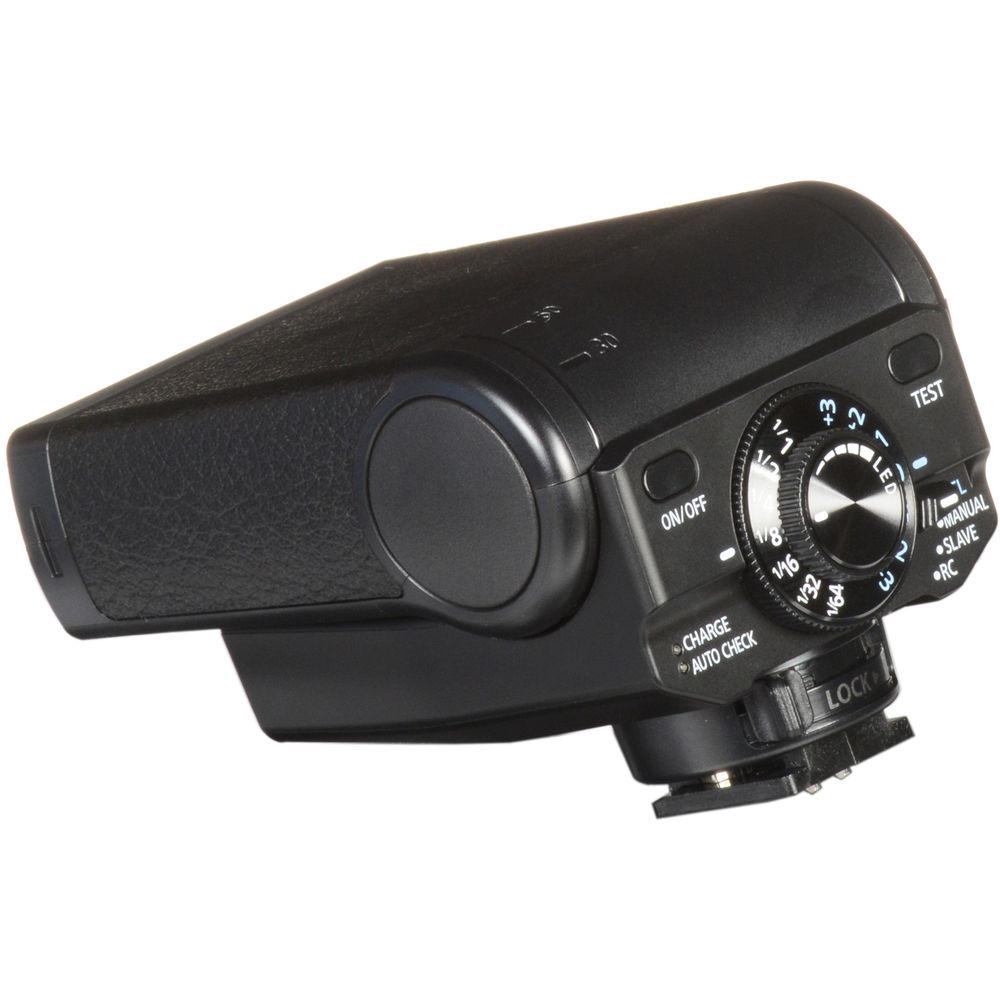

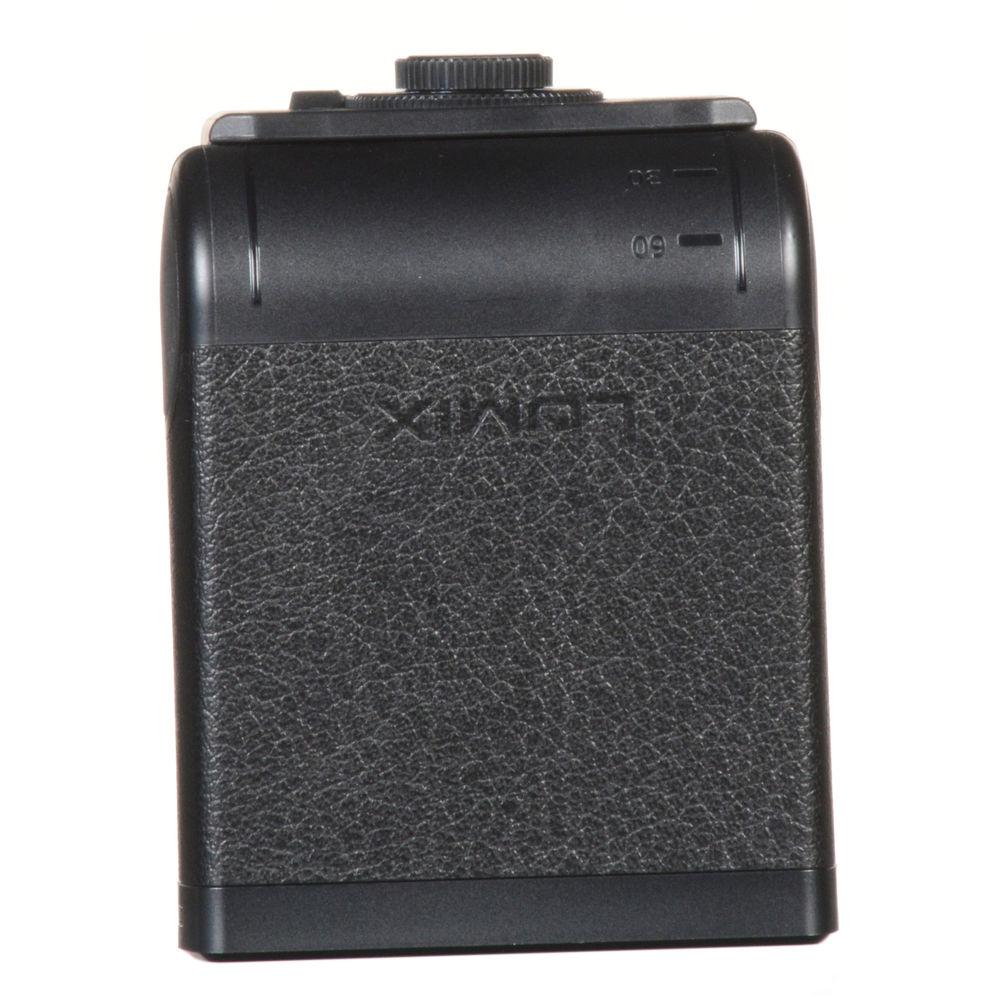

Product description Give dark locations a little more light with the Lumix DMW-FL200L External Flash from Panasonic. Optimized for their Micro Four Thirds series of mirrorless cameras, this compact flash is fully compatible with Panasonic's TTL system and offers coverage for 12mm lenses. The flash features a respectable guide number of 66' at ISO 100 considering its size and has a wide-angle panel that will expand coverage to ultra-wide 7mm optics. Bounce capabilities from 0-90° are available and an LED light can illuminate your videos with a manually controlled output of up to 200 lux at 3.3'.
A key feature of the DMW-FL200L is its wireless functionality. It can be used as either a slave or master unit with remote TTL support. The flash also runs on two easy to find AA batteries and will recycle in just 3-4 seconds after a full power flash. - Equivalent coverage on 35mm format is 24-100mm, and 14mm with the wide-angle panel
- Approximately 120 flashes with alkaline batteries and 200 with NiMH batteries
- AF assist light with range of 3.3-16.4'
- Flash duration of 1/50,000 to 1/250 second
- Wireless control function has access to 4 channels and 3 groups
- Exposure compensation from -3 to +3 EV is available
UPC: 885170286986 In the Box Panasonic Lumix DMW-FL200L External Flash Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic Lumix DMW-FL200L External Flash in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic DMW-FL200L Specs | Mount | Shoe | | Guide No. | 65.62' / 20 m ISO 100 at 12 mm Position
45.93' / 14 m ISO 10 at 7 mm Position | | Exposure Control | Manual, TTL | | Vari-Power | 1/1 to 1/64 | | Bounce Head | 0 to +90° | | Swivel Head | None | | Coverage | 14 - 24 mm (Full Frame) | | Zoom Head | None | | Off-Camera Terminal | None | | Recycle Time | Approximately 3 to 4 Seconds | | Flash Duration | 1/50000 to 1/250 sec | | Flash-Ready Indicator | Yes | | Compensation | -3 EV to +3 EV (in 1/3 EV steps) | | Wireless Communication Channels | 4 Channels | | Wireless Groups | 3 Groups | | Power Source | 4 x AA Alkaline, Rechargeable NiMH Batteries | | Dimensions (W x H x D) | 2.4 x 2.1 x 3.2" / 61.0 x 52.5 x 82.0 mm | | Weight | 6.35 oz / 180 g without batteries | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 4.8 x 4.0 x 3.5" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 62 owners. Add your rating and experience with the product.
