User Manual for Panasonic LUMIX DMW-FL360L External Flash Click to enlarge the picture
Contents of the user manual for the Panasonic LUMIX DMW-FL360L External Flash
- Product category: On Camera Flashes Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic On Camera Flashes
|
User manual for the Panasonic LUMIX DMW-FL360L External Flash contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|

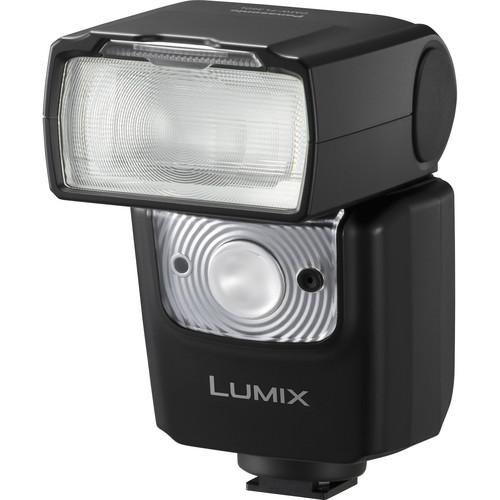

Product description Balancing size and power, the TTL-compatible LUMIX DMW-FL360L External Flash from Panasonic features an effective guide number of 118' at ISO 100 and 42mm for brightening stills as well as an LED light with 100 lux output at 3.3' for video. The zoom head has a range of 12-42mm, or down to 8mm with the built-in panel, when used on Micro Four Thirds cameras. Also, the flash head can tilt from -7 to 90° and rotate left and right 180° for complete bounce coverage. An additional feature is wireless master and slave TTL functionality where it can be used as a remote control or a slave in one of 4 channels and 3 groups.
Adding support for video shooters, the DMW-FL360L flash includes an LED light with 100 lux output at 3.3'. This light also functions as an AF assist during stills shooting. The flash is even capable of high-speed sync and it has a recycle time of 1.5 to 2 seconds. Additionally, it runs on 4 AA batteries and comes with a stand and case. - Equivalent coverage on 35mm format is 24-85mm, and 16mm with the wide-angle panel
- Approximately 250 flashes with alkaline batteries and 350 with Ni-MH batteries
- LED light has effective range of 3.3-16.4'
- Built-in bounce card for creating catchlights
UPC: 885170110731 In the Box Panasonic LUMIX DMW-FL360L External Flash Flash Stand Flash Case Limited 90-Day Warranty User Manual PDF 7.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic LUMIX DMW-FL360L External Flash in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic DMW-FL360L Specs | Mount | Shoe | | Guide No. | 118.11' / 36 m ISO 100 at 42 mm Position | | Exposure Control | Manual | | Angle of Coverage | 84.1° - 28.9°
Wide-Angle Adapter: 107° | | Bounce Head | -7 to +90° | | Swivel Head | 360° | | Coverage | 16 - 85 mm (Full Frame) | | Zoom Head | Full Frame: 24 - 85 mm | | Off-Camera Terminal | None | | Recycle Time | Approximately 1.5 to 2 Seconds | | Flash Duration | 1/20000 to 1/500 sec | | Flash-Ready Indicator | Yes | | Compensation | -5 EV to +5 EV (in 1/3 EV steps) | | Wireless Communication Channels | 4 Channels | | Wireless Groups | 4 Groups | | Power Source | 4 x AA Alkaline, Rechargeable NiMH Batteries | | Dimensions (W x H x D) | 2.4 x 4.1 x 3.9" / 61.0 x 104.1 x 99.1 mm | | Weight | 9.06 oz / 257 g without batteries | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 7.0 x 3.8 x 3.7" |
