Product description

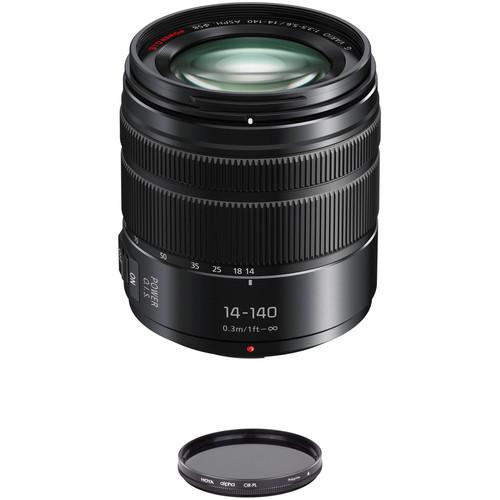

• Panasonic Lumix G Vario 14-140mm f/3.5-5.6 ASPH. POWER O.I.S. Lens A truly versatile all-in-one zoom, the Lumix G Vario 14-140mm f/3.5-5.6 ASPH. POWER O.I.S. Lens from Panasonic is designed for Micro Four Thirds mirrorless cameras and provides a 28-280mm equivalent focal length range. POWER O.I.S. (Optical Image Stabilizer) benefits this expansive wide-to-tele zoom range by compensating for camera shake for sharper handheld shooting. The lens construction incorporates three aspherical elements and a pair of extra-low dispersion elements to minimize chromatic aberrations and distortions for greater image sharpness and clarity. Multi-coatings have also been applied to individual elements to reduce lens flare and ghosting for increased contrast and color fidelity in harsh lighting conditions.

  Complementing the imaging capabilities, this lens also features a stepping motor for fast and quiet autofocus performance that benefits both stills and movie shooting. An internal focusing design maintains the overall lens length during operation and also quickens focusing speeds.
  • Designed for Micro Four Thirds mirrorless cameras, this lens provides a 28-280mm equivalent focal length range to cover wide-angle to telephoto perspectives.
  • Three aspherical elements and two extra-low dispersion elements combine to minimize spherical and chromatic aberrations, as well as distortion, throughout the zoom range for increased clarity and sharpness.
  • Multi-coated elements help to suppress lens flare and ghosting for greater contrast and color accuracy.
  • POWER O.I.S. compensates for camera shake in order to realize sharper photos and videos when shooting handheld.
  • Stepping motor provides smooth and near-silent autofocus that pairs with an inner focusing design for quick performance. The AF system is also compatible with Lumix cameras' high-speed contrast-detection systems for focusing speeds up to 240 fps.
  • Rounded seven-blade diaphragm produces a smooth out-of-focus quality when working with shallow depth of field techniques.
  UPC: 885170251670
• Hoya 58mm alpha Circular Polarizer Filter The Hoya 58mm alpha Circular Polarizer Filter helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface. The light from the sun naturally becomes partially polarized due to reflecting off electrons in air molecules, causing the light to scatter into what appears as haze. A polarizing filter arranges, and filters, this directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of this light. This results in a noticeable reduction of glare and reflections from non-metallic surfaces and an increase in the saturation of skies and foliage.

  A circular polarizer only differs from a linear polarizer in that it contains a quarter wave plane in addition to the linear polarizing filter. The addition of this quarter wave plane is to circularly polarize the linearly polarized light for the use of auto focus and exposure functions. Due to how the light is broken down and filtered with a linear polarizer, auto focus and exposure accuracy become skewed during use. When the light becomes circularly polarized, it permits the use of these functions.

  This filter is non-coated and has approximately 96% average light transmission. It is constructed from optical glass and precision milled aluminum frames.
  • Helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface.
  • Polarizing filters arrange, and filter, directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of the light.
  • Clears up haze in distant landscapes and provides more saturated, vivid colors.
  • Strongest effect when used at a 90° angle from the sun.
  • Circular polarizers are ideal for use with digital cameras and autofocus lenses where a linear polarizer will often disrupt auto exposure and focus features.
  • Non-coated.
  • Approximately 96% average light transmission.
  • 3 to 4x filter factor reduces exposure by 1.6 to 2 stops.
  • Constructed from optical glass and precision milled aluminum frames.
  • Plastic filter case for storage and transport.
  UPC: 024066056177

• Lumix G Vario 14-140mm f/3.5-5.6 ASPH. POWER O.I.S. Lens vzbzaueezdwwesuduaufau
• Front Lens Cap
• Rear Lens Cap for Lumix G Lenses
• Lens Hood
• Storage Bag
• Limited 1-Year Warranty

• Hoya - 58mm alpha Circular Polarizer Filter

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Panasonic Lumix G Vario 14-140mm f/3.5-5.6 ASPH. POWER O.I.S. Lens

  Focal Length	14 to 140mm (35mm Equivalent Focal Length: 28 to 280mm)
  Maximum Aperture	f/3.5 to 5.6
  Minimum Aperture	f/22
  Lens Mount	Micro Four Thirds
  Format Compatibility	Micro Four Thirds
