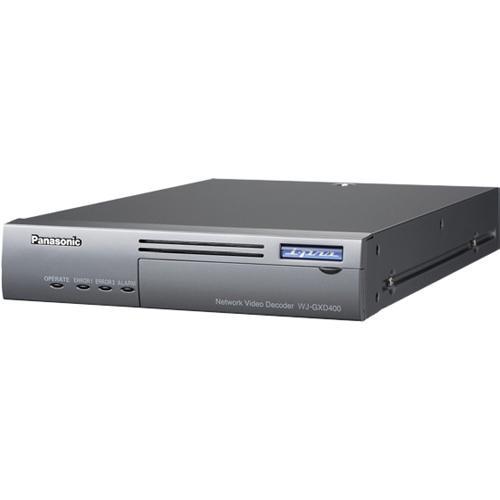

Product description The Panasonic WJ-GXD400 Multi Channel High Definition Video Decoder can be used to display multiple i-Pro megapixel network cameras or encoders on an HDMI monitor. Images can be viewed in a 3 split screen with 1 4VGA resolution image (1280 x 960) and 2 VGA resolution images, or 6 VGA resolution images simultaneously in a 6 split screen configuration. By combining images with different resolutions on the same screen, a security administrator can view critical security areas in superior detail and at the same time keep an eye on areas of lesser importance in lower resolution, thus saving network and storage resources. Regardless of resolution each image can be displayed at 30 FPS so no critical frames are missed. - Equipped with a HDMI interface supporting 1,920 x 1,080 display size
• 1x 4VGA (1,280 x 960) image with 2x VGA images or 6x VGA
• Images can be displayed in a split screen
• Each of VGA images can be displayed at 30 frames/sec
• Up to 256 cameras and encoders can be registered
• Supports tour sequence and group sequence
• Up to 64 camera groups can be registered and called up in response to power on, group sequence and schedule program
• Supports camera site alarm signal: Alarm indication can be displayed and alarm terminal output can be activated
• Supports Multicast/Unicast for efficient network usage
• Single channel audio decoding G.726
• Schedule function: Pre-programmed display mode with camera assignment can be activated by time schedule
• Selectable Multiscreen border color: White / Gray / Black / OFF
• High speed network interface (100Base-TX / 1000Base-T) and maintenance port (10Base-T)
• Setup can be made by the browser GUI
• Superior reliability with an embedded OS UPC: 791871505809 In the Box Panasonic Multi Channel High Definition Video Decoder Operating Instructions CD-ROM AC Adapter Code Label Power Cord 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic Multi Channel High Definition Video Decoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic WJ-GXD400 Specs | Signal System | NTSC | | Supported Cameras | Panasonic i-Pro series network cameras and encoders | | Channels | Multiple IP channels | | Compression | MPEG-4, JPEG (Multi-decoding) | | Resolution | 1280 x 960, 640 x 480, 320 x 240 | | Frame Rate | Up to 30 FPS | | Built-In Card Slot | No | | Video Output | HDMI x1
BNC x1 | | Audio Output | RCA x1 | | Display Modes | • Camera Group: Up to 64 Camera groups are available
• Tour Sequence: Up to 64 steps, 10 patterns. Dwell time: 3 / 5 / 10 / 15 / 20 sec
• Group Sequence: Up to 64 steps, 10 patterns. Dwell time: 3 / 5 / 10 / 15 / 20 sec
• Schedule: Up to 6 schedules
• Display Pattern: Up to 4 display patterns - Single, 3-Screen (primary screen on the left),
3-Screen (primary screen on the right), 6-Screen | | OSD | • Display ID: Up to 4 alphanumeric characters
• Camera Title: Up to 16 alphanumeric characters
• Optional Information: Up to 32 alphanumeric characters x 2 lines
• Time & Date Display ON/OFF, Time: 12 H/24 H, Date: 5 formats
• Information Display: Alarm information, Error information
• Border Line: OFF/ON (Black / Gray / White) | | Network Interface | 100Base-TX / 1000Base-T, RJ-45 Connector | | Management | User Authentification: Up to 32 users, 2 access levels
Host Authentification: Up to 32 hosts | | OSD Language | English / French / Spanish / German / Italian / Russian / Japanese | | Supported Operating Systems | Supported OS: Microsoft Windows Vista Business 32 bit, Microsoft Windows XP Home/Professional SP2
Supported Browser: Windows Internet Explorer 7.0 (Microsoft Windows Vista Business 32 bit), Microsoft Internet Explorer 6.0 SP2 (Microsoft Windows XP Home/Professional SP2) | | Alarm | • Alarm Source: Panasonic alarm command via network
• Alarm Action: Alarm message, Alarm frame, Terminal output, Alarm LED
• Alarm Reset: Auto reset, Reset command, Reset terminal input
• Error: Error message, Terminal output, Error1 / Error2 LED | | Network Protocol | TCP/IP, UDP/IP, HTTP, RTP, DHCP, DNS, DDNS, NTP | | Alarm I/O | Alarm reset input, Alarm output, Error output | | Power Requirements | 12VDC (includes AC adapter) | | Operating Temperature | 14 - 122°F (-10 ~ +50°C) | | Dimensions (WxHxD) | 8.3 x 1.7 x 12.1" (210 x 44 x 307mm) | | Weight | 4.4 lbs (2kg) | | | | Package Weight | 8.15 lb | | Box Dimensions (LxWxH) | 18.4 x 13.0 x 9.6" |
