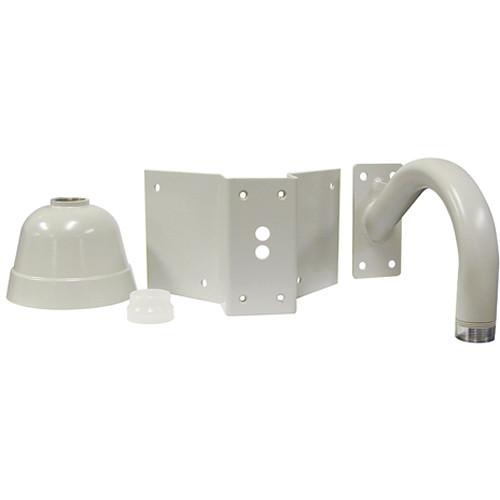

Product description The PCM484S Outdoor Corner Mount Kit from Panasonic includes the PS484S shroud pendant adapter, PWM20GB wall mount bracket, and PACA2B corner mount. It allows you to corner mount the WV-NW484S, WV-CW244F/S, and WV-CW474F/S dome cameras in outdoor locations.
The PS484S shroud pendant adapter has a 1.5" NPT thread that attaches to the 1.5" thread on the PWM20GB wall mount bracket; this assembly attaches to the PACA2B corner mount. - PS484S Indoor/Outdoor Pendant Shroud Adapter (Beige) The beige PS484S Indoor/Outdoor Pendant Shroud Adapter from Panasonic is compatible with the WV-NW474, WV-CW474, WV-NW484, WV-CW484, WV-NW502S, and WV-CW504 cameras. It has a 1.5" NPT thread that attaches to the 1.5" thread on the PWM20G, PWM20GB, and PWM20GS wall mount brackets for easy wall/pendant mounting. The adapter features an all-aluminum construction for durability.
- All-aluminum construction for durability
- 1.5" NPT thread for easy wall/pendant mounting
- PWM20GB Wall Mount Bracket for Pendant-Mount Dome Cameras The Panasonic PWM20GB is a wall mount bracket for use with pendant-mount ready, dome cameras and housings. These include the WVCW864 and WVCW864A dome cameras as well as all Ready-To-Go pendant-mount dome camera packages. It can also be used in combination with Panasonic PAPM3 and PACA2 brackets to provide corner or pole mounting.
- Standard 1.5" NPT pendant pipe tread
- Compatible with most pendant-mount cameras and camera enclosures
- All aluminum construction with powder coat finish
- Pole or corner mountable using Panasonic PAPM3 or PACA2 adapter brackets
- Supports loads up to 50 lbs
- PACA2B Corner Mount Bracket - Beige The Sanyo VDC-W1594VA is a high performance color dome camera designed for commercial security applications. Equipped with a Wide Dynamic Range function, this camera is capable of maintaining consistent image quality in all types of lighting conditions including areas with harsh back-lit situations, places containing both very dark and very bright areas within the same image or simply poorly lit environments. This makes the camera particularly suitable for use in glass enclosed lobbies, parking lots/garages, transportation facilities and other places subject to unstable lighting conditions. Furthermore, this camera can be installed indoors or outdoors, with its rugged IP66 rated enclosure providing both weather and vandal resistant camera protection.
- Mounts to the outside corner of a building providing two-wall camera support
- Compatible with most Panasonic wall-mount brackets as well as all Ready-To-Go wall-mount camera packages
- Durable all-aluminum construction with powder coat finish
- Easy installation with threaded bolt inserts
- Supports loads up to 60 lbs
In the Box Bundle Items PS484S Indoor/Outdoor Pendant Shroud Adapter (Beige) vvwdazudvdeybxzexrsvu PWM20GB Wall Mount Bracket for Pendant-Mount Dome Cameras PACA2B Corner Mount Bracket - Beige Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic PCM484S Outdoor Corner Mount Kit for Dome Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - PS484S Indoor/Outdoor Pendant Shroud Adapter (Beige)
| For Use with | PWM20G, PWM20GB, & PWM20GS Wall Mount Brackets | | Compatible Cameras | WV-NW474, WV-CW474, WV-NW484, WV-CW484, WV-NW502S, and WV-CW504 | | Threading | 1.5" NPT | | Dimensions (Ø x H) | 10 x 7" (254 x 178 mm) | | Weight | 3.0 lb (1.4 kg) | - PWM20GB Wall Mount Bracket for Pendant-Mount Dome Cameras
| Mount Type | Wall mount (pendant camera end) | | Construction | All aluminum | | Finish | Powder coat (Beige) | | Weight Capacity | 50 lbs (22.7 kg) | | Dimensions | 3.3 x 7 x 11" (84 x 178 x 279mm) | | Weight | 3 lbs (1.4 kg) | | | | Box Dimensions (LxWxH) | 13.2 x 9.6 x 4.2" | - PACA2B Corner Mount Bracket - Beige
| Mount Type | Corner Mount | | Construction | All aluminum | | Finish | Powder coat (${Color}) | | Dimensions | 11.6 x 7.3 x 6.7" (295 x 185 x 170mm) | | Weight Capacity | 60 lbs (27 kg) | | Weight | 4 lbs (1.8 kg) |
