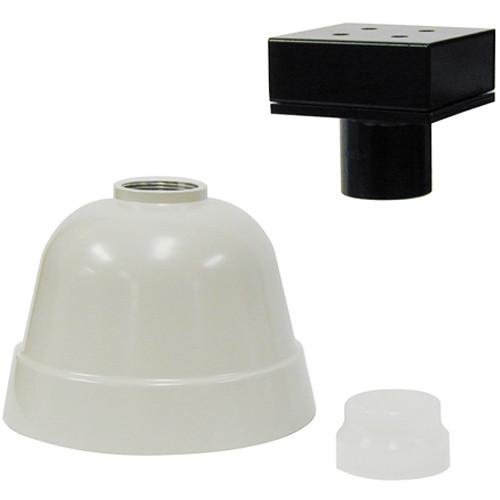

User Manual for Panasonic PHM484S Outdoor Hanging Mount Kit for WV-NW474S, WV-CW474S, WV-NW484S, and WV-CW484S Cameras Click to enlarge the picture
Contents of the user manual for the Panasonic PHM484S Outdoor Hanging Mount Kit
- Product category: Mounting Hardware Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Mounting Hardware
|
User manual for the Panasonic PHM484S Outdoor Hanging Mount Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description The beige PHM484S Outdoor Hanging Mount Kit from Panasonic is used to mount the WV-NW474S, WV-CW474S, WV-NW484S, and WV-CW484S Cameras. It includes the PS484S Pendant Shroud Adapter and a black PPMF12D Mount Bracket and Backbox. The mount bracket and backbox allow you to hang the camera using a pipe (not included) with a 1.5" (3.81cm) NPT thread. The pendant shroud adapter is a cast aluminum top cover that bolts to the base of the camera to provide a clean installation. It attaches to the tip of the pipe with a 1.5" (3.81cm) NPT thread. - PS484S Indoor/Outdoor Pendant Shroud Adapter (Beige) The beige PS484S Indoor/Outdoor Pendant Shroud Adapter from Panasonic is compatible with the WV-NW474, WV-CW474, WV-NW484, WV-CW484, WV-NW502S, and WV-CW504 cameras. It has a 1.5" NPT thread that attaches to the 1.5" thread on the PWM20G, PWM20GB, and PWM20GS wall mount brackets for easy wall/pendant mounting. The adapter features an all-aluminum construction for durability.
- All-aluminum construction for durability
- 1.5" NPT thread for easy wall/pendant mounting
- PPMF12D Mounting Bracket and Back Box for POD7C Panasonic's PPMF12D Pendant Mounting Bracket and Back Box for the POD7C (Black) lets you hang your outdoor CCTV camera using standard 1.5" (3.81 cm) NPT Pipe (not included).
The bracket includes an access hole on the side for directing wires. - Use Standard 1.5" NPT Pipe
- The Pendant Mount Bracket flush mounts directly to a ceiling or horizontal beam and has a 1.5" (3.81 cm) threaded pipe connector for use with standard NPT pipe. Buy separate pipe at your desired length or choose one of many available adjustable columns.
- Cable Management
- Route cables through the center column to protect them and keep your installation neat.
Compatible with: - Outdoor Housing for Panasonic P-T-Z Cameras
- POD7C
In the Box Bundle Items PS484S Indoor/Outdoor Pendant Shroud Adapter (Beige) rzqbtutcccayeayxtwbcyeesqfver PPMF12D Mounting Bracket and Back Box for POD7C - 4 x 5/16" Split Lockwashers
- 4 x 5/16" Hex Head Screws
Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic PHM484S Outdoor Hanging Mount Kit for WV-NW474S, WV-CW474S, WV-NW484S, and WV-CW484S Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - PS484S Indoor/Outdoor Pendant Shroud Adapter (Beige)
| For Use with | PWM20G, PWM20GB, & PWM20GS Wall Mount Brackets | | Compatible Cameras | WV-NW474, WV-CW474, WV-NW484, WV-CW484, WV-NW502S, and WV-CW504 | | Threading | 1.5" NPT | | Dimensions (Ø x H) | 10 x 7" (254 x 178 mm) | | Weight | 3.0 lb (1.4 kg) | - PPMF12D Mounting Bracket and Back Box for POD7C
| Construction | Steel | | Dimensions | 4.0 x 3.75 x 4.0" (10.16 x 9.53 x 10.16 cm) | | Weight | 8.0 lb (3.63 kg) |
