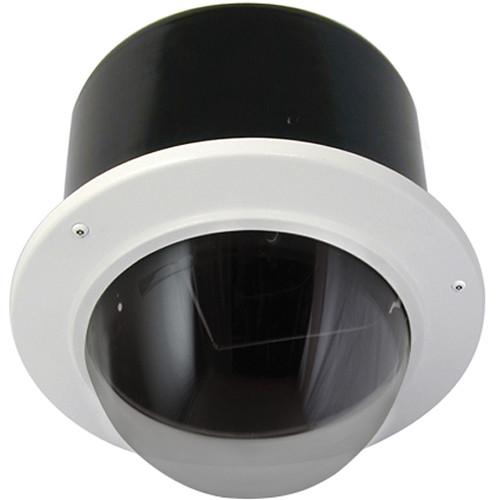

User Manual for Panasonic PIDV7SN Vandal-Proof Indoor Recessed Ceiling-Mount Housing for Dome Cameras Click to enlarge the picture
Contents of the user manual for the Panasonic PIDV7SN Vandal-Proof Indoor Recessed Ceiling-Mount
- Product category: Housings Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Housings
|
User manual for the Panasonic PIDV7SN Vandal-Proof Indoor Recessed Ceiling-Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description The smoked PIDV7SN Vandal-Proof Indoor Recessed Ceiling-Mount Housing from Panasonic is designed for the WV-CS954, WV-NS954, WV-CS574, and WV-NS202A Dome Cameras. It features an optically correct 7” (118mm) vandal-proof polycarbonate smoked lower dome and a plenum-rated stamped aluminum back box.This ceiling mount can be installed in either sheetrock or drop ceilings. The upper body is made of stamped steel and a white die-cast aluminum trim ring gives the housing a clean look. Three spring clips allow for adjustment to the ceiling thickness. - Designed for the WV-CS574, WV-CS954, WV-NS954, and WV-NS202A Dome Cameras
- Easy installation into sheetrock or drop ceilings
- Heavy-duty vandal-proof construction
- Durable 7" polycarbonate dome
- Housing extends only 3.7" below ceiling
- Plenum-rated stamped aluminum back box
- Includes a trim ring with security screws
Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic PIDV7SN Vandal-Proof Indoor Recessed Ceiling-Mount Housing for Dome Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic PIDV7SN Specs | For Use with | WV-CS574, WV-CS954, WV-NS954, WV-NS202A Dome Cameras | | Construction | Metal Back Box: 0.08" (2.03 mm) stamped aluminum
Trim Ring: Die-cast aluminum
Lower Dome: Optically correct, injection-molded polycarbonate | | Knockouts | 0.875" (22.23 mm) for electrical input | | Height from Ceiling Panel | Extends 3.7" (94.0 mm) below ceiling | | Dimensions (Ø x H) | 11.8 x 11.5" (299.7 x 292.1 mm) | | Dome Diameter | 7" (118 mm) | | Weight | 8.0 lb (3.6 kg) without camera |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 11 owners. Add your rating and experience with the product.
