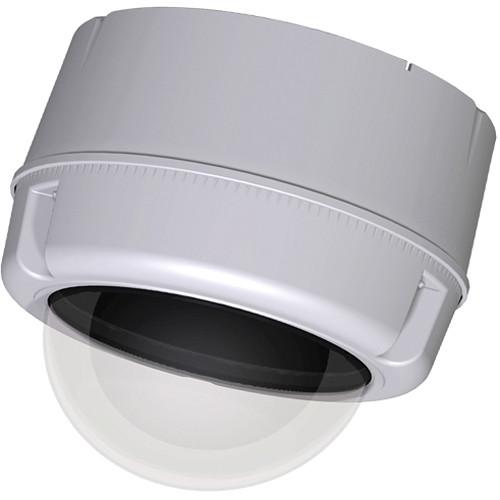

User Manual for Panasonic PISM5V Vandal-Resistant Indoor Dome Housing for Select Panasonic PTZ Network Dome Cameras Click to enlarge the picture
Contents of the user manual for the Panasonic PISM5V Vandal-Resistant Indoor Dome Housing
- Product category: Housings Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Housings
|
User manual for the Panasonic PISM5V Vandal-Resistant Indoor Dome Housing contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description The PISM5V Vandal-Resistant Indoor Dome Housing from Panasonic is used with the WV-NS202A, WV-NF302, WV-NF284, WV-CF294, WV-SC385, and BB-HCM 403/580/581 PTZ Network Dome Cameras. It comes with a clear bubble.The upper dome housing is manufactured from high-impact polycarbonate with a UL flame rating of 94-V0 to ensure vandal resistance. It features reflective white paint and insulates the internal equipment. The lower dome is made of injection-molded optically-clear thermoplastic polycarbonate. It is held in place by 3 captive fasteners that press it against a sealing O-ring. The wiring enters through the top of the housing or through a 0.875" opening (for 1/2" conduit) on the side of the housing. The included safety cable holds the dome while servicing. - Compact, vandal-resistant, high-impact polycarbonate construction
- Optically-transparent UV-stabilized thermoplastic polycarbonate capsule
- IP66 rating for camera protection
- Multiple Mounting Options: Surface, pendant, or wall mount (available separately)
- 0.875" (22.2mm) side knockout for 1/2" conduit
UPC: 608938396716 In the Box Panasonic PISM5V Vandal-Resistant Indoor Dome Housing for Select Panasonic PTZ Network Dome Cameras (Clear Bubble) Safety Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic PISM5V Vandal-Resistant Indoor Dome Housing for Select Panasonic PTZ Network Dome Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic PISM5V Specs | Compatible with | WV-NS202A, WV-NF302, WV-NF284, WV-CF294, WV-SC385, and BB-HCM 403/580/581 PTZ Network Dome Cameras | | | | Upper Housing | Polycarbonate, 94-VO flame rated, and UV protected | | Lower Dome | Optically clear, thermoplastic polycarbonate | | Mounting Options | Surface, pendant, and wall mount (available separately) | | | | Certifications | RoHS compliant, UL listed, CE, UL flame rating of 94-V0 | | Ingress Protection Rating | IP66 | | | | Operating temperature | -40 to 122°F (-40 to 50°C) | | | | Dimensions (Ø x H) | 8.50 x 8.25" (215.90 x 209.55 mm) | | | | Package Weight | 4.48 lb | | Box Dimensions (LxWxH) | 11.7 x 9.2 x 9.1" |
