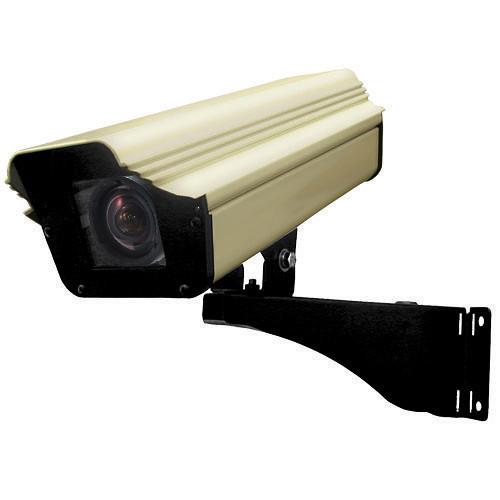

User Manual for Panasonic POC634L5 Super Dynamic 6 Box Camera Bundle Click to enlarge the picture
Contents of the user manual for the Panasonic POC634L5 Super Dynamic 6 Box
- Product category: Wired Analog & HD Cameras Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Wired Analog & HD Cameras
|
User manual for the Panasonic POC634L5 Super Dynamic 6 Box contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description The POC634L5 Super Dynamic 6 Box Camera Bundle from Panasonic includes the WV-CP634 Super Dynamic 6 700 TVL Box Camera, PLZ5/10 1/3" 5.0-50.0mm CS-Mount Varifocal Lens, and POH1000HB 10" Outdoor Fixed Camera Housing.The WV-CP634 Super Dynamic 6 Box Camera features a 1/3" interline transfer CCD image sensor and offers up to 700 TVL resolution for video surveillance in both day and night lighting conditions. This camera uses the PLZ5/10 5-50mm CS-mount lens which incorporates an advanced aspherical glass system to enhance overall brightness and sharpness in areas with varying light sources while acting to reduce focus shift when used with B&W cameras.The POH1000HB Outdoor Housing accommodates a combination of a fixed camera and lenses up to 10" in length. In addition to a rugged aluminum construction, this housing uses a built-in heater and blower to protect the camera from extremes of heat or cold. - WV-CP634 Super Dynamic 6 700 TVL Box Camera (No Lens) Featuring a 1/3" interline transfer CCD image sensor, the WV-CP634 Super Dynamic 6 700 TVL Box Camera from Panasonic offers up to 700 TVL resolution for video surveillance in both day and night lighting conditions. Equipped with a CS lens mount, this camera can be used with all CS-mount lenses for compatibility with a wide range of lenses (available separately). The Super Dynamic 6 combines Super Dynamic and Adaptive Black Stretch technologies to increase visibility in dark areas without degrading image quality in bright areas for clear video in a wide range of settings. An auto image stabilizer reduces blur in windy or vibrating settings, and adaptive 2D- and 3D-DNR ensure noise reduction in a variety of conditions. This camera uses coax cables for data communication, and alarm input and output terminals allow you to expand your surveillance system to create a comprehensive setup. The camera title can be displayed using up to 16 alphanumerical characters, and there is a multi-language menu.
- The Super Dynamic 6 provides better image quality by fusing Super Dynamic and ABS (adaptive black stretch) functions
- IR cut filter switches on/off to enhance sensitivity in B/W mode
- 3D color conversion function for natural color reproduction even in lower color temperature situations
- Integration of 2D-DNR and 3D-DNR for noise reduction in various conditions
- Features electronic sensitivity enhancement
- Electronic shutter from 1/100 to 1/12,000 sec
- Supports digital zoom of up to 2x
- Alarm input and alarm output terminals
- Auto image stabilizer for applications where vibration or wind is a concern
- Internal/line-lock/multiplexed vertical drive (VD2) synchronization
- Coaxial cable data communication
- 16-character alphanumeric camera title display
- Multi-language support; English, French, Italian, Spanish, German, Russian, Portuguese, Japanese
UPC: 885170213647 - PLZ5/10 1/3" 5.0-50.0mm CS-Mount Vari-Focal Lens with Auto Iris DC Optically designed for day/night use, the Panasonic PLZ5/10 vari-focal lens incorporates an advanced aspherical glass system to enhance overall brightness and sharpness in areas with varying light sources while acting to reduce focus shift when used with B/W cameras. Compact and lightweight in design, this 10x vari-focal lens is compatible with any CS-mount camera and is built to fit inside a number of camera housings.
- Vari-Focal
- A wide focal length of 5-50mm (10x) enables the use of a single camera for a wide range of viewing applications.
- Aspherical Lens
- Enhances overall brightness and sharpness in all lighting conditions while correcting focus shift in B/W cameras.
- Auto Iris DC
- Offers full iris control via an auto iris DC connection.
- Lock Mechanism
- Compact and lightweight, this durable lens is designed to fit a wide range of camera sizes and housings and employs a ring lock system to prevent zoom and focus shifting once mounting is complete.
- POH1000HB 10" Outdoor Fixed Camera Housing The Panasonic POH1000HB is a stylish outdoor housing designed to accommodate Panasonic fixed camera and lens combinations up to 10" in length. In addition to a rugged aluminum construction, this housing uses a built-in heater and blower to protect the camera from extremes of hot or cold.
- Accepts most Panasonic camera and lens combinations
- Built-in thermostatically controlled heater and blower
- Flip-top for easy camera access
- Lightweight aluminum chassis
- Accepts optional sunshield
- Terminal block interface for easy connection
- Dual conduit opening on housing bottom, sealed with rubber grommets
In the Box Bundle Items WV-CP634 Super Dynamic 6 700 TVL Box Camera (No Lens) uqctdyufrcvbcczfewqfxfwved PLZ5/10 1/3" 5.0-50.0mm CS-Mount Vari-Focal Lens with Auto Iris DC - 1 Year parts & labor warranty
POH1000HB 10" Outdoor Fixed Camera Housing Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic POC634L5 Super Dynamic 6 Box Camera Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - WV-CP634 Super Dynamic 6 700 TVL Box Camera (No Lens)
| | | Image Sensor | 1/3" interline transfer CCD | | Effective Pixels (H x V) | NTSC: 976 x 494
PAL: 976 x 582 | | Scanning Mode | 2:1 interlace scan | | Scanning Area (H x V) | 0.2 x 0.1" / 4.8 x 3.6 mm | | Scanning Frequency | NTSC:
Horizontal: 15.734 kHz
Vertical: 59.94 Hz
PAL:
Horizontal: 15.625 kHz
Vertical: 50 Hz | | TV Scan Lines | NTSC: 525 lines
PAL: 625 lines | | Horizontal Resolution | 700 TV lines | | Minimum Illumination | Color: 0.08 lux (SENS UP: OFF), 0.003 lux (SENS UP: 32x) at f/1.4
B/W: 0.008 lux (SENS UP: OFF), 0.0003 lux (SENS UP: 32x) at f/1.4 | | Signal-to-Noise Ratio | 52 dB (AGC Off, Weight On) | | White Balance | AWC (2,000 to 10,000K), ATW1 (2,700 to 6,000K), ATW2 (2,000 to 6,000K) | | Light Control | ALC / ALC+ / ELC | | AGC (Automatic Gain Control) | On (High / Mid / Low) / Off | | Super Dynamic | On / Off | | Dynamic Range | NTSC: 52 dB typical (Super Dynamic ON)
PAL: 54 dB typical (Super Dynamic ON) | | Electronic Shutter | NTSC: Off (1/60), 1/100, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000, 1/12,000 seconds
PAL: Off (1/50), 1/120 / 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000, 1/12,000 seconds | | Electronic Sensitivity UP | Off / Auto (2x, 4x, 6x, 10x, 16x, 32x)
FIX (2x, 4x, 6x, 10x, 16x, 32x, 64x, 128x, 256x, 512x) | | Digital Noise Reduction (DNR) | Low / High | | Day & Night | Auto1 / Auto2 / On / Off | | Digital Zoom | On (up to 2x) / Off | | Scene File | 2 patterns | | Video Motion Detection | Off / Motion detection / Scene change | | Privacy Zone | On (1) / On (2) / Off | | Auto Image Stabilizer | On / Off | | Camera Title | English letter, Numbers and symbols: Up to 16 characters | | Lens Mount | CS-mount | | Lens ALC Drive | DC drive | | Back Focus | ABF / Manual / switching between color and BW interlocking | | Synchronization | Internal (INT), Multiplexed Vertical Drive (VD2, NTSC only), Line-Lock (LL) | | Upside Down | On / Off | | Lens Distortion Correction | 0 to 255 | | | | Video Output | NTSC:
1 V p-p / NTSC composite
75 Ohms / BNC connector multiplexed
VD2 and control data capable
PAL:
1 V p-p / NTSC composite
75 Ohms / BNC connector multiplexed
VD2 and control data capable | | External I/O Terminals | Alarm In: 1 (Off / Alarm / VMD permit / BW)
Alarm Out: 1 (Off / Alarm / BW) | | | | Setup Method | OSD setup menu | | Language | English, Russian (for setup menu and camera title), German, French, Italian, Spanish, Portuguese (for setup menu), Japanese (only for camera title; setup menu is in English) | | Safety/EMC Standard | NTSC: UL (UL60065), FCC (Part 15 Class A), C-UL (CAN/CSA C22.2 No.60065), DOC (ICES003 Class A)
PAL: CE (EN60065, EN55022 Class B, EN55024) | | Power Source | NTSC: 24 VAC, 60 Hz, 2.5 W / 12 VDC, 220 mA
PAL: 24 VAC, 50 Hz, 2.5 W / 12 VDC, 220 mA | | Ambient Operating Temperature | 14 to 122°F (-10 to 50°C) | | Ambient Operating Humidity | Less than 90% | | Dimensions | 2.84 x 2.56 x 4.06" (7.20 x 6.50 x 10.35 cm) | | Weight | 0.77 lb (0.35 kg) | | | | Box Dimensions (LxWxH) | 9.1 x 6.2 x 5.2" | - PLZ5/10 1/3" 5.0-50.0mm CS-Mount Vari-Focal Lens with Auto Iris DC
| Mount | CS | | Imager Size | 1/3" | | Focal Range | 5-50mm (10X) | | Aperture Range | F1.6 | | Focus Operation | Manual | | Zoom Operation | Manual | | Angular Field of View | Horizontal: 5° x 51°
Vertical: 4° x 39 | | Day/Night | Yes | | Auto Iris | DC | | Power Requirements | 22mA (Max.) at DC 4V | | Dimensions (WxD) | 1.0 x 2.2"
26.6 x 56.1mm | | Weight | 3.5 oz
100 g | - POH1000HB 10" Outdoor Fixed Camera Housing
| Type | Outdoor | | Maximum Camera/Lens Size | 10" (254mm) | | Construction | Body: Extruded aluminum, powder coat beige finish
End caps: Black polycarbonate | | Power Requirements | 24 VAC | | Power Consumption | 25W | | Operating Temperature | Operating Temperature:
-20 ~ +120°F (-29 ~ +49°C)
Heater:
Activates at 50°F (10°C), deactivates at 80°F (27°C)
Blower:
Activates at 110°F (43°C), deactivates at 80°F (27°C) | | Dimensions (WxHxD) | 5.6 x 4.4 x 11" (142 x 112 x 279mm) | | Weight | 4 lbs (1.8 kg) | | | | Box Dimensions (LxWxH) | 16.9 x 6.1 x 5.1" |
